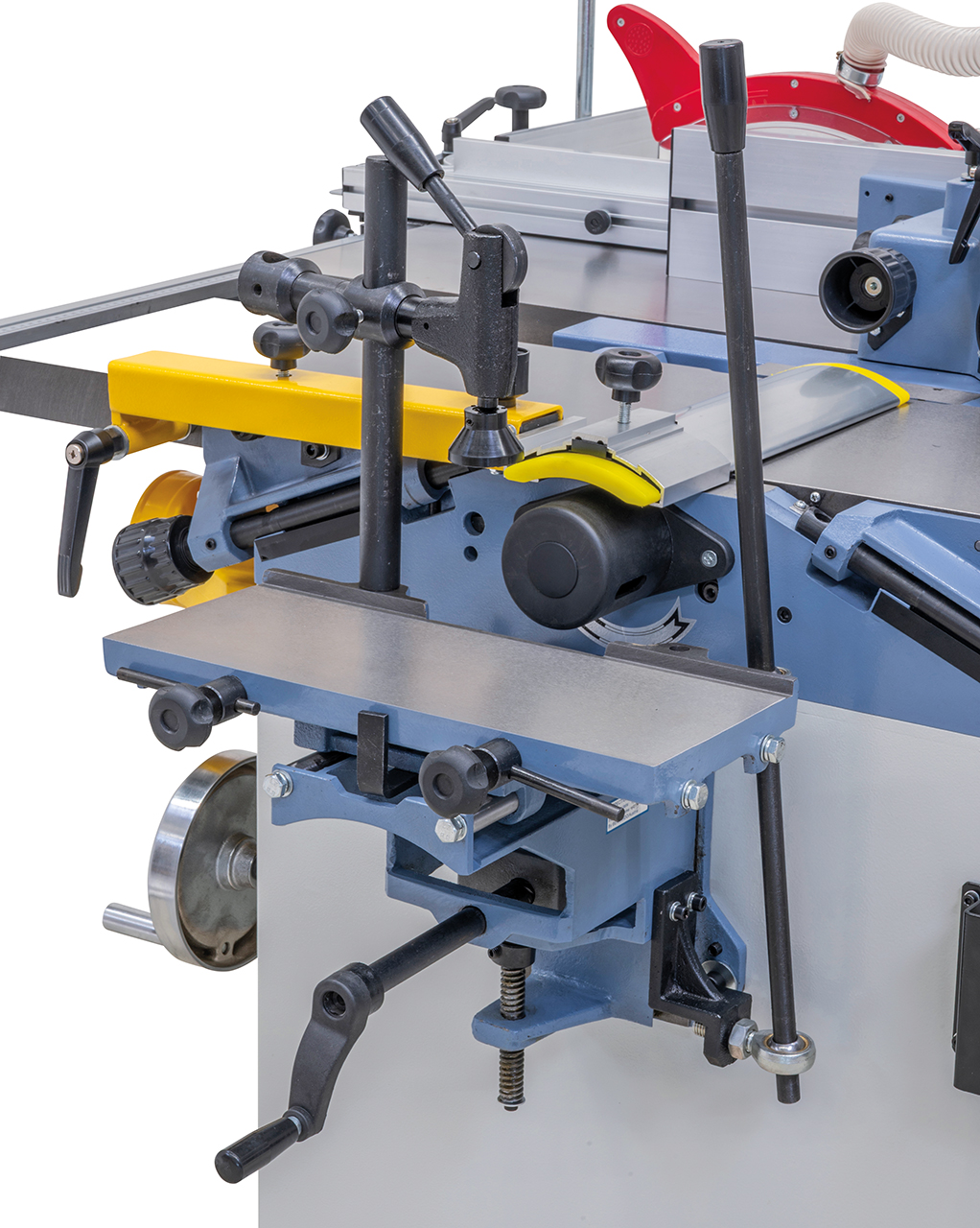

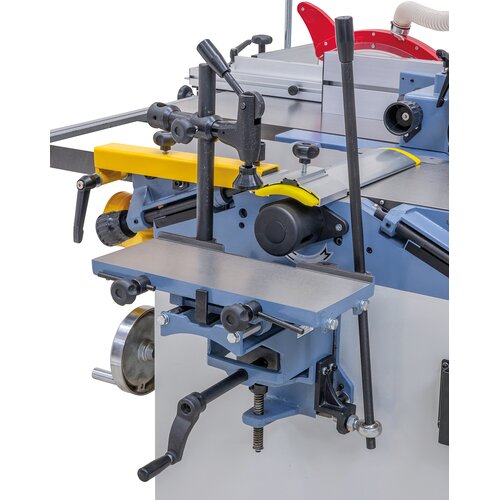

Mortising unit is ideal for drilling oblong, dowel and oblique holes (optionally).

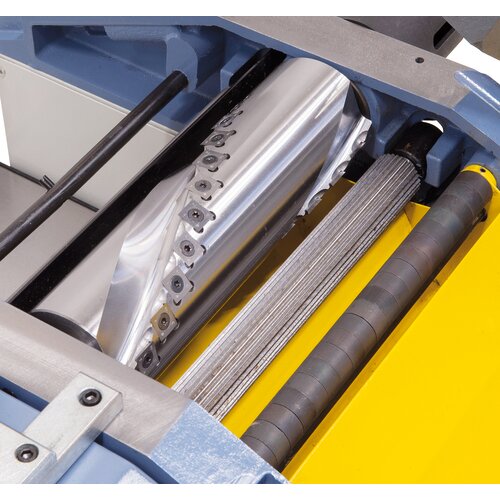

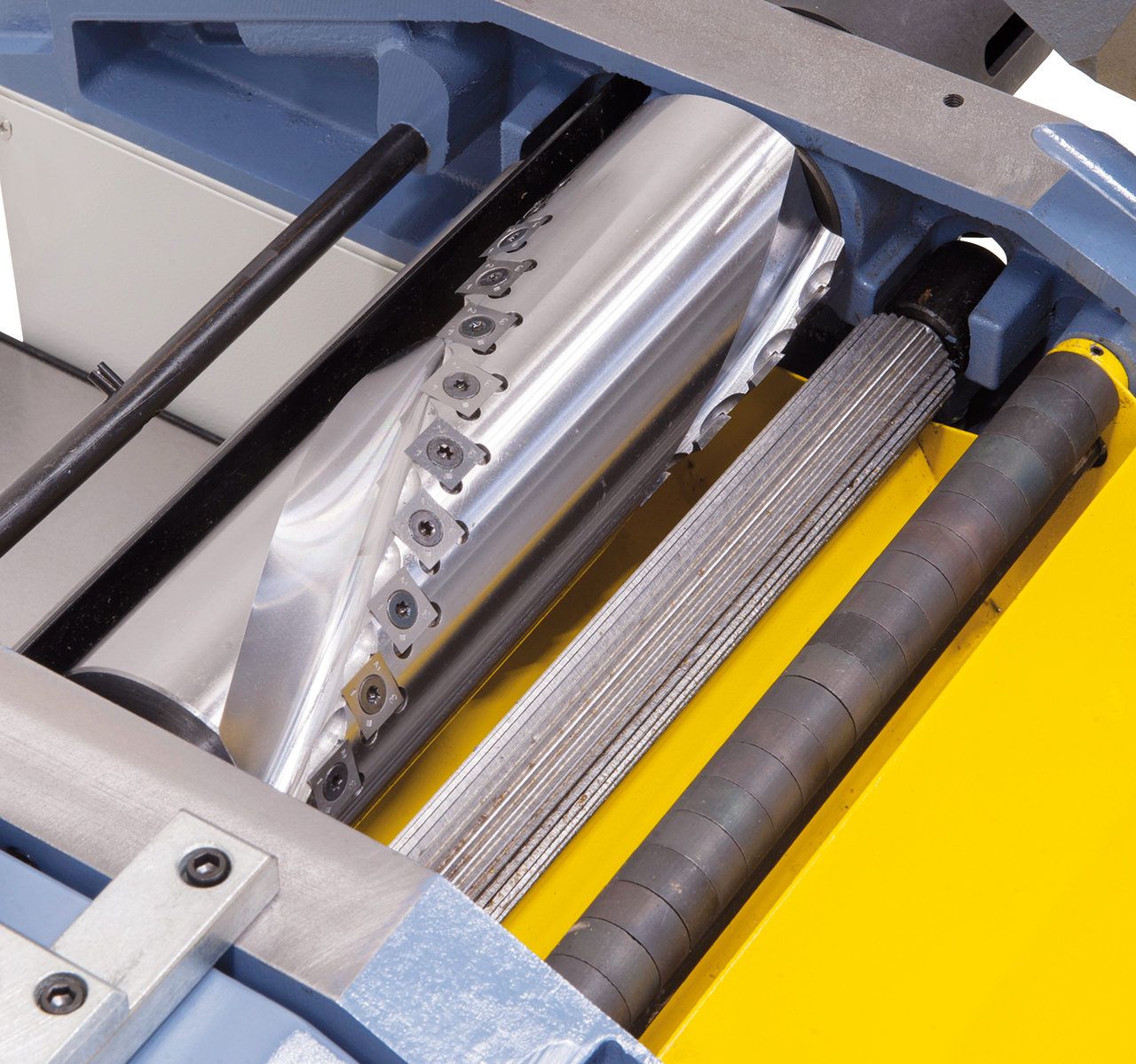

The dynamically balanced spiral cutter head ensures smooth, vibration-free planing, guarantees best results.

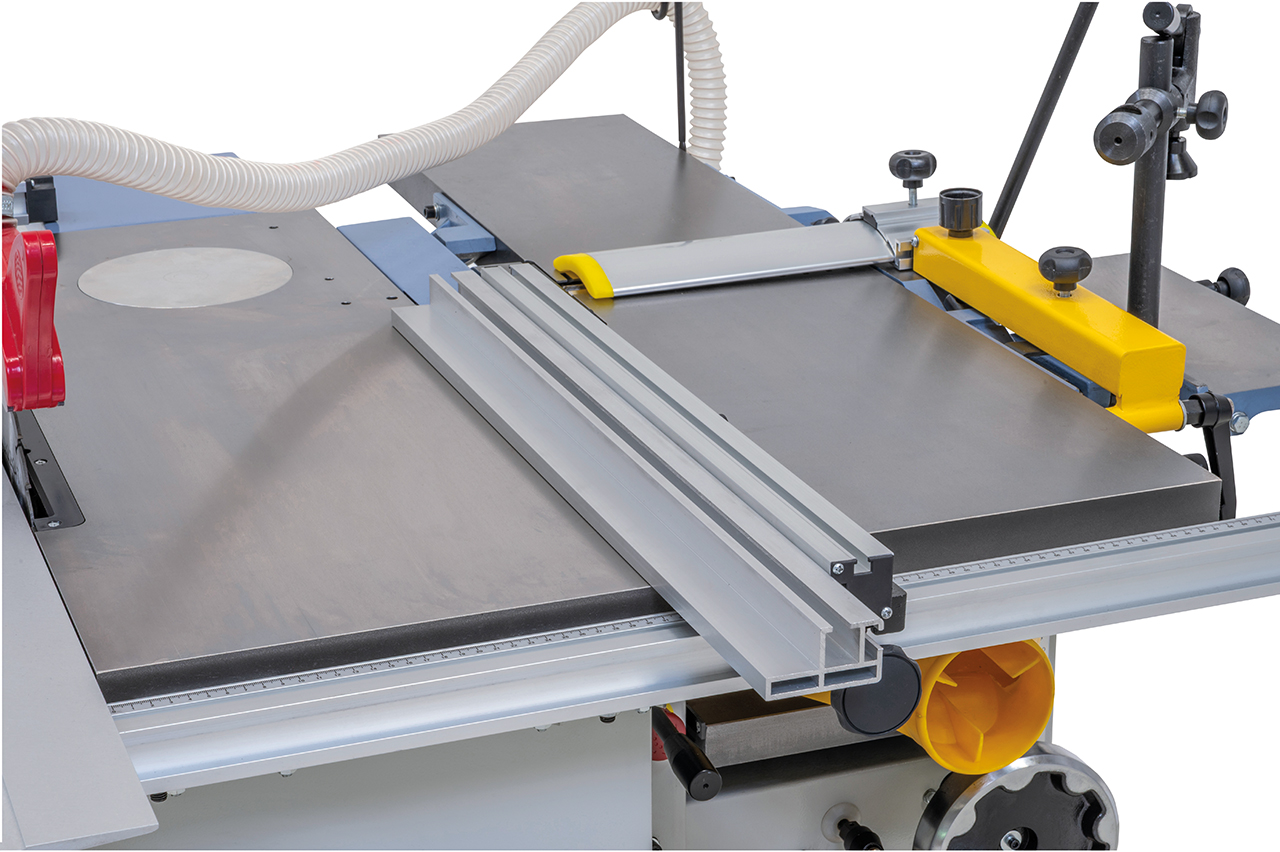

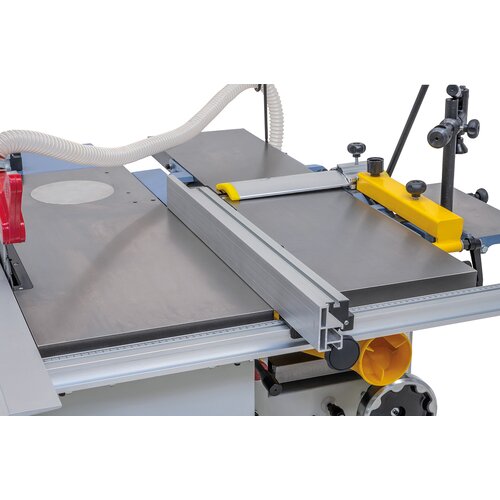

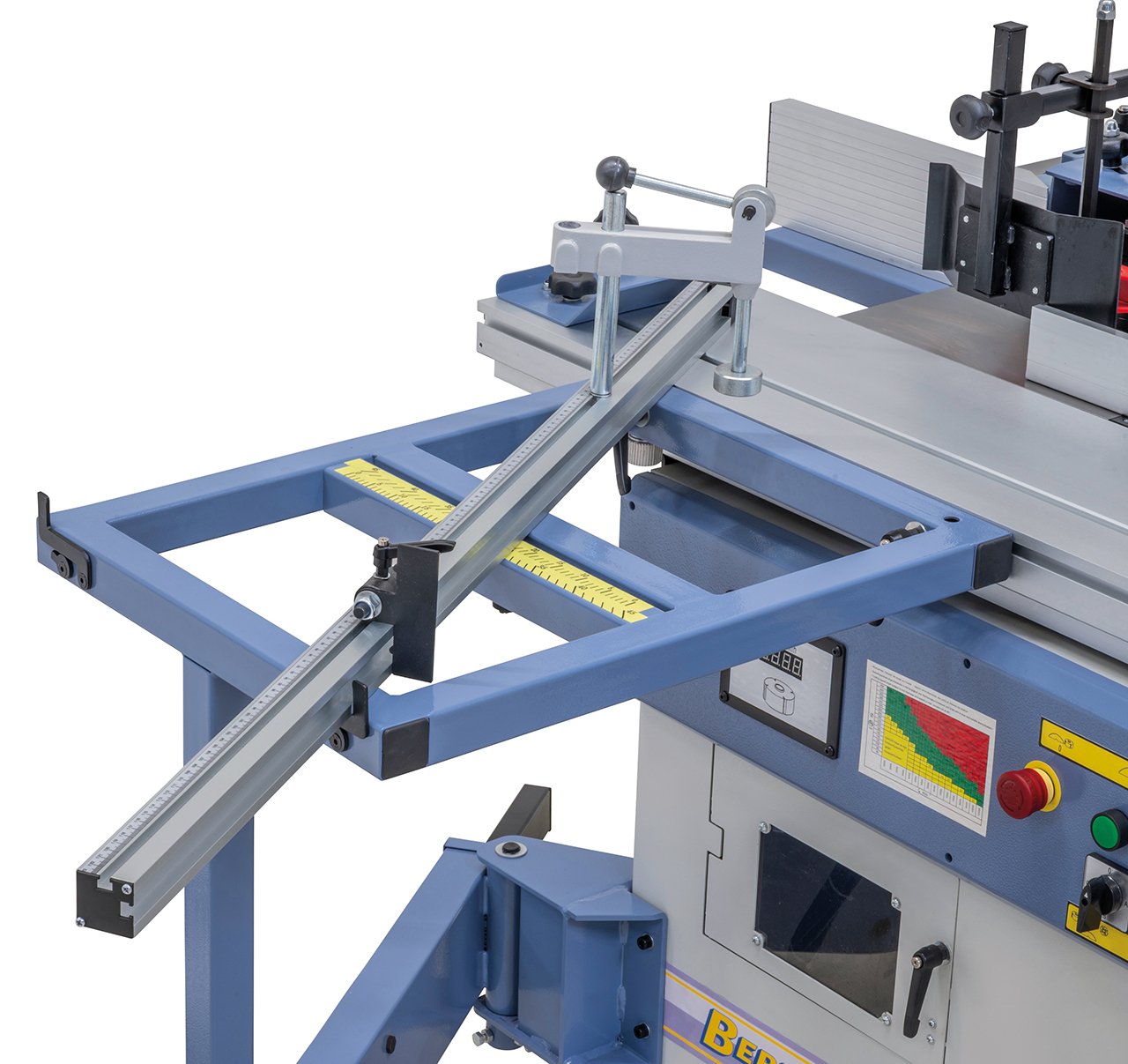

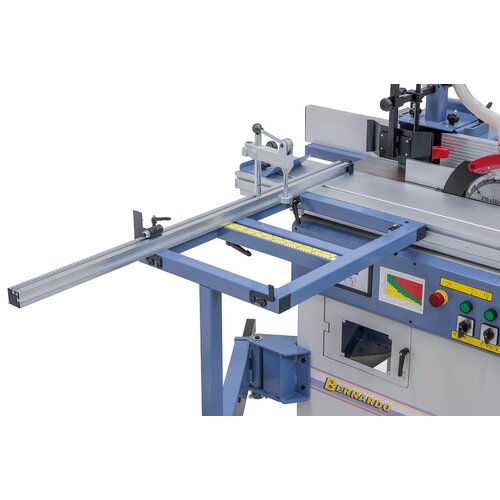

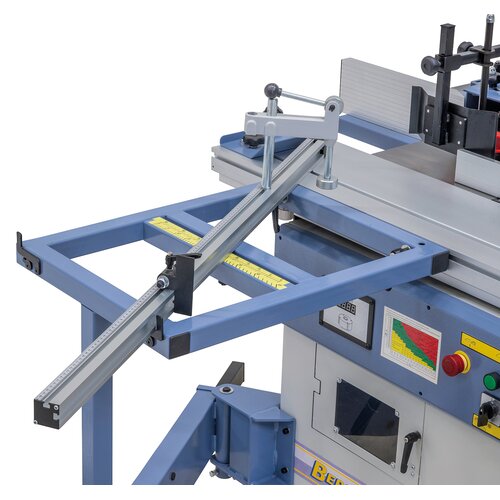

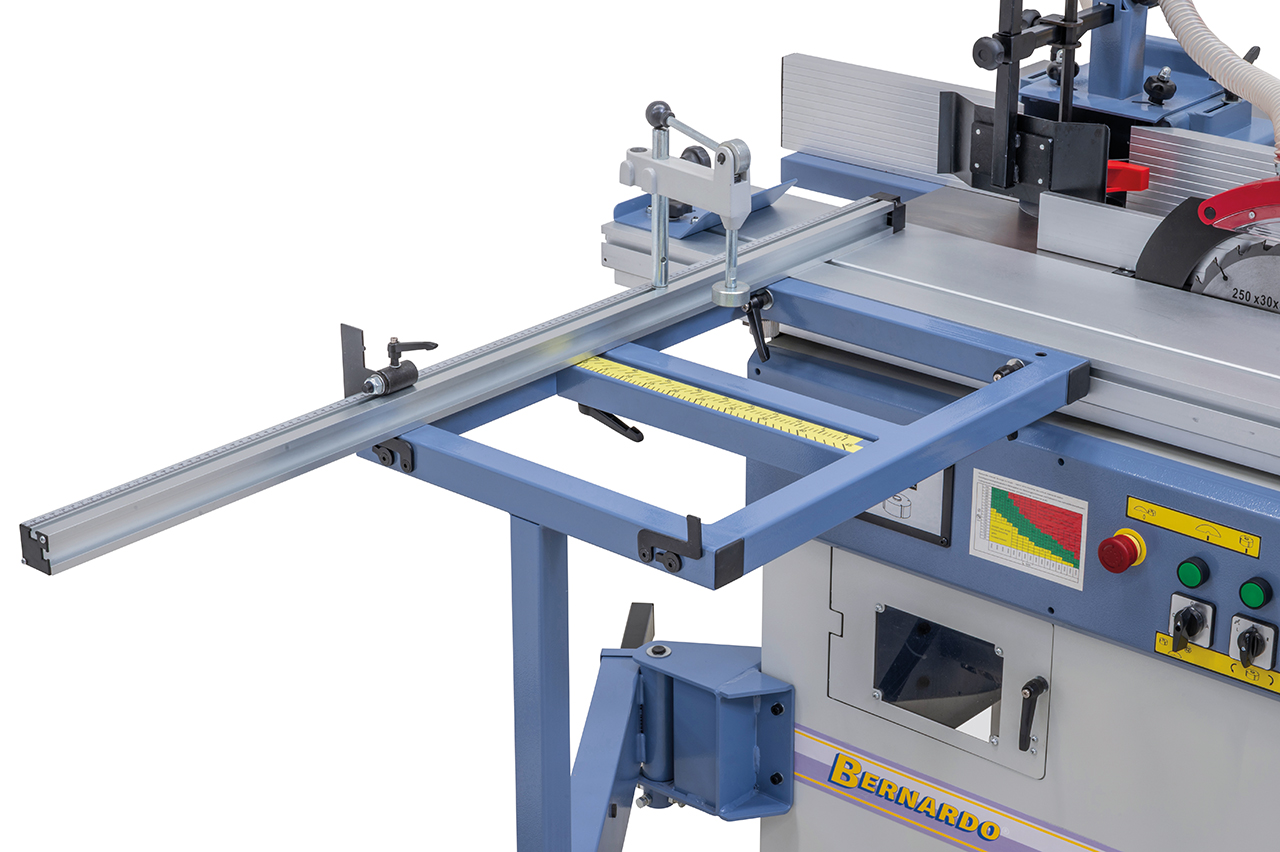

Use the torsion-free square table to cut large panel conveniently.

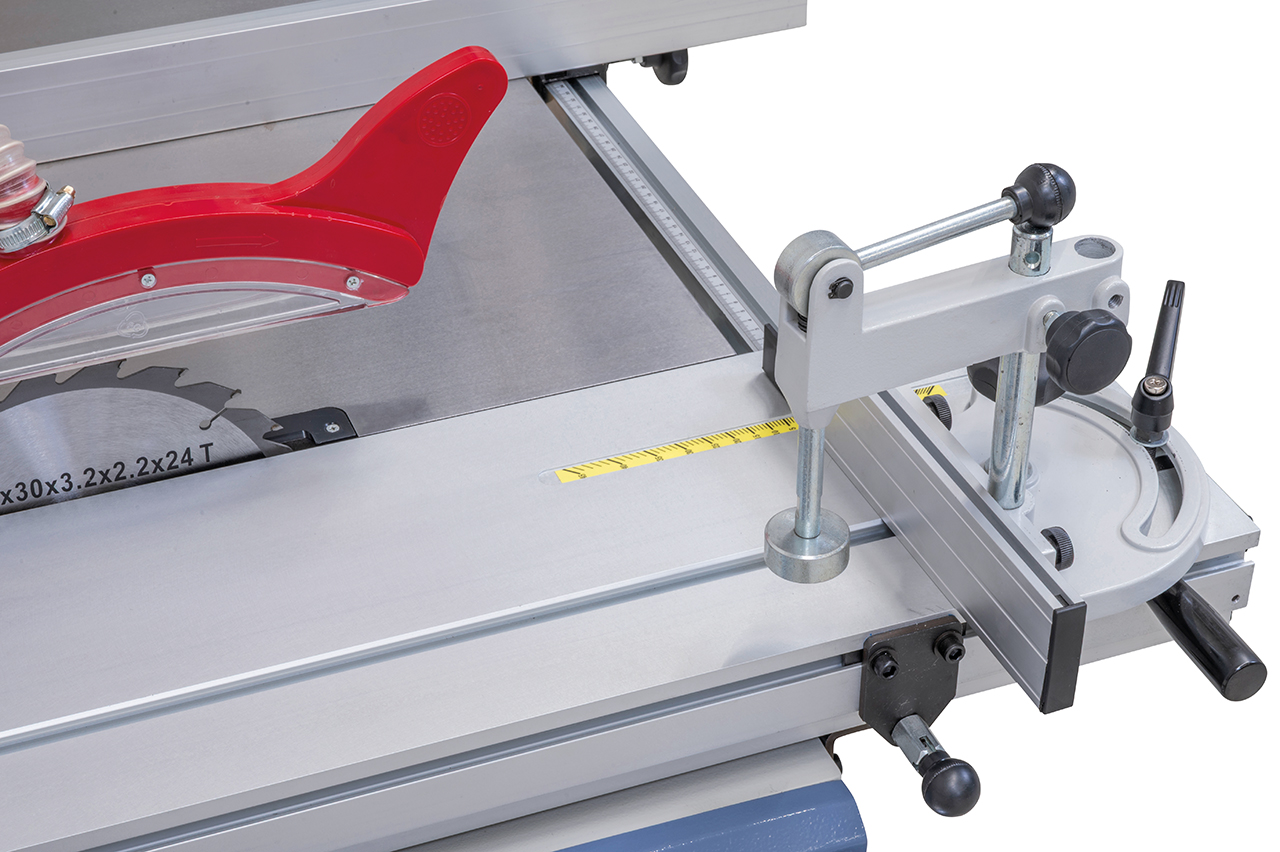

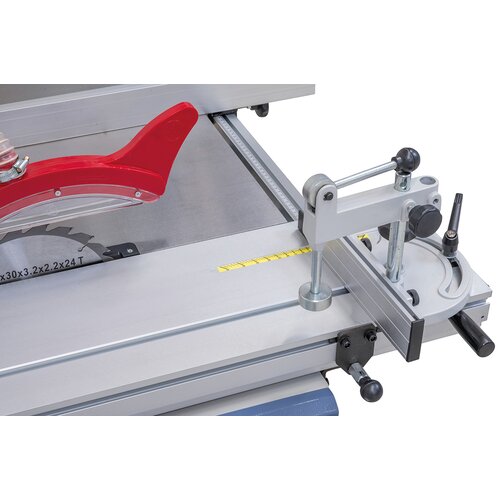

T-slot in sliding table allows mounting of mitre fence and end stop.

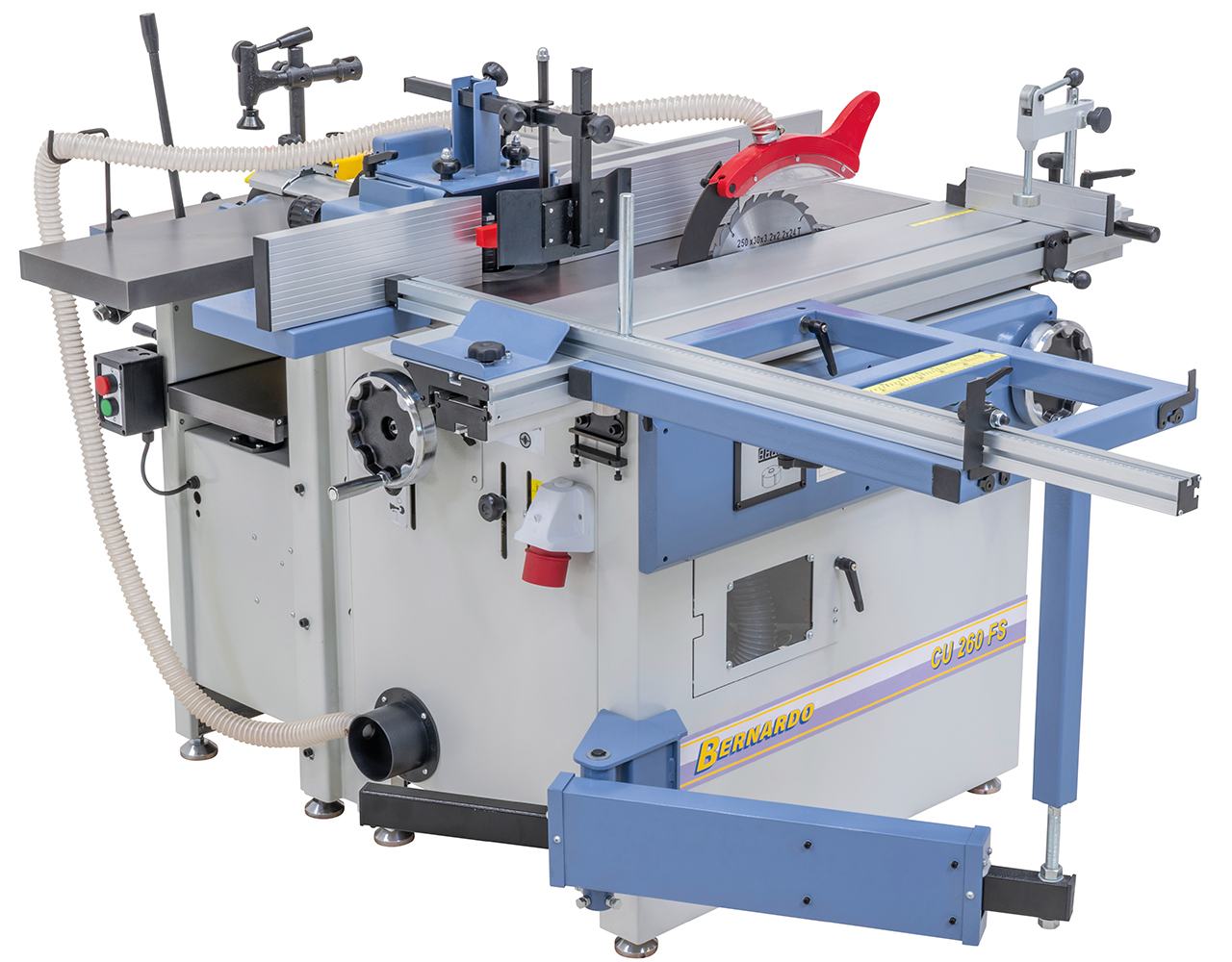

Universal-Kombimaschine CU 260 FS / 400 V

product.detail.art-no: 08-1274

Wishlist Comparison List

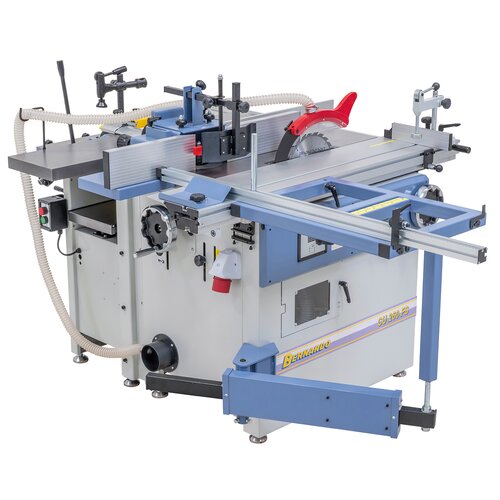

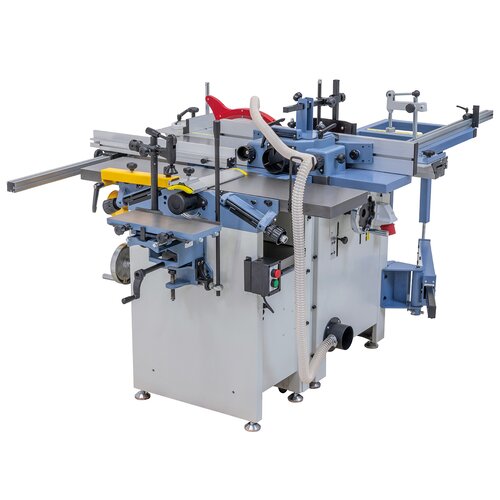

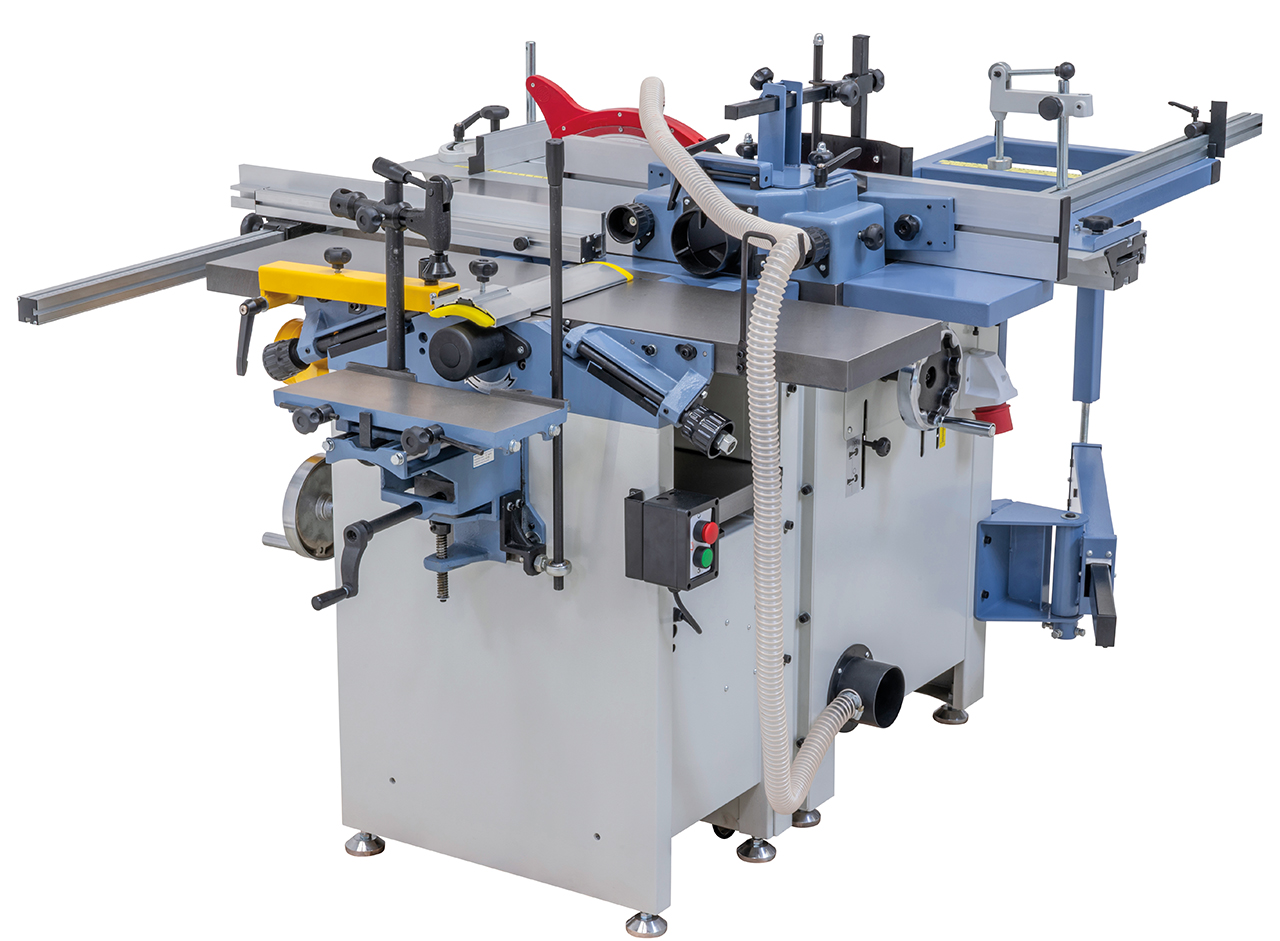

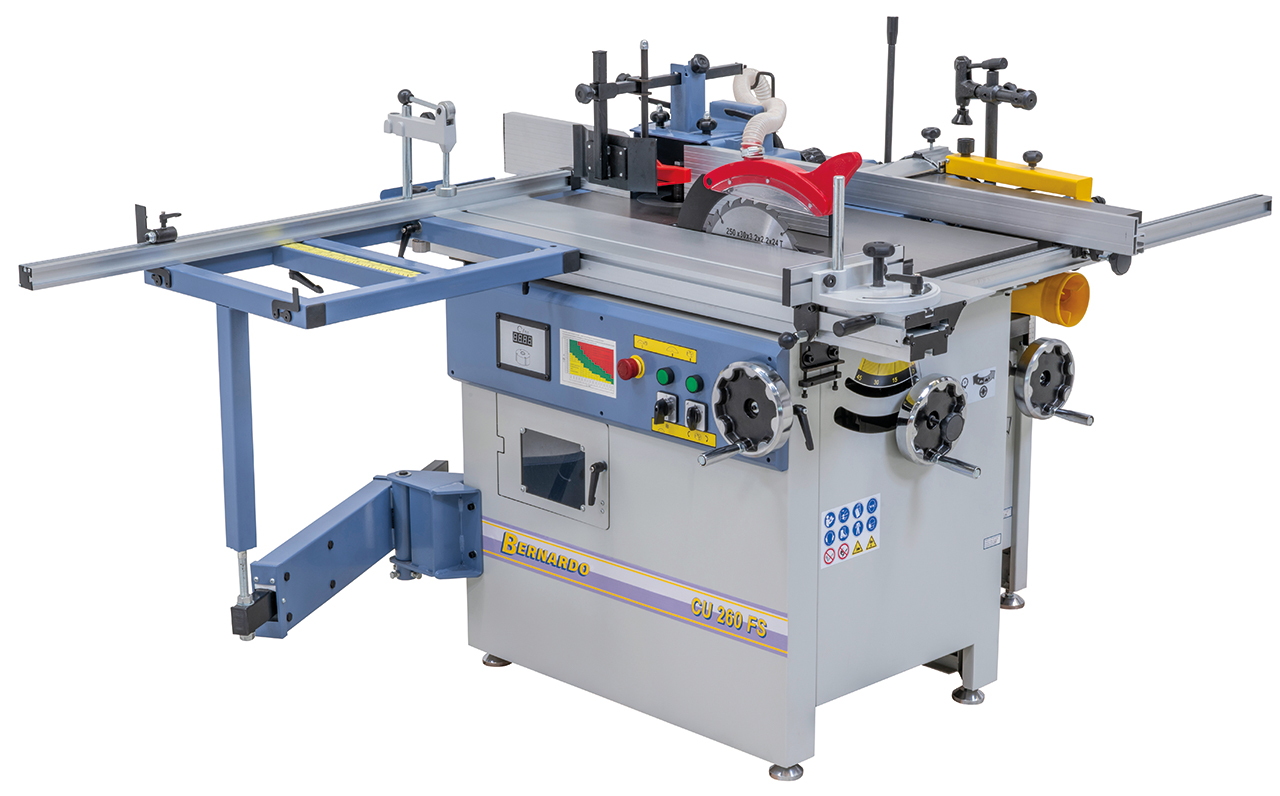

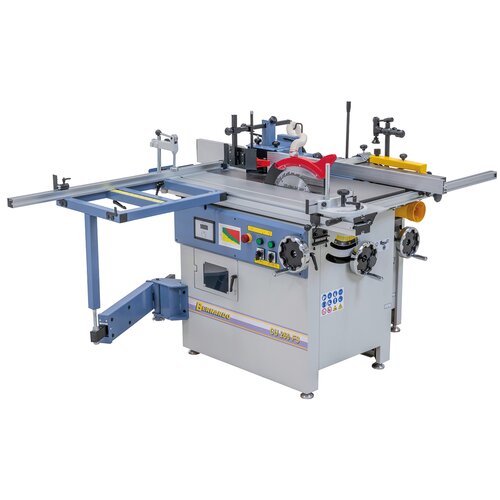

The CU 260 FS wood processing centre combines several applications on limited space: planing, sawing, milling and drilling. The standard equipment includes a spiral cutter head, four spindle speeds, a digital readout of moulding spindle speed and many more features that make this model unique and unbeatable.

4.620,00 EUR

incl. 20% VAT

Availability

In Stock

Deliverable in 2-3 business days

Product Properties

Reduction of noise level (approx. 50%) due to the standard spiral cutter head and up to 20 times the cutting edge life (results from four-way carbide inserts)
Advantage of the carbide inserts: If damaged, individual knives can be exchanged or turned
The carbide blades ensure tear-free planing results and optimal surfaces with any type of wood
Optional with mortising unit (16 mm capacity) available

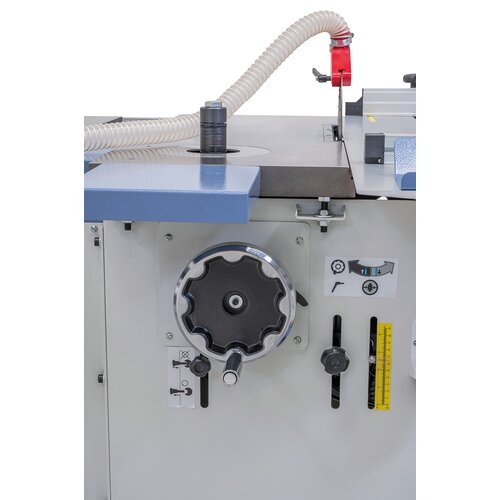

Quick and easy readout of spindle speed on digital display

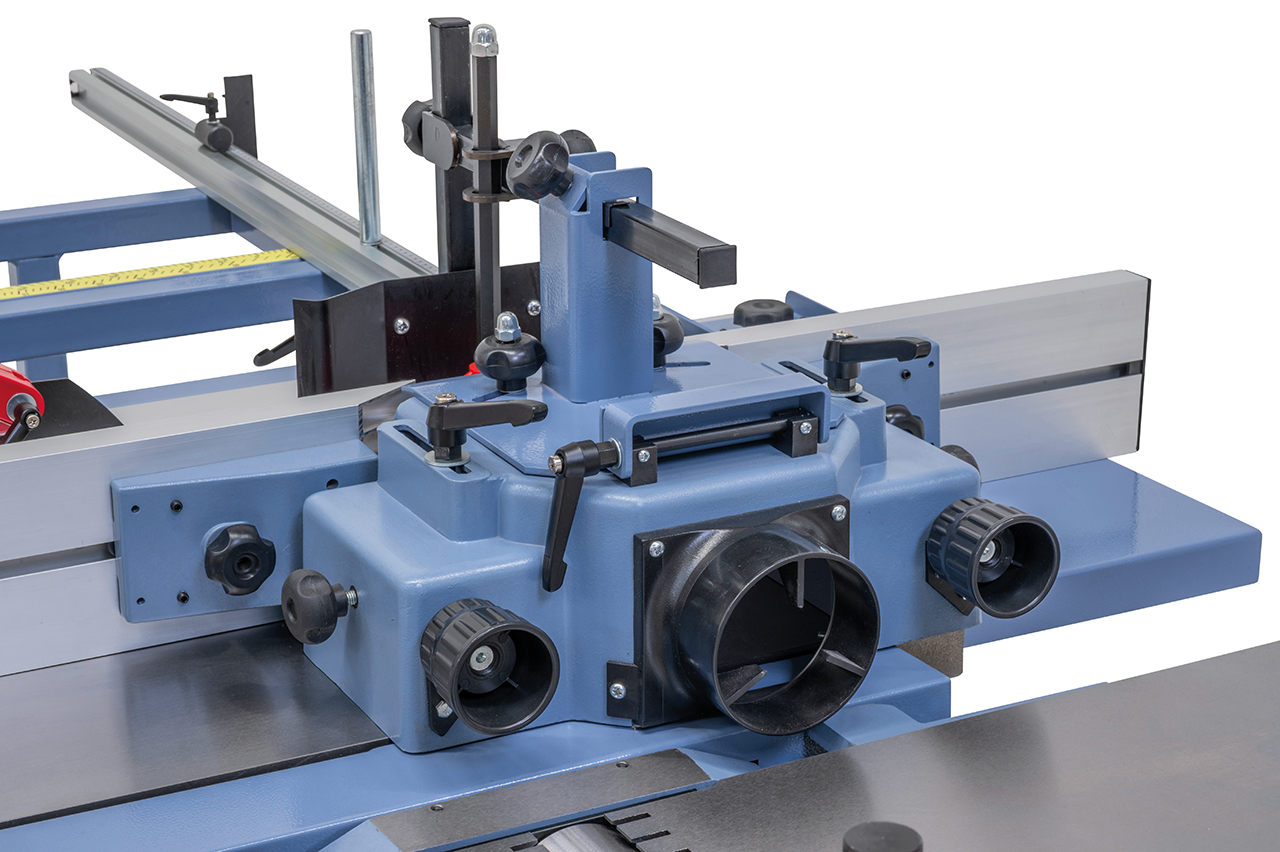

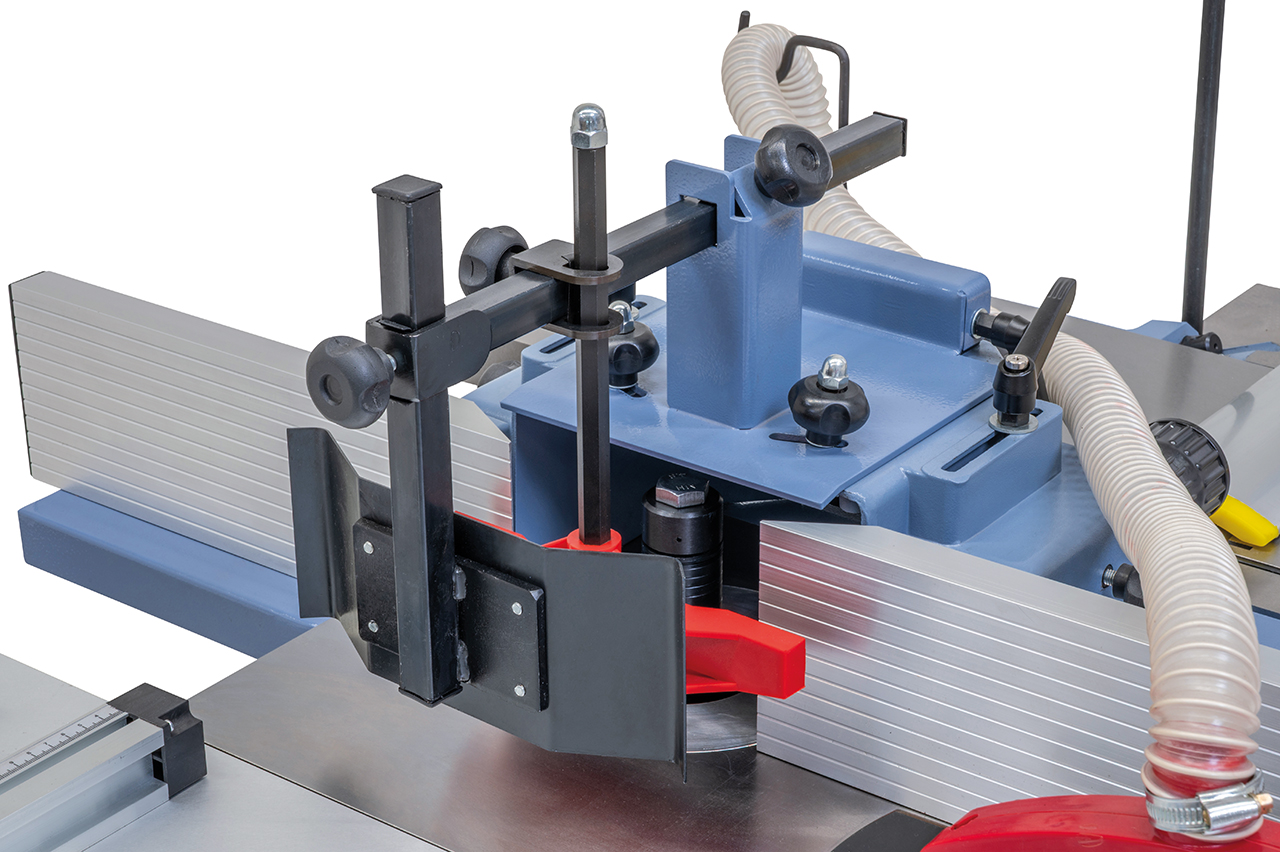

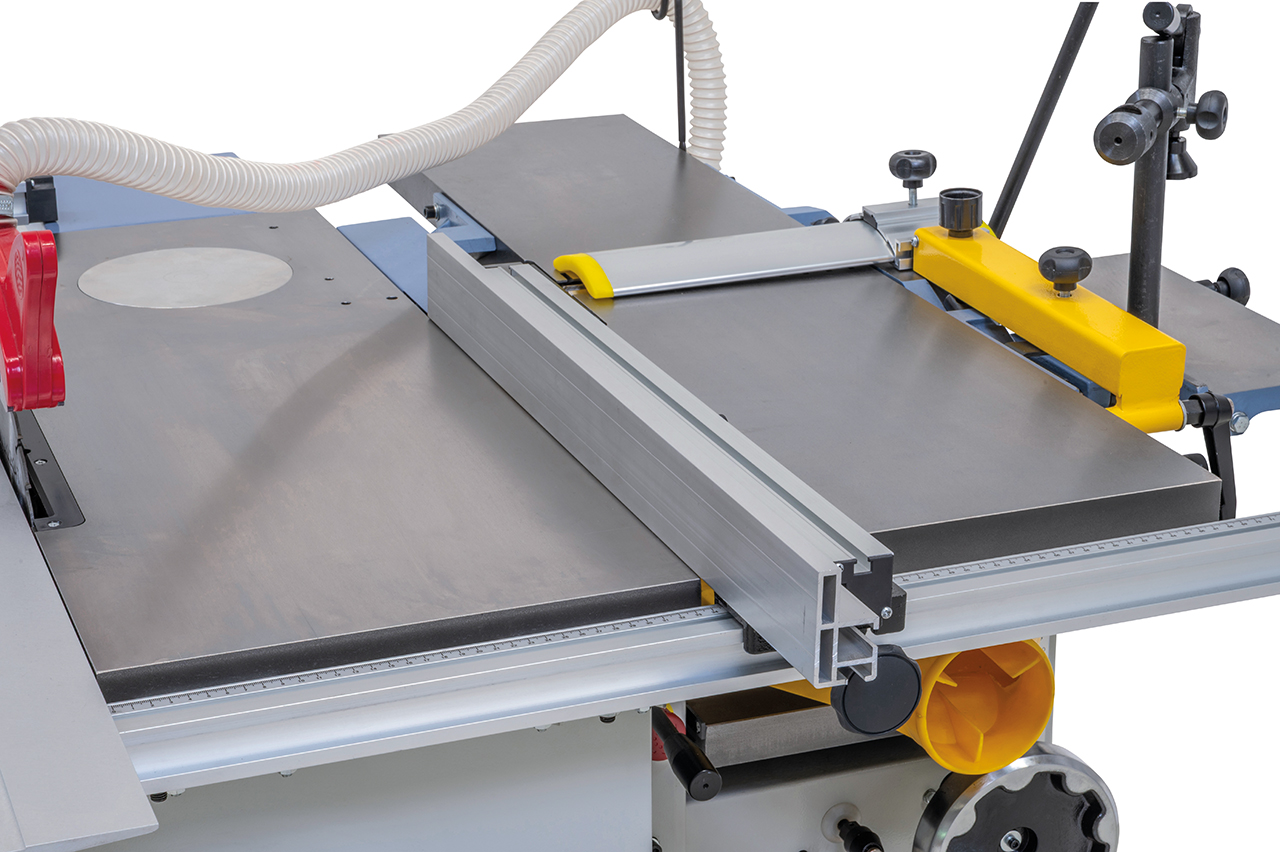

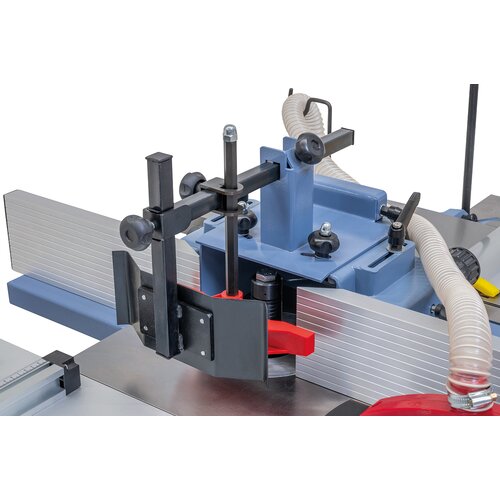

Solid moulding fence features finely adjustable aluminium fence rails
Machine body consists of torsion-free combination of steel and grey cast iron
Smooth running, precise sliding table features hardened, prism-shaped guides

Product Specifications

Planer
Planing width	250 mm
Table length	1090 mm
Table height	865 mm
Shaft rotation speed	4000 rpm
TCT-blades	24 pcs.
Planer shaft diameter	75 mm
Planer fence	720 x 130 mm
Fence tiltable	90° bis 45°
Max. cutting depth	5 mm
Motor power output S1 100%	2,0 kW (2,7 HP)
Motor power input S6 40%	2,8 kW (2,5 HP)

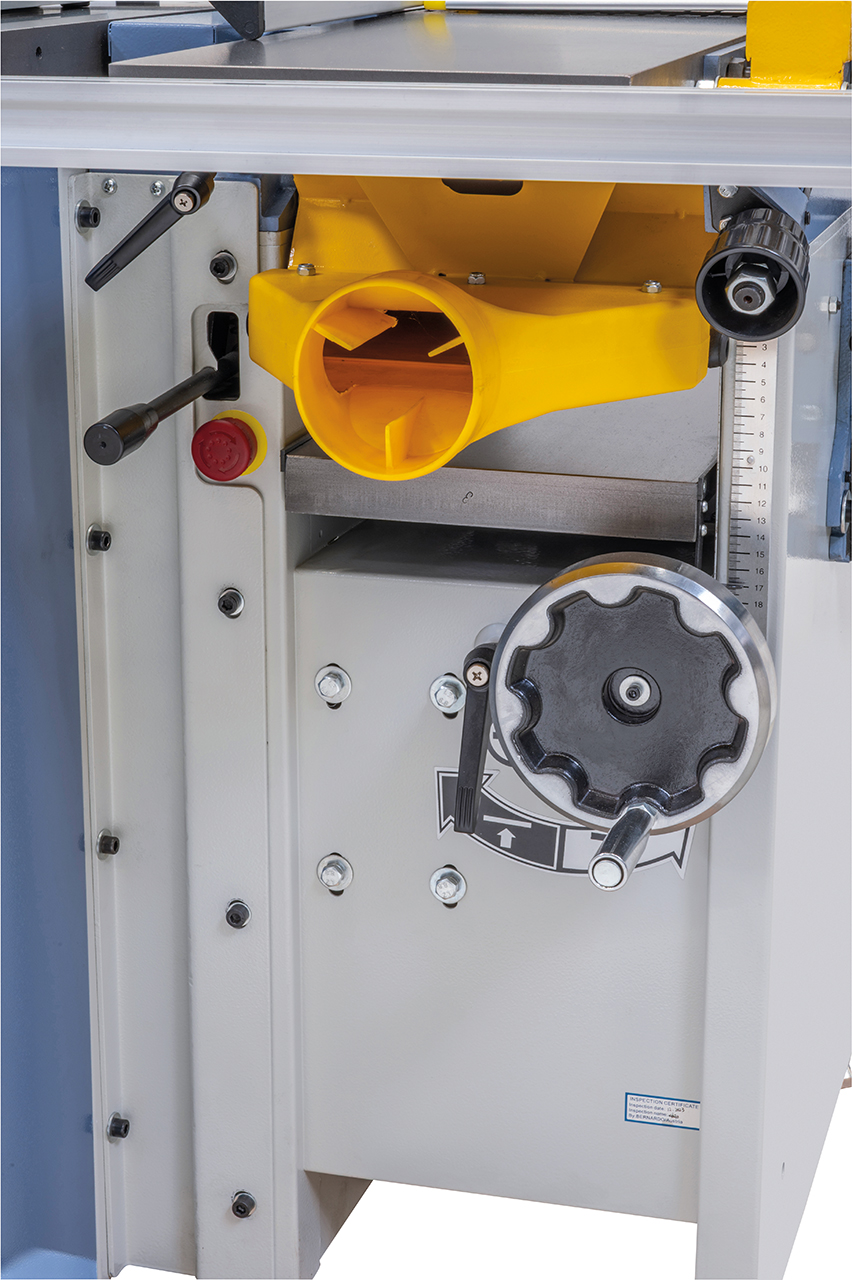

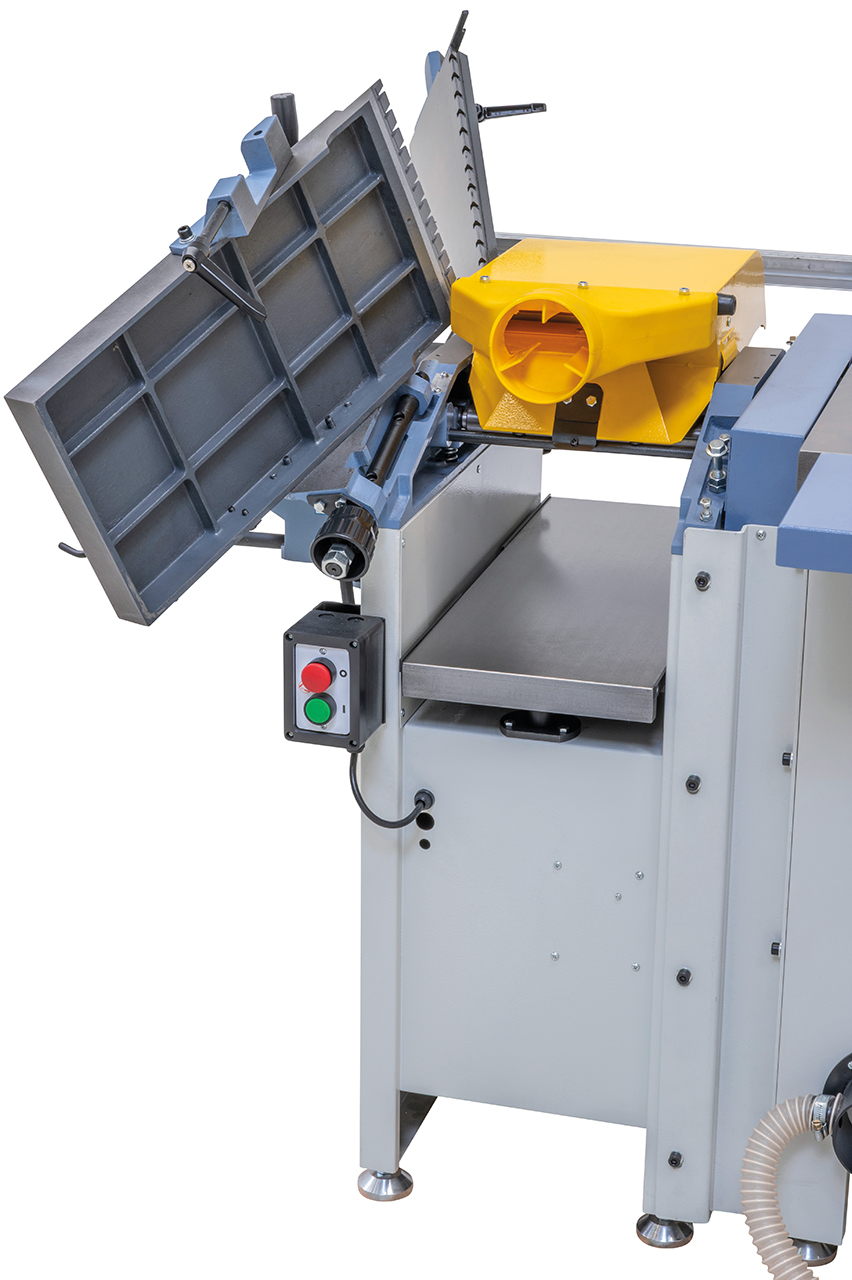

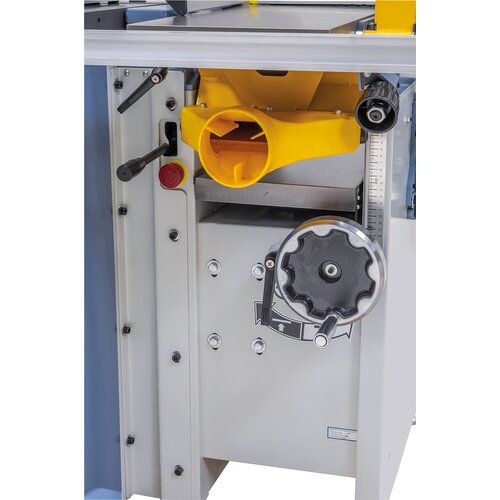

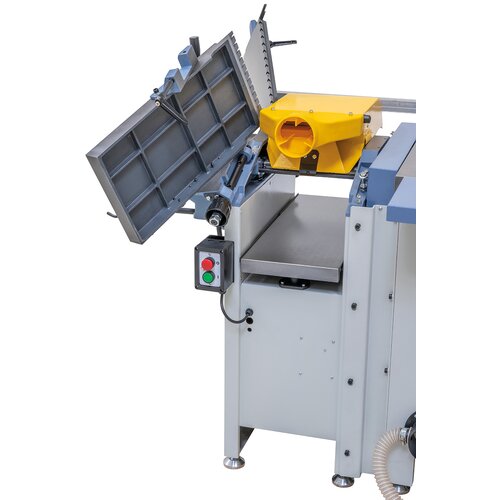

Thicknesser
Table length	600 mm
Working width	250 mm
Working thickness, min/max.	5 - 185 mm
Max. cutting depth	1,8 mm
Feed speed	8 m/min
Dust extraction outlet	100 mm

Mortising unit (optional available)

Table size	370 x 150 mm
Westcott drill chuck	0 - 16 mm
Max. drill depth	90 mm
Drill width	160 mm
Height adjustment	85 mm

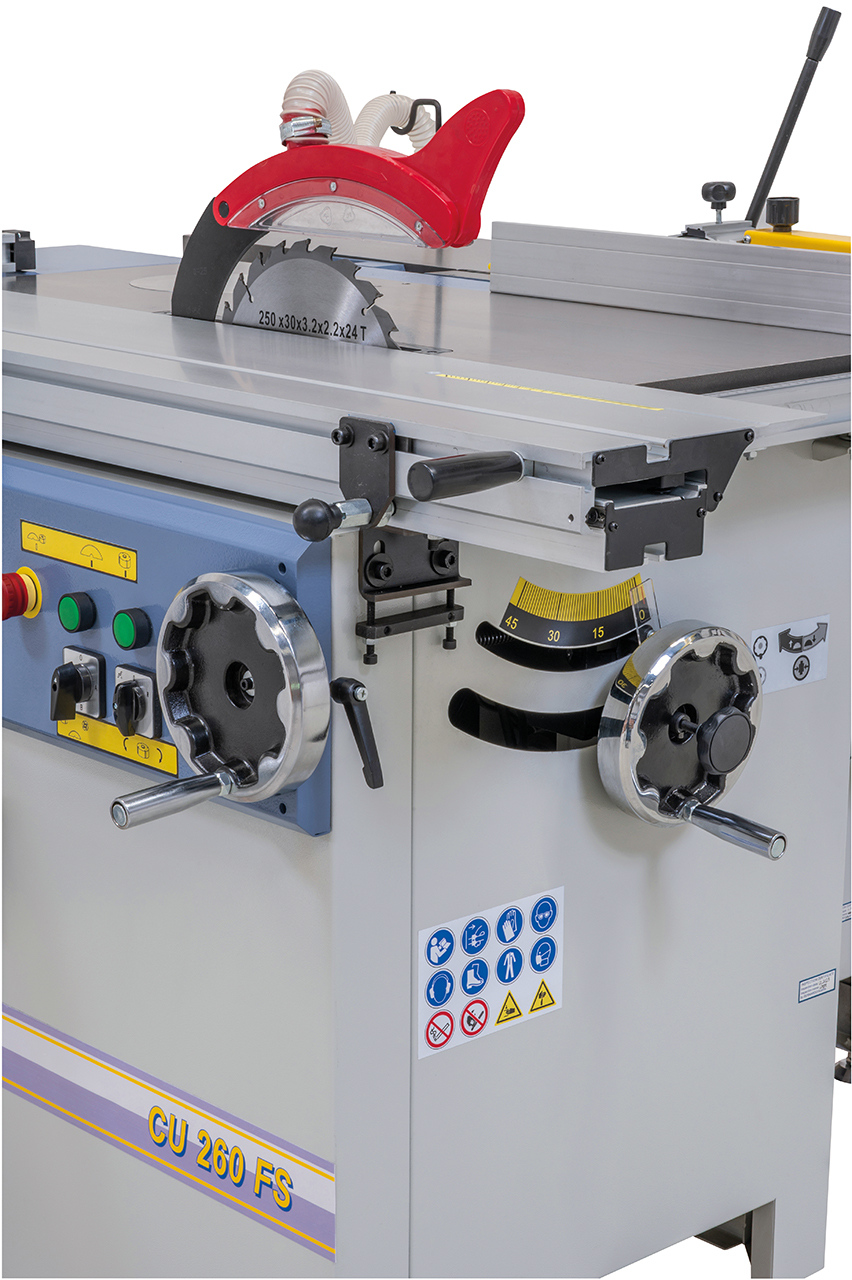

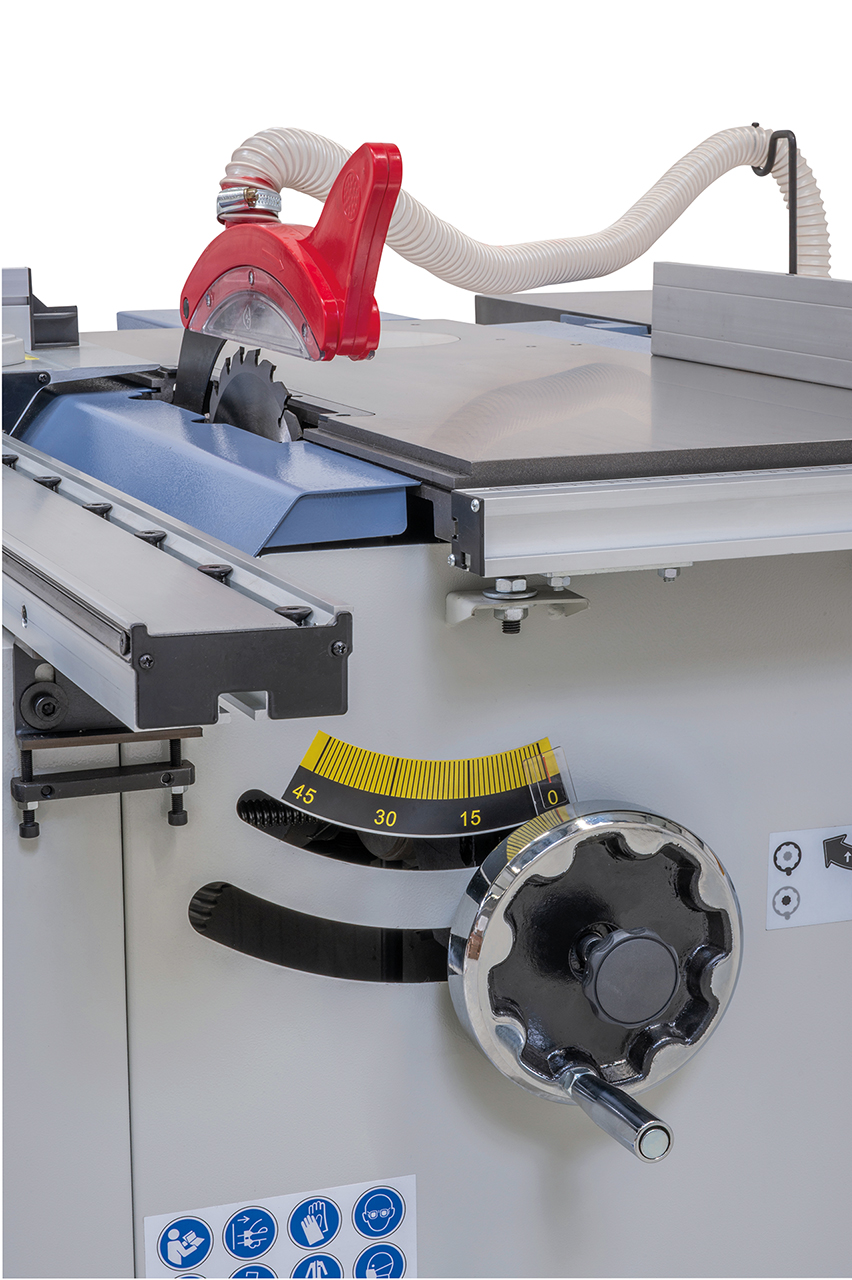

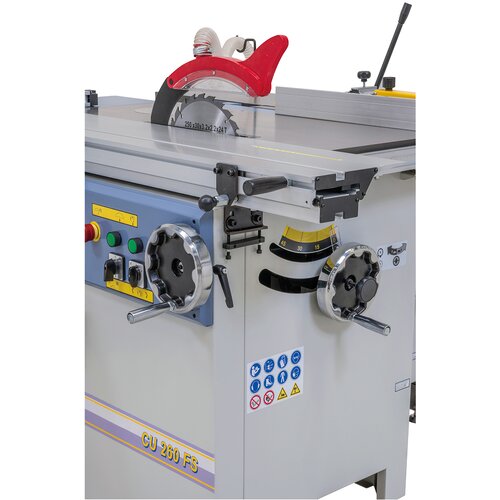

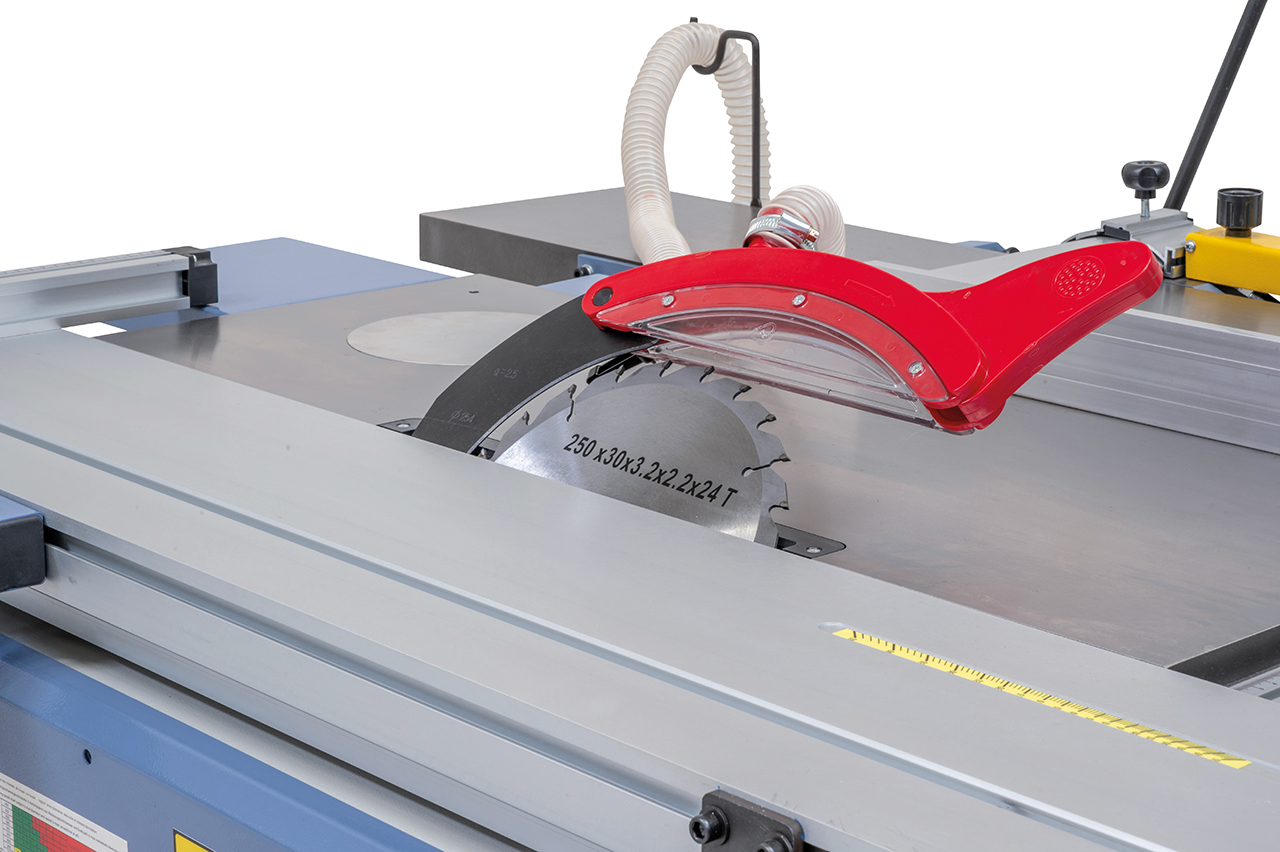

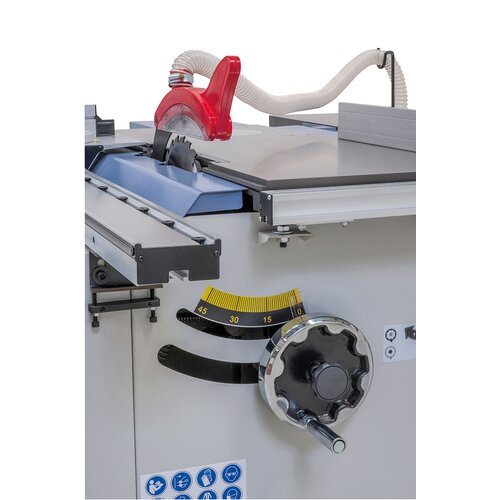

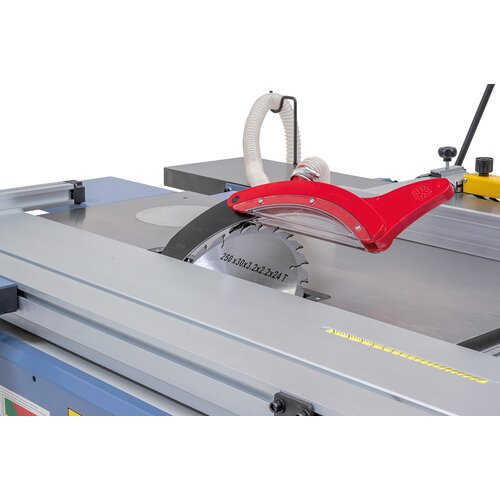

Circular saw
Table size	900 x 345 mm
Table height	865 mm
Square table	600 x 460
Sliding table	1600 x 240 mm
Cutting length	1600 mm
Max. sawblade diameter	250 x 30 mm
Max. cutting height 90° / 45°	80 / 60 mm
Cutting width on rip fence	910 mm
Speed main sawblade	4750 rpm
Dust extraction outlet	100 mm
Motor power output S1 100%	2,2 kW (1,5 HP)
Motor power input S6 40%	3,0 kW (4,0 HP)

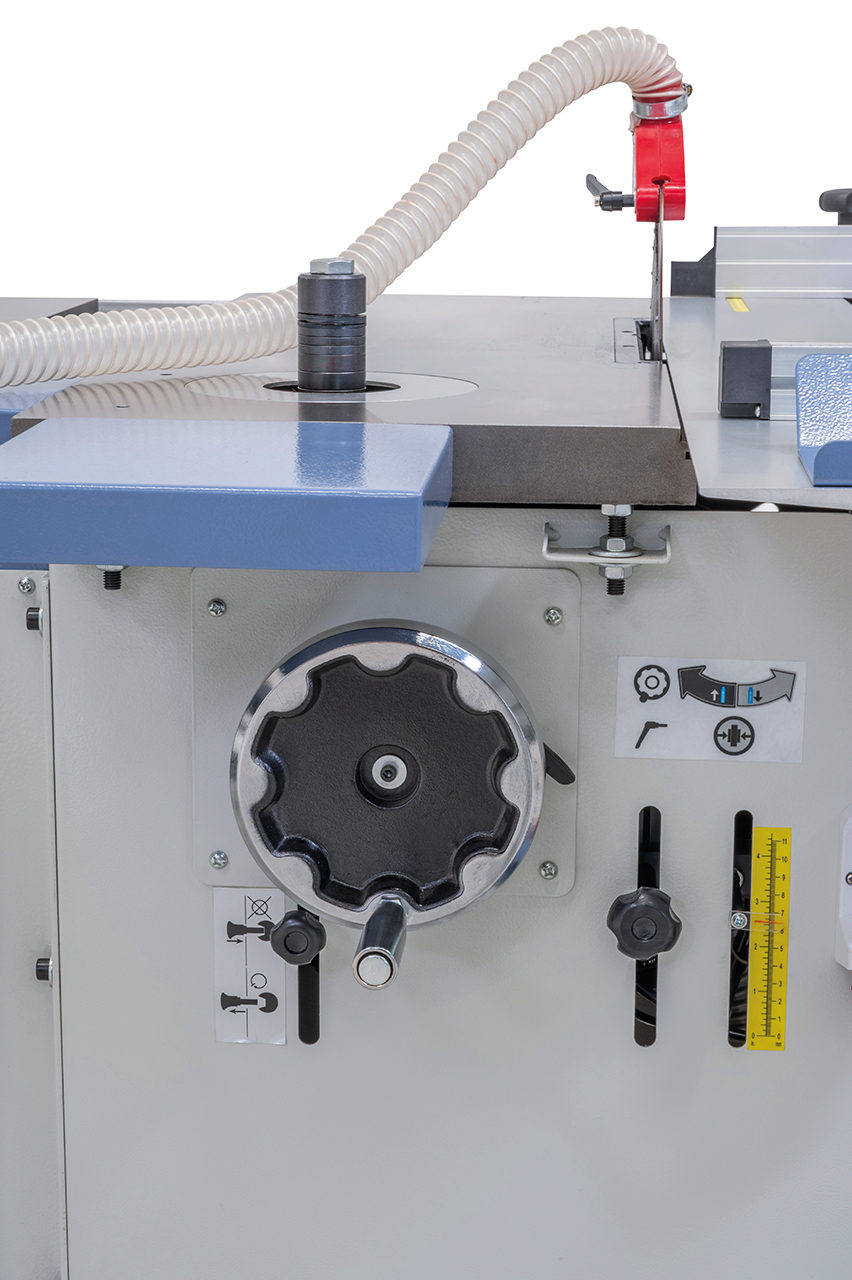

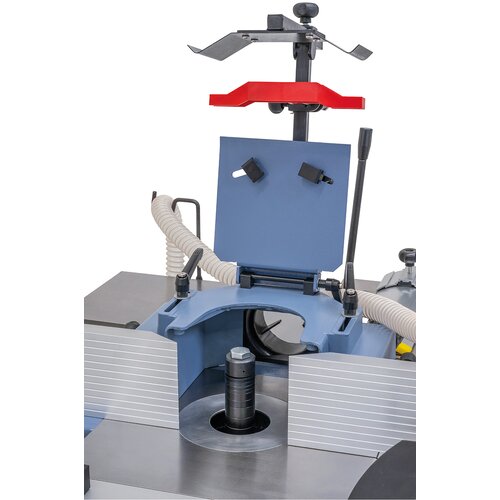

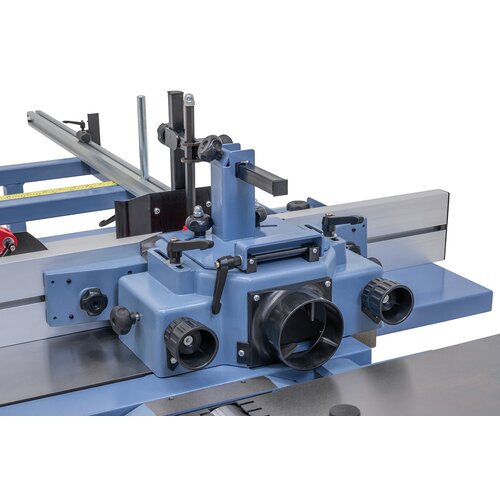

Spindle moulder
Spindle diameter	30 mm
Height adjustment	110 mm
Table opening	170 mm
Working length of spindle	90 mm
Max. tool diameter
- at profiling	150 mm
- at tenoning	150 mm
Spindle speed	1400 / 4000 / 6000 / 8000 rpm
Motor power output S1 100%	1,5 kW (2,0 HP)
Motor power input S6 40%	2,1 kW (2,8 HP)
Voltage	400 V
Machine dimension (W x D x H)	1600 x 2340 x 1150 mm
