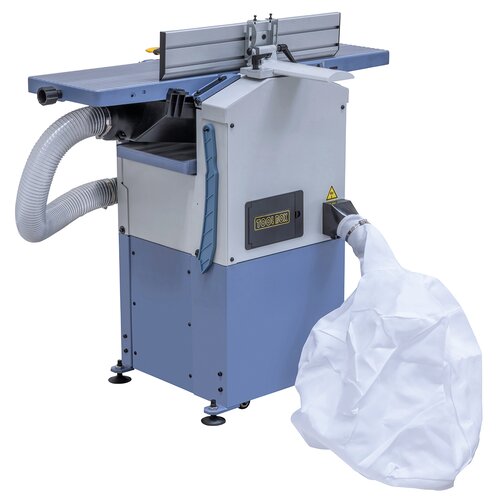

Serially equipped with integrated dust extractor and filter bag.

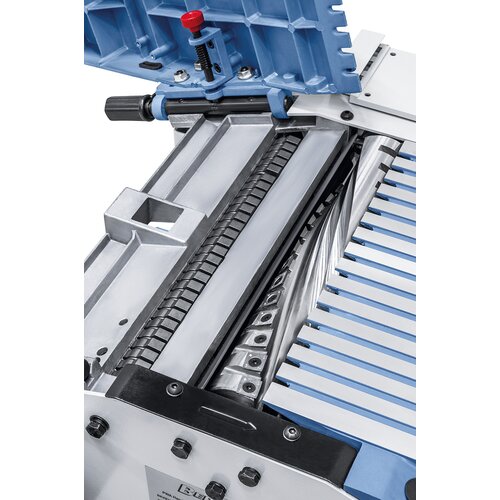

The dynamically balanced spiral cutter head ensures smooth, vibration-free planing, guarantees best results.

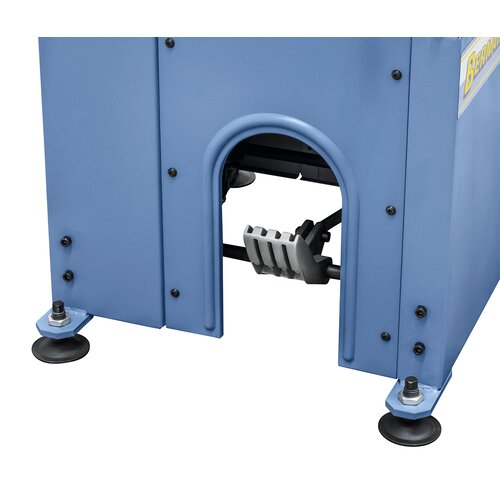

Serienmäßig mit Lenkrollen und Feststellbremse ausgestattet.

The machine is equipped with many safety devices to eliminate the risk of accidents.

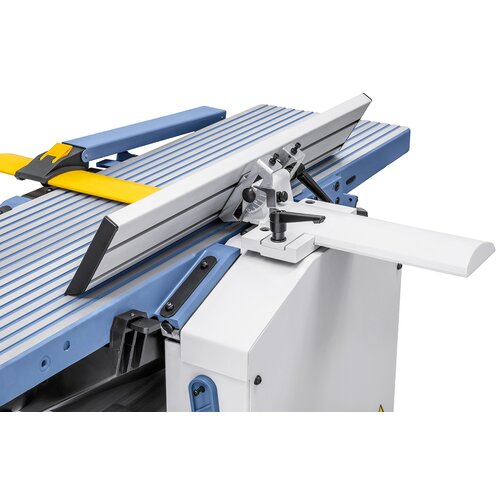

The planer fence with prism guide block can be tilted.

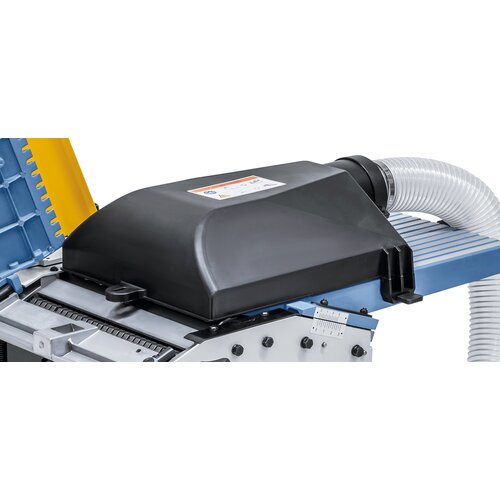

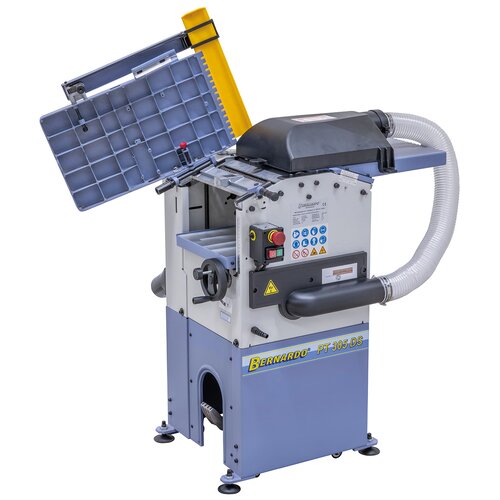

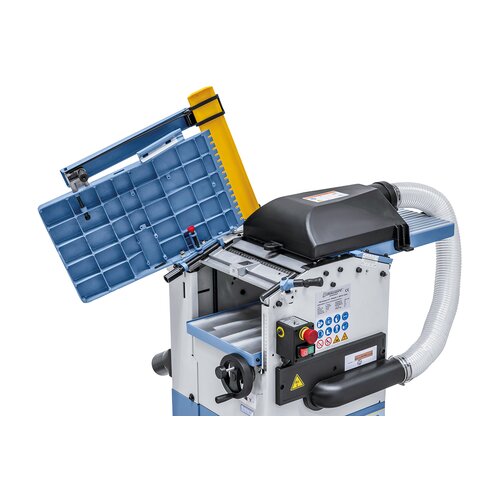

The dust hood can be used for both planing and thicknessing.

08 10240 10

08 10240 11

08 10240 12

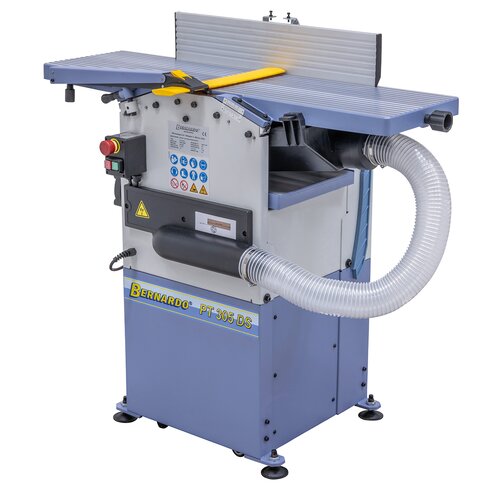

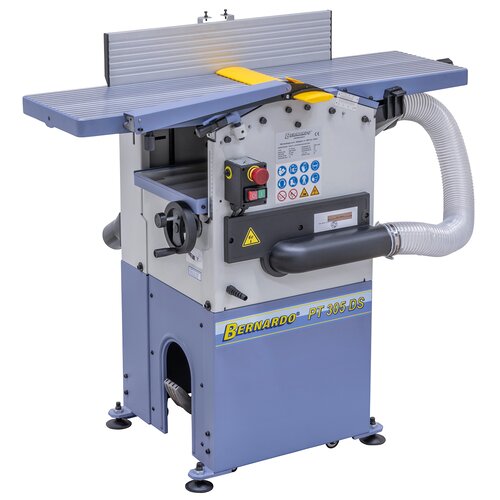

Masina pentru rindeluire si degrosare PT 305 DS cu aspirare / 230 V

product.detail.art-no: 08-10240

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The PT 305 DS planer and thicknesser offers a wide range of standard accessories, including an integrated dust extractor, waste bag and carriage, making this model unbeatable in price-performance ratio for the price conscious user. Another advantage is the spiral cutter head for reduced noise level and optimal planing results.

1.536,00 EUR

incl. 20% VAT

Availability

Deliverable Soon

Deliverable by 27 iul. 2025

Product Properties

Reduction of noise level (approx. 50%) due to the standard spiral cutter head and up to 20 times the cutting edge life (results from four-way carbide inserts)
Advantage of the carbide inserts: If damaged, individual knives can be exchanged or turned
The carbide blades ensure tear-free planing results and optimal surfaces with any type of wood

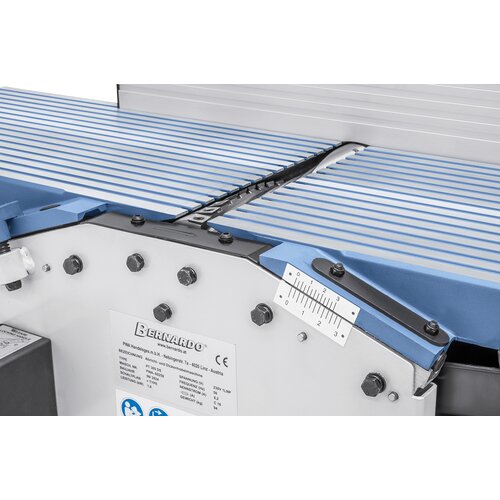

Both planing tables feature fine adjustment and are designed with slots to keep noise levels down

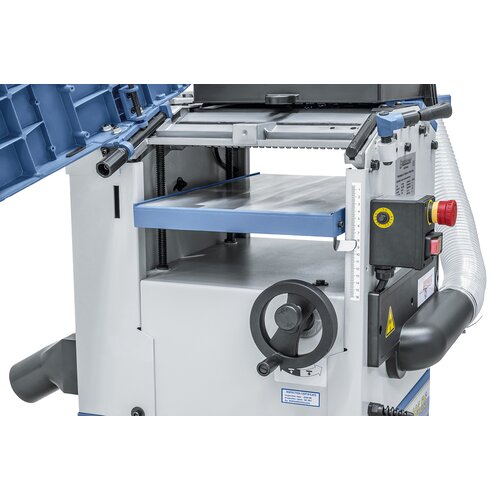

Thicknessing table is guided on four threads to ensure accurate planing of boards, planks, etc.
Integrated dust extractor guarantees optimal price-performance ratio
Quick and easy adjustment of chip removal
Precise planing tables made of aluminium for best results
Corrugated infeed roller ensures safe and consistent workpiece infeed

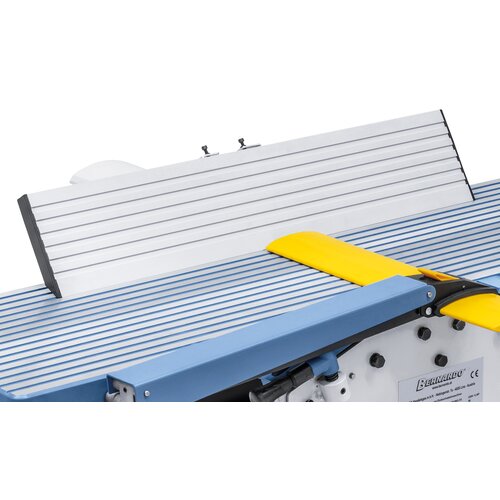

Solid planer fence with prism guide can be tilted from 90° to 45°

Product Specifications

Planer
Planing width	305 mm
Table length	1080 mm
Table height	920 mm
Shaft rotation speed	6700 rpm
TCT-blades	28 pcs.
Planer shaft diameter	62 mm
Planer fence	640 x 125 mm
Fence tiltable	90° to 45°
Max. cutting depth	3 mm
Thicknesser
Table length	500 mm
Working width	305 mm
Working thickness, min./max.	5 - 160 mm
Max. cutting depth	2 mm
Feed speed	6 m/min

Dust extraction outlet Ø	100 mm / 75 mm
Motor power output S₁ 100%	1,8 KW (2,4 HP)
Motor power input S₆ 40%	2,5 KW (3,4 HP)
Voltage	230 V
Machine dimension (W x D x H)	1140 x 820 x 1100 mm
Weight approx.	98 kg
