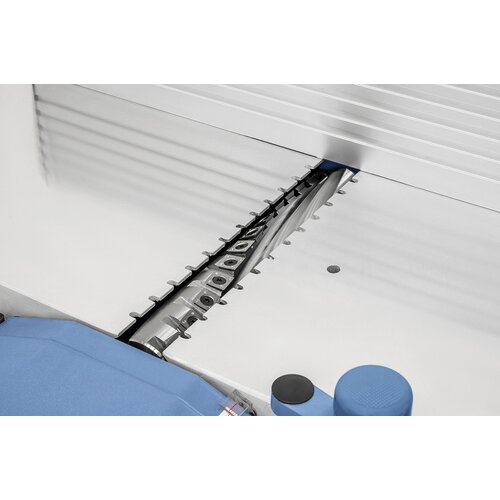

The dynamically balanced spiral cutter head ensures smooth, vibration-free planing, guarantees best results.

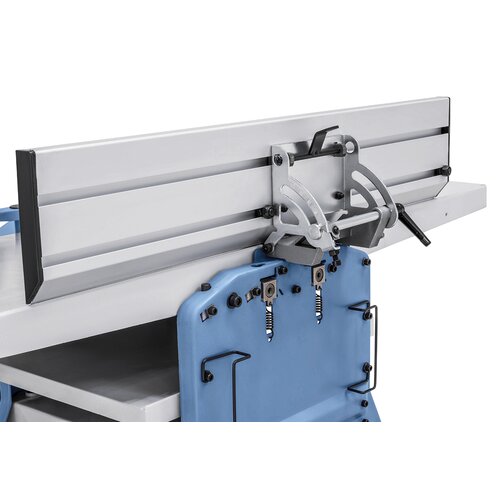

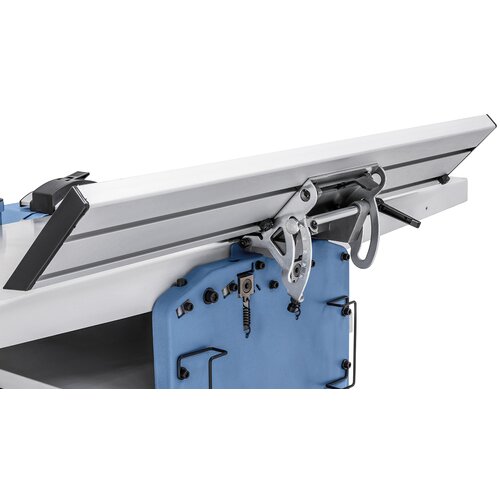

The planer fence can easily be adjusted from the back of the machine. The desired angle can be read on the scale.

Masina pentru rindeluire si degrosare PT 250 S cu batiu / 230 V

product.detail.art-no: 08-10070

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

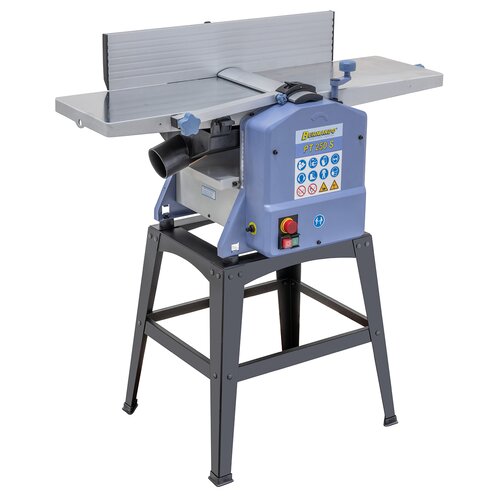

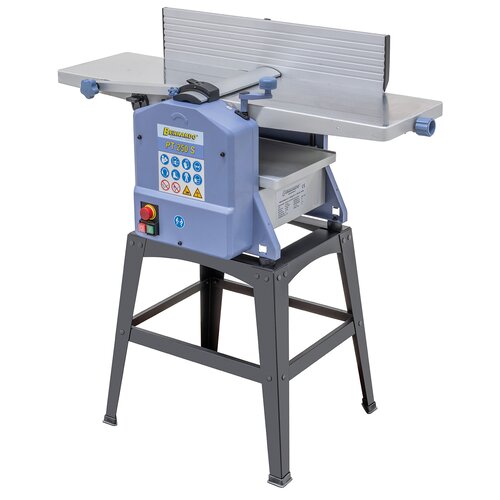

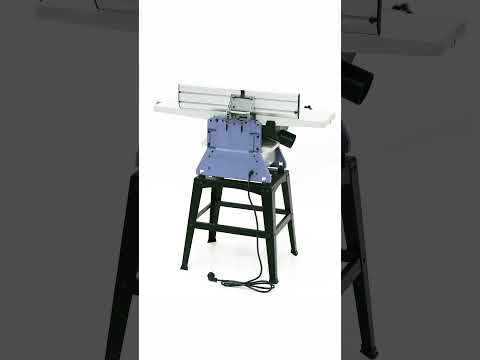

The PT 250 S surface planer and thicknesser features a small and compact construction to allow for easy transport and use on different sites. Another advantage is the spiral cutter head for reduced noise level and optimal planing results.

696,00 EUR

incl. 20% VAT

Availability

Deliverable Soon

Deliverable by 27 iul. 2025

Product Properties

Reduction of noise level (approx. 50%) due to the standard spiral cutter head and up to 20 times the cutting edge life (results from four-way carbide inserts)
Advantage of the carbide inserts: If damaged, individual knives can be exchanged or turned
The carbide blades ensure tear-free planing results and optimal surfaces with any type of wood
Cutterblock cover in accordance with CE-standards guarantees high safety

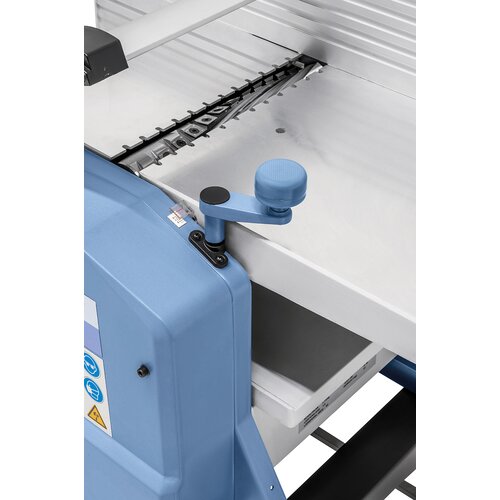

Quick and easy setting of chip removal
Precise aluminium planing tables to achieve high accuracy

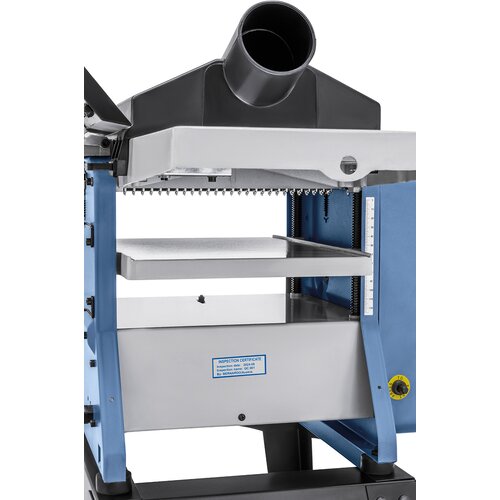

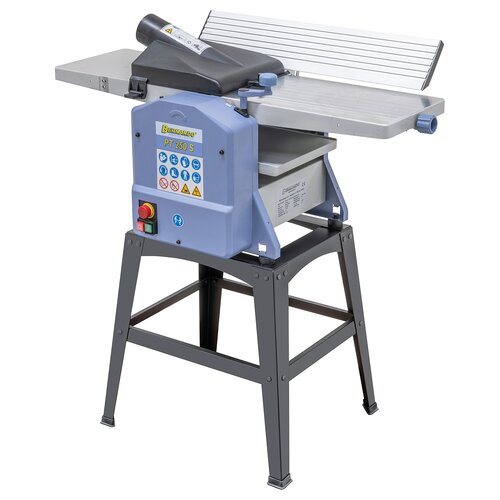

Combined dust hood can be used for planing or thicknessing
Solid planing fence tilts 90° to 45°
Powerful drive motor for optimal planing results

Product Specifications

Planer
Planing width	255 mm
Table length	925 mm
Shaft rotation speed	8500 rpm
TCT-blades	24 pcs.
Planer shaft diameter	50 mm
Planer fence	640 x 125 mm
Fence tiltable	90° to 45°
Max. cutting depth	2 mm

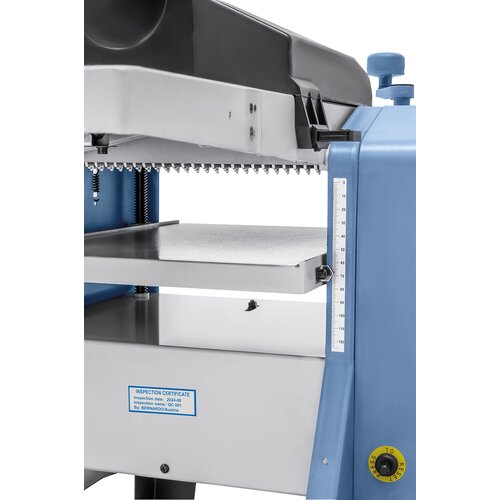

Thicknesser
Table length	380 mm
Working width	250 mm
Working thickness, min./max.	5 - 120 mm
Max. cutting depth	2 mm
Feed speed	7 m/min

Dust extraction outlet Ø	75 mm
Motor power output S₁ 100%	1,5 kW (2,0 HP)
Motor power input S₆ 40%	2,1 kW (2,8 HP)
Voltage	230 V
Machine dimension (W x D x H)	970 x 460 x 990 mm
Weight approx.	36 kg
