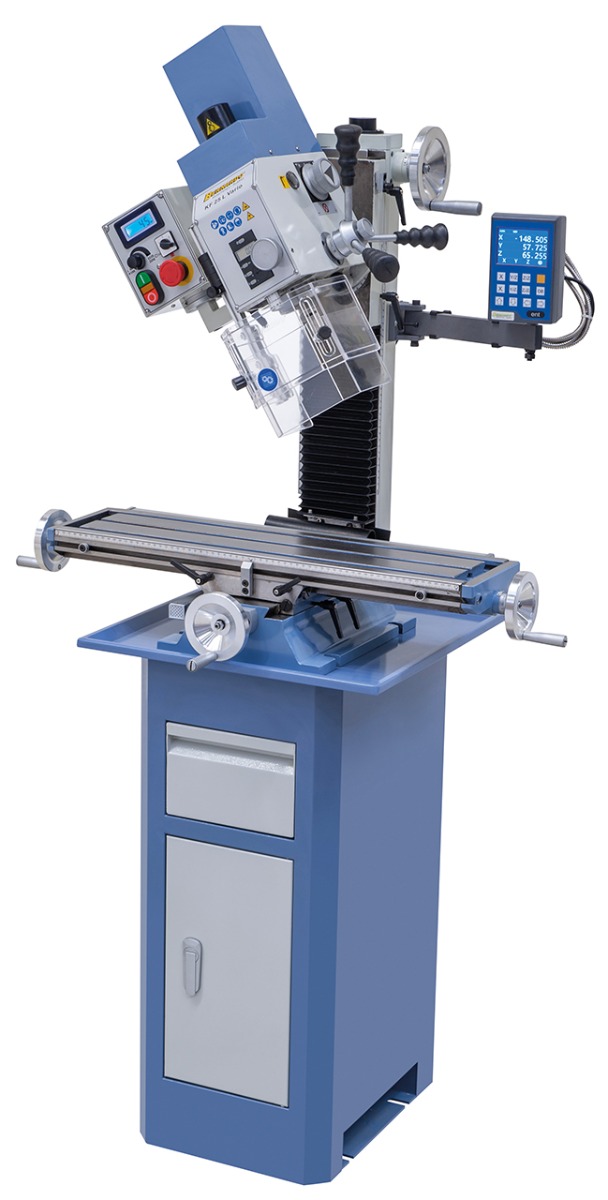

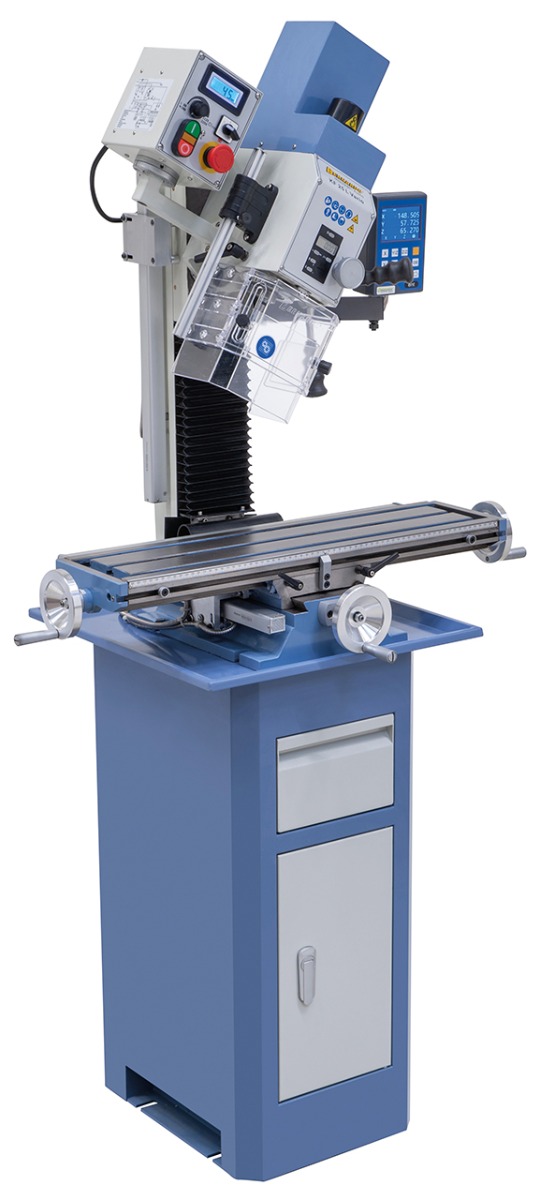

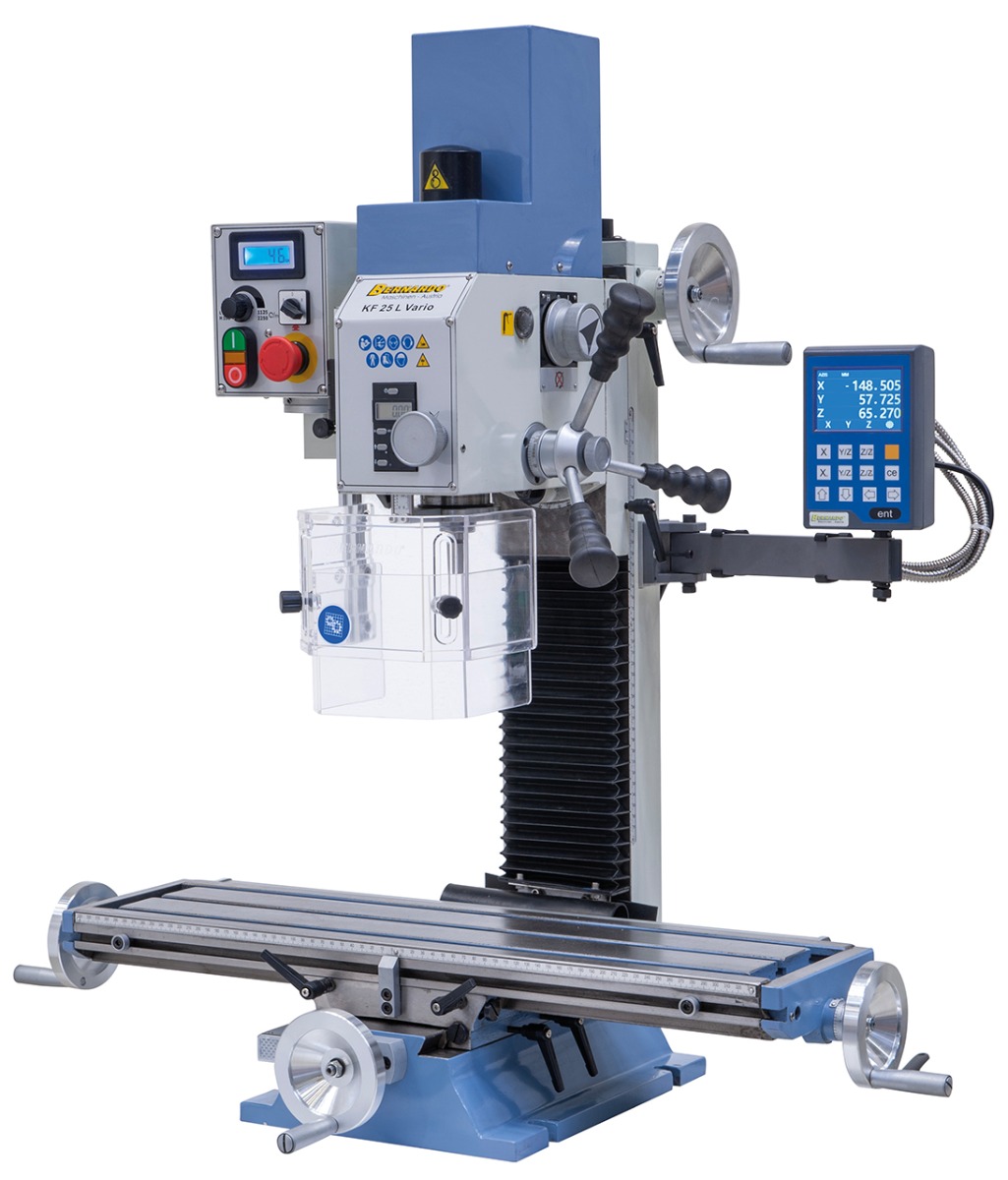

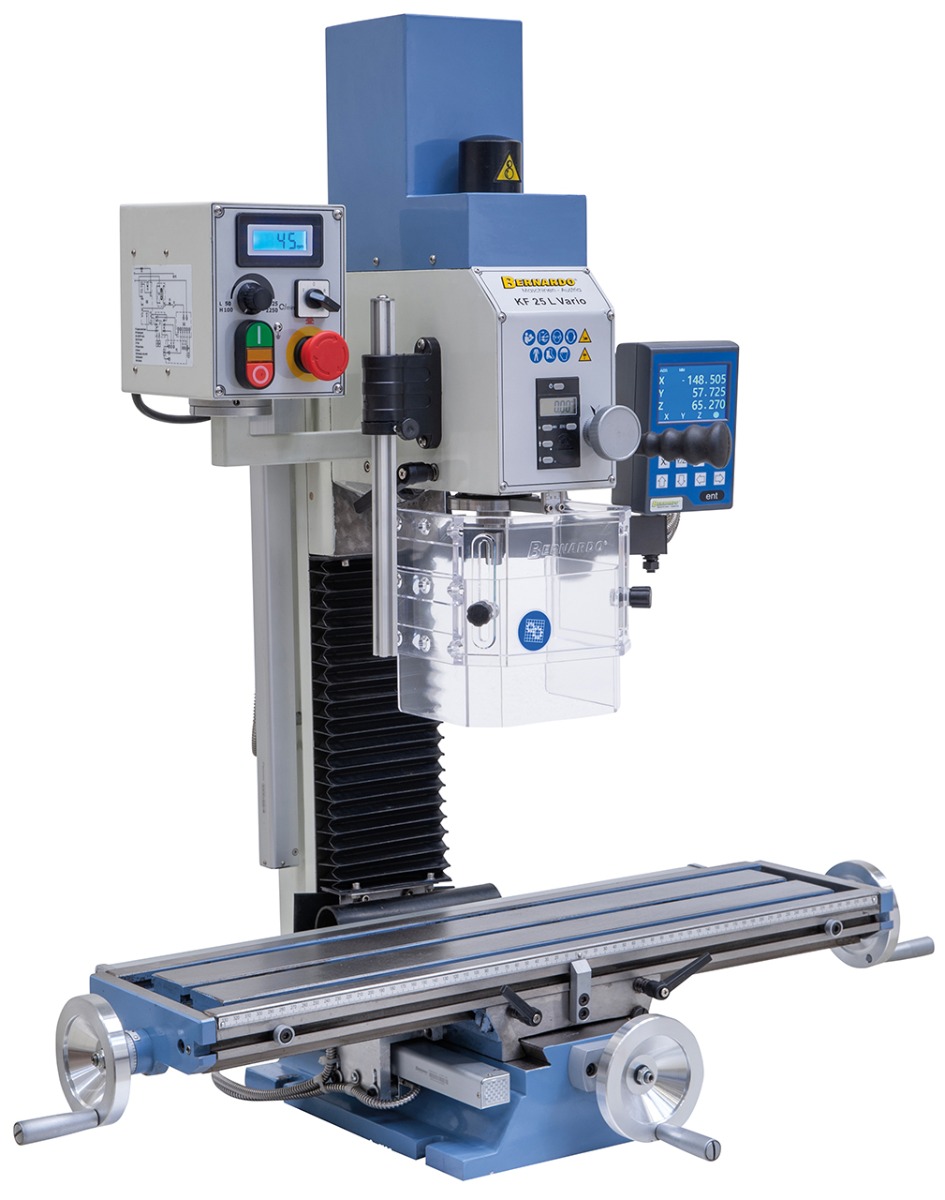

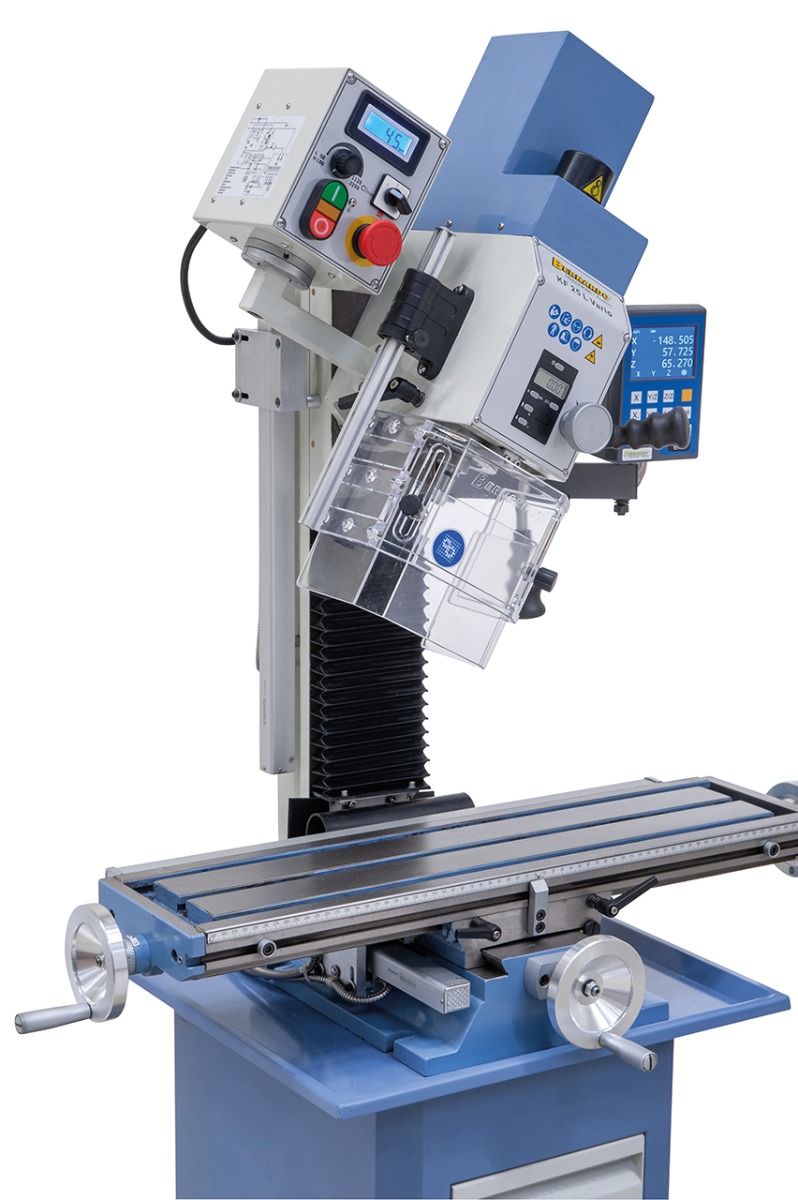

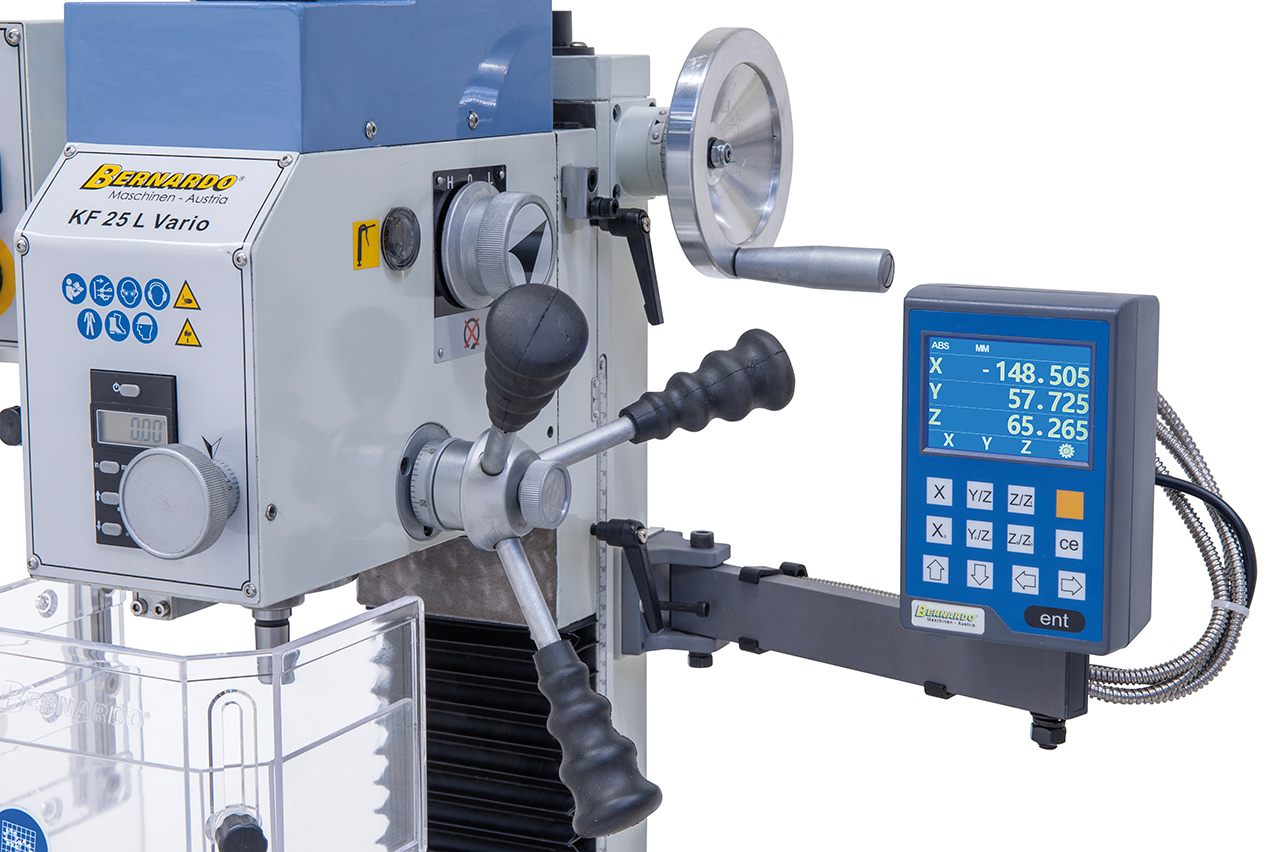

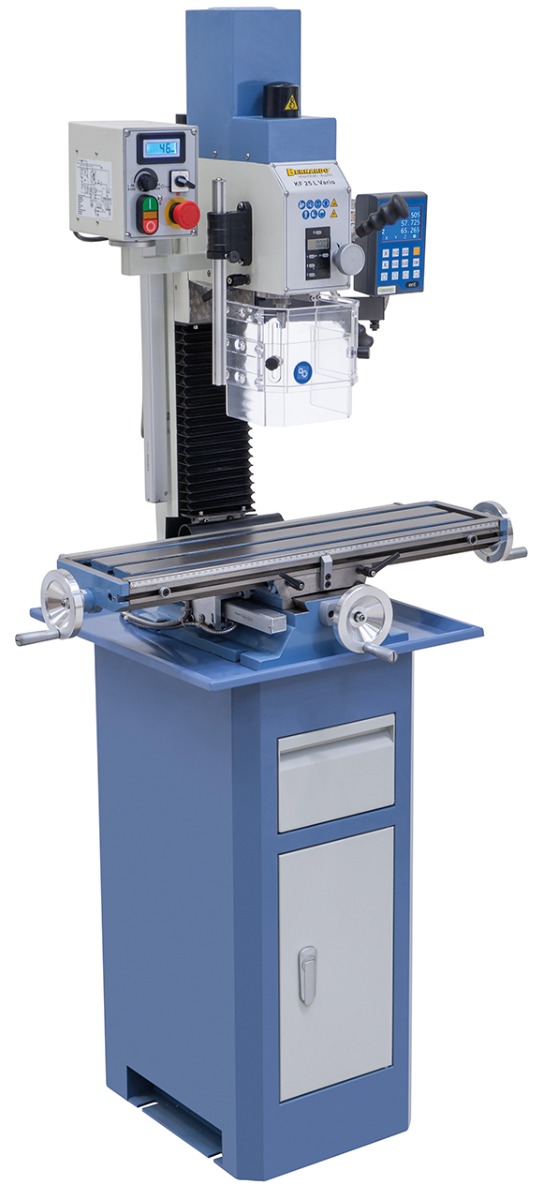

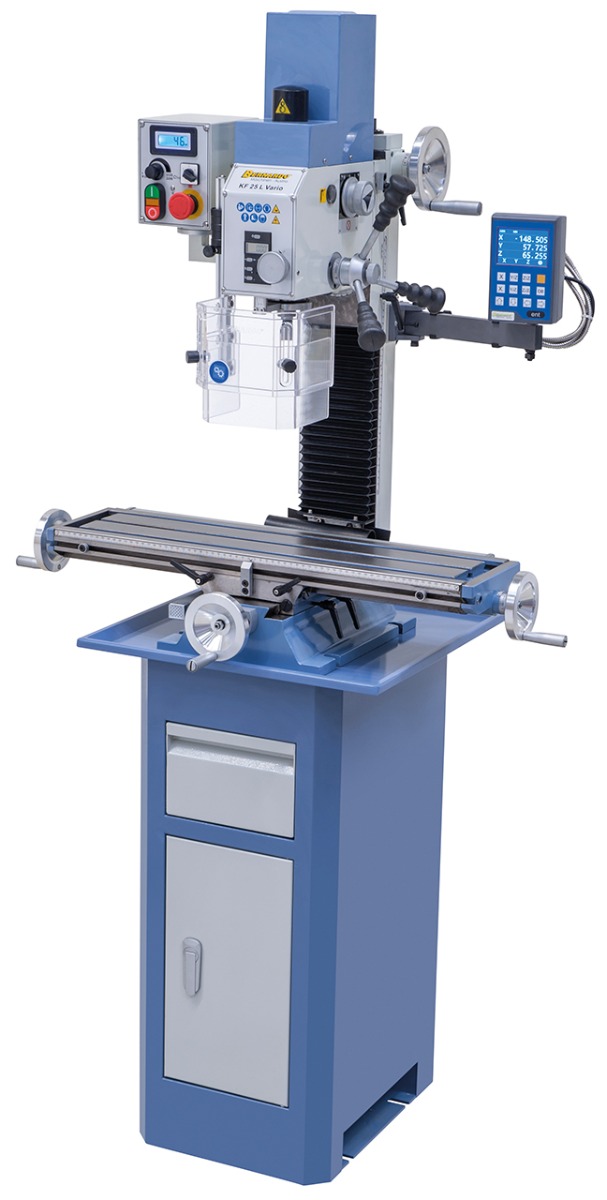

Maşina de găurire şi frezare KF 25 L Vario cu afişaj digital în 3 axe DT 40
product.detail.art-no: 02-1029CThe KF 25 L Vario drilling and milling machine comes complete with a digital speed and spindle stroke display as a standard feature. Additionally, this model is rounded off with a 490 mm x-axis travel. The machine is very popular among both professionals and model-marker along with all areas of training.
2.388,00 EUR
incl. 20% VATAvailability
Product Properties
- Wide range of applications, such as thread cutting, groove milling, horizontal slotting etc.
- Left and right rotation for thread cutting comes standard
- Ergonomically arranged control elements

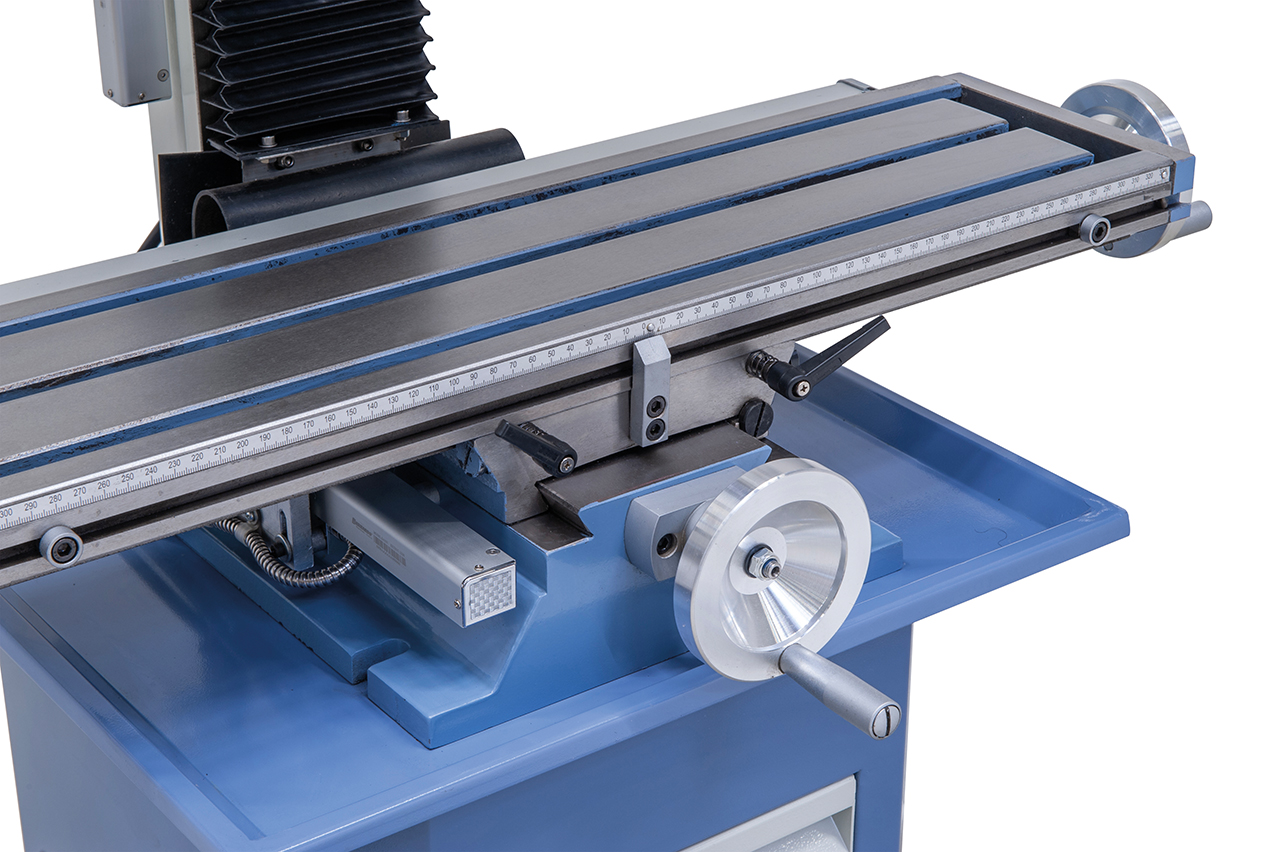

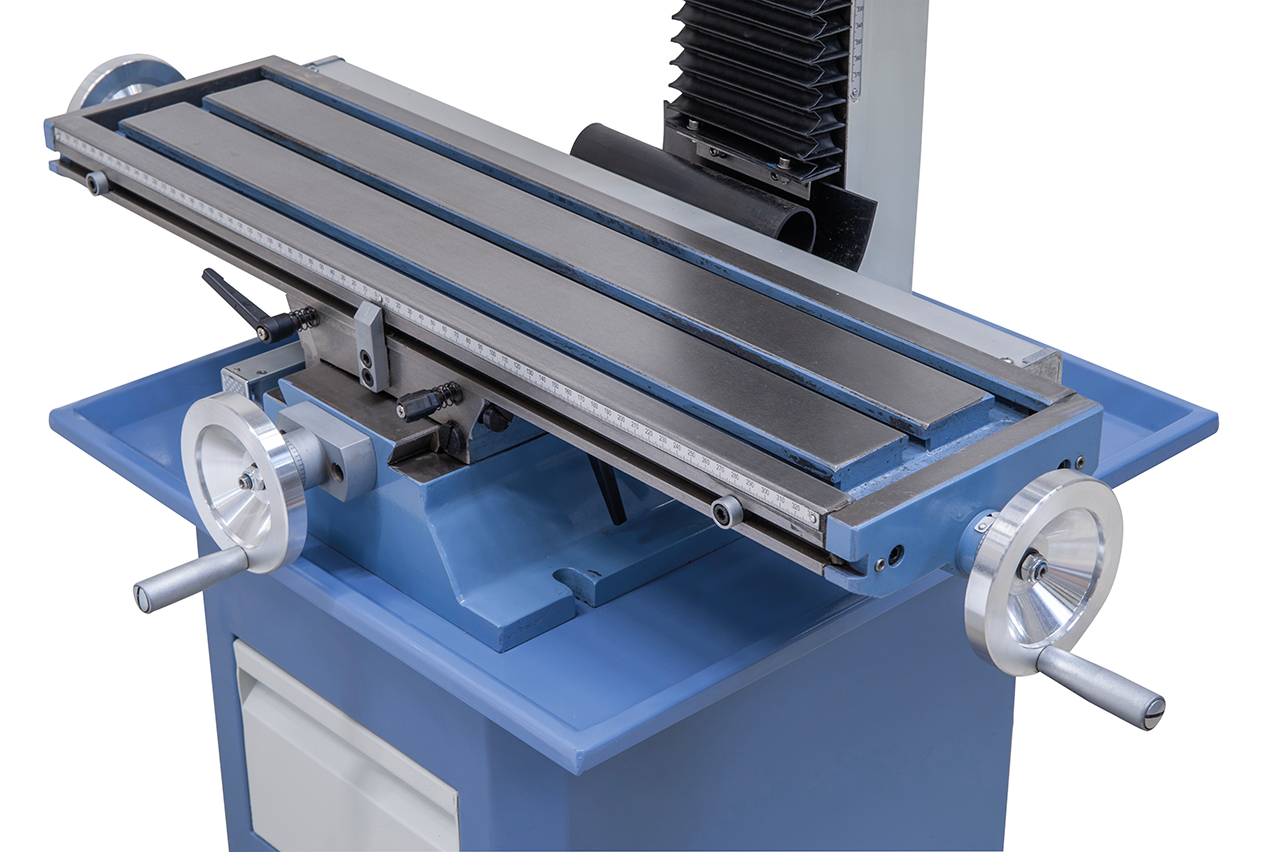

- Large cross table with longitudinal scale
- Stepless speed change for ideal adjustment to the workpiece
- 2-step gear unit for optimal power transmission
- Taper roll bearings guarantees high spindle concentricity (≤ 0.015 mm)

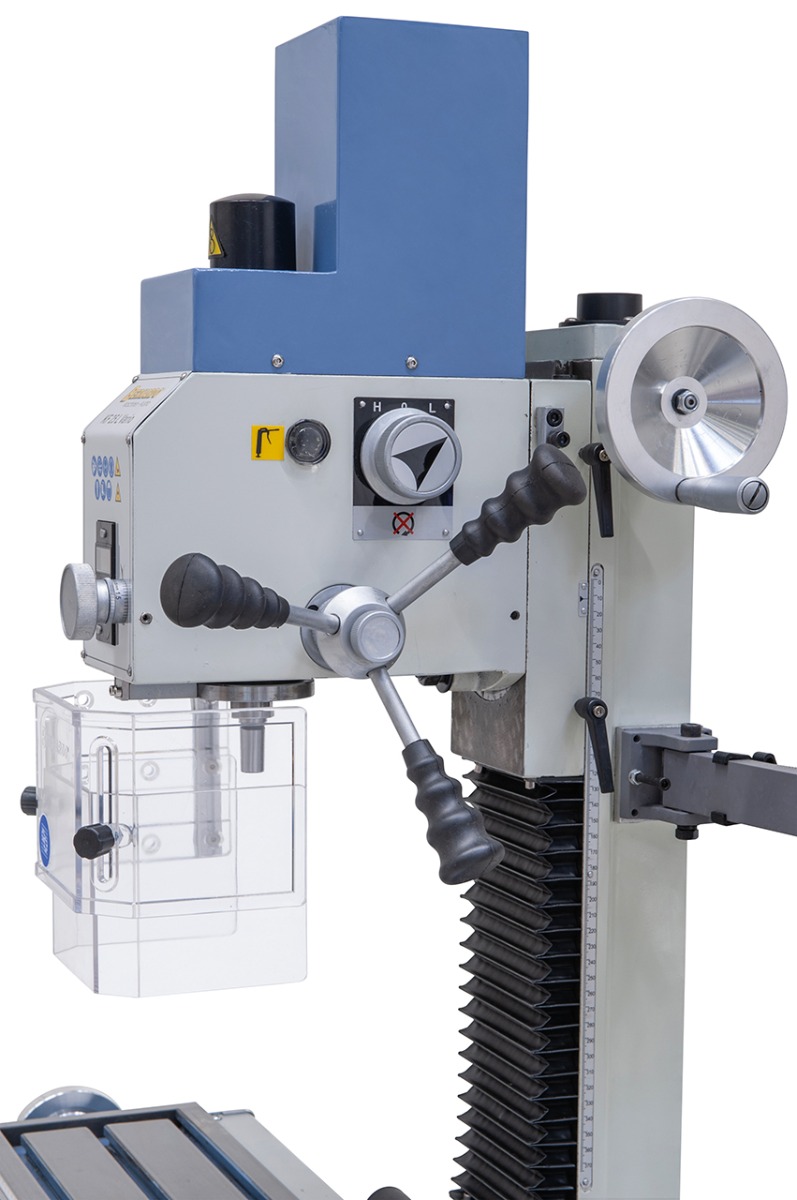

- Mill head tilts to both sides allowing angular boring, milling of bevels etc.

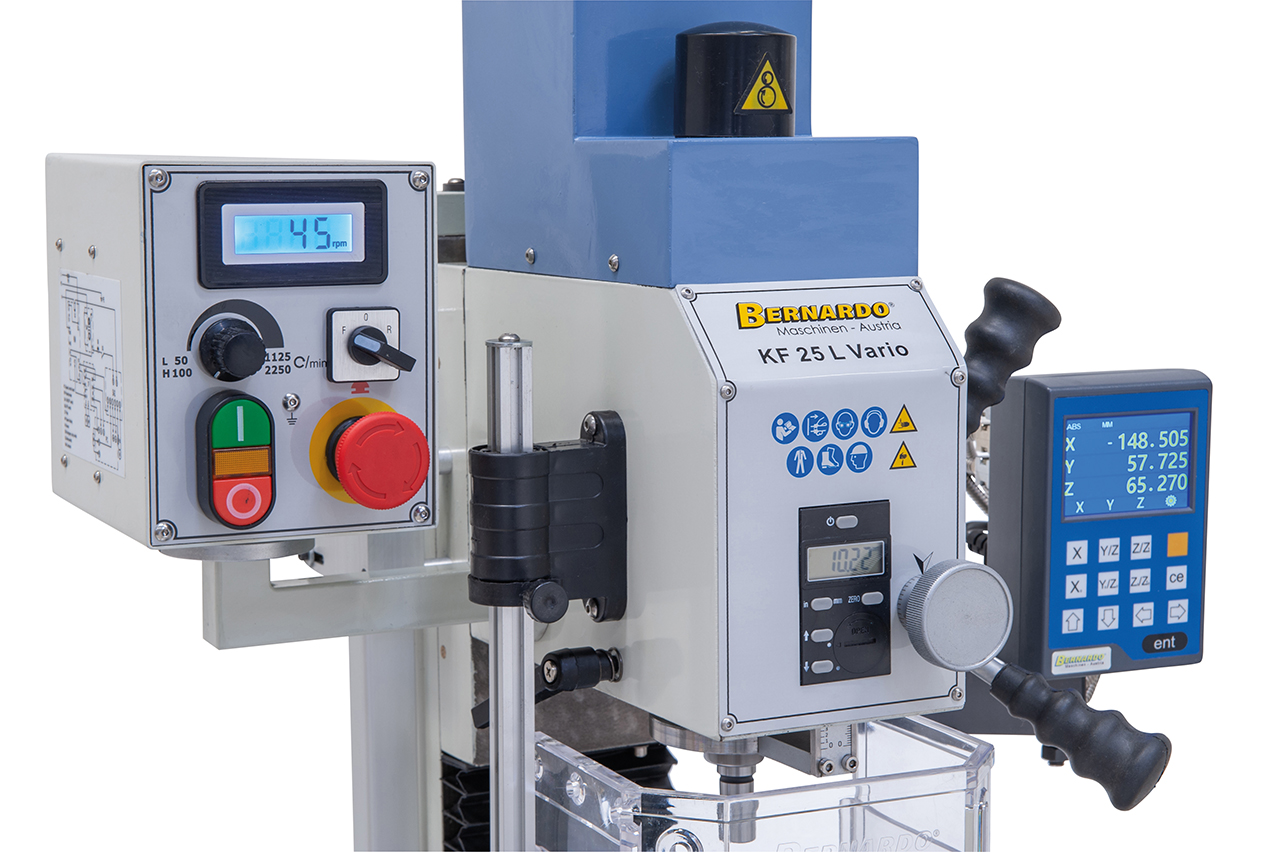

- Digital spindle stroke and speed display come standard
- Dovetail guiding in x-, y- and z-axis, adjustable via gibs

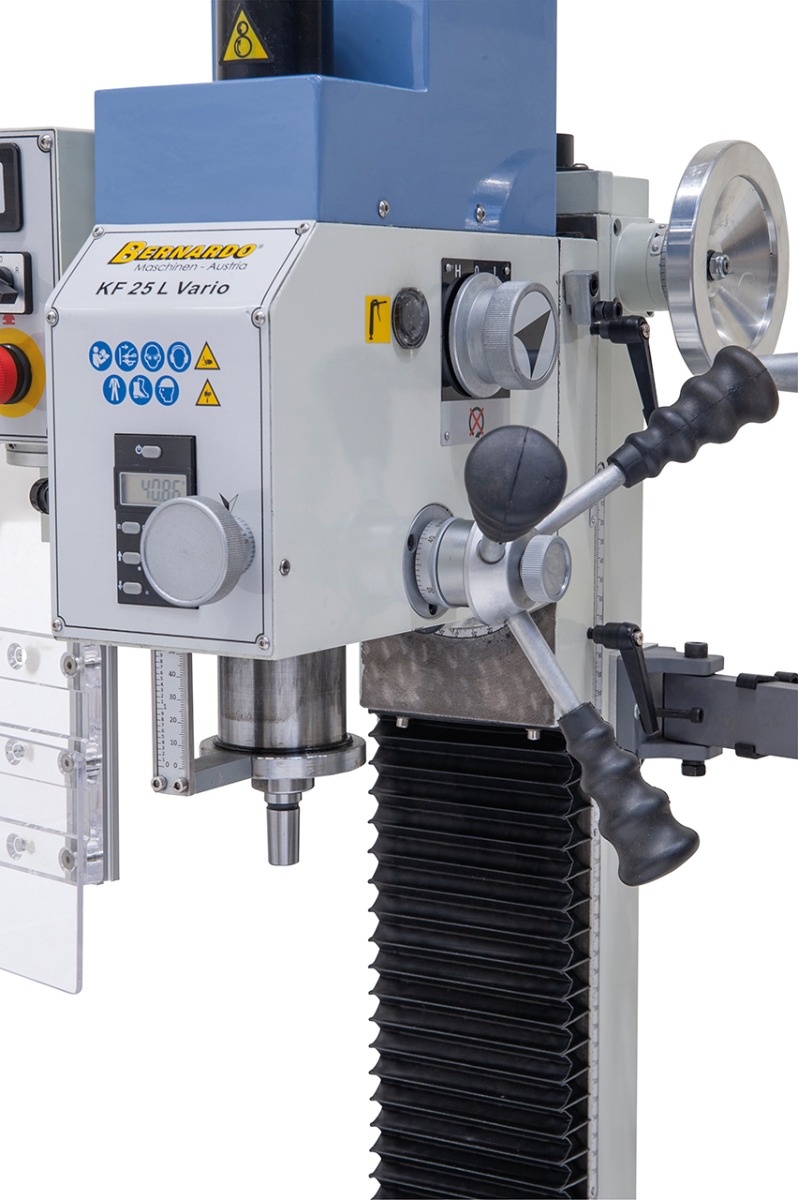

- Spindle adjustment via handle, fine feed via handwheel
- Incl. EMC filter; protect electrical equipment against electromagnetic interferences
Product Specifications
|
Drilling capacity in steel |
20 mm |
|
Face mill capacity max. |
63 mm |
|
End mill capacity max. |
20 mm |
|
Distance spindle to column |
170 mm |
|
Distance spindle/table min./max. |
45/325 mm |
|
Spindle stroke |
52 mm |
|
Spindle speed, stepless |
50 - 1125 / 100 - 2250 rpm |
|
Spindle taper |
MT 2 |
|
Table size |
700 x 180 mm |
|
Travel (x / y) |
490 / 125 mm |
|
Mill head tiltable |
-90° to +90° |
|
Height adjustment of mill head |
275 mm |
|
T-slot size |
12 mm |
|
Motor power output S1 100% |
0,60 kW / 230 V |
|
Motor power input S6 40% |
0,90 kW / 230 V |
|
Machine dimension (W x D x H)* |
950 x 560 x 930 mm |
|
Weight approx. |
120 kg |
* without stand
Delivery Contents
- Drill chuck arbor MT 2 / B 16
- Drawbar
- Table length 700 mm
- Digital display of spindle stroke
- Digital display of speed range
- EMC filter according to CE standard
- Height adjustable protective cover
- Tools
