Left tilting sawblade enables workpiece to be guided more easily during cut.

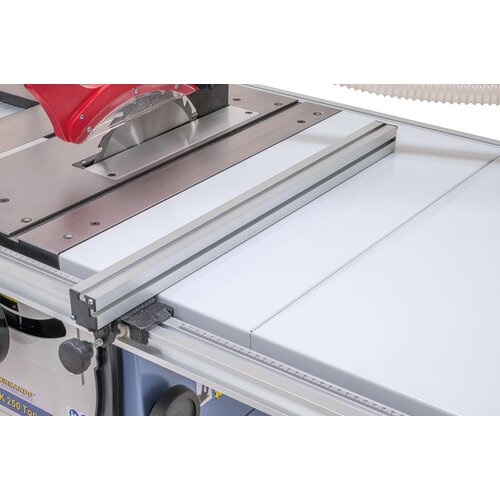

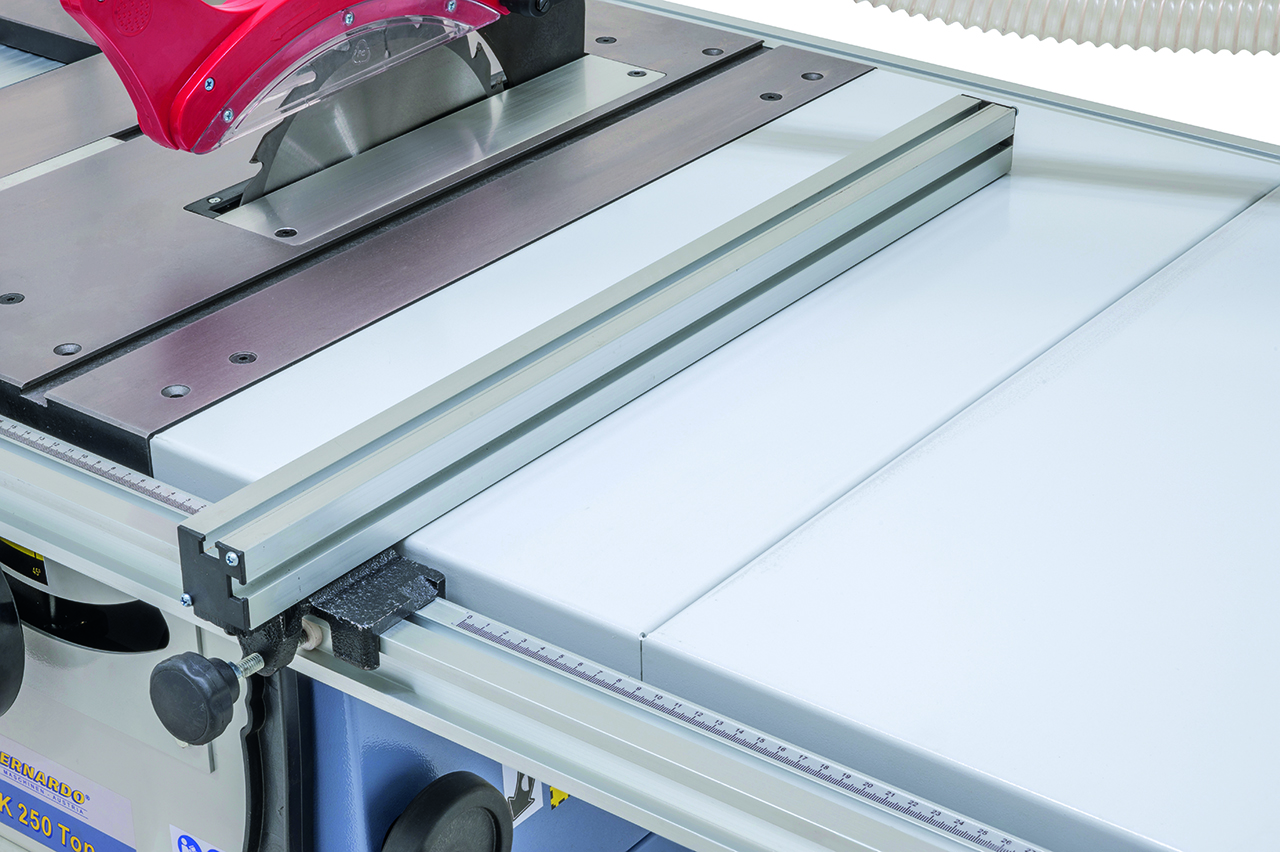

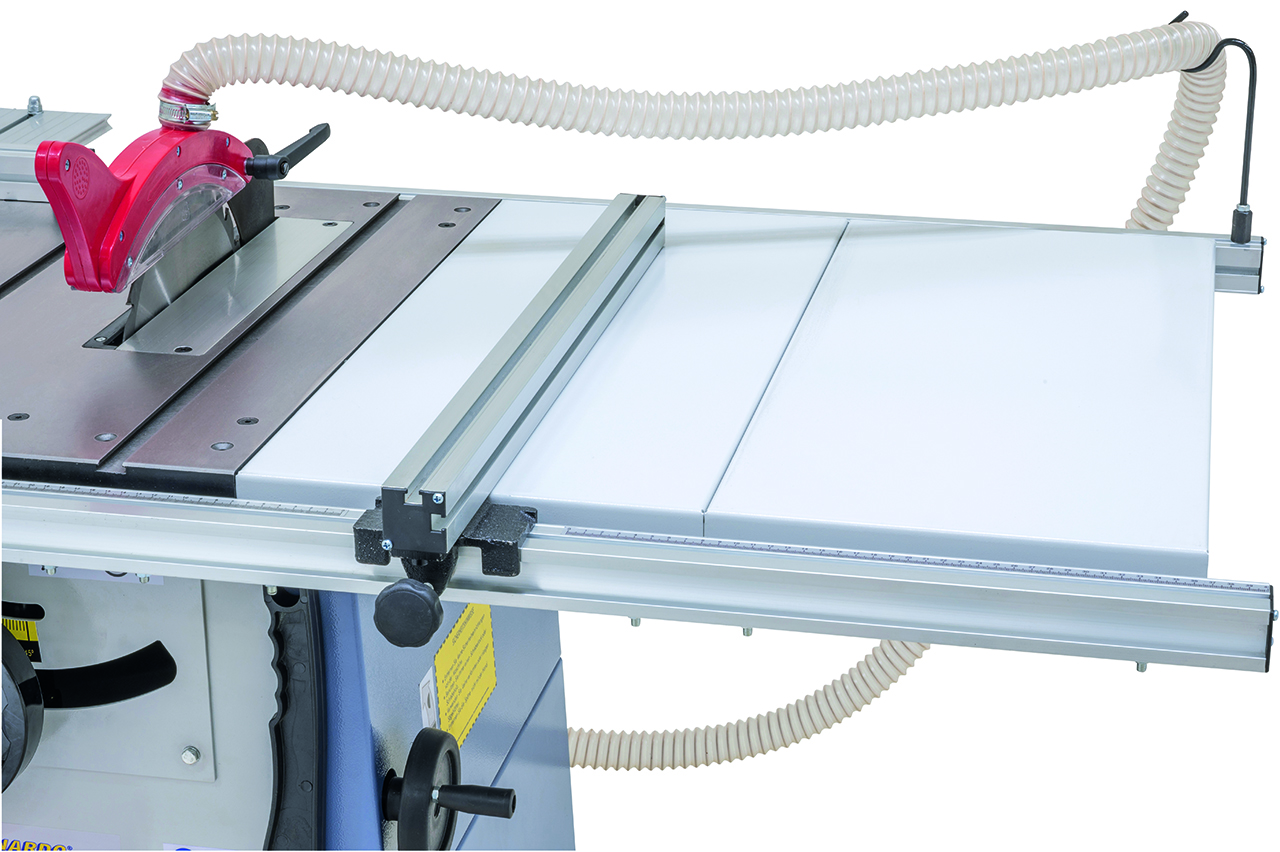

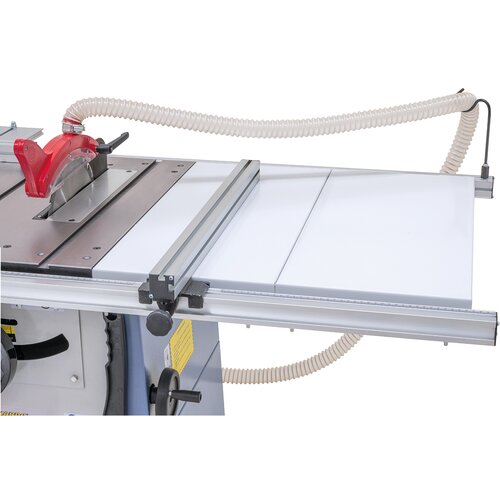

Table extension for cutting width up to 710 mm comes standard.

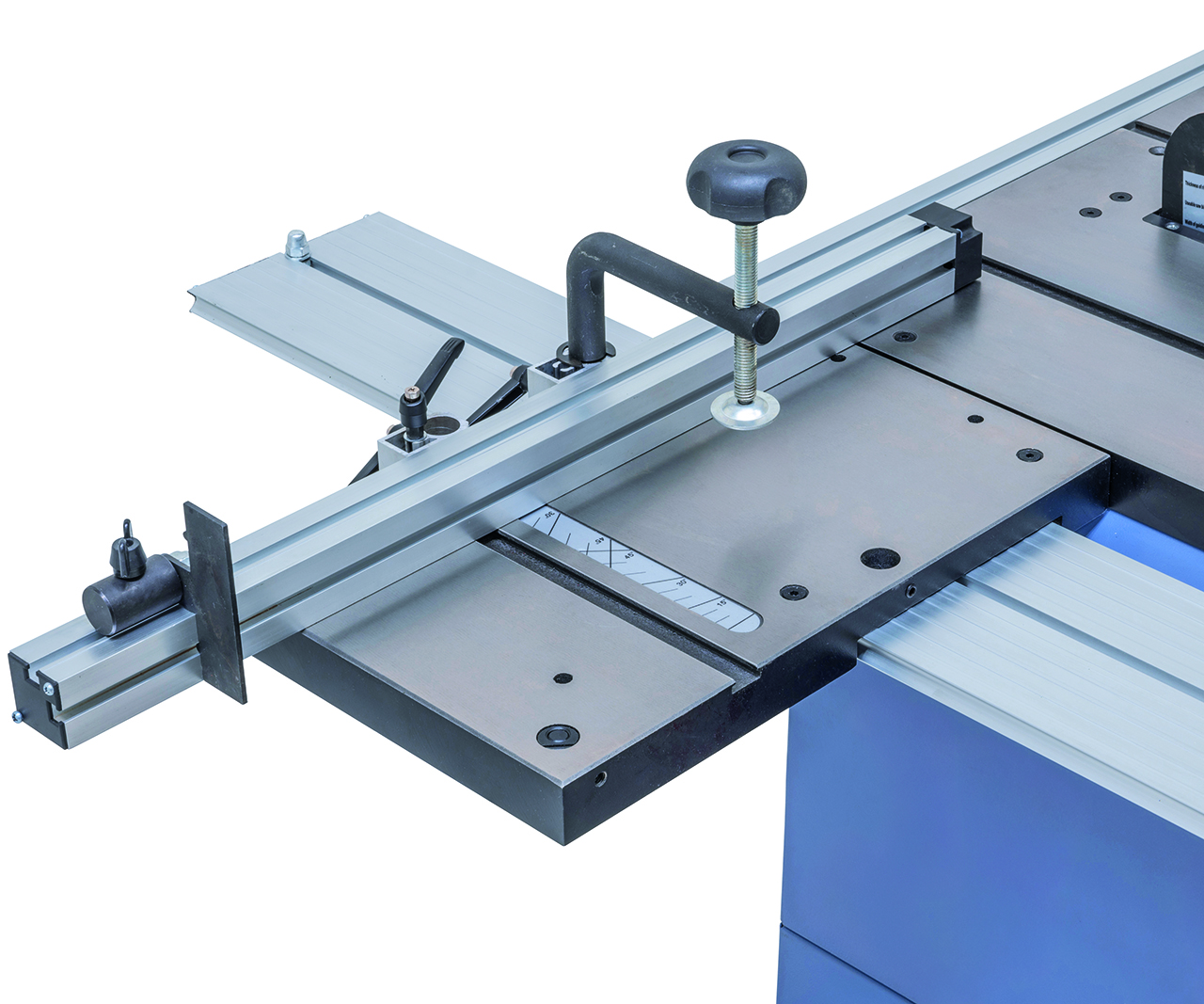

Aluminium fence with end stop and downholder is part of standard equipment.

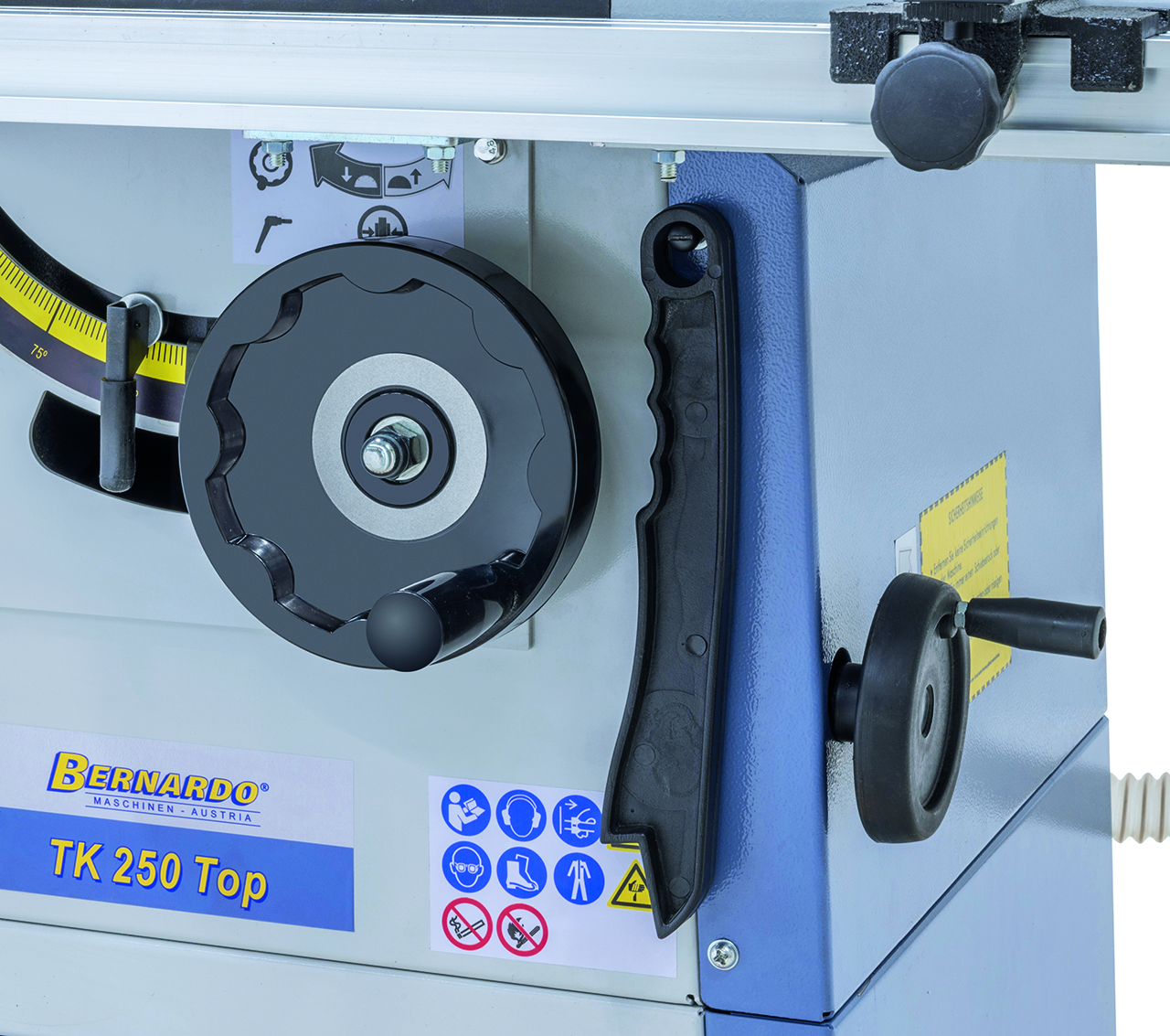

Ergonomic mounted handwheels allow for height adjustment and tilting of the saw unit.

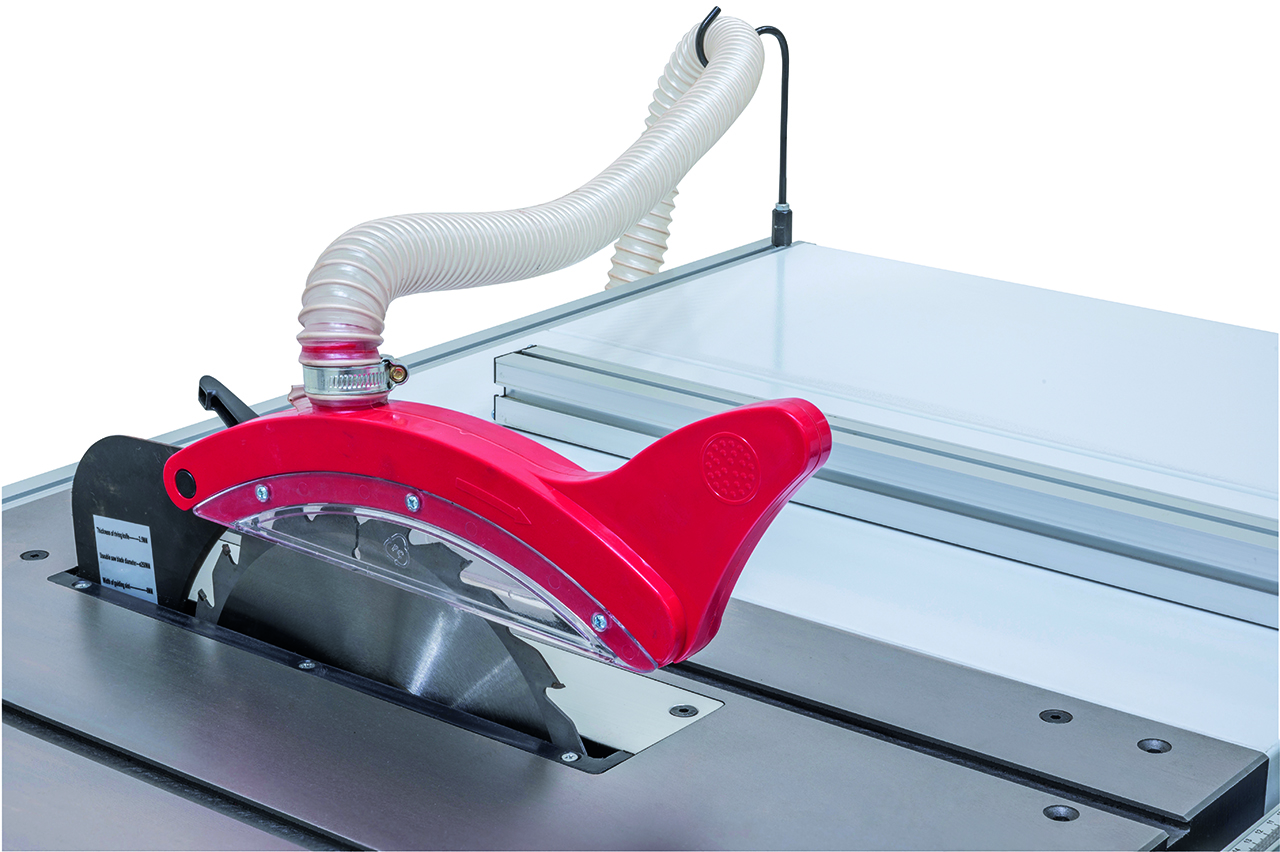

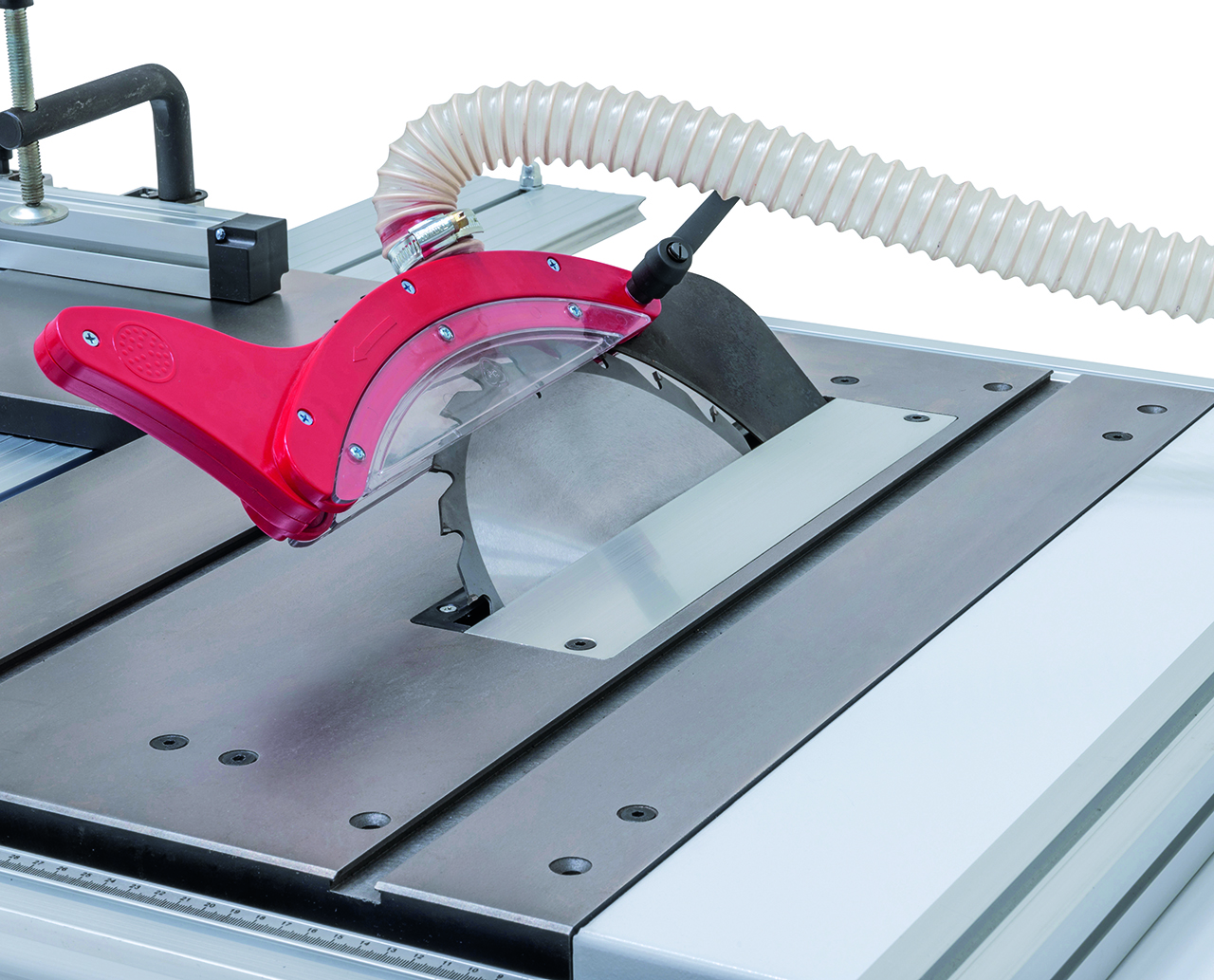

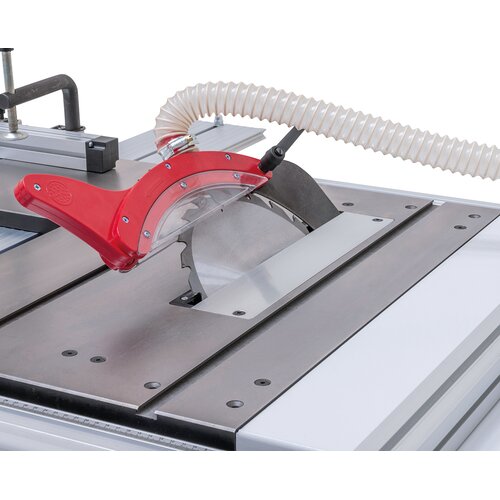

Sawblade cover - with integrated dust port - connected at riving knife.

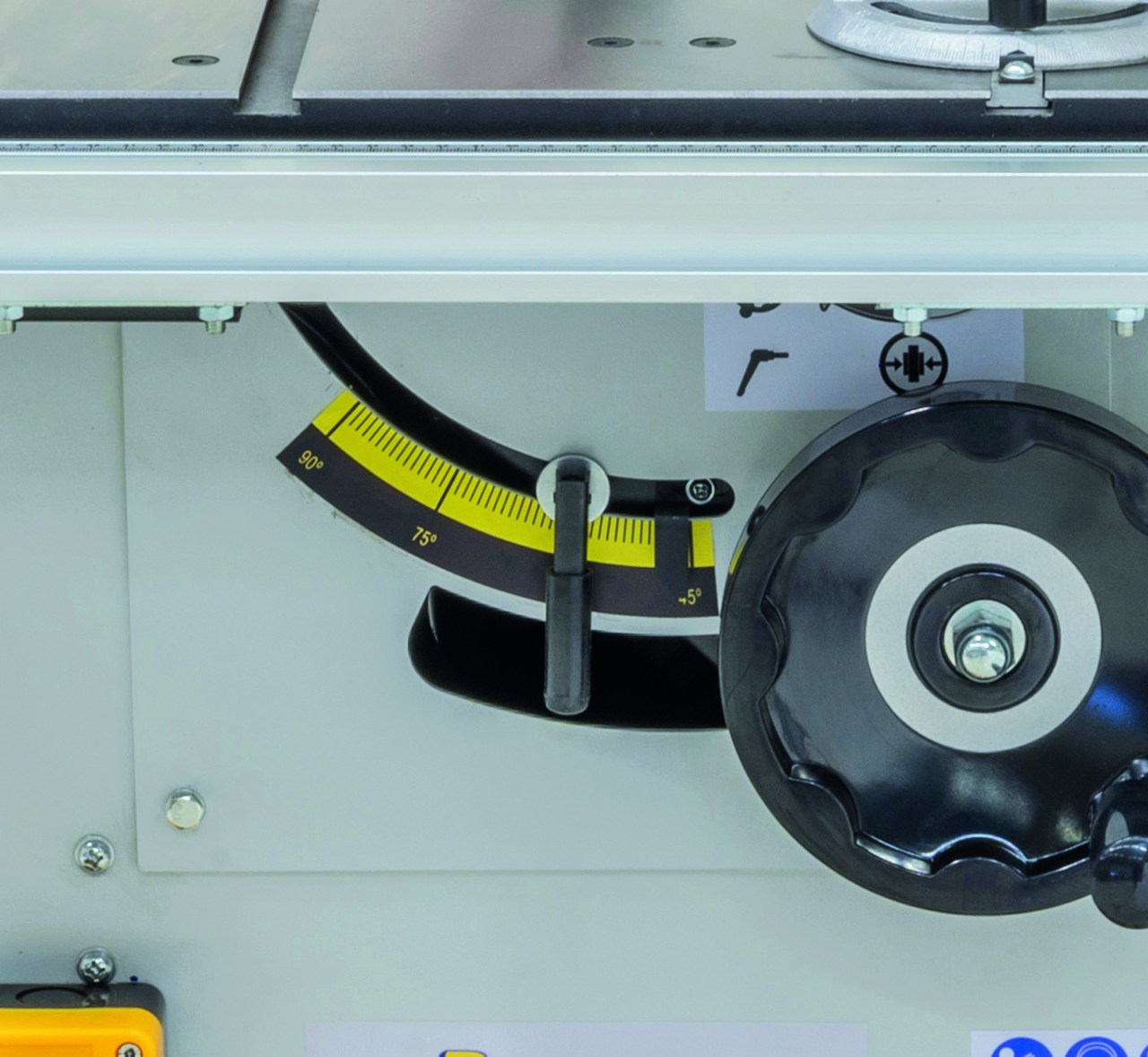

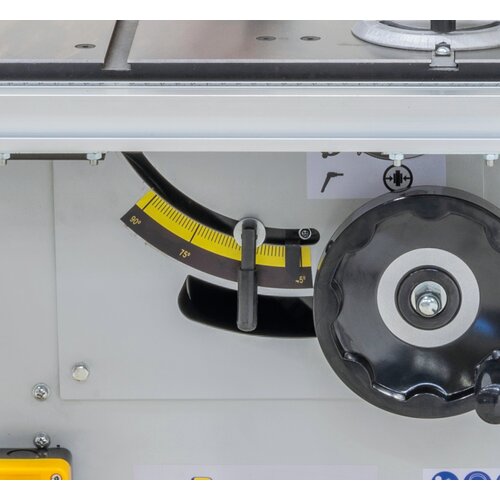

Sawblade angle can easily be read out on scale.

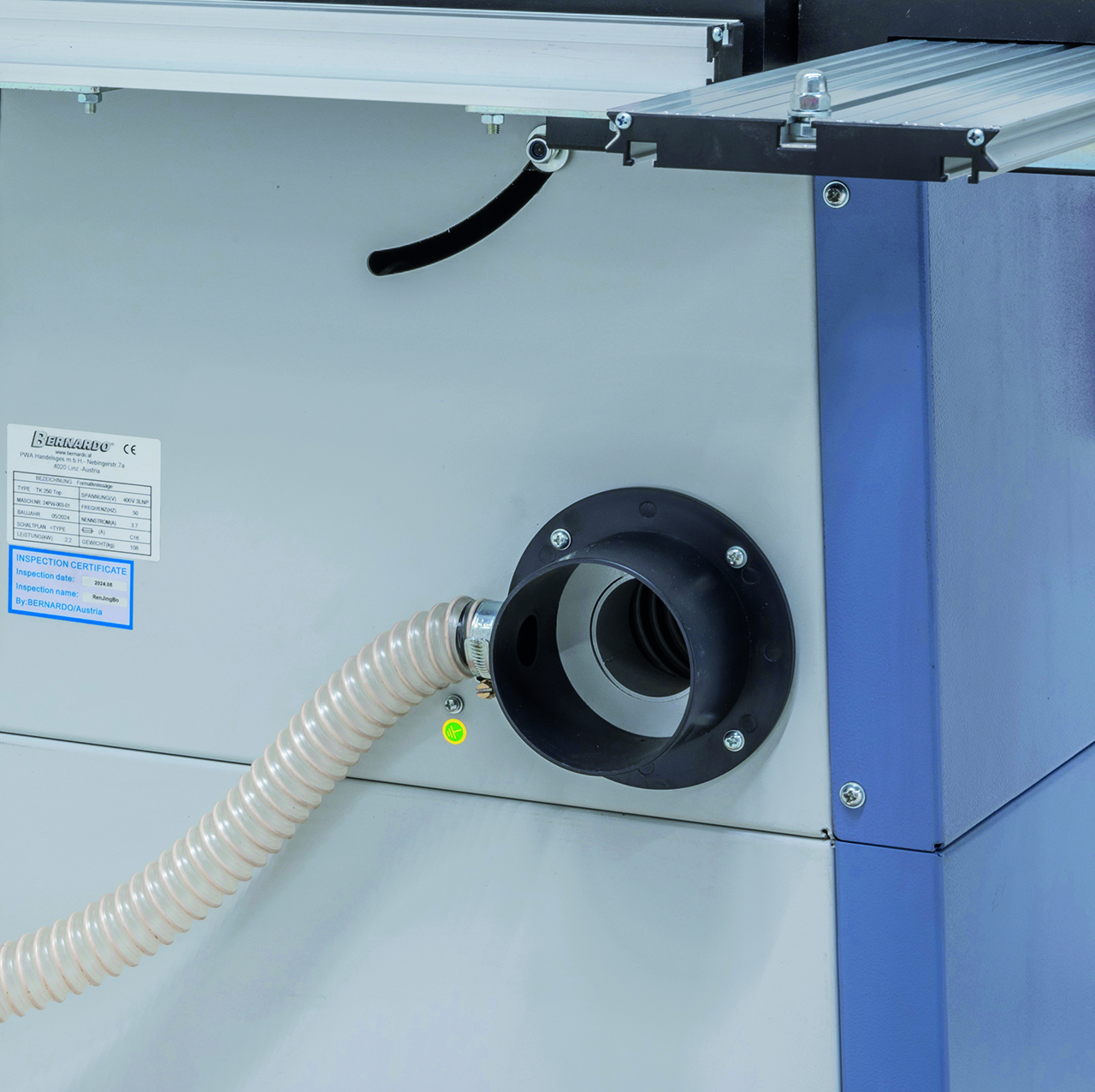

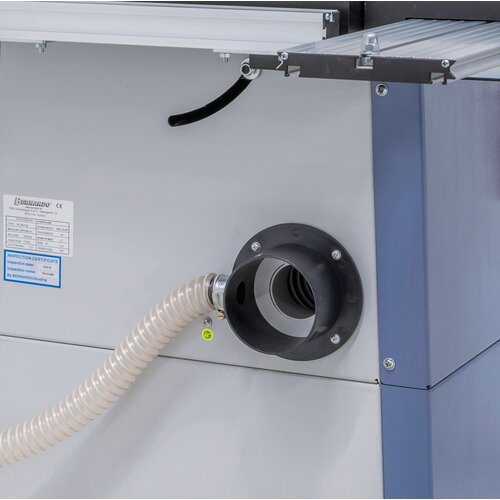

Ensure optimal work conditions by connecting a dust collector to the 100 mm dust port.

Fierăstrăul circular cu masa TK 250 Top / 230 V

Art. No.: 09-1060

Wishlist Comparison List

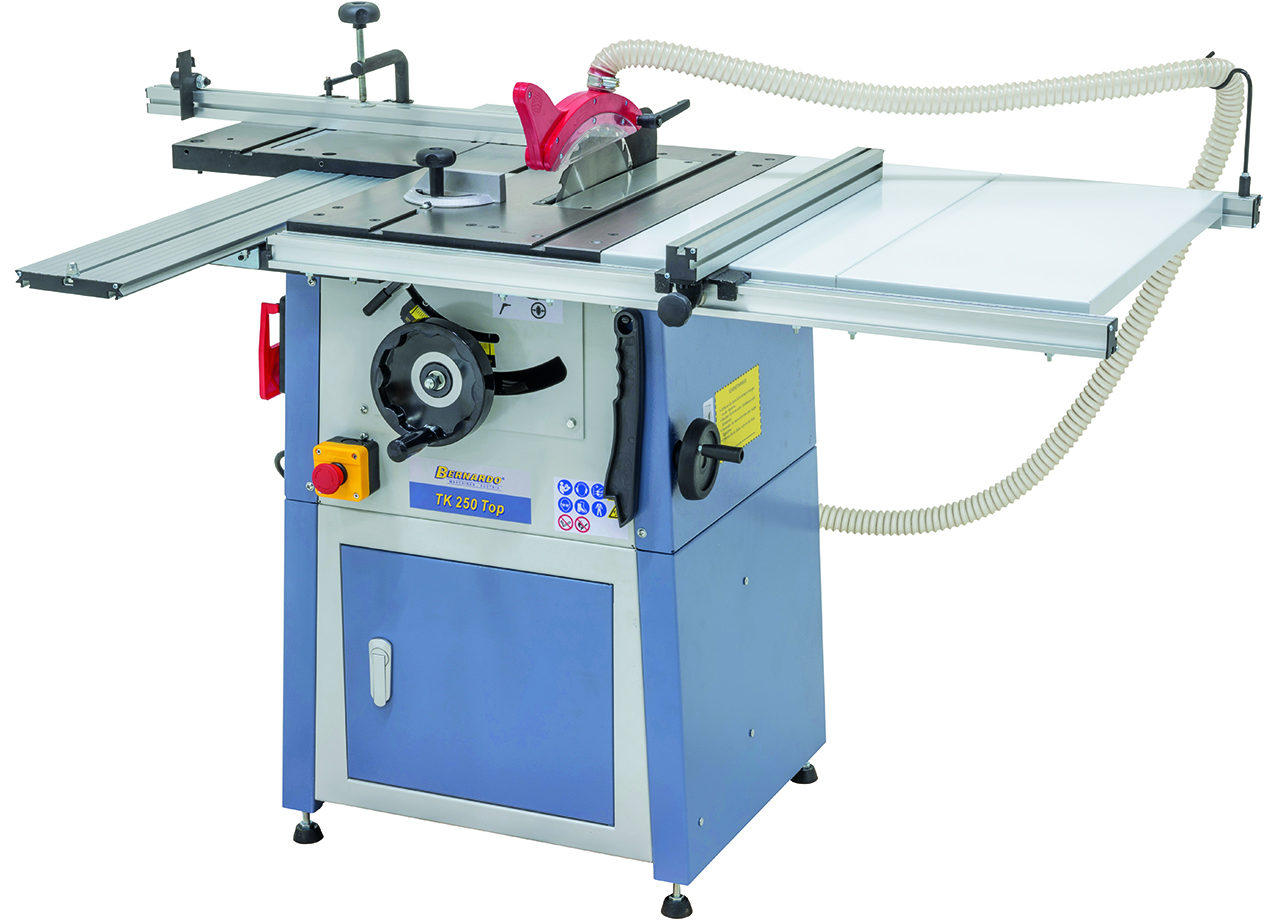

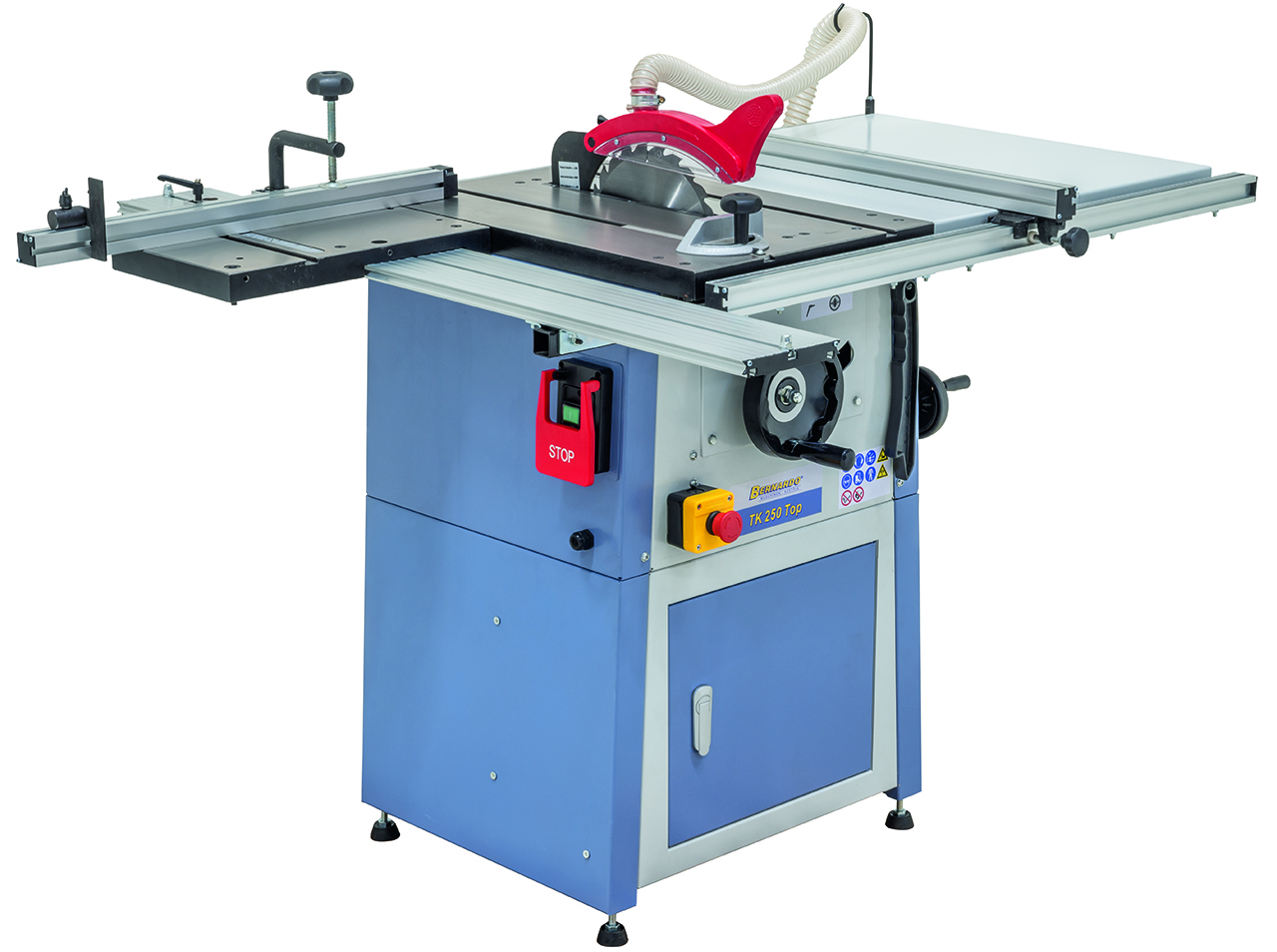

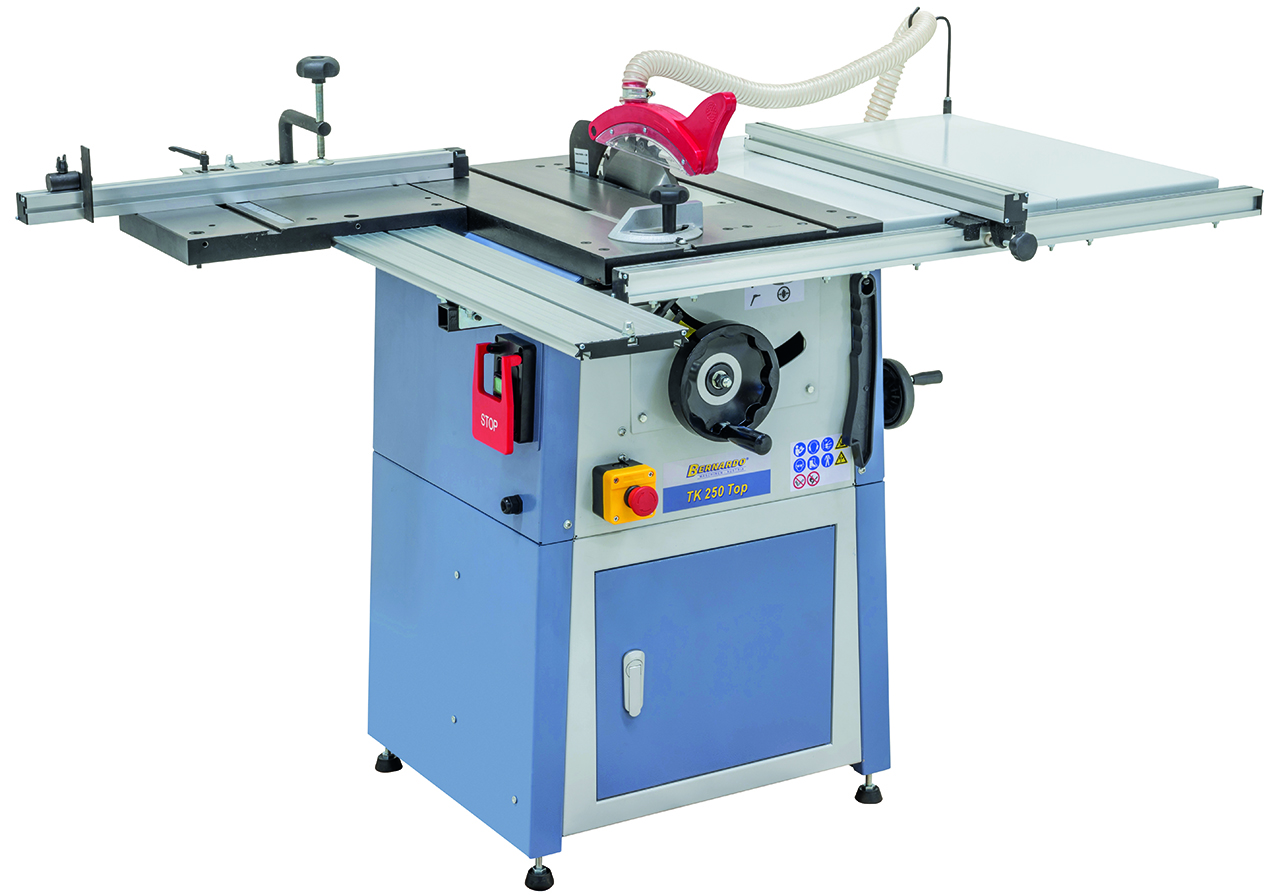

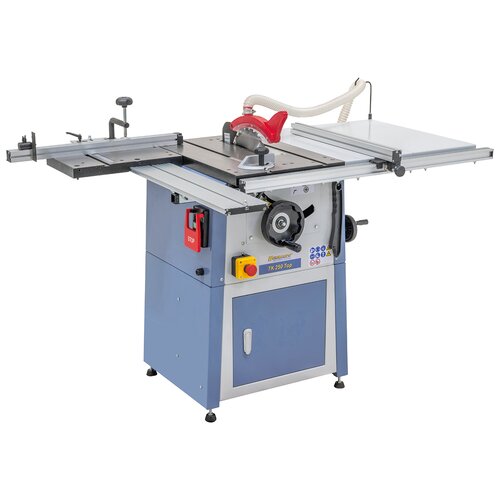

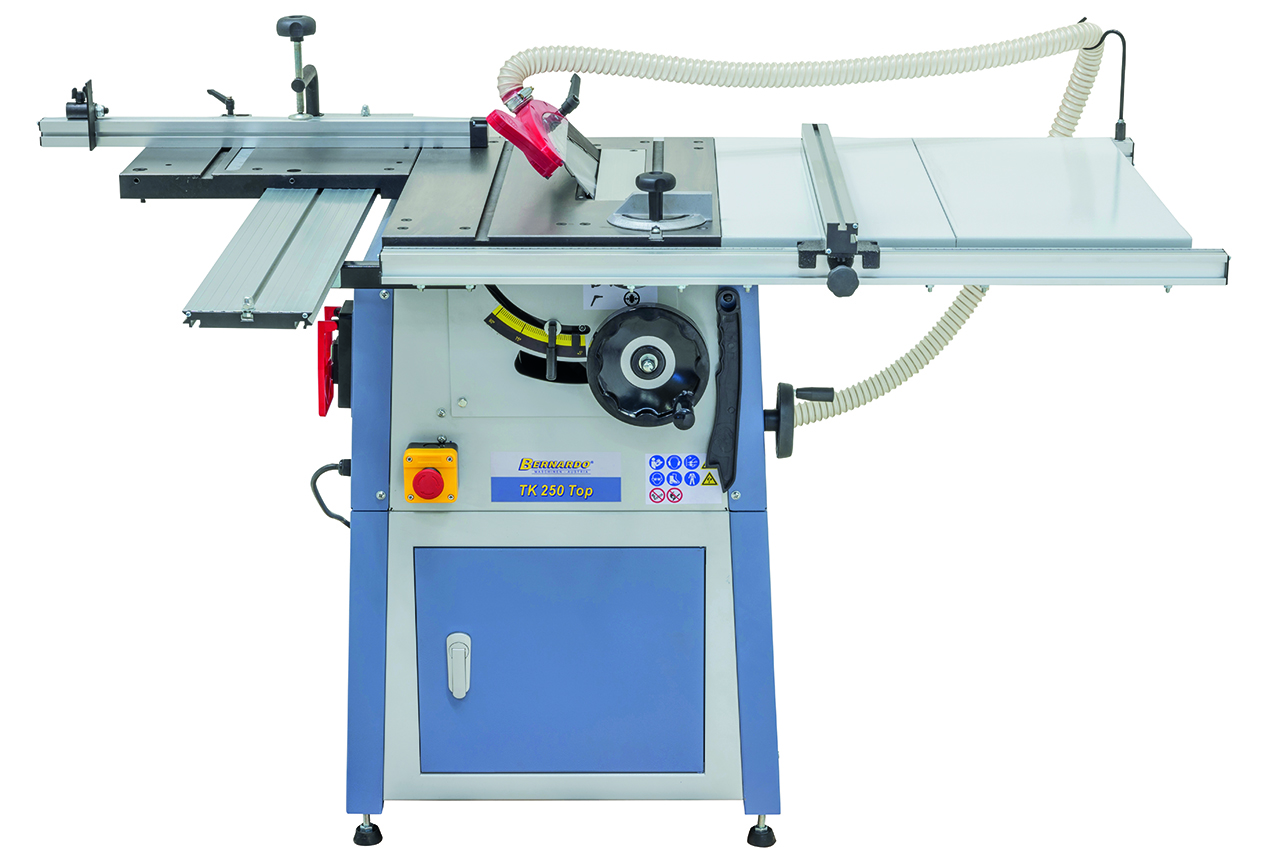

The TK 250 Top table saw is the ideal model for quickly processing small workpieces. Thanks to the standard roller table, this machine combines high cutting performance and great precision with a compact design. Its comprehensive standard equipment and flexible range of applications offer professional users an optimal price-performance ratio.

1.428,00 EUR

incl. 20% VAT

Availability

Out of Stock

Product Properties

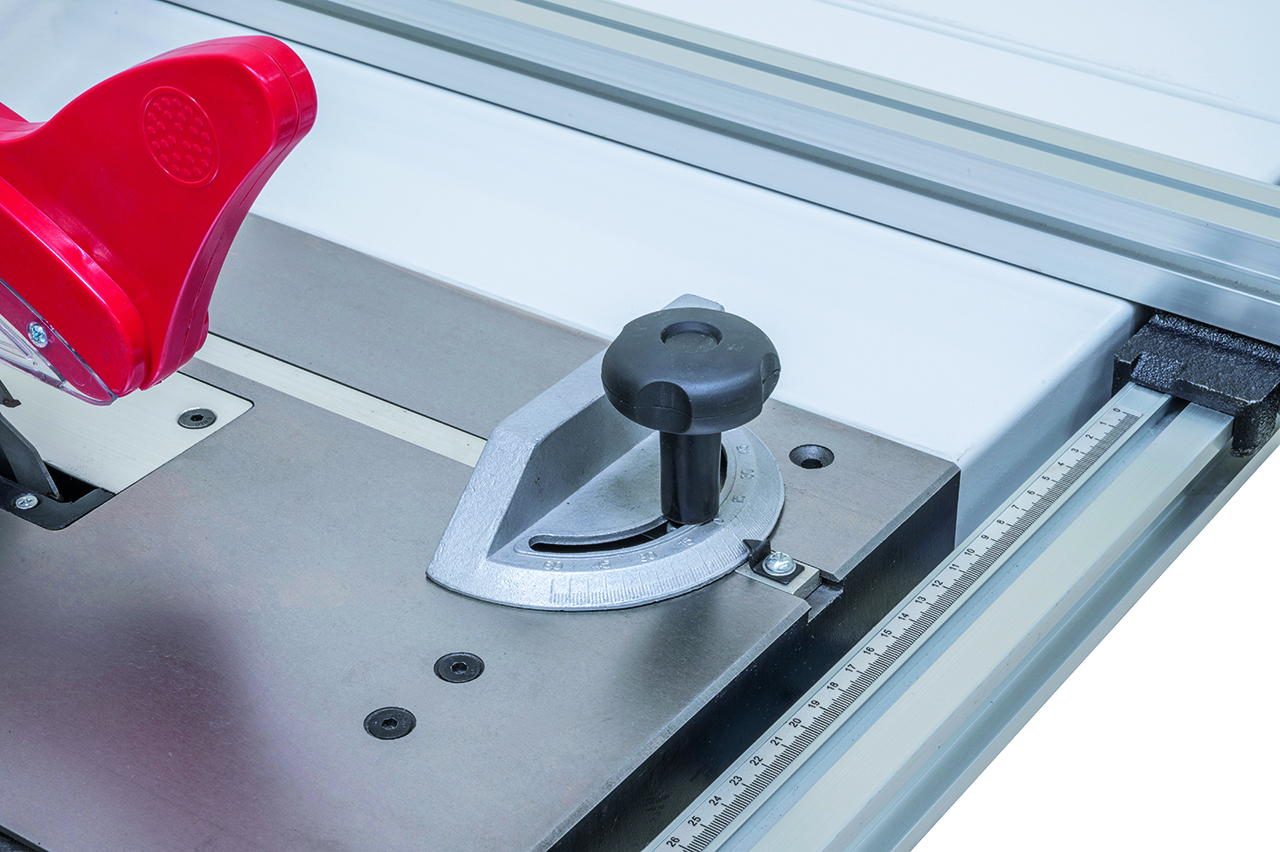

Mitre fence either usable on right or left of sawblade, suitable for angle cuts up to 45°
Powerful drive motor ensures constant cutting speed, even at 75 mm cutting height
Left tilting sawblade ensures better cutting guide on longitudinal fence
Large, grey cast-iron machine table, built with top accuracy and polished surfaces
Lieferumfang komplett mit Gehrungsanschlag und Sägeblatt
Standard accessories include mitre fence and sawblade
Handwheel allows for tilting of saw unit up to 45°
Complete with table extension for convenient cutting of large panels
Torsion-free, steel and grey cast-iron machine body

Product Specifications

Table size	635 x 420 mm
Roller table	400 x 250 mm
Travel of roller table	925 mm
Max. sawblade diameter	254 mm
Max. cutting height 90° / 45°	75 / 65 mm
Cutting width on rip fence	710 mm
Table height	870 mm
Table extension	635 x 575 mm
Speed main sawblade	4750 rpm
Dust extraction outlet	100 mm
Motor power output S1 100%	2,2 kW (3,0 HP)
Motor power input S6 40%	3,0 kW (4,0 HP)
Voltage	230 V or 400 V
Machine dimension (W x D x H)	1500 x 1210 x 1080 mm
Weight approx.	114 kg
