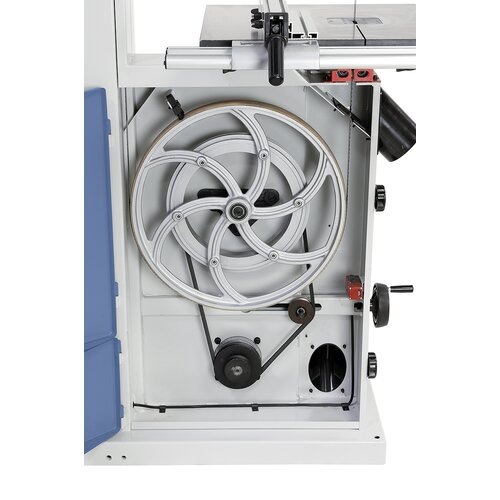

The desired cutting speed is adjustable with a V-belt at the lower flywheel.

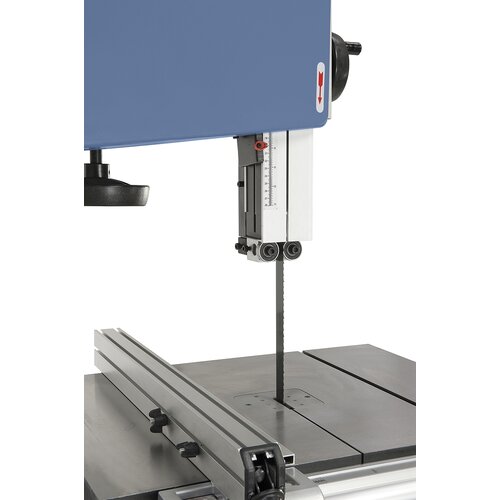

Ball bedded precision guides over and under the table guarantees a perfect bandsaw blade guiding.

Easy bandsaw blade changing using a quick clamping lever, the basic setting of the drive wheel will not be changed

Amply sized working table with grounded surface and T-slot for the mitre fence (standard)

The flywheel with special rubbercoating ensure a smooth run and long life-span of the bandsaw blades.

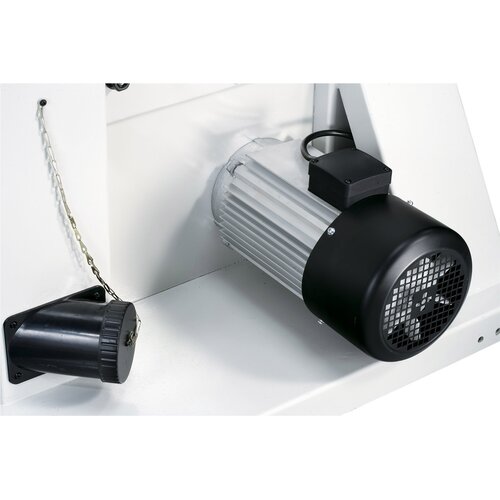

Powerful drive motor with brake function, optimal dust extraction through the diam. 100 mm outlet.

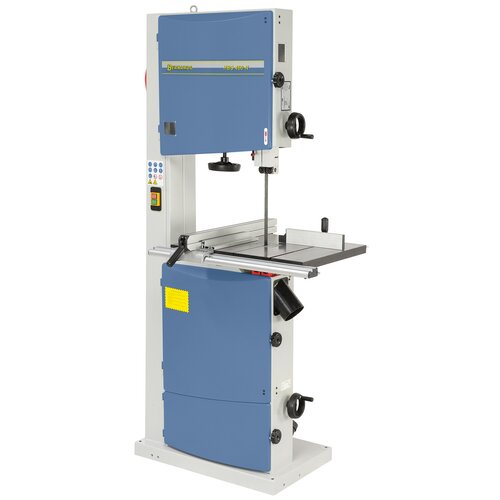

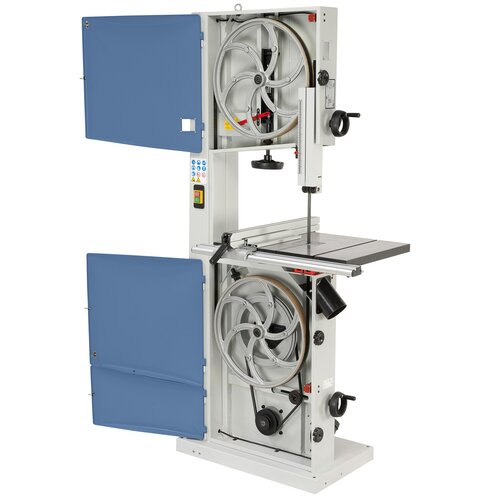

Wood bandsaw HBS 460 N / 230 V *

Art.Nr.: 11-4020B

Wishlist Comparison List

Our top model HBS 460 N is the optimal machines for the ambitious craftsmen. This model comes standard with 2 cutting speeds. Further, this model allows a quick bandsaw blade changing using the quick clamping lever.

€2,124.00

incl. 20% VAT

Availability

In Stock

Deliverable in 2-3 business days

Product Properties

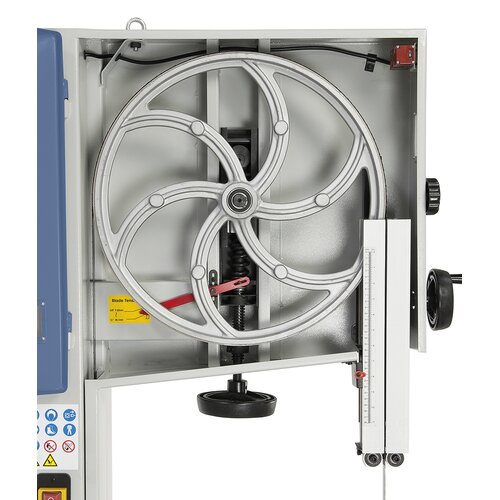

Dynamically balanced flywheels for smooth run
Cutting speed adjustable with V-belt to the workpiece
Cutting height adjustment via gear rack with mm-scale using a handwheel

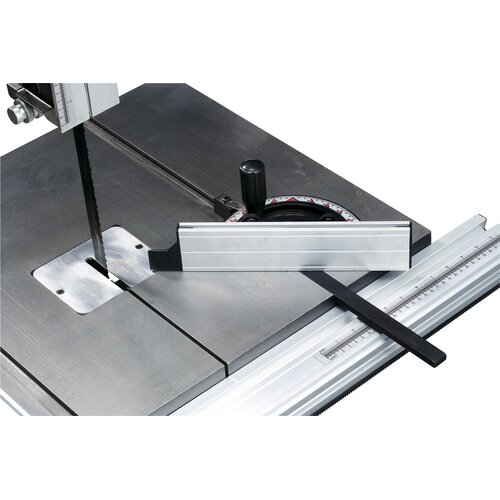

Working table with grounded surface and T-slot for the mitre fence

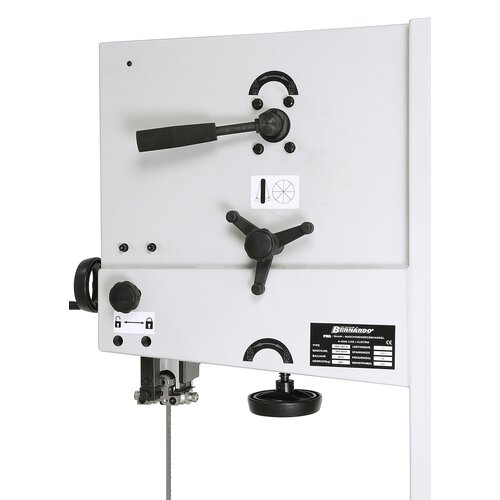

Easy bandsaw blade change using the quick clamping lever on the backside.
Precise guided aluminium rip fence, removable on each position
Inspection window on the front for checking the run of the bandsaw blade
Generously dimensioned cast iron table, tiltable from -5° to +45°
High-power drive motor allow handling of bigger workpieces

Product Specifications

Cutting width	465 mm
Cutting height	280 mm
Blade dimension	3607 x 25 x 0,6 - 3 TPI
Blade width	9,5 - 25,4 mm
Cutting speed	420 / 840 m/min
Table dimension	480 x 630 mm
Table height	970 mm
Tilting table	-5° to 45°
Dust extraction outlet	2x 100 mm
Motor power output S₁ 100%	2,2 kW (3,0 HP)
Motor power input S₆ 40%	3,0 kW (4,0 HP)
Voltage	400 V
Machine dimension (W x D x H)	1050 x 800 x 1950 mm
Weight approx.	162 kg
