Picture show VMS 520 A

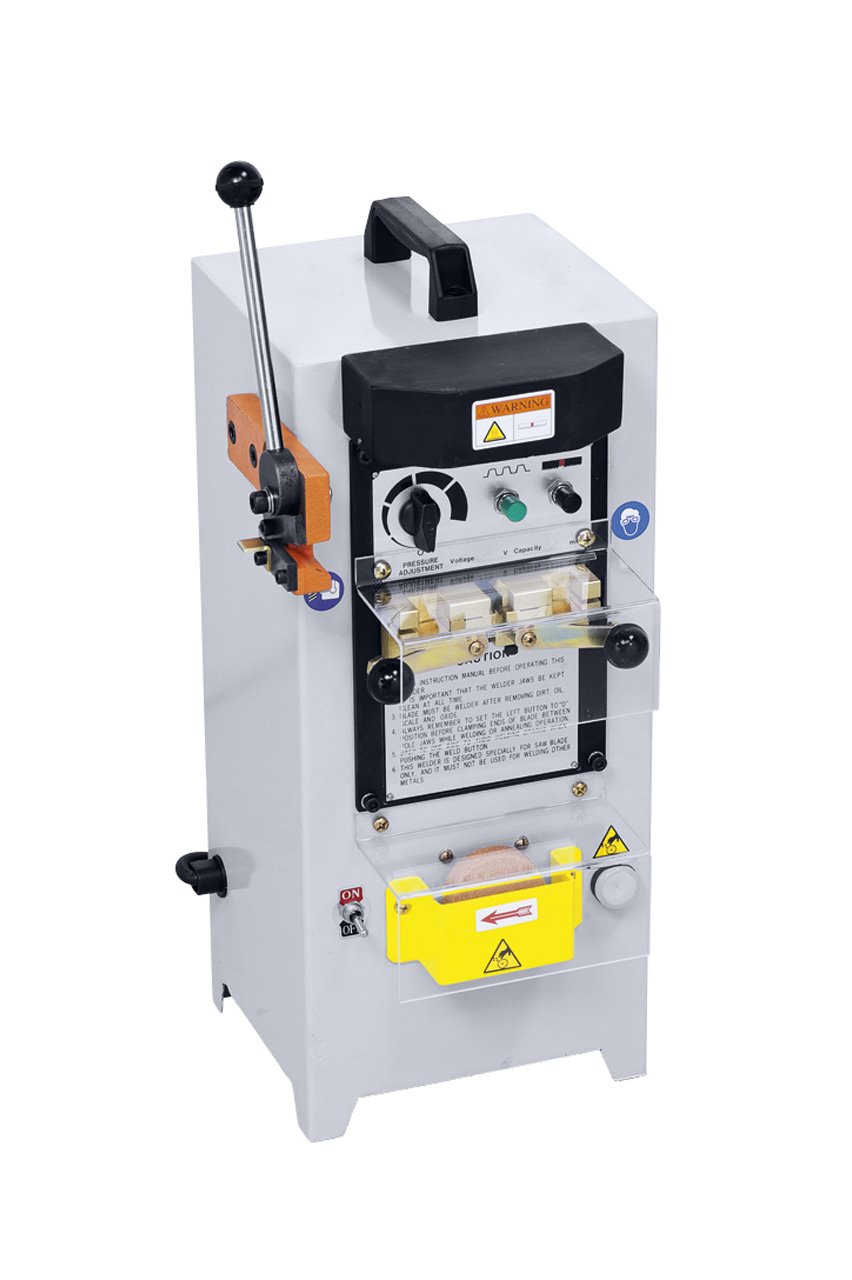

Blade welder SG 316 separate available. Driven grinding stone and shear included.

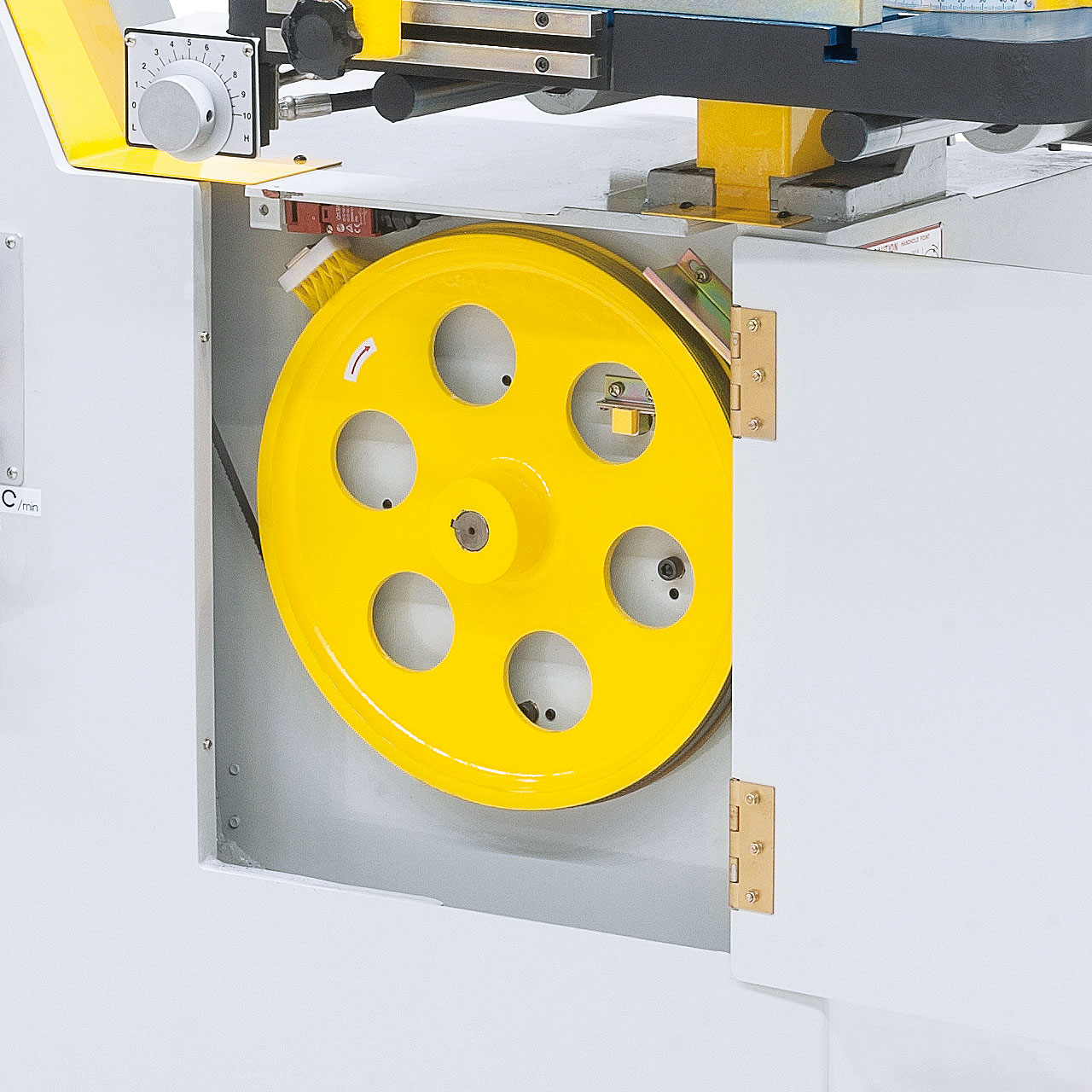

Drive wheel features special rubber band to ensure smooth run and increase life span of blade.

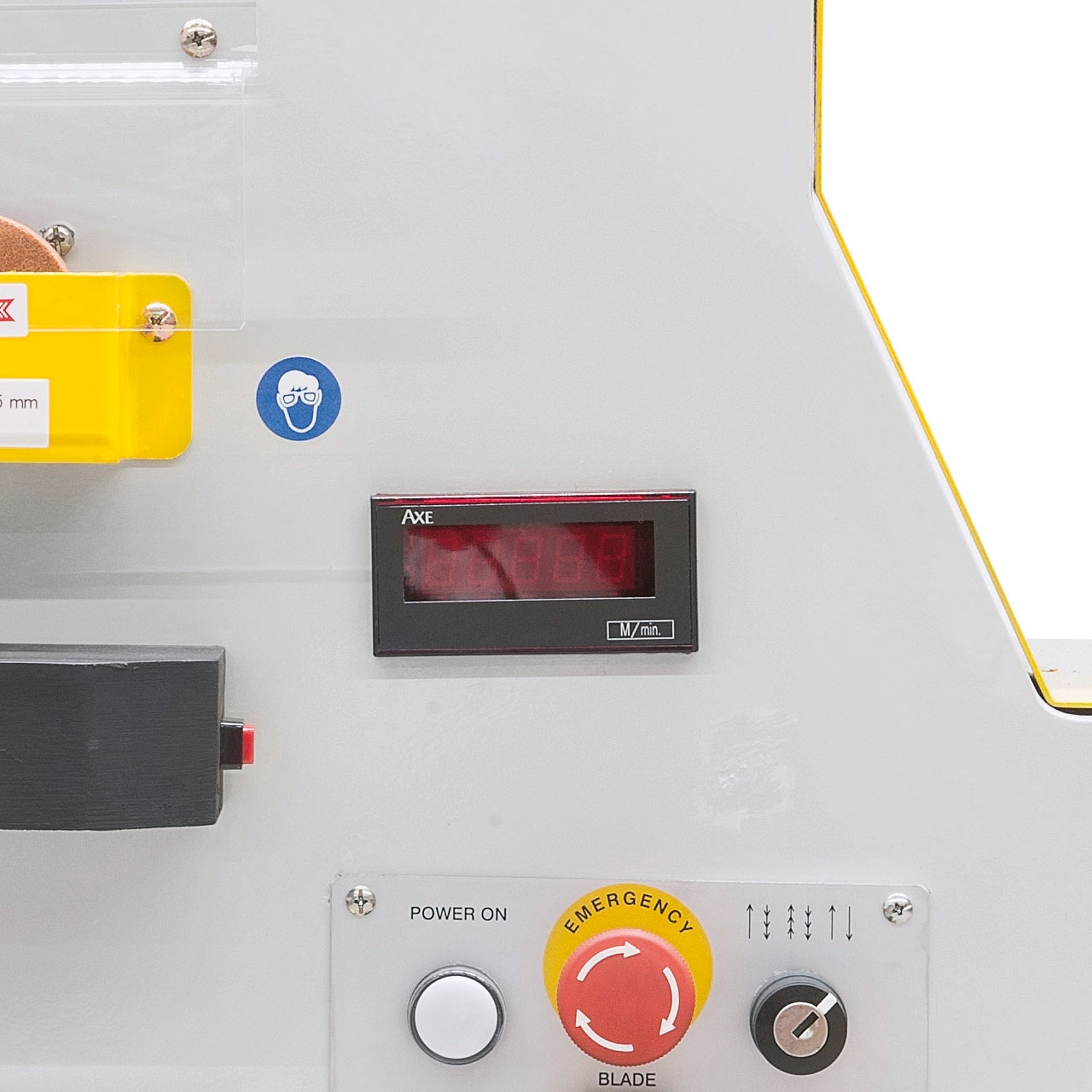

Complete with LEDdisplay to allow for easy speed setting.

Includes blow gun for optimal view of cutting line.

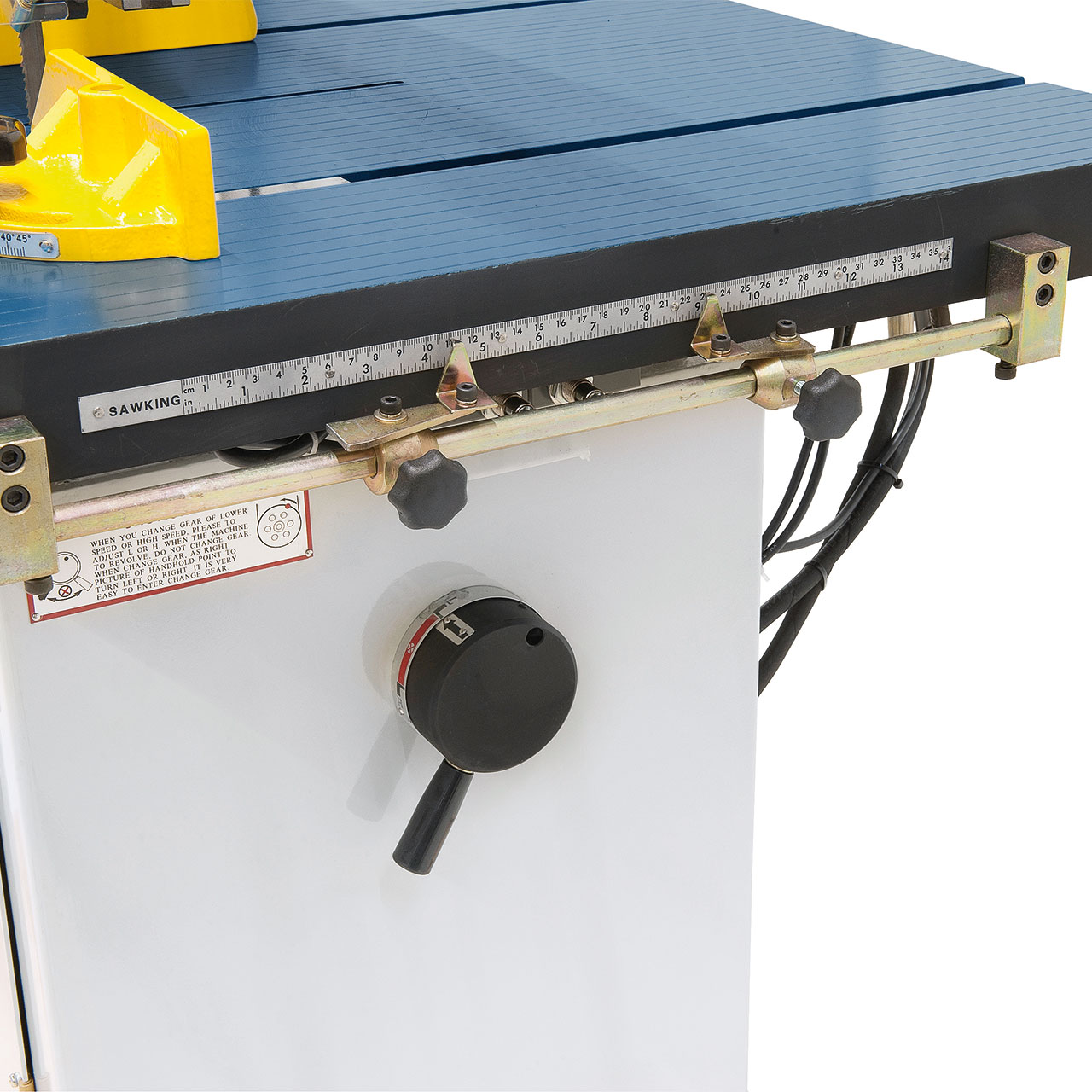

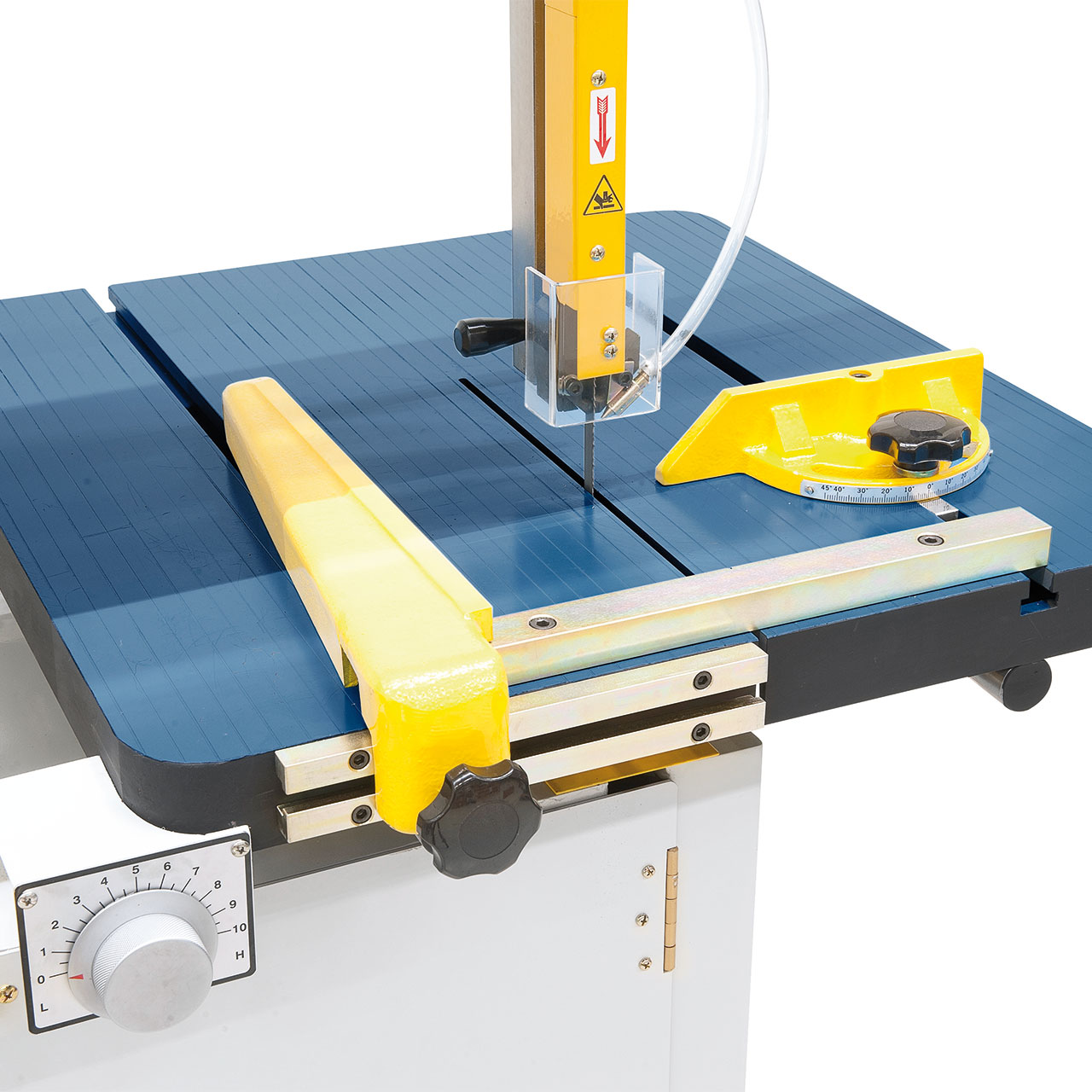

Comes with longitudinal fence for straight cuts and mitre fence for angle cuts.

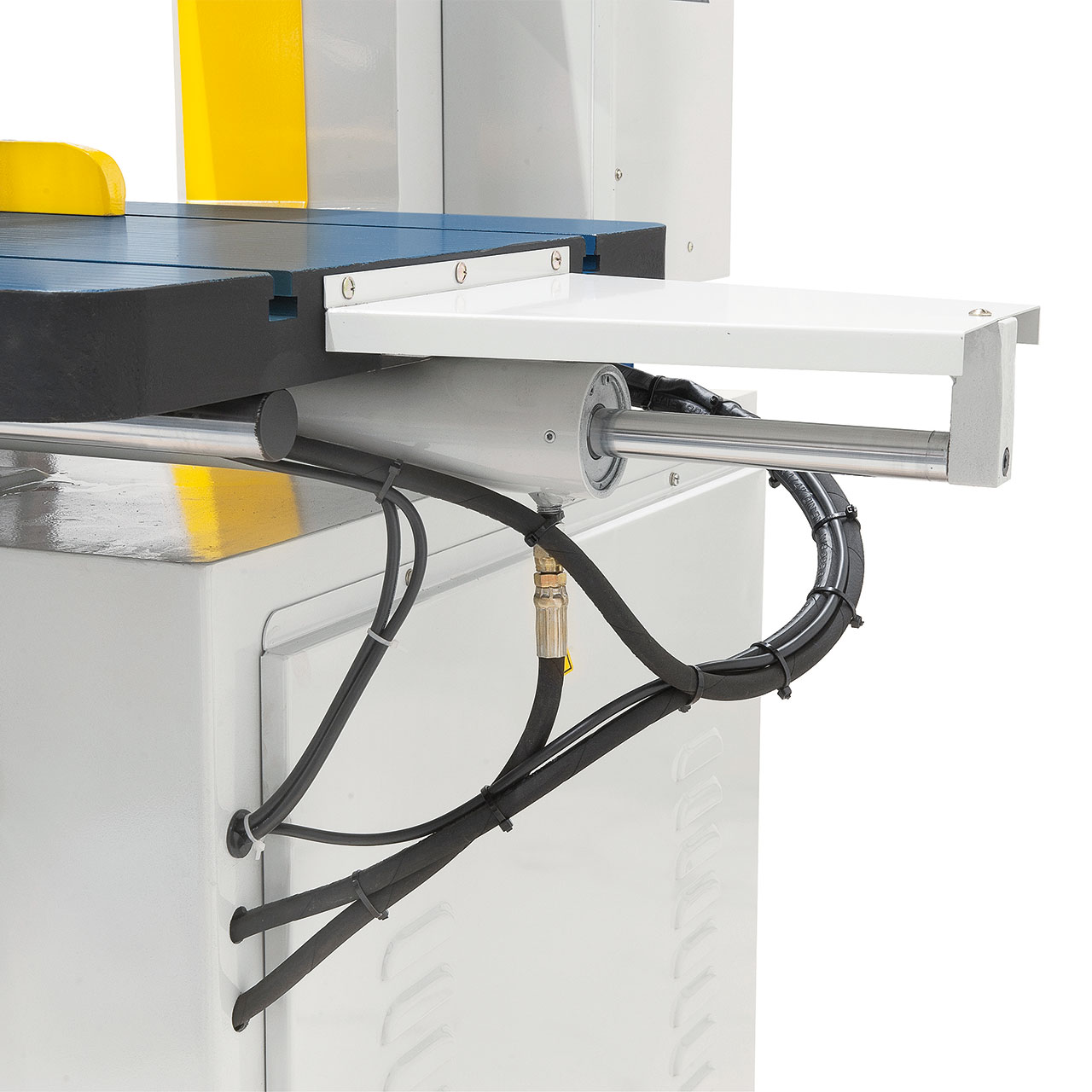

Hydraulic cylinder for table feed.

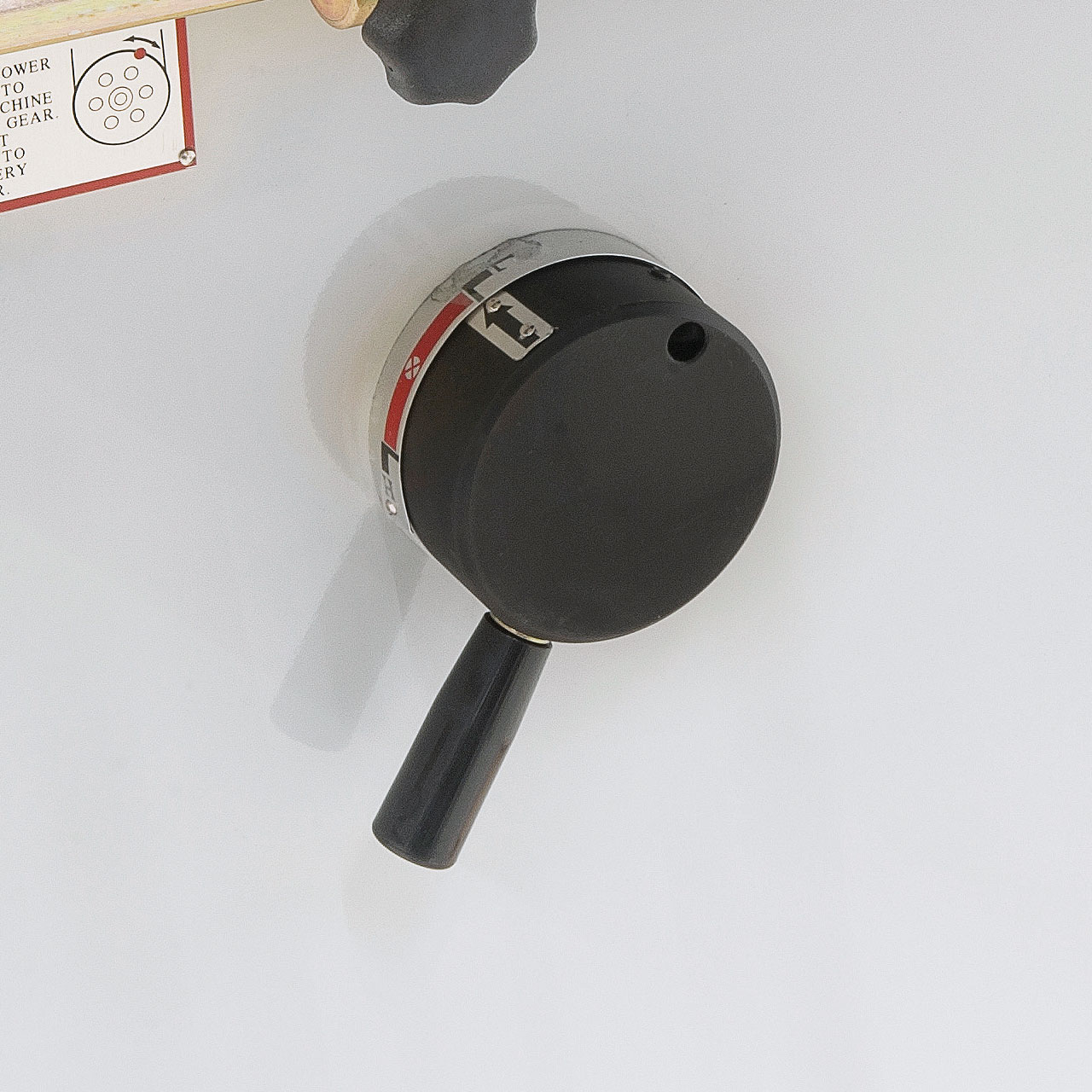

Convenient change from grade 1 to grade 2.

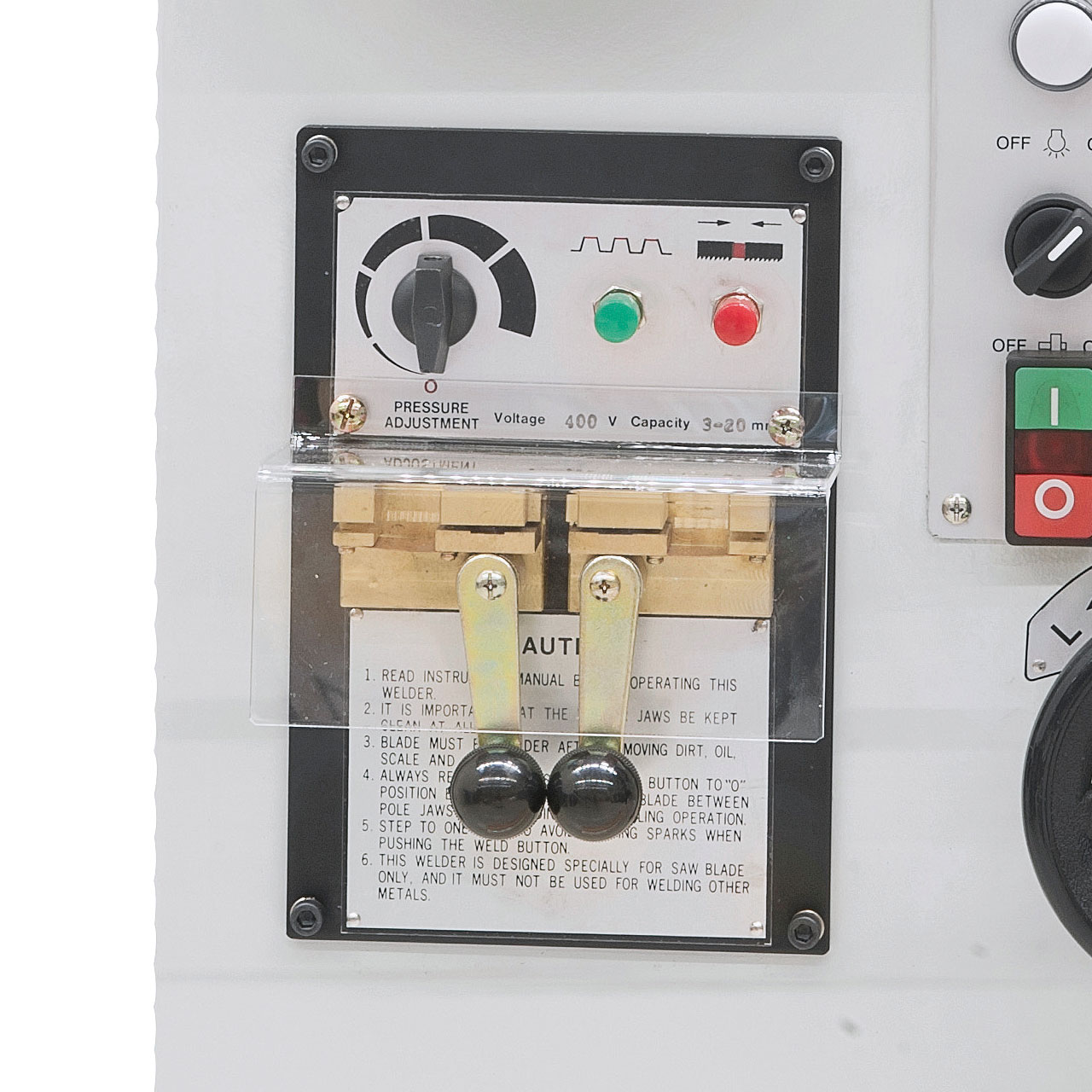

Complete with blade welding device featuring annealing device, shear and grinder.

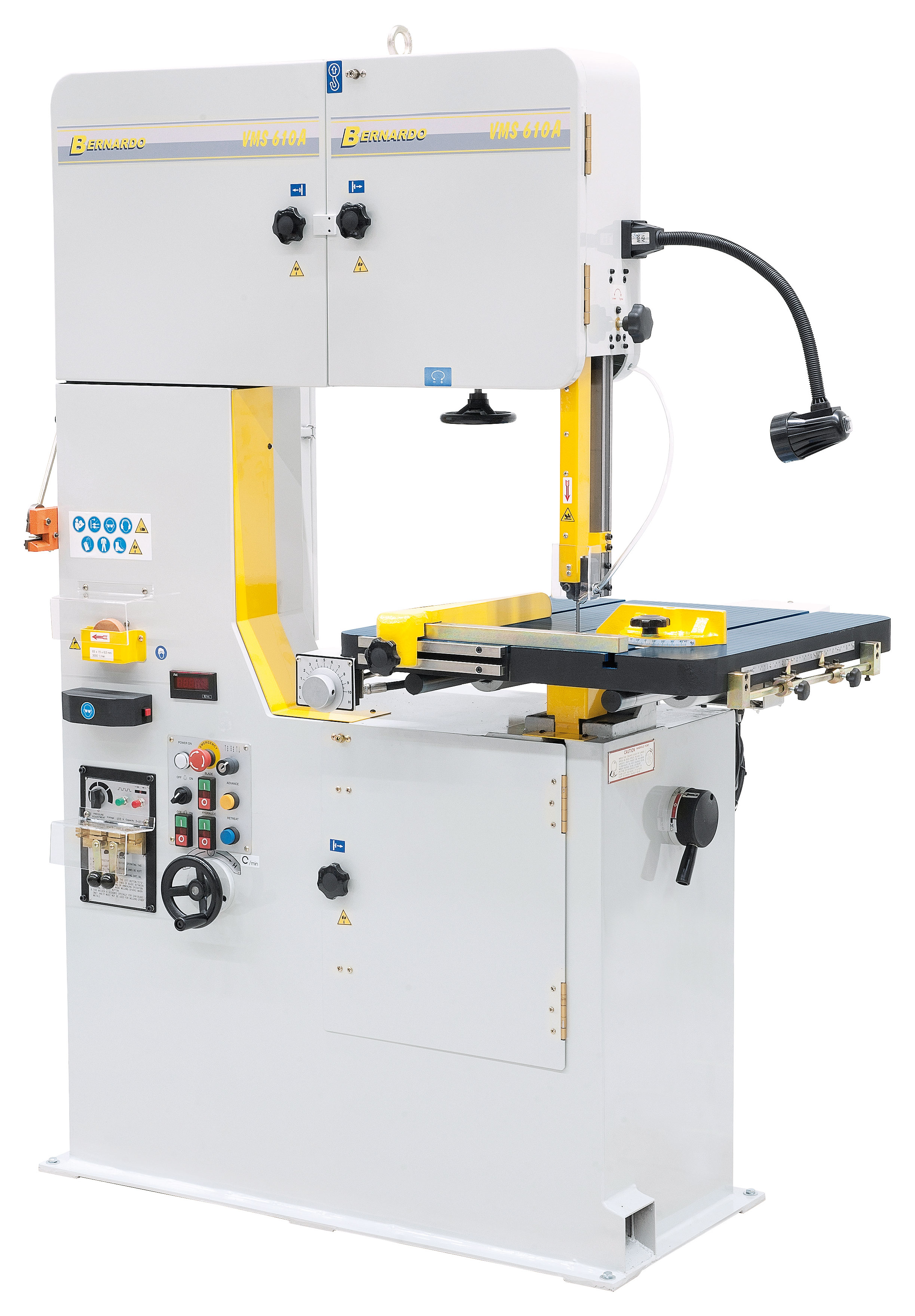

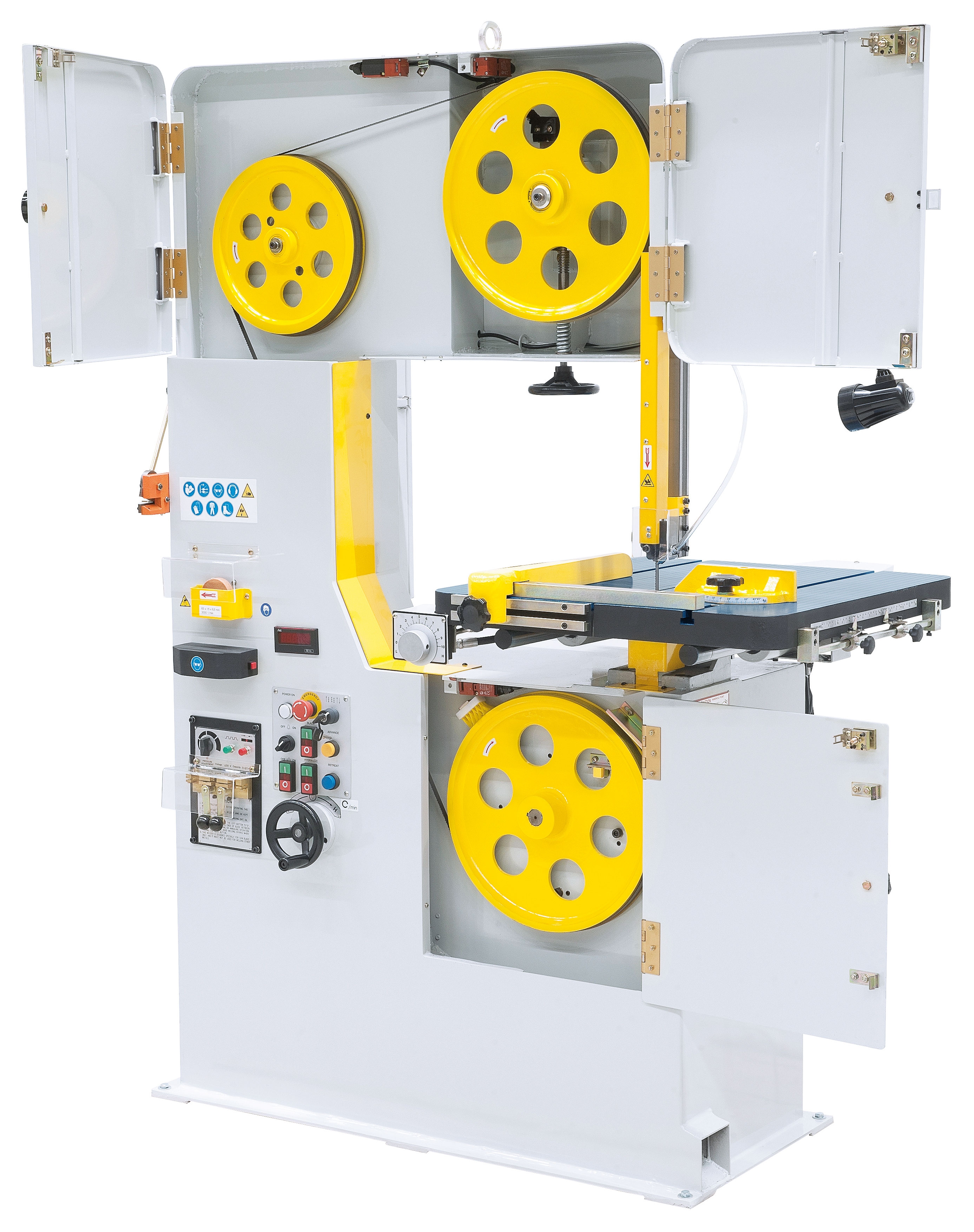

Vertical bandsaw VMS 610 A with table feed **

Art.Nr.: 04-1808

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The VMS 610 A vertical band saw is equipped with an automatic table feed. The model is suitable for cutting of almost all materials, such as steel, plastics, non-ferrous metals, metal composites etc. This model is predominately used in general production, tool making, fixture construction and productions of punch dies and cutting tools.

€13,428.00

incl. 20% VAT

Availability

Out of Stock

Product Properties

Solid grey cast-iron table, the large work rest ensures high work safety
Complete with blade welding device, annealing device, shear and grinder
Equipped with stepless speed adjustment up to 500 m/min
Rigid steel construction of machine body allows for smooth run

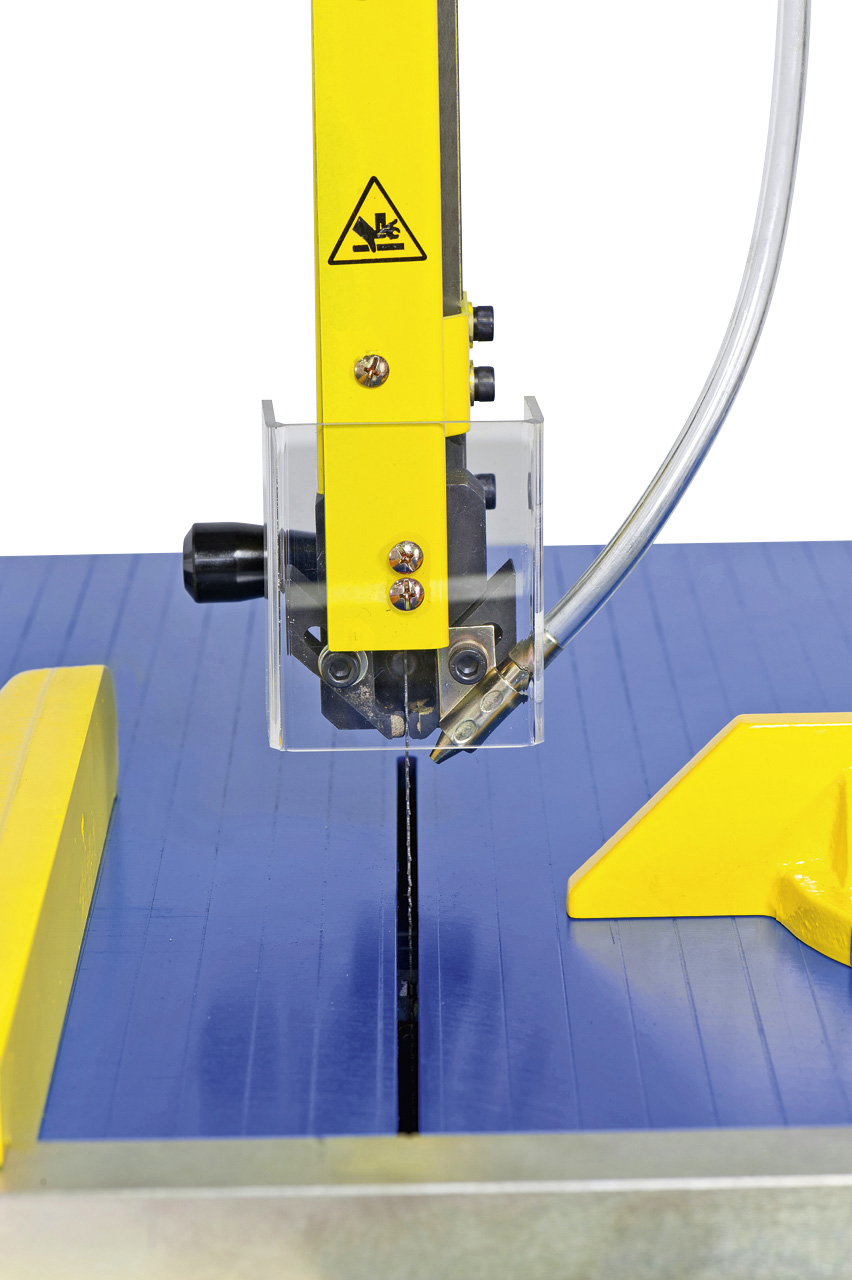

Blade guiding features hardened and polished V-guide pads
Ideal for sawing of complex contours and shapes
Standard accessories include blow gun with compressor
Bandsaw blades starting with a width of 3 mm allow sawing of radii

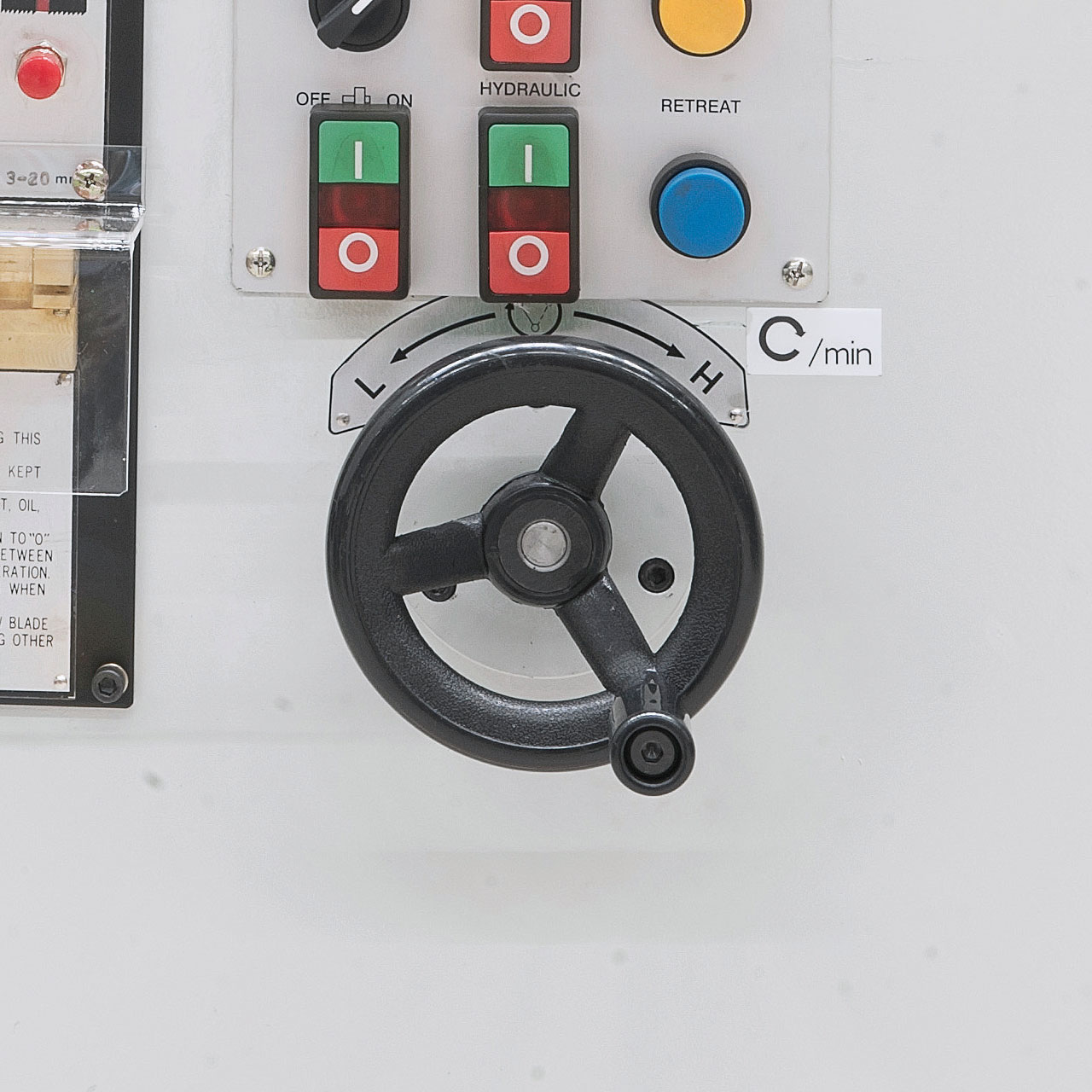

Handwheel allows adjustment of blade tension

Product Specifications

Cutting width	610 mm
Cutting height	340 mm
Working height	1015 mm
Cutting speed setting 1	20 – 85 m/min
Cutting speed setting 2	120 – 500 m/min
Bandsaw blade length	3970 mm
Bandsaw blade width	3 – 20 mm
Table size	660 x 700 mm
Table tilting range	L 5° / R 15°
Table travel	350 mm
Motor power	1,5 kW
Blade welding device	4,2 kVA
Machine dimension (L x D x H)	1570 x 1100 x 2140 mm
Weight approx.	850 kg
