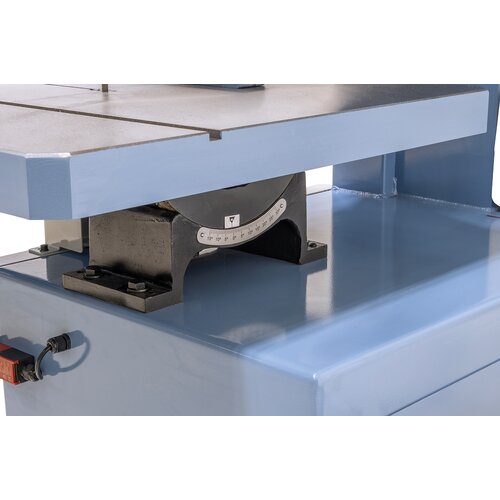

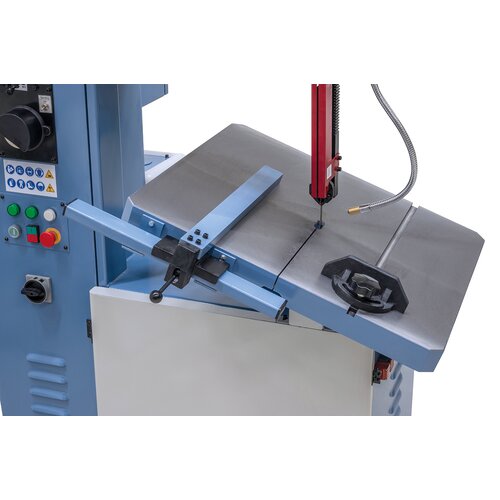

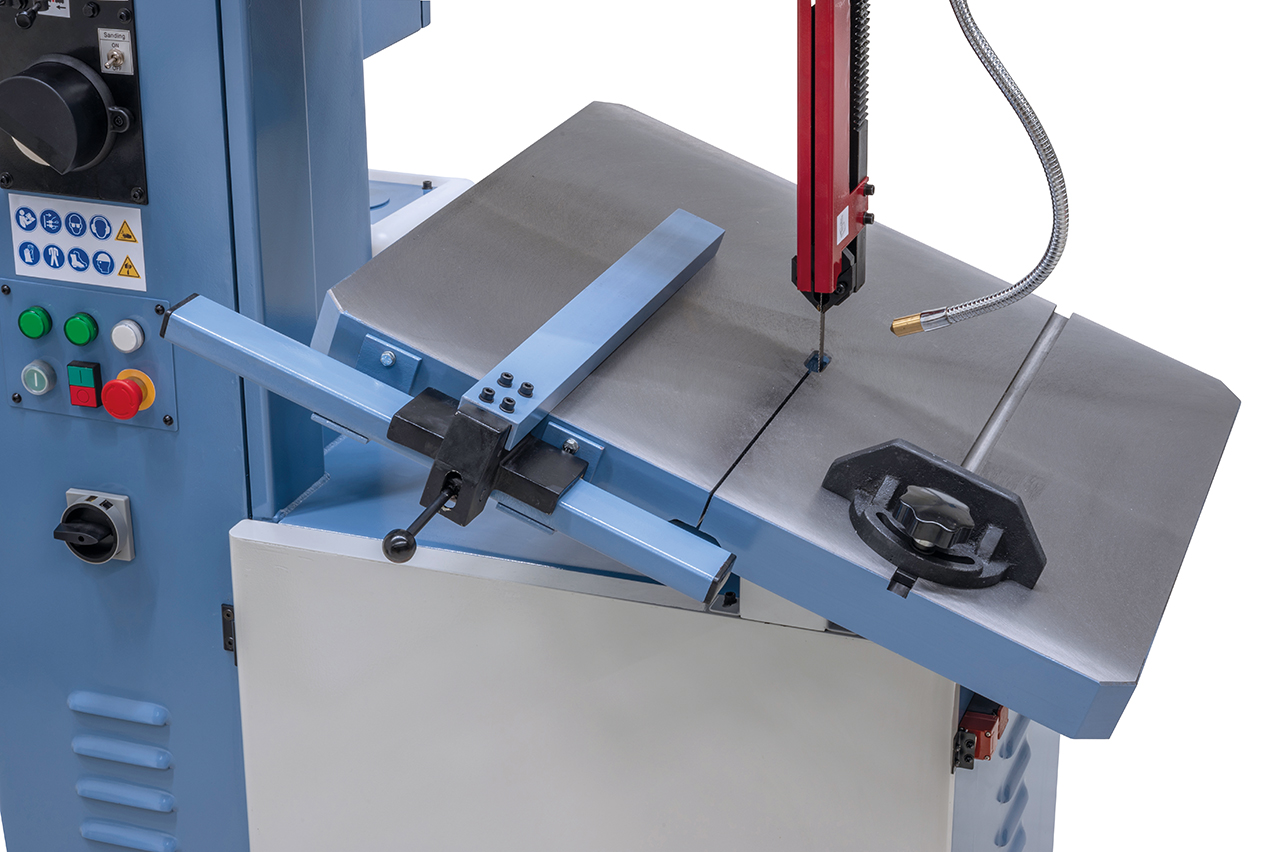

Tiltable work table made of cast iron.

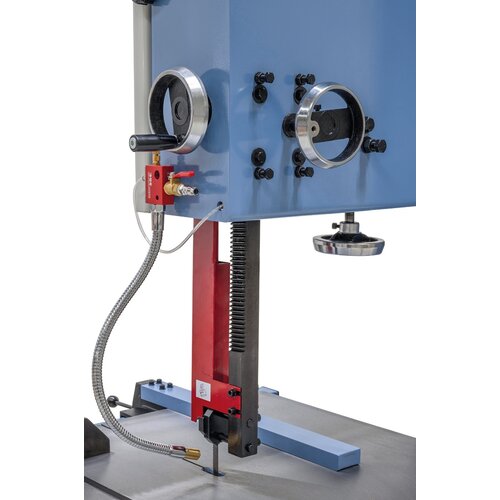

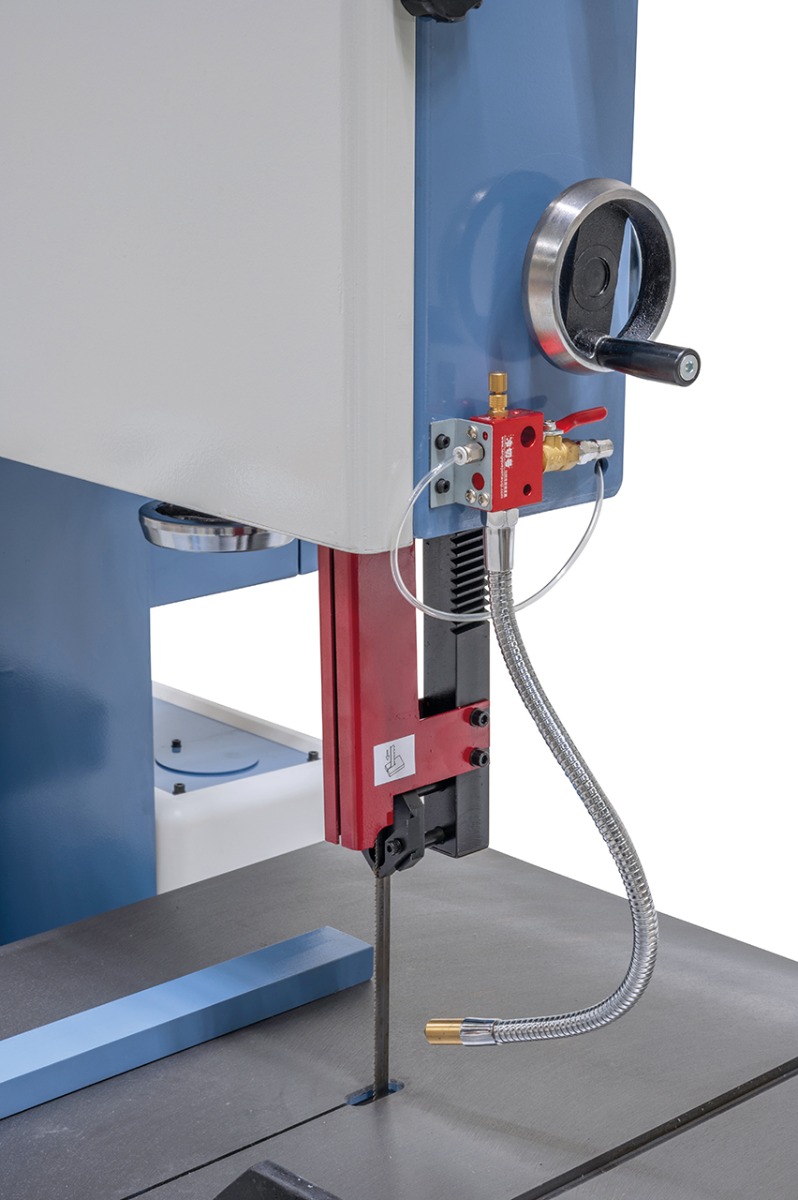

Blade guiding features hardened and polished V-guide pads

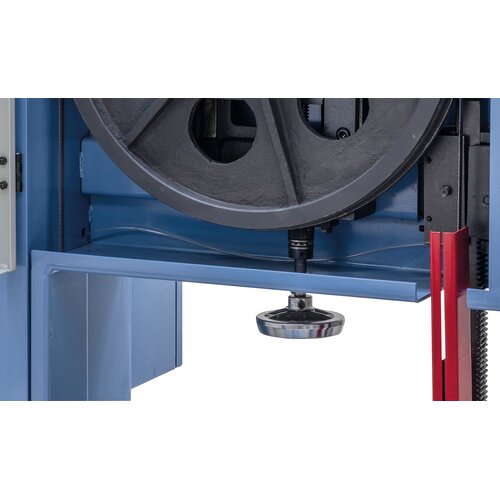

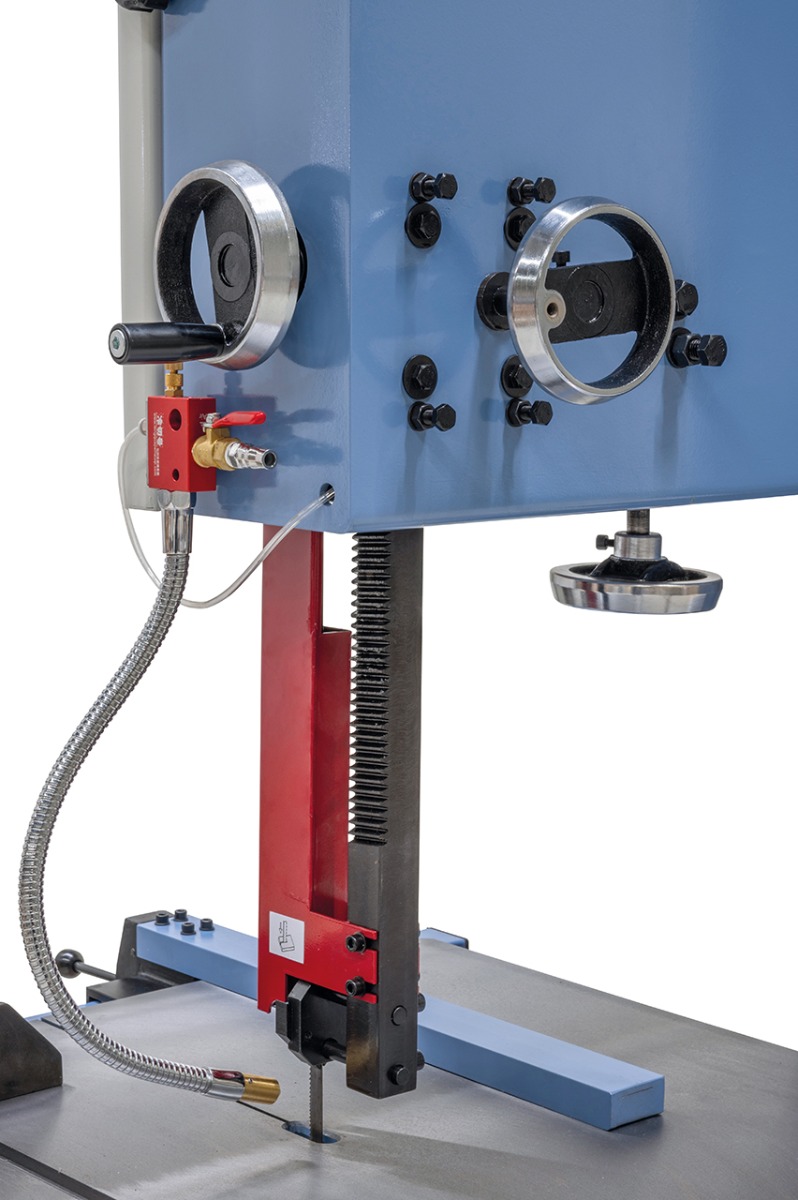

The handwheel allows accurate adjustment of the blade tension.

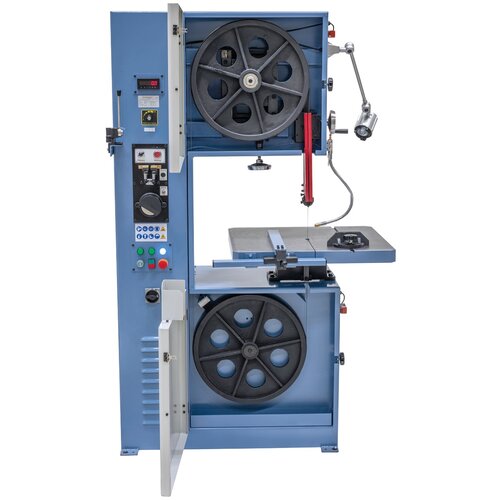

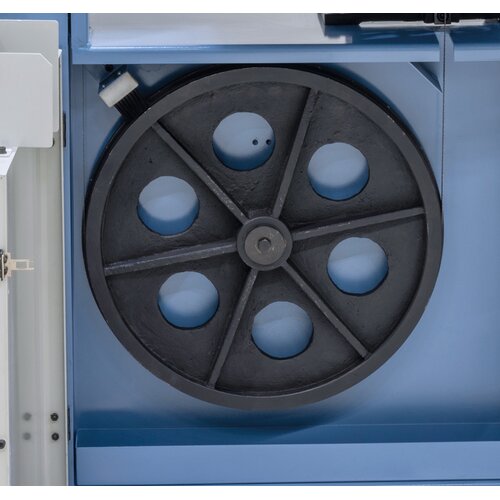

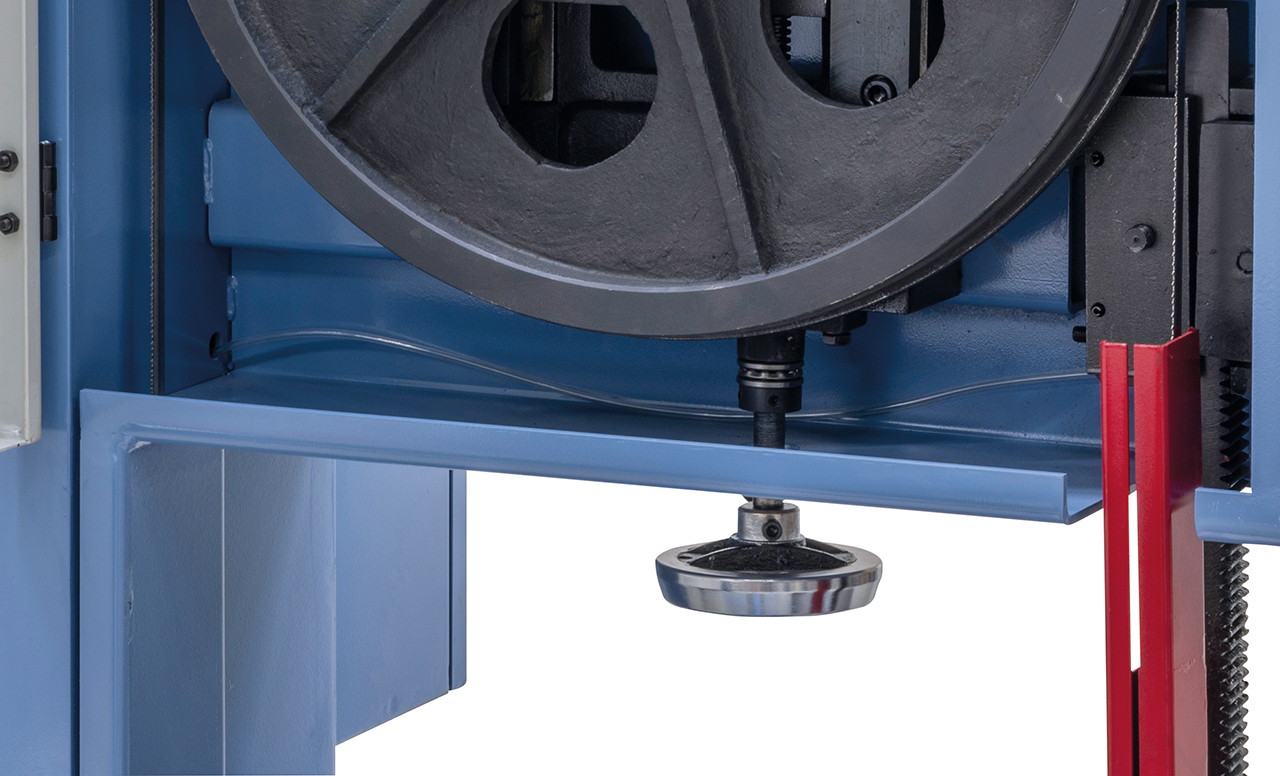

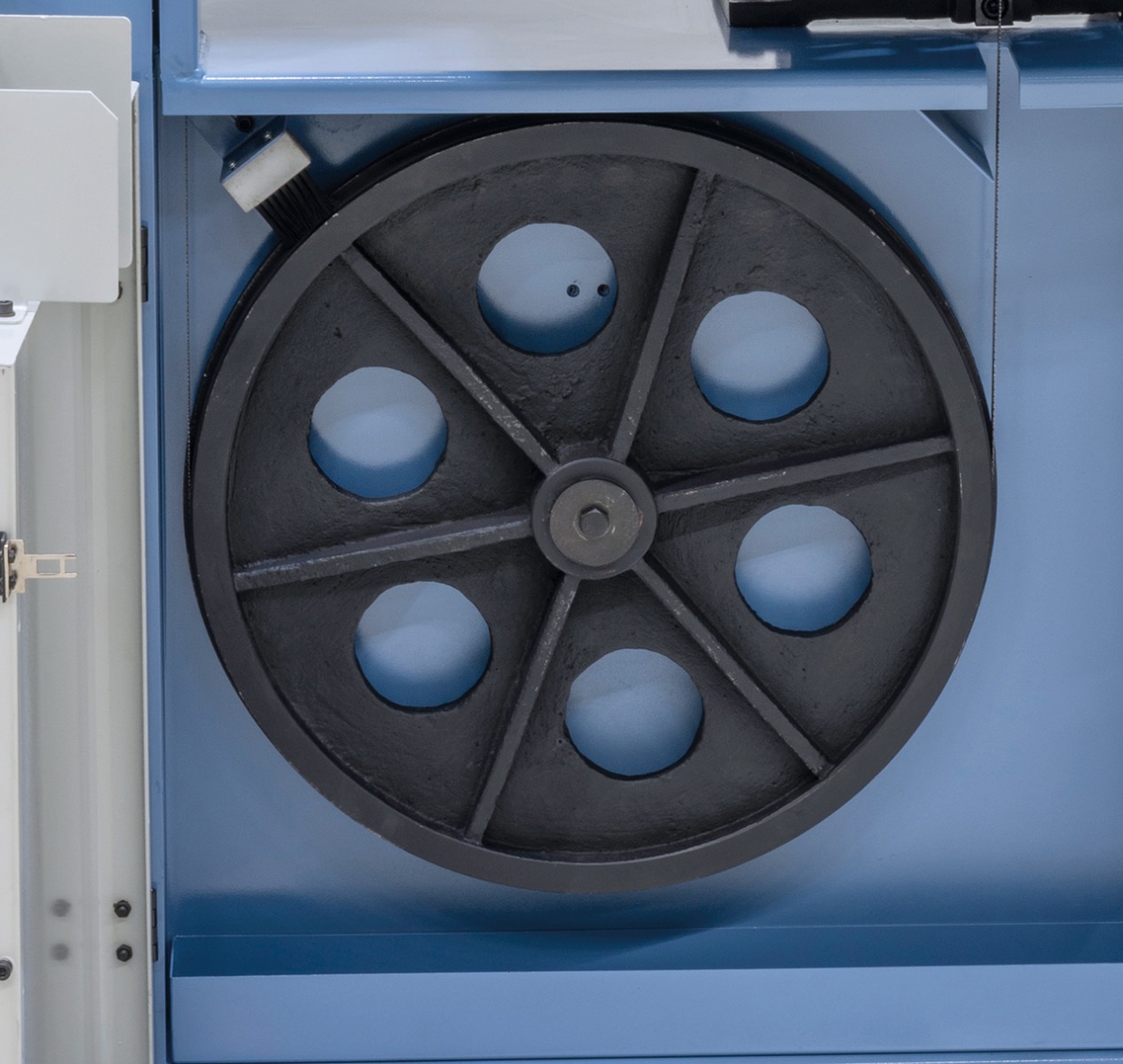

Drive wheel features special rubber band to ensure smooth run and increase life span of blade.

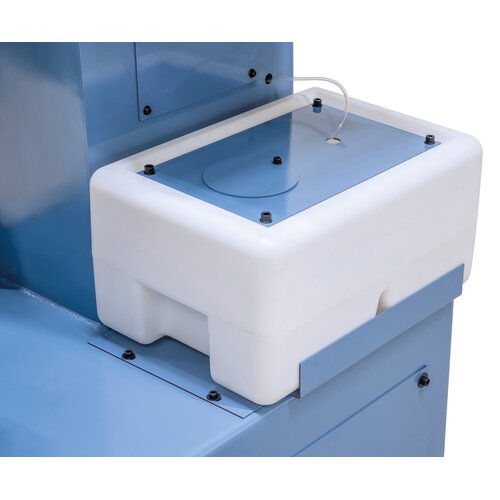

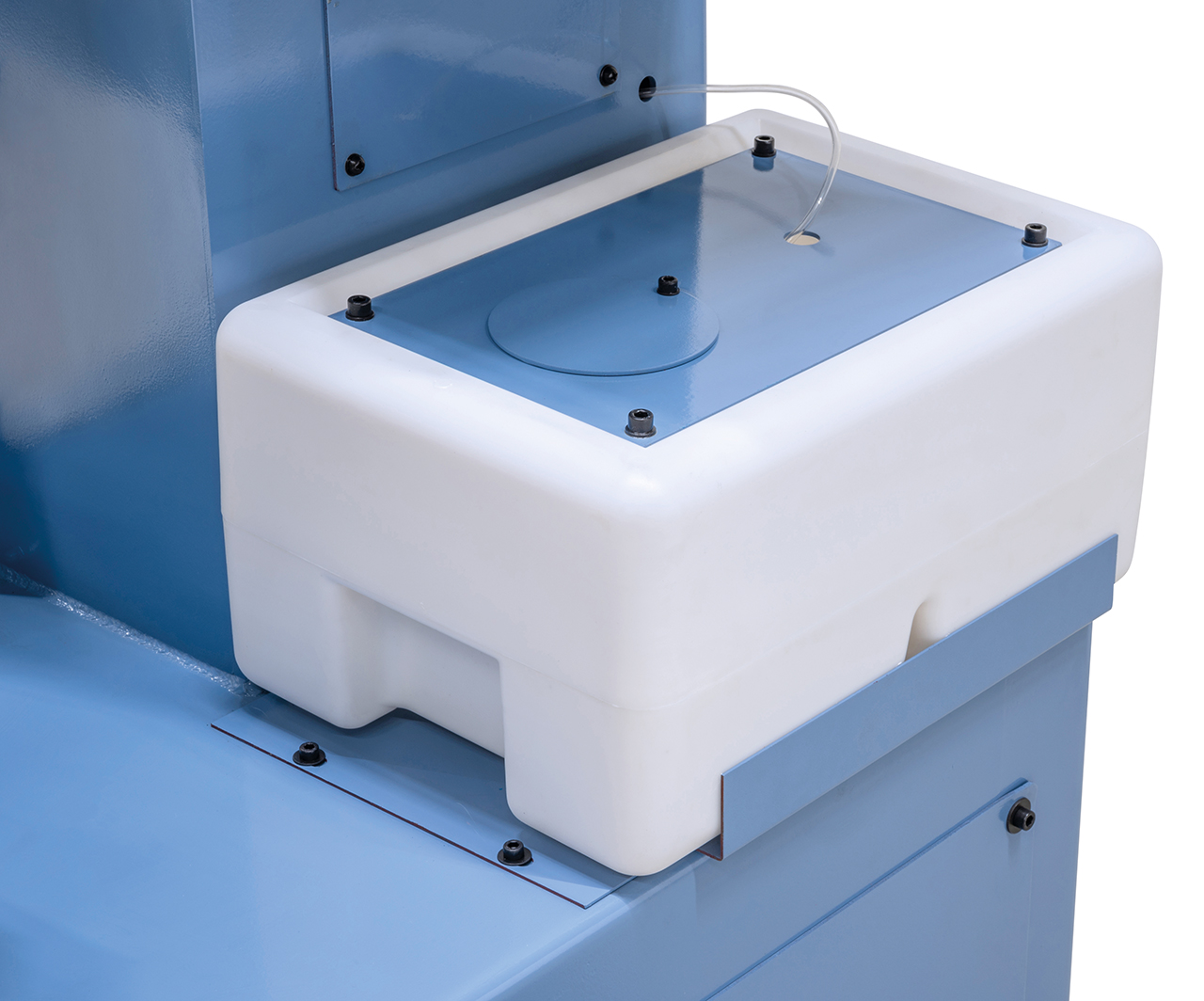

Micro cooling system and rip fence included.

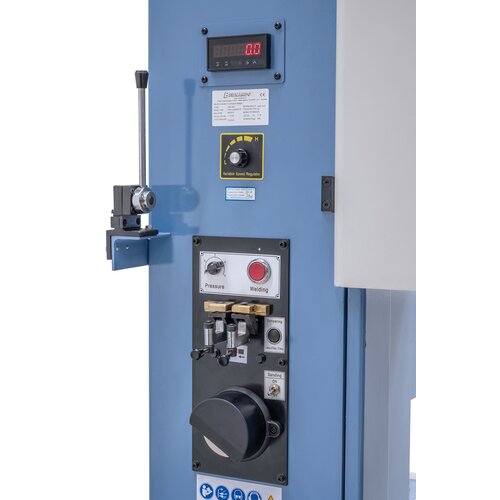

Blade welding unit, shear and grinder as standard

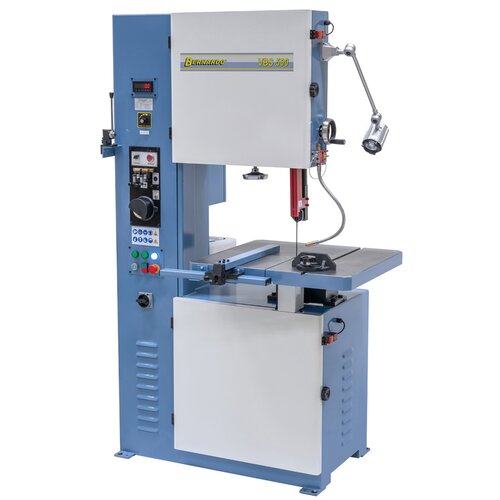

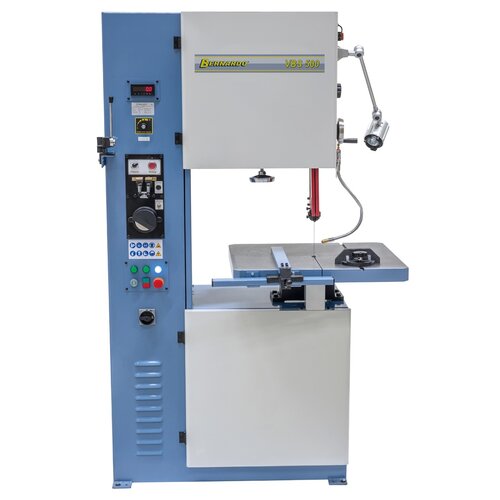

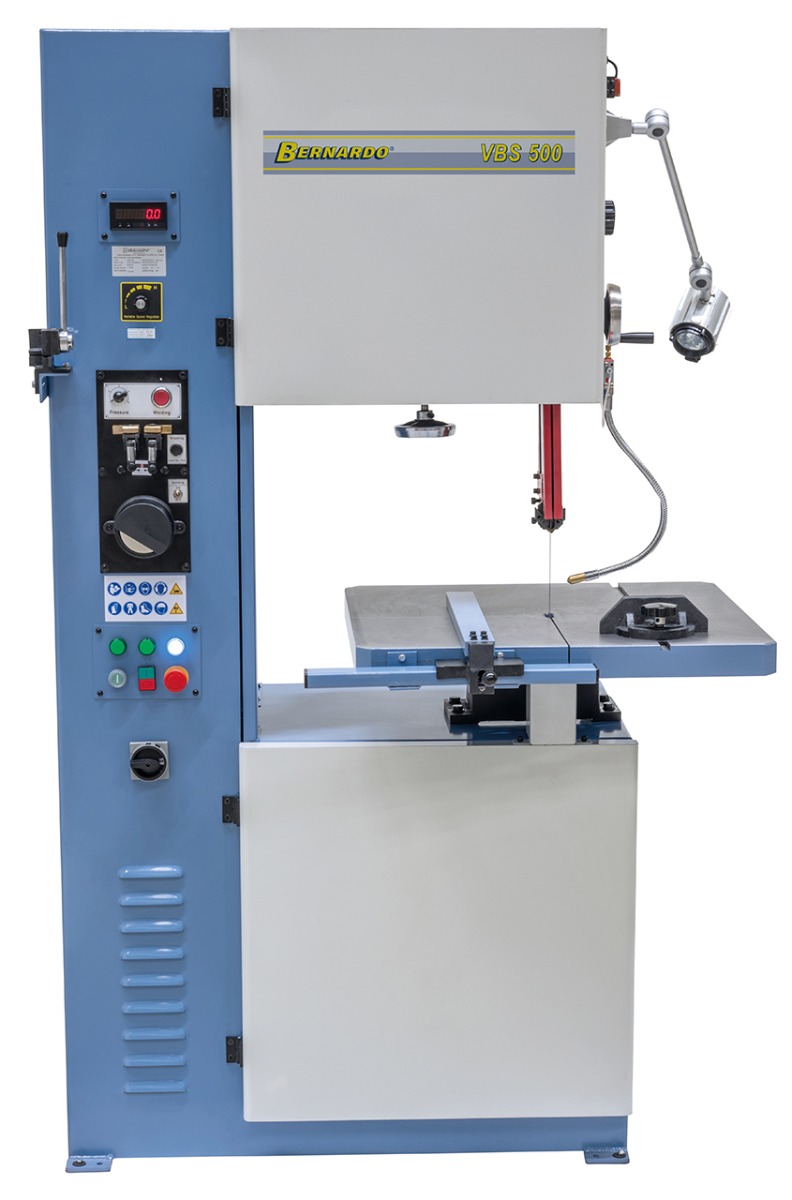

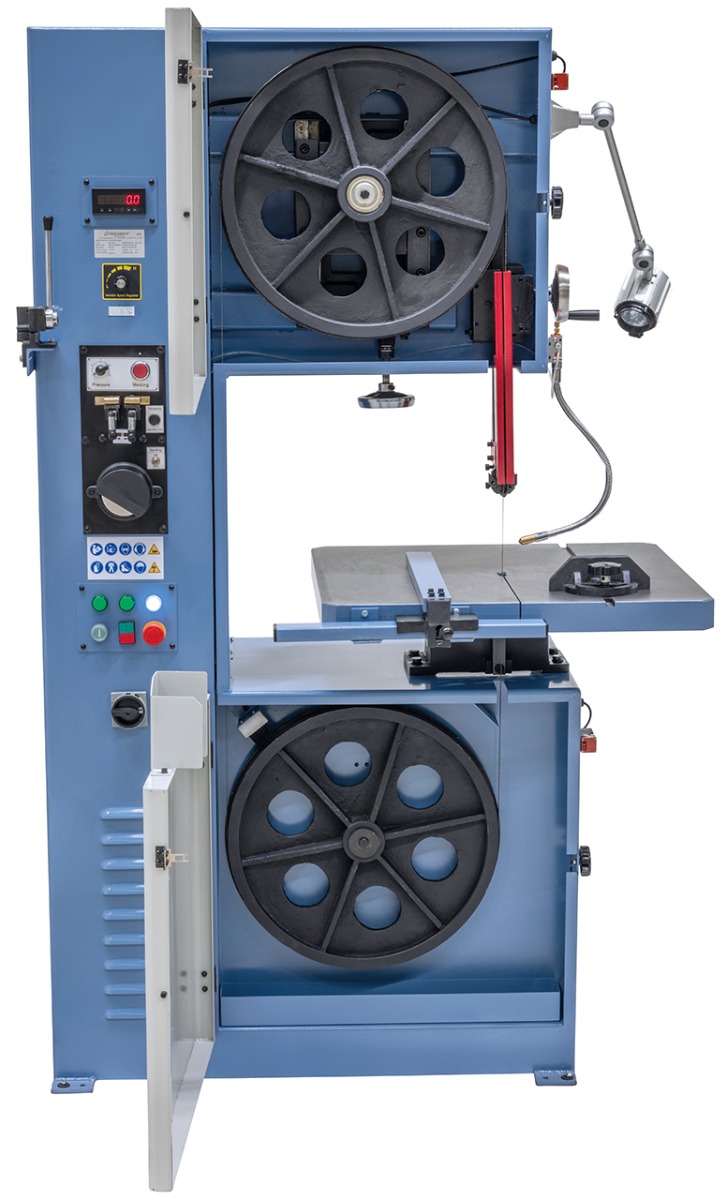

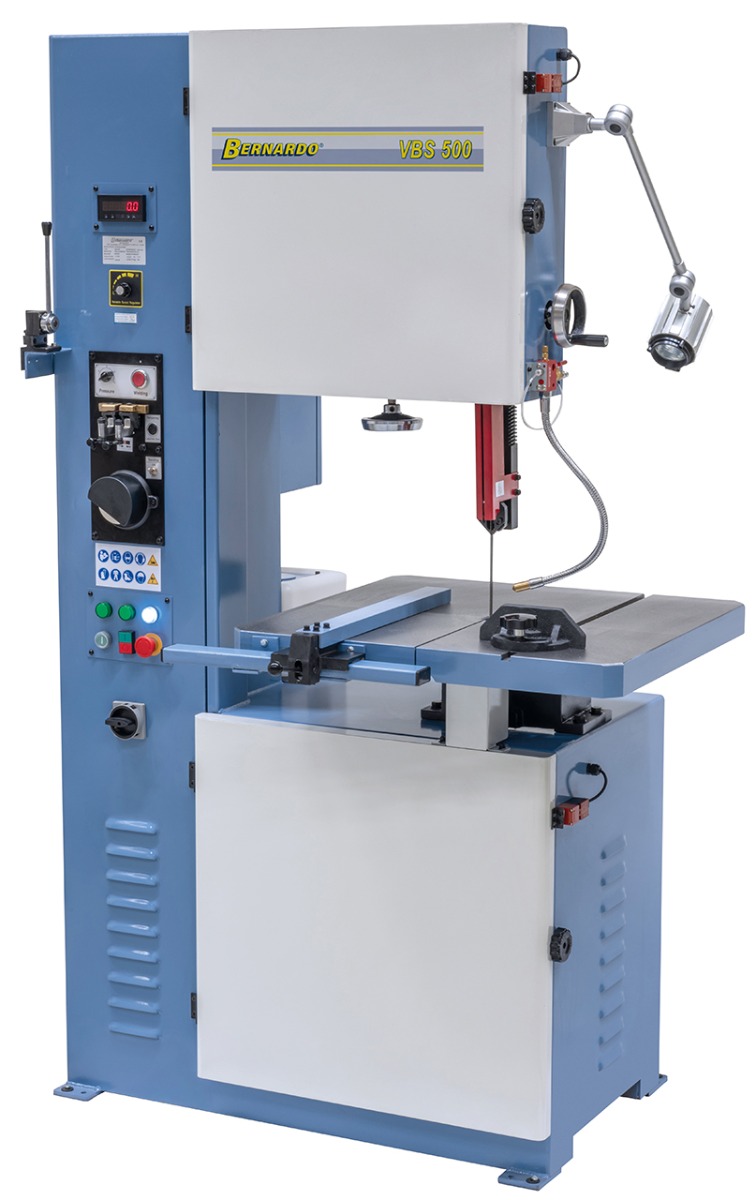

Vertical bandsaw VBS 500 *

Art.Nr.: 04-1787

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The vertical bandsaws of the VBS-series are designed for cutting of various materials (for example steel, plastics, non-ferrous materials etc.) The application area is predominantly targeted at general production, tool and jig making and for the production of punching and cutting tools.

€5,988.00

incl. 20% VAT

Availability

Deliverable Soon

Deliverable by Jul 6, 2025

Product Properties

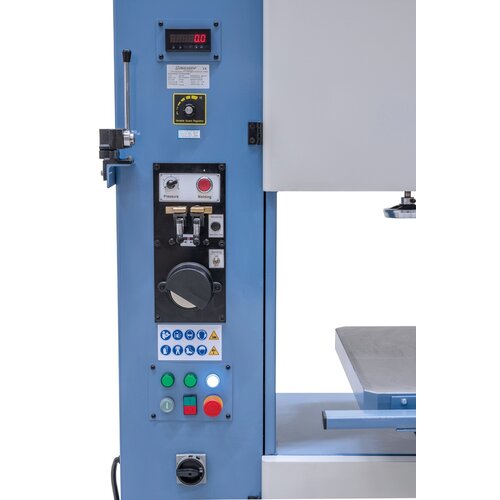

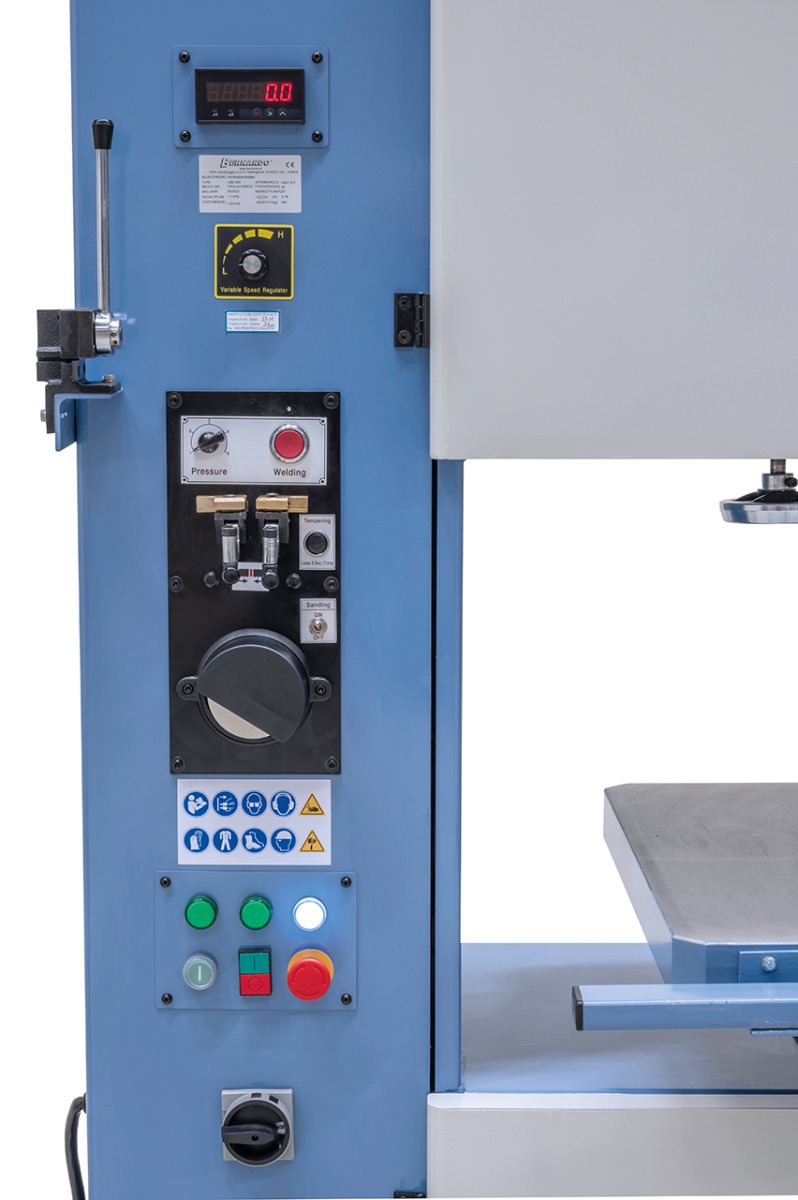

Complete with LED-display to allow for easy speed setting
Solid grey cast-iron table – the large surface improves safety aspects

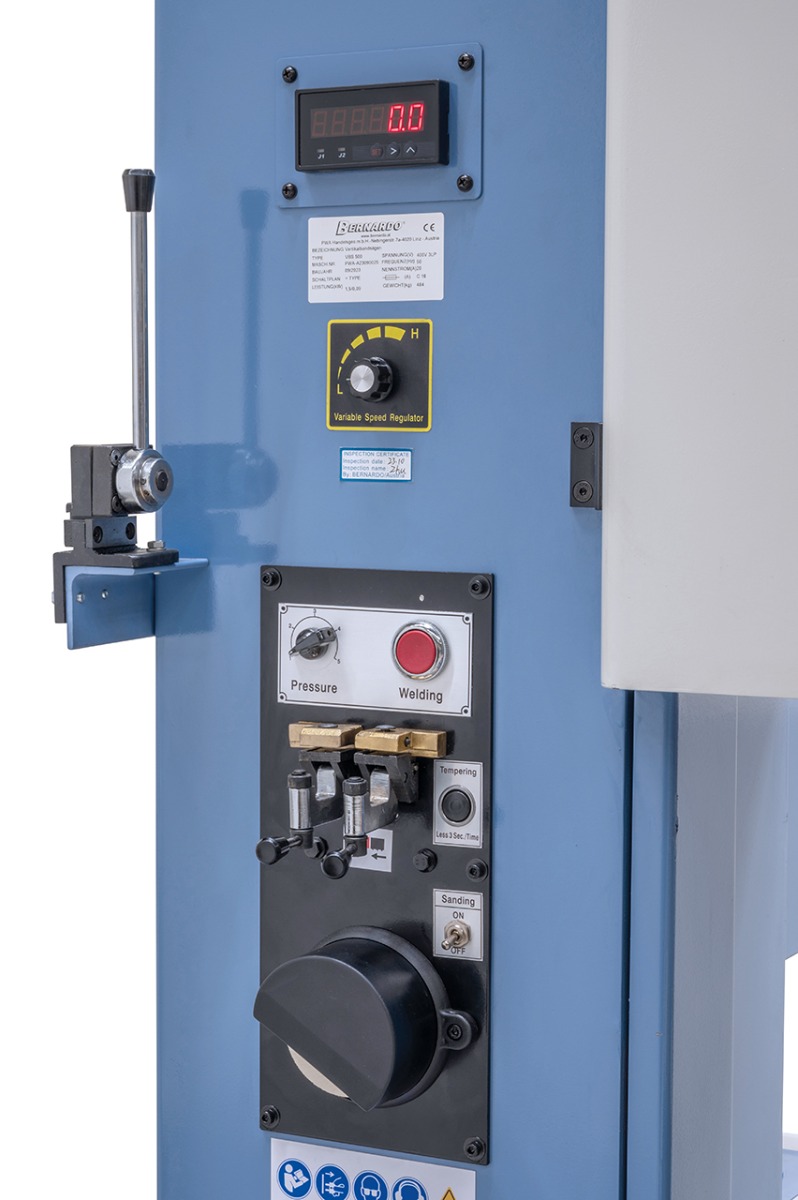

Blade welding device, annealing device, shear and grinder come standard

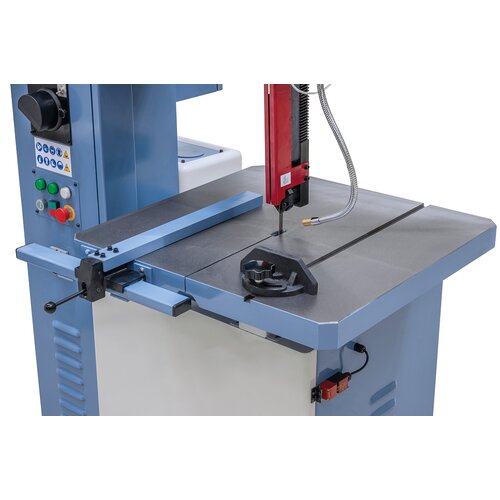

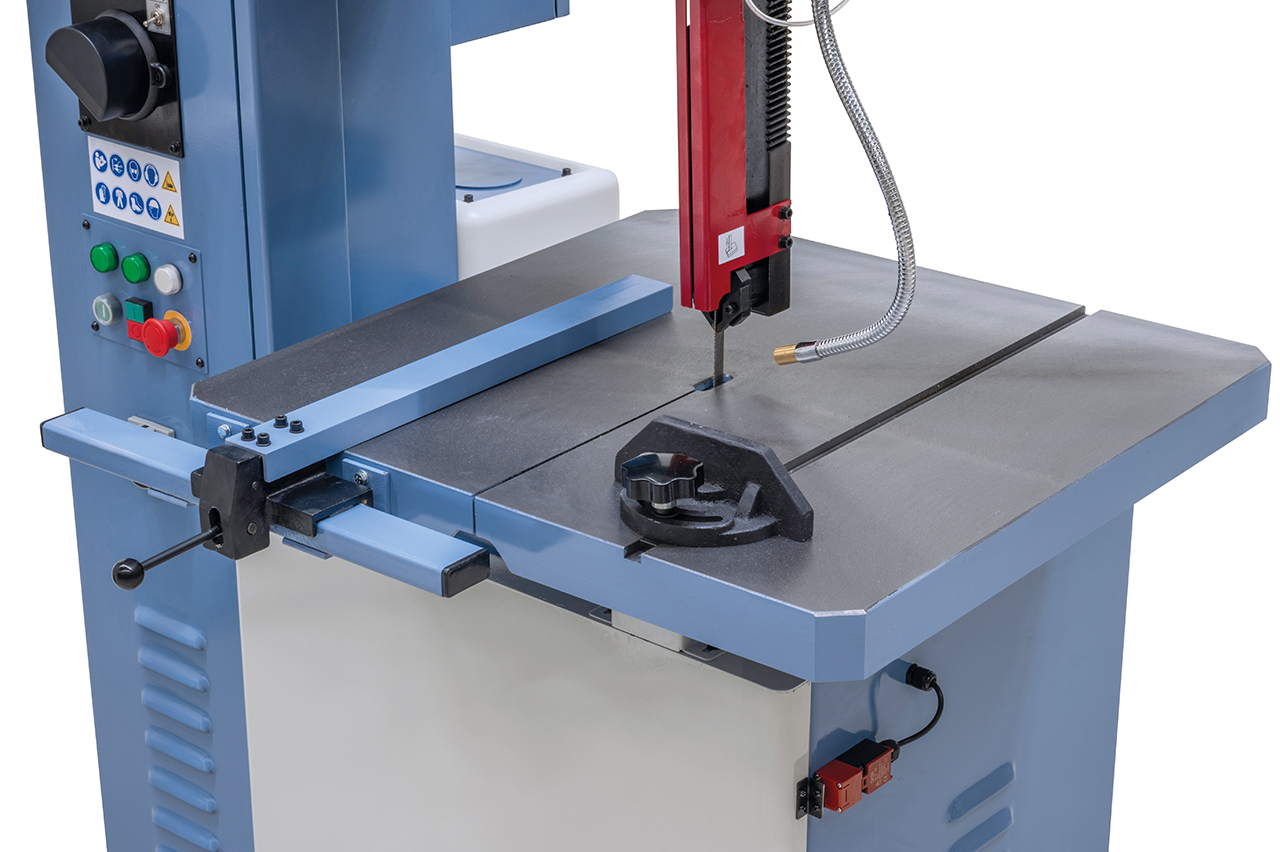

Comes with mitre fence for angle cuts
Complete with stepless speed adjustment
Solidly constructed steel body ensures smooth running
High-quality bandsaw blade guide guarantees precise results
Convenient cutting of irregular shaped workpieces
3 mm bandsaw blades are optionally available for radius cutting

Product Specifications

Cutting width	510 mm
Cutting height	310 mm
Working height	975 mm
Cutting speed	15 - 328 m/min
Bandsaw blade width	4020 mm
Table size	3 - 16 mm
Size of additional table	700 x 660 mm

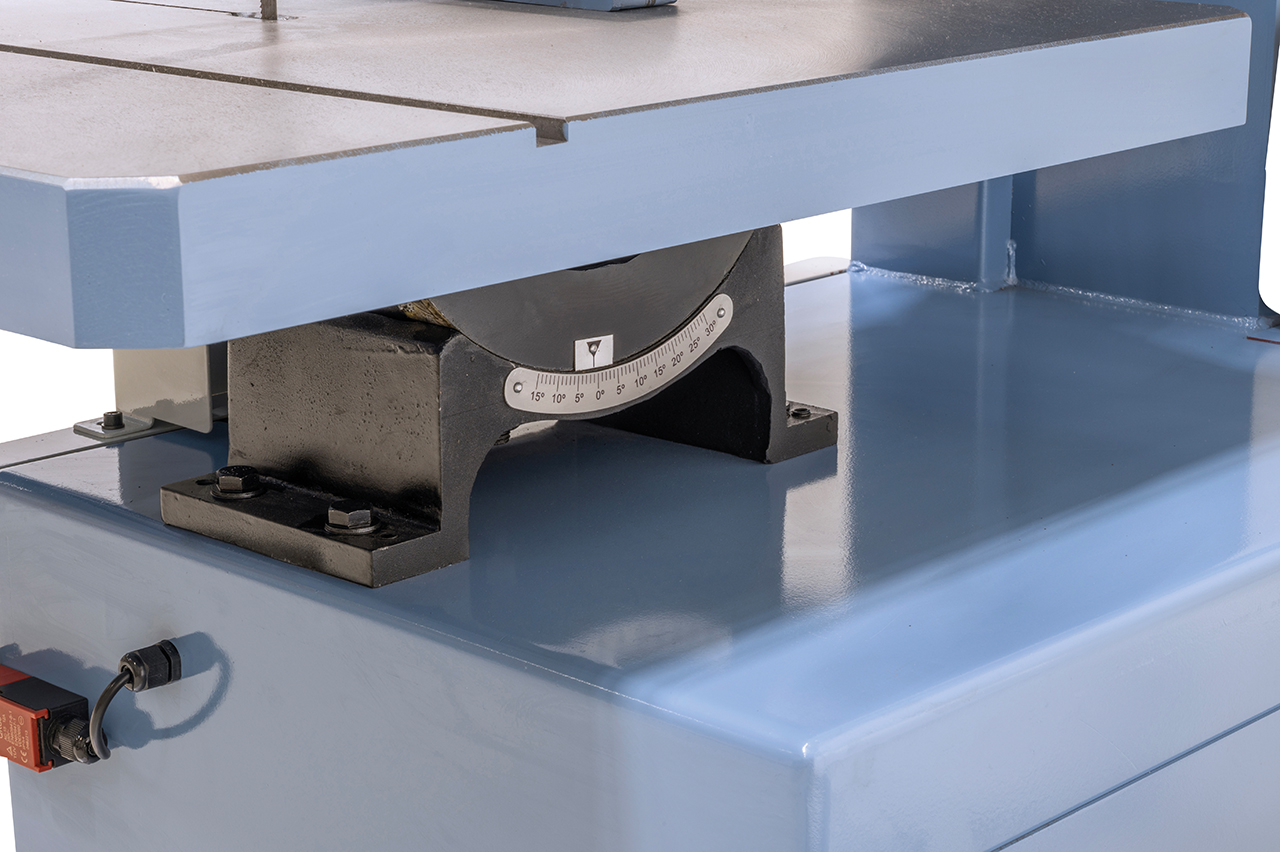

Table tilting range (in 4 directions)	-15° to +30°
Motor power	1,5 kW
Blade welding device	2,4 kVA
Machine dimension (L x D x H)	1225 x 940 x 1970 mm
Weight approx.	500 kg
