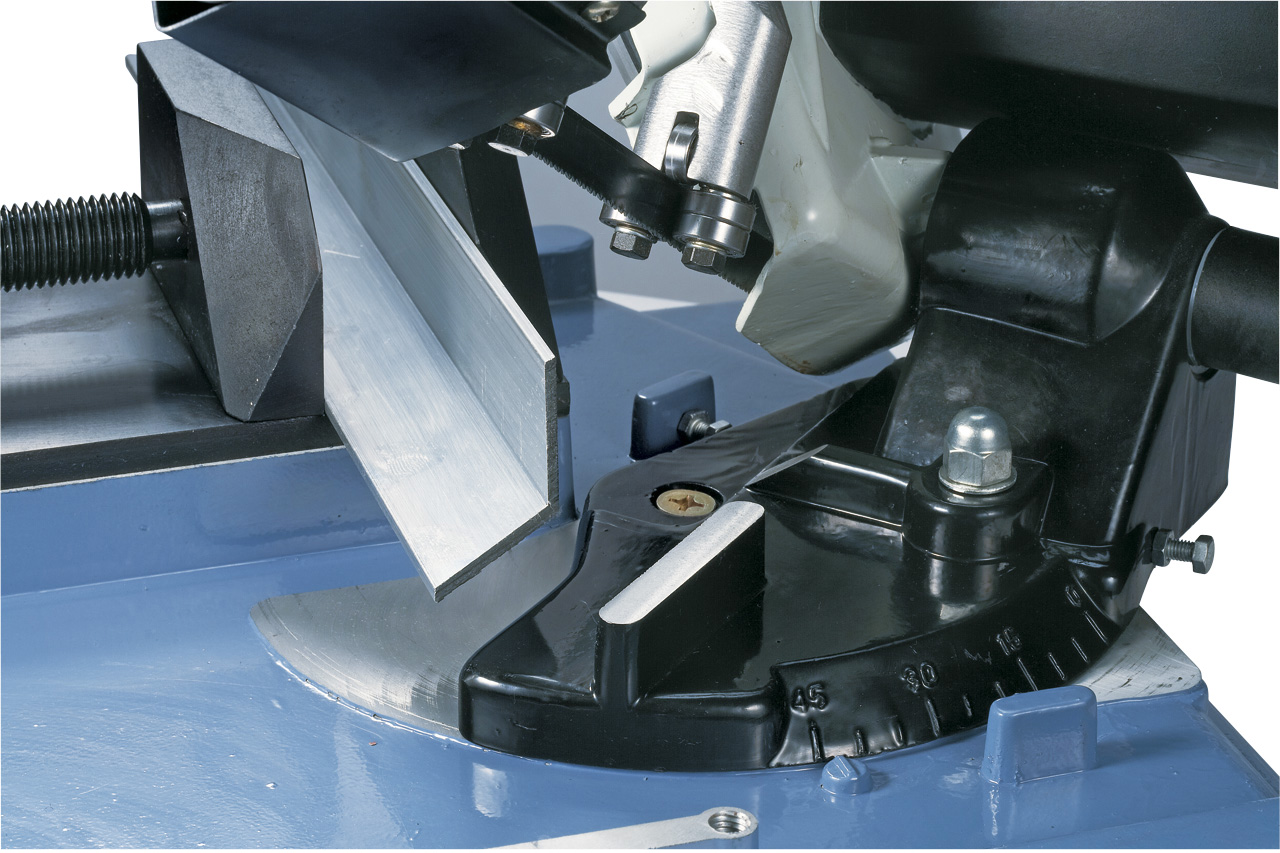

Adjustable saw frame for mitre cuts.

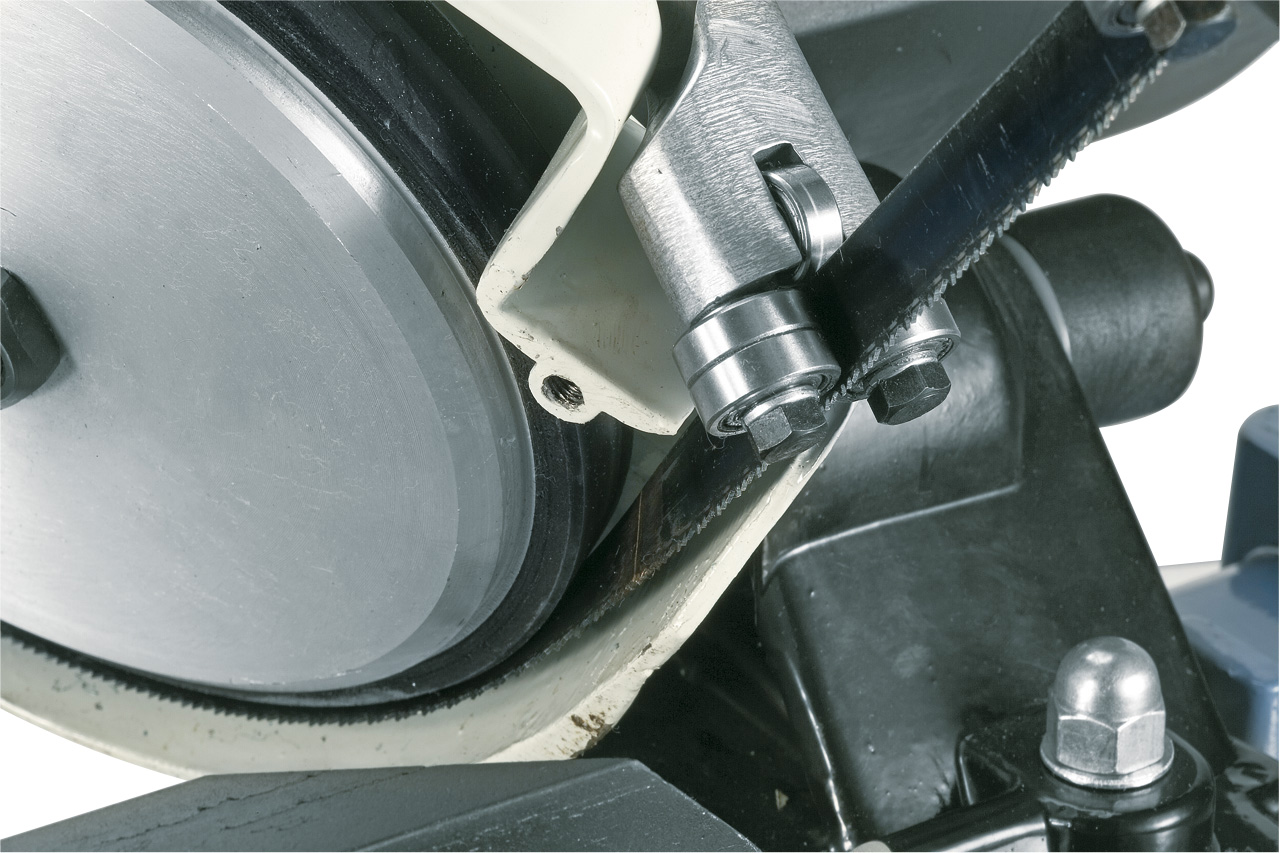

The high-quality drive wheel with rubber protection assures smooth running.

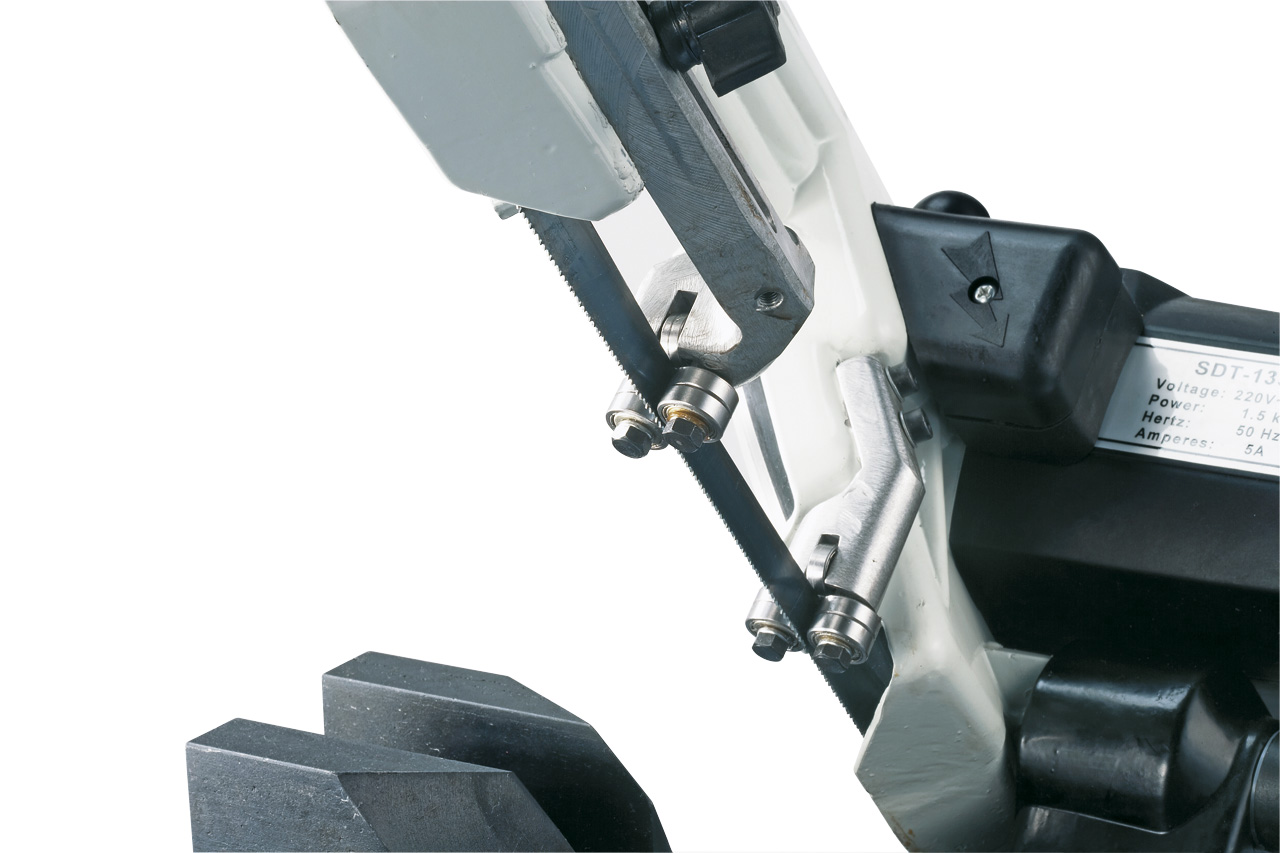

Ball beeded bandsaw blade guide with quick adjustment for accurate setting to the width of the workpiece

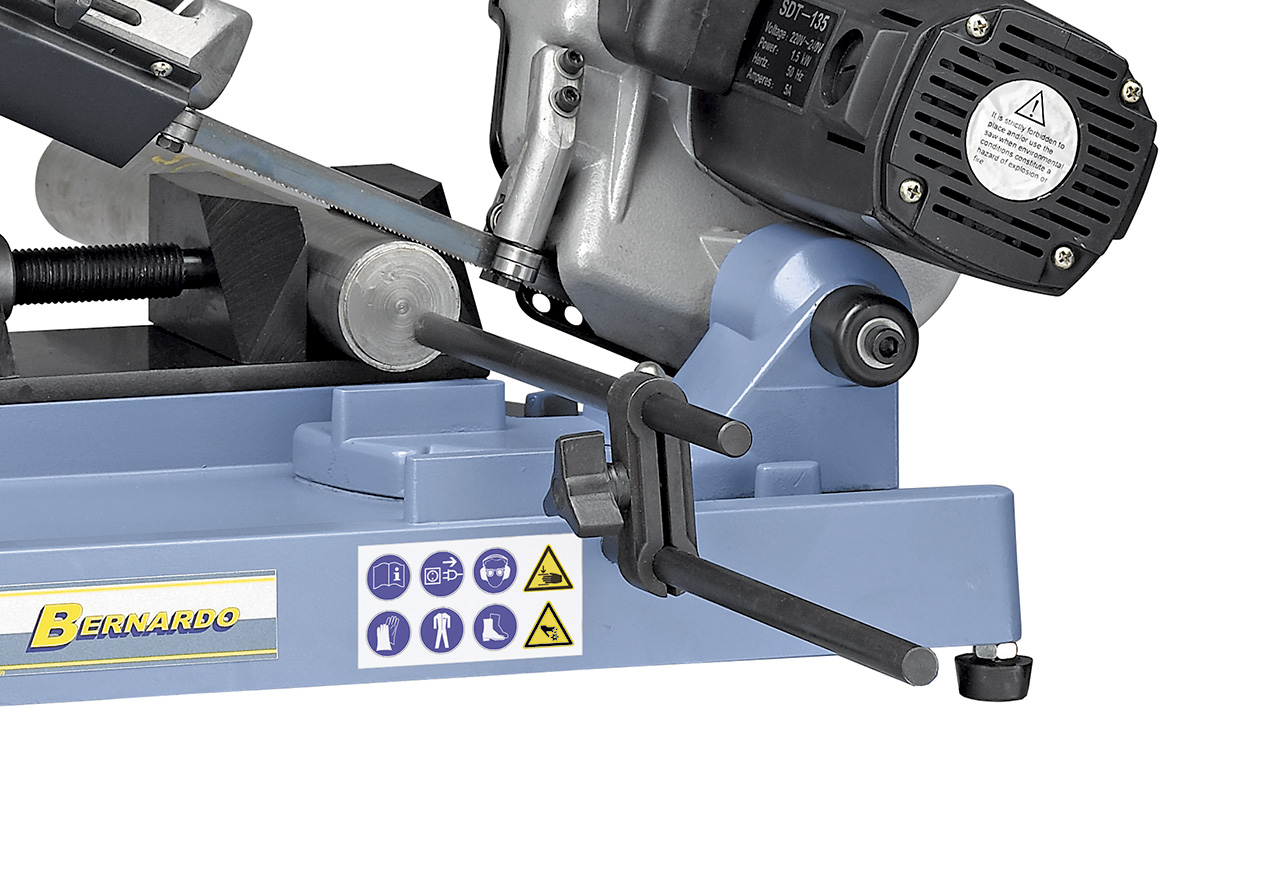

Includes workpiece fence for efficient work - ideal for serial cutting.

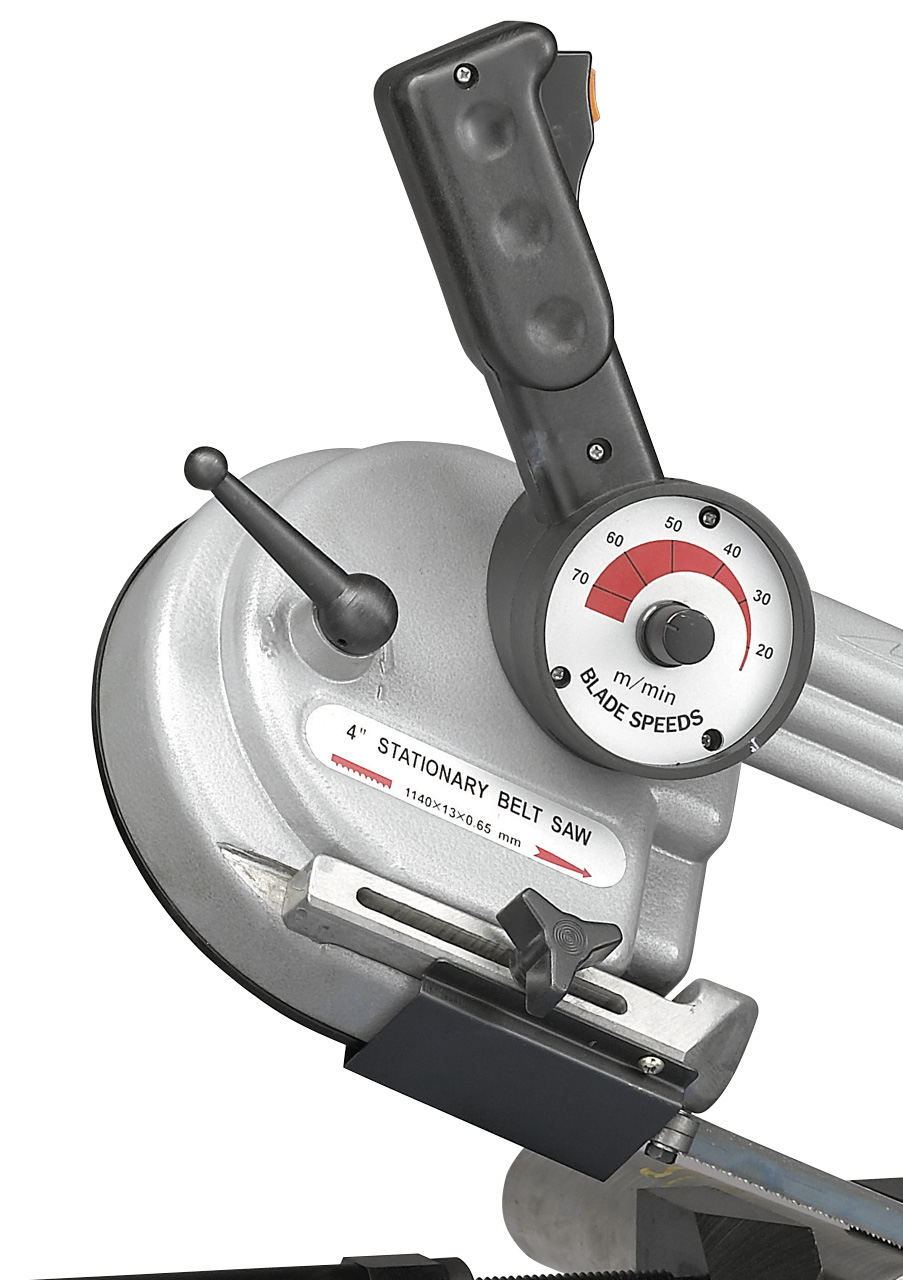

Stepless speed adjustment for best work results

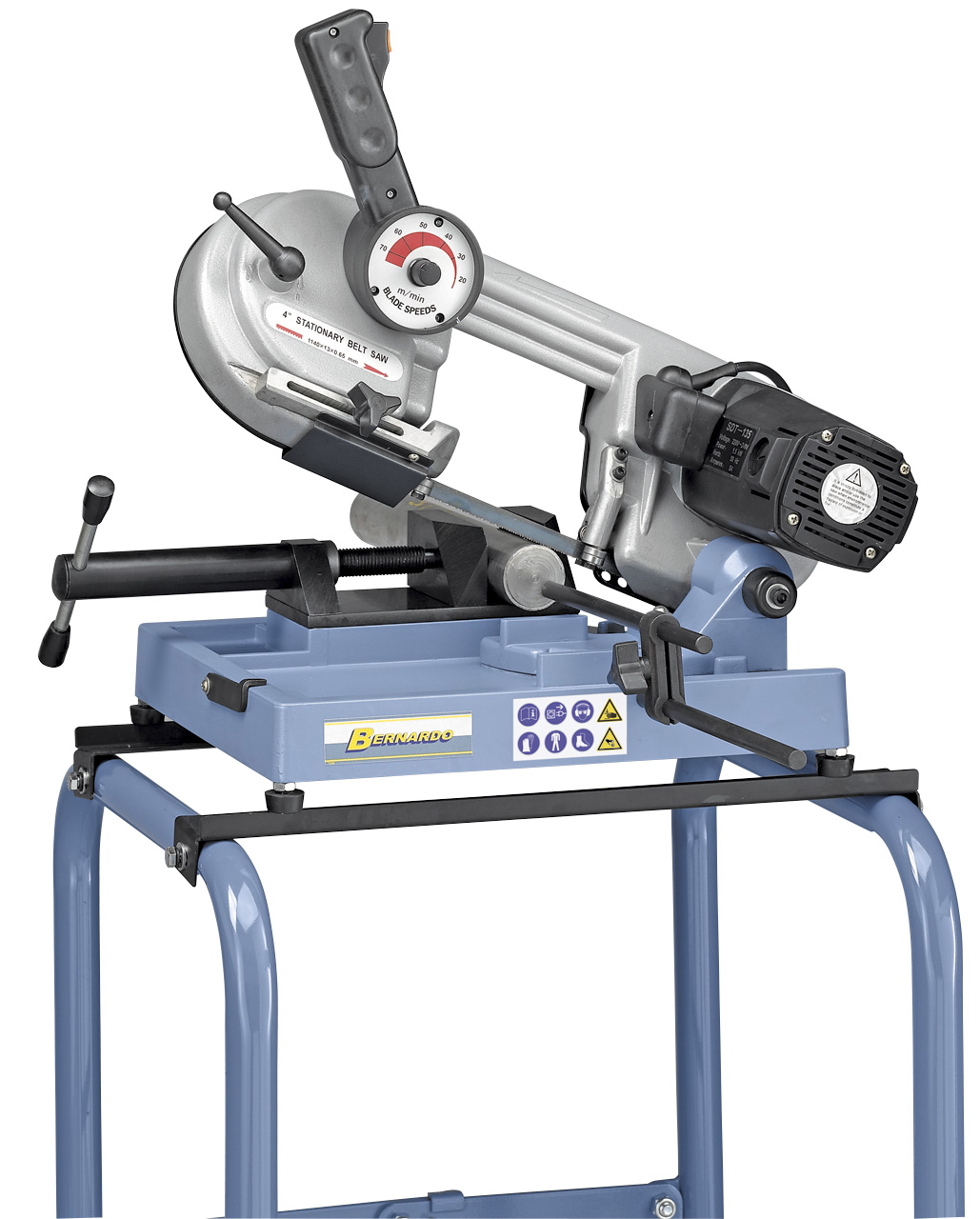

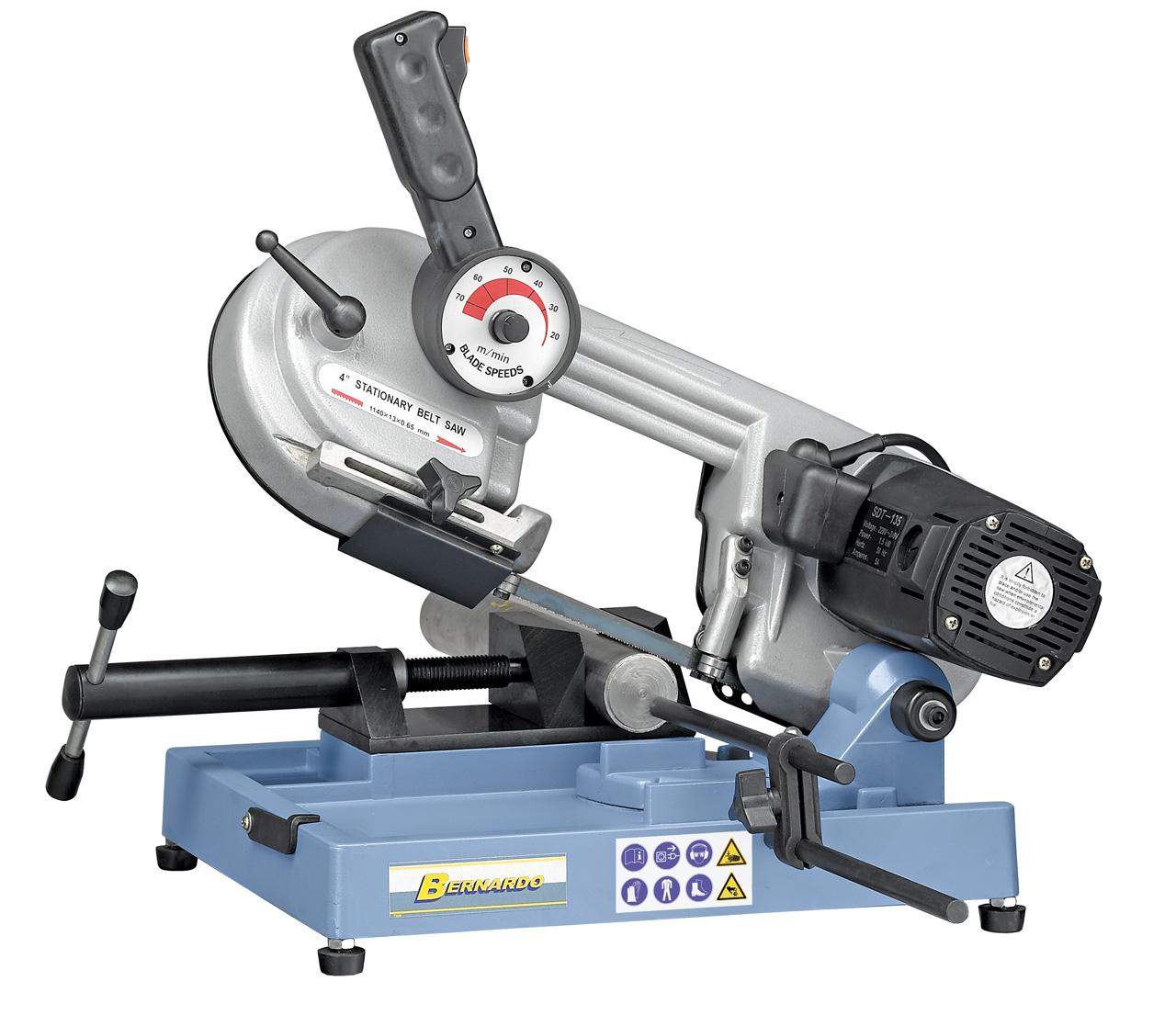

Vario metal bandsaw EBS 100 B / 230 V

Art.Nr.: 04-1020

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The small EBS 100 B metal bandsaw allows mitre cuts to one side and features an electronically adjustable speed change, making this model ideal for cutting of various materials.

€498.00

incl. 20% VAT

Availability

In Stock

Deliverable in 2-3 business days

Product Properties

Ideal for cutting of profiles, tubes, solid iron workpieces, non-steel materials, wood
Ideal on construction sites and for installation work
Light weight allows for easy transportation
Stepless speed adjustment: 20 - 70 m/min
Machine body and saw frame made of high-quality aluminium die casting
Powerful motor, even at continuous operation
Smooth, vibration-free running due to high quality aluminium drive wheel
Ball bearing bandsaw blade guide with quick adjustment
Adjustable fence for series production

Product Specifications

Cutting capacity round 90°	100 mm
Cutting capacity flat 90°	100 x 100 mm
Cutting capacity round 45°	60 mm
Cutting capacity flat 45°	55 x 60 mm
Bandsaw blade dimensions	1140 x 13 x 0,65 mm
Cutting speed, stepless	20 - 70 m/min
Motor power	1,5 kW
Voltage	230 V
Machine dimensions (L x D x H)	550 x 340 x 400 mm
Weight approx.	16 kg
