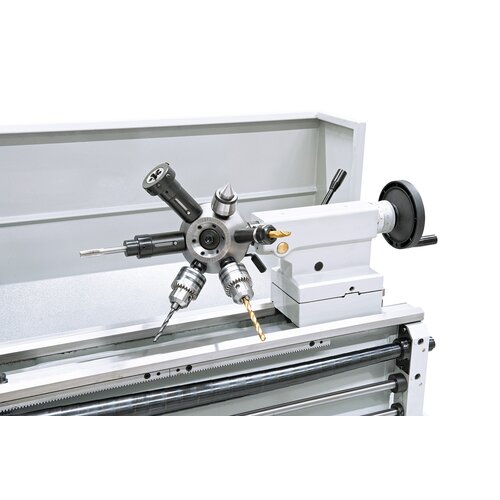

Optionally available: 6-station revolving tailstock turret

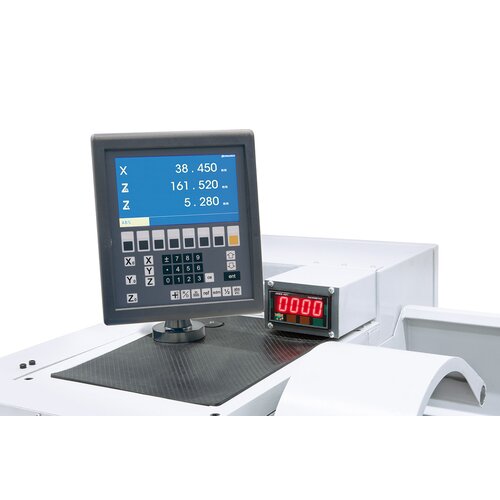

Serially with 3-axis digital readout Bernardo ES-12 V with LCD-display.

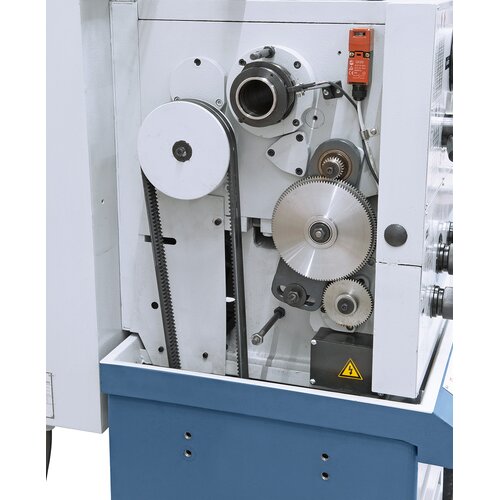

Standard accessories inlcude change gears for thread cutting.

The machine can be equipped with a quick change tool post holder to raise efficiency.

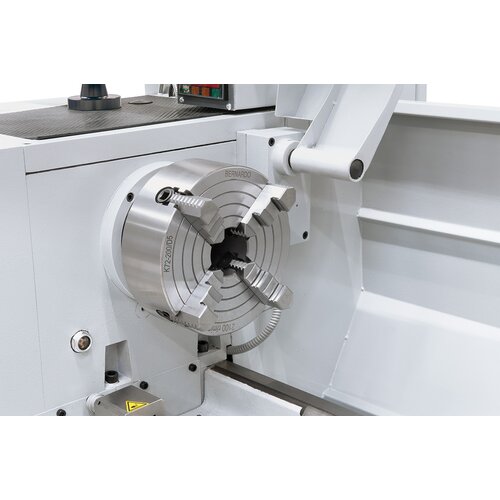

Independent chuck 200 mm for clamping of irregular shaped workpieces. (optional)

Ball nose live center 100 mm, ideal for clamping of pipes and hollow parts (optional).

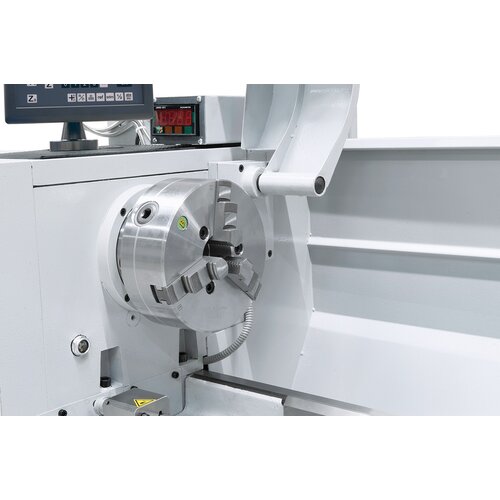

4-jaw chuck 200 mm allows centric clamping of square sections (optional)

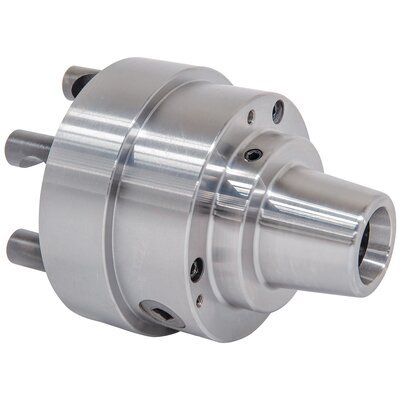

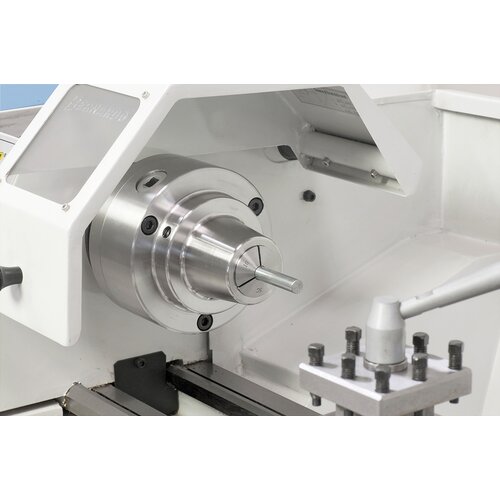

Optionally available: Collet chuck 5C, clamping range 3 - 26 mm

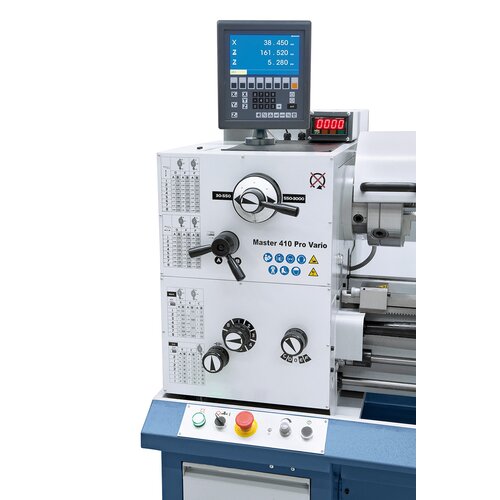

Smooth feed and speed adjusment on gear head – hardened and polished gears in oil bath guarantees low-noise operation. Electronic, stepless speed adjustment, digital display allows easy readout.

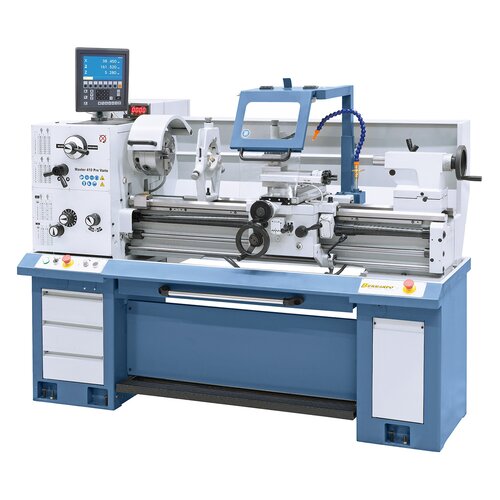

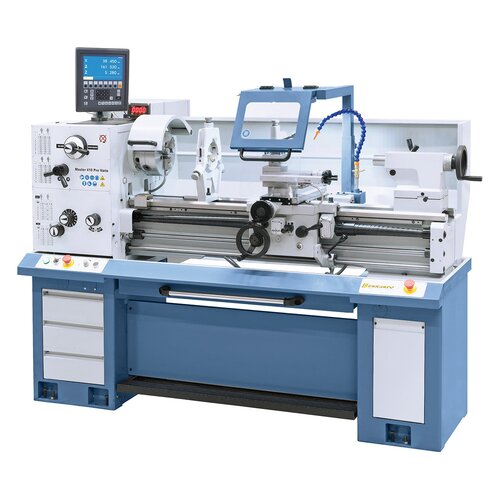

Universal turning lathe Master 410 Pro Vario incl. 3-axis-digital readout ES-12 V

Art.Nr.: 03-1293XL

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The Master 410 Pro Vario is a solidly constructed universal lathe, offering a wide range of applications. Features of this model include the large turning diameter of 410 mm and the 52 mm spindle bore. Its construction (design, performance, feeds etc) covers all needs for training purposes, as well as for tool shops and repair shops. Additionally this model is equipped with a variable speed adjustment for ideal setting of the cutting speed.

€13,488.00

incl. 20% VAT

Availability

Out of Stock

Product Properties

Serially with Delta-frequency inverter for high torque in low speed range and nearly constant speed at heavy workloads
Stepless speed adjustment, set speed can be read on digital display
Perfect machine for technical schools, repair shops and training workshops
Removeable bridge allows machining of workpieces with a big diameter

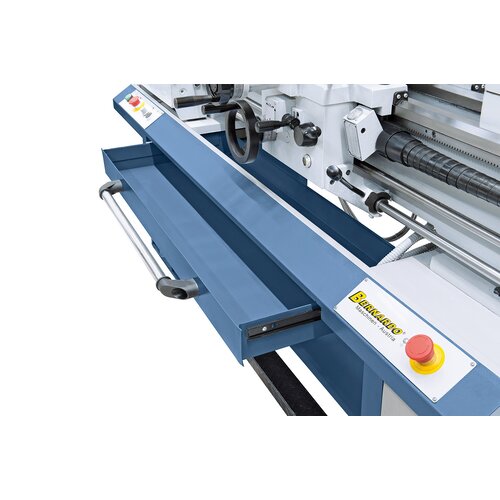

Chip tray extracts to front, keeping space requirements to a minimum
Grey cast-iron machine bed, inductive hardened and polished
High spindle concentricity (≤ 0,015 mm)
Rigid prism-shaped bed features additional reinforcements to keep vibrations to a minimum
Modern bearing of main spindle with angular ball bearing in precision construction
52 mm spindle bore to machine large shaft diameters comes standard

Product Specifications

Distance between centers	1000 mm
Center height	205 mm
Swing over bed	410 mm
Swing over gap*	530 mm
Swing over cross slide	260 mm
Bed width	205 mm
Spindle bore	52 mm
Spindle nose fixture	DIN 55029, D1-5
Speed range, 2 steps	30 – 550 / 550 – 3000 rpm
Longitudinal feed	(48) 0,043 – 0,653 mm/rev.
Cross feed	(48) 0,014 – 0,206 mm/rev.
Metric thread	(36) 0,4 – 7,0 mm
Inch thread	(28) 4 – 56 threads/1“
Diameter of tailstock sleeve	45 mm
Travel of tailstock sleeve	125 mm
Taper of tailstock sleeve	MT 3
Motor power	4,0 kW (5,5 HP)
Machine dimension (W x D x H)	1820 x 920 x 1500 mm
Weight approx.	754 kg

* Removeable bed length: 235 mm

Delivery Contents

3-axis digital readout ES-12 V with LCD-display

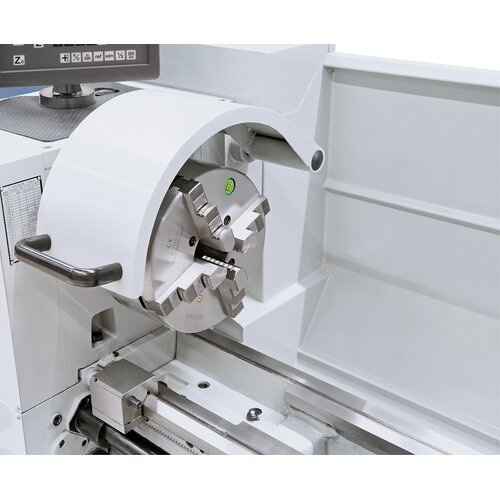

3-jaw chuck PO3-200 mm / D5

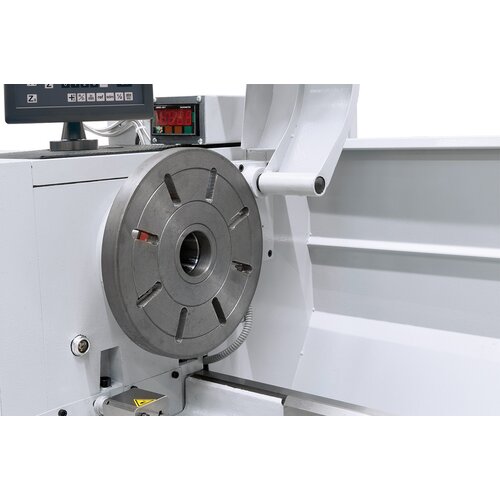

Face plate 280 mm

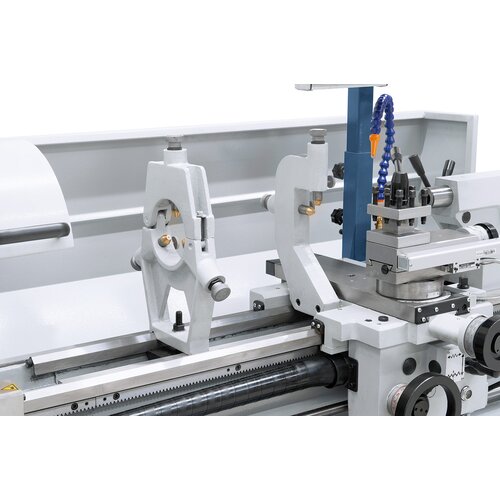

Steady rest - Passage up to 70 mm
Follow rest - Passage up to max. 60 mm
Coolant device

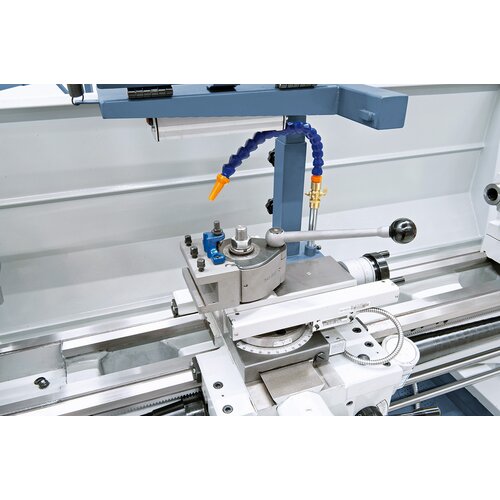

4-way tool post holder
Protective cover at 4-way tool post holder
Micrometer longitudinal fence
Safety clutch
Thread dial
Initial filling with Shell Tellus 46
Frequency inverter
Digital readout of speeds
Extractable chip tray
LED machine light
Change gears
Morse taper drill sleeve
2 dead centers

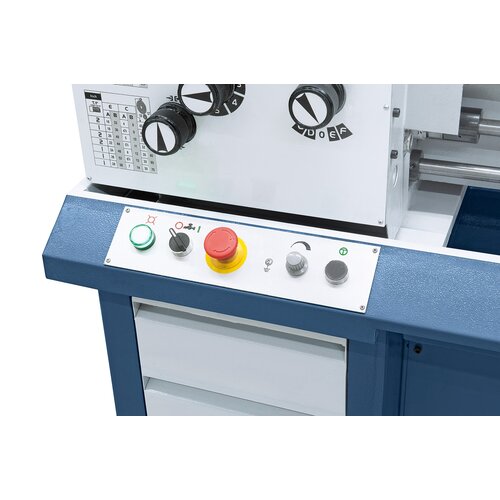

Foot pedal with brake function according to CE
Splash guard
Stand
Tools
