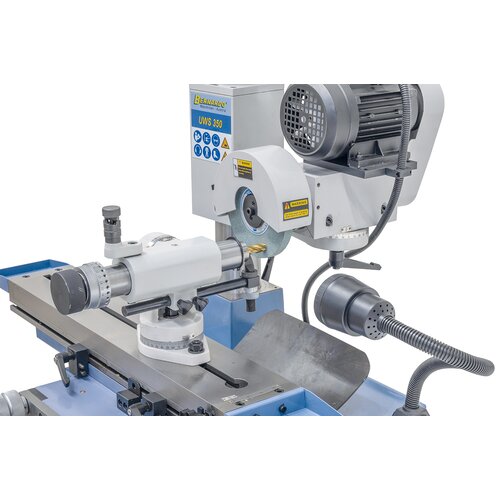

Shaft grinding
Shaft grinding
End mill face side
End mill face side
End mill outer spiral cutting edge
End mill outer spiral cutting edge

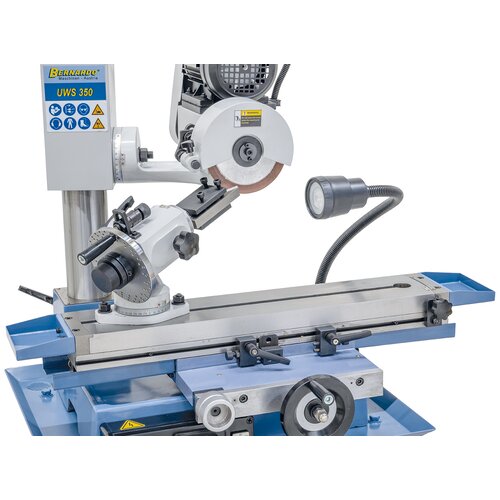

Turning tool
Turning tool

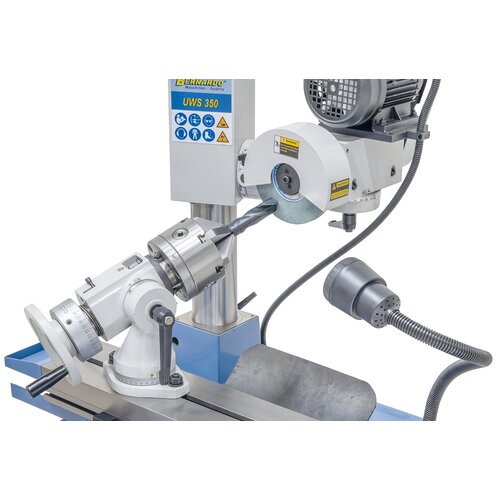

Twist drill
Twist drill
Ball end mill
Ball end mill
Metric shell end mill
Metric shell end mill
Drill bit - screw tap grinding attachment 50K, grinding range: 3 - 32 mm (optional).
Drill bit - screw tap grinding attachment 50K, grinding range: 3 - 32 mm (optional).
Spiral mill - ball cutter grinding attachment 50E, grinding range: 6 - 25 mm (optional).
Spiral mill - ball cutter grinding attachment 50E, grinding range: 6 - 25 mm (optional).

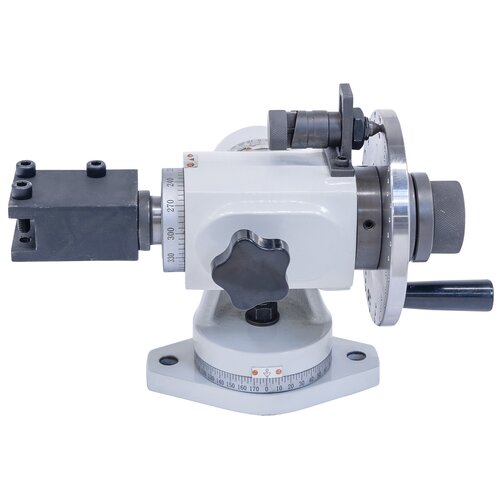

End mill cutter grinding attachment 50D, grinding range: 3 - 25 mm (optional).
End mill cutter grinding attachment 50D, grinding range: 3 - 25 mm (optional).
Drive unit with 3-jaw chuck diam. 80 mm, ideal for shaft grinding (standard).
Drive unit with 3-jaw chuck diam. 80 mm, ideal for shaft grinding (standard).
Standard accessories
Standard accessories

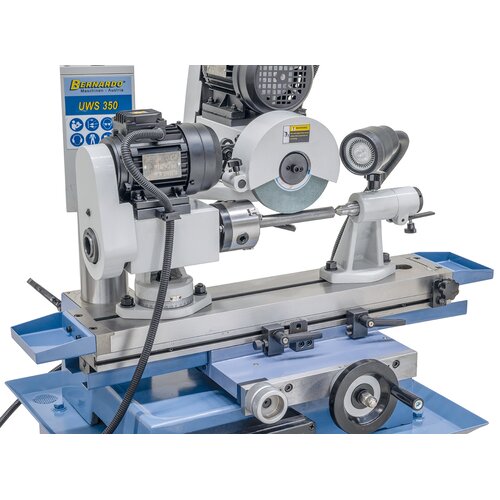

Shaft grinding
End mill face side
End mill outer spiral cutting edge
Turning tool
Twist drill
Ball end mill
Metric shell end mill

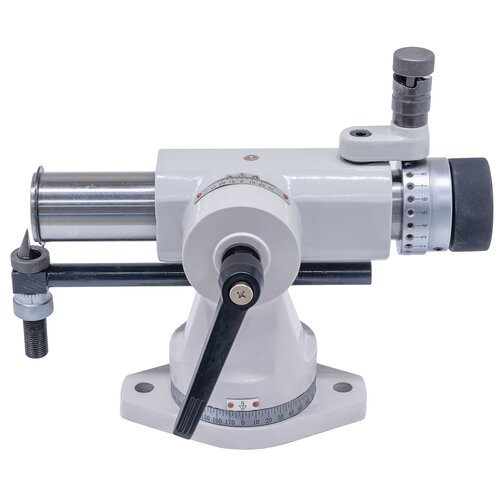

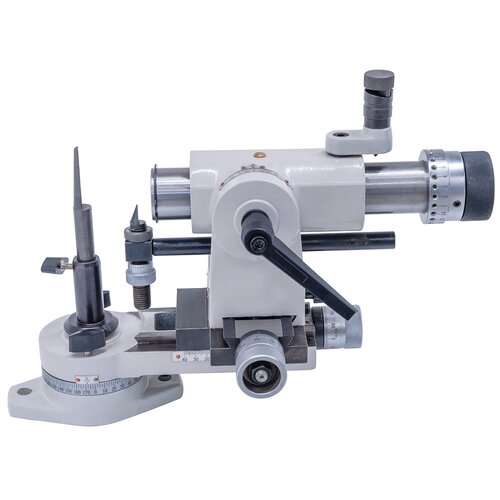

Drill bit - screw tap grinding attachment 50K, grinding range: 3 - 32 mm (optional).

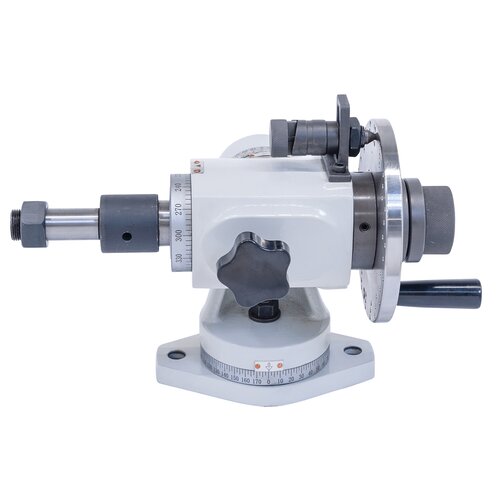

Spiral mill - ball cutter grinding attachment 50E, grinding range: 6 - 25 mm (optional).

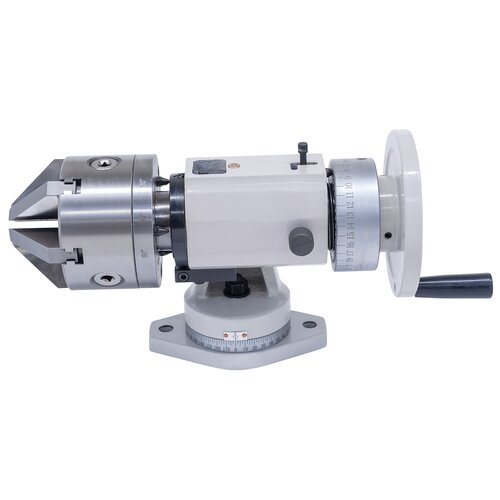

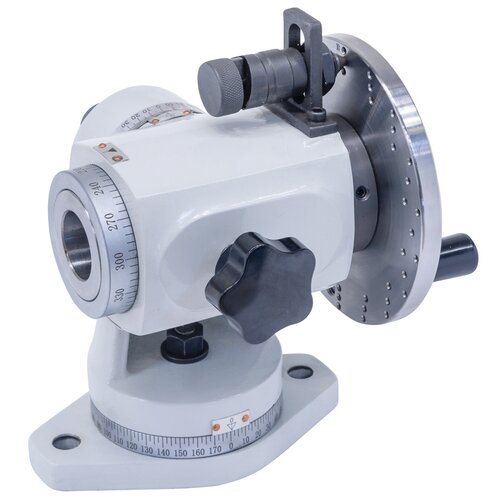

End mill cutter grinding attachment 50D, grinding range: 3 - 25 mm (optional).

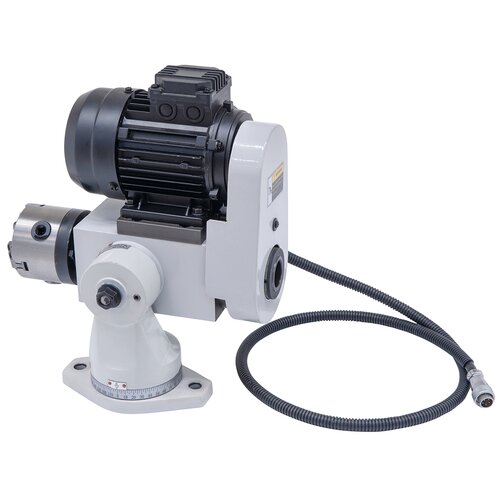

Drive unit with 3-jaw chuck diam. 80 mm, ideal for shaft grinding (standard).

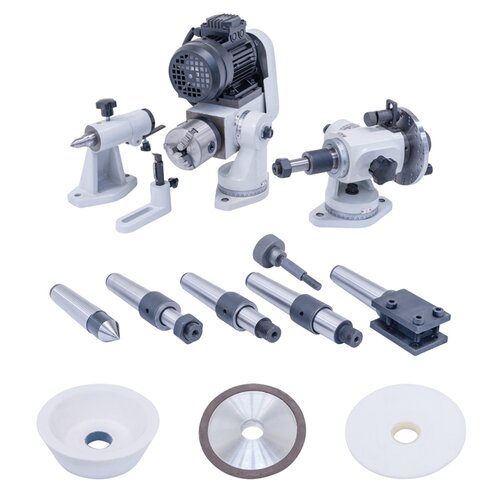

Standard accessories

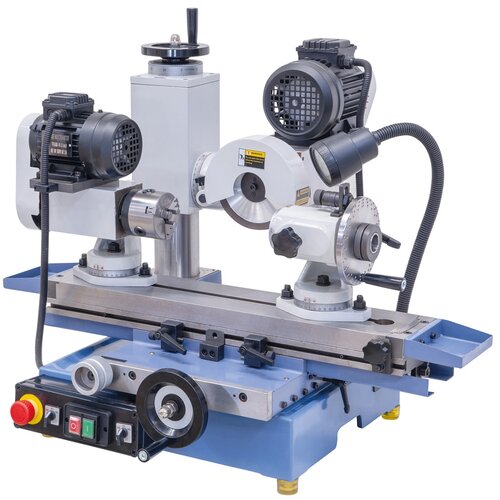

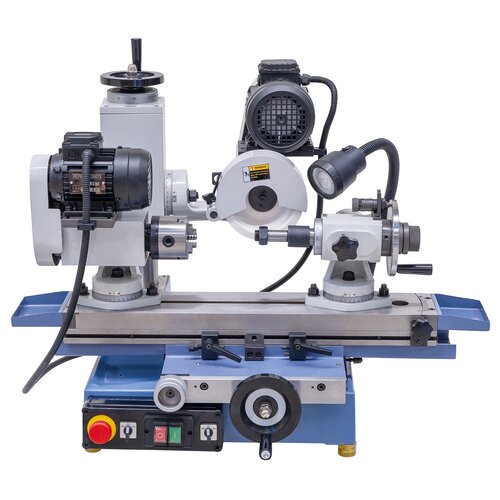

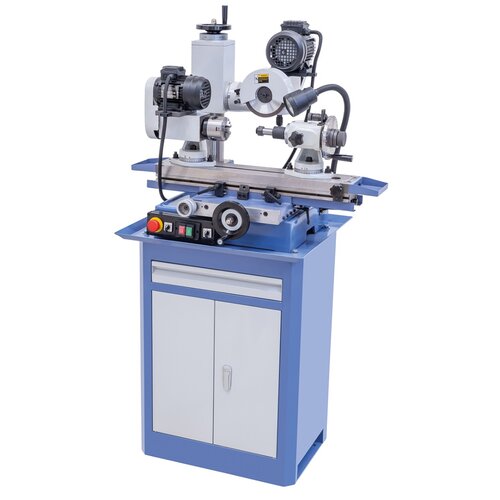

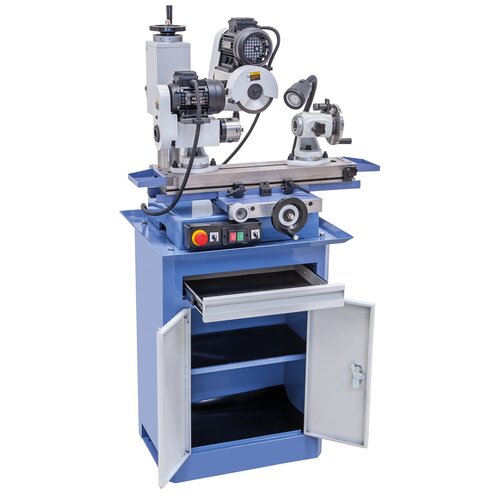

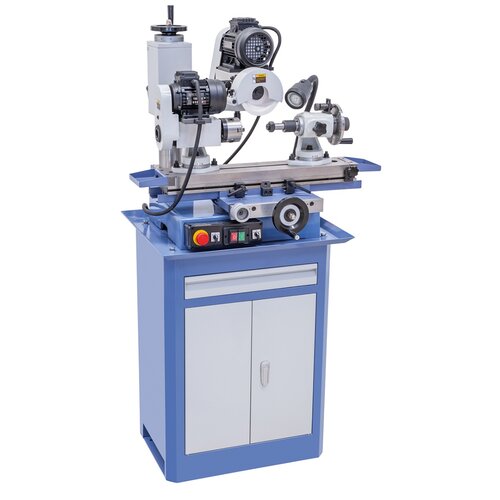

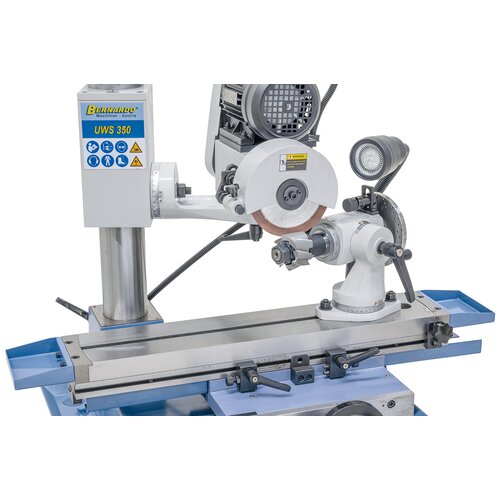

Universal tool grinding machine UWS 350

Art.Nr.: 05-13651
Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The universal tool grinding machine UWS 350 features a variety of applications for professional users, requiring minimum space. The wide range of optional accessories guarantees a maximum of performance.

€4,116.00

incl. 20% VAT

Availability

In Stock
Deliverable in 2-3 business days

Product Properties

  • For grinding of various tools, e.g. drills, milling cutters, turning tools etc.
  • Large number of standard accessories
  • Solid construction for vibration-free run
  • Ergonomically arranged control elements
  • Headstock adjustable in height and tiltable (-45° to +45°)
  • Drive unit with 3-jaw chuck (Ø 80 mm) for shaft grinding
  • Various application areas increase productivity
  • Table can be tilted for conical grinding operations and scale allows adjustment to desired position

Product Specifications

Workpiece diameter max.

260 mm

Table size

640 x 130 mm

Table longitudinal travel

330 mm

Table cross travel

195 mm

Grinding head



Vertically tiltable

-45° to +45°

Horizontally tiltable

-45° to +45°

Speed grinding spindle

5000 rpm

Motor power

0,55 kW

Voltage

400 V

Drive unit with 3-jaw chuck



Vertically tiltable

-35° to +35°

Horizontally tiltable

360°

Speed

1300 rpm

Motor power

90 W

Voltage

400 V

Machine dimension (W x D x H) *

870 x 650 x 800 mm

Weight approx.

197 kg




* without stand

Delivery Contents

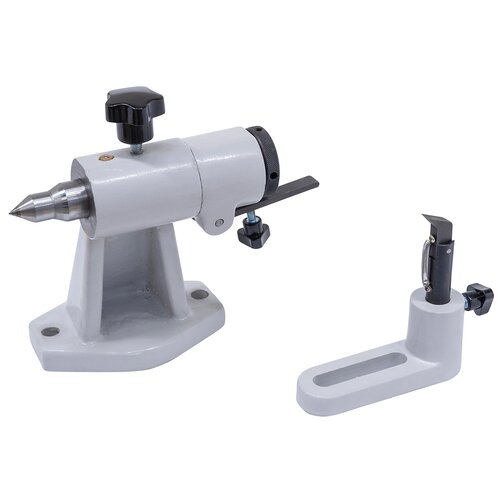

  • Tailstock
  • Adjustable table end stops
  • Center 60°
  • 1 Corundum grinding wheel type B, 150 x 32 mm
  • 1 Corundum cup grinding wheel type A, 150 x 50 x 32 mm
  • 1 Diamond grinding wheel type B, 150 x 32 mm
  • Drive unit with 3-jaw chuck, diam. 80 mm
  • Lathe tool grinding attachment
  • Clamping mandrel for milling cutter 22, 27, 32 mm
  • Diamond dressing stone
  • LED working light
  • Left and right turning
  • Tools

Suitable accessories

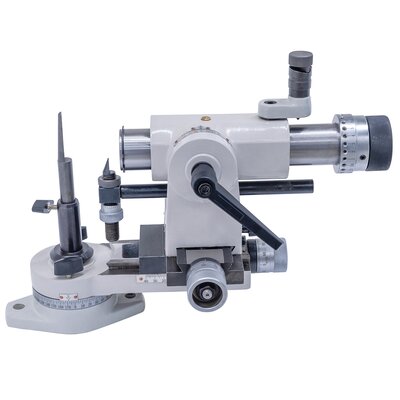

Spiral mill - ball cutter grinding attachment 50E
Spiral mill - ball cutter grinding attachment 50E
Art.Nr. : 05-1366

€822.00

incl. 20% VAT
Collet 25 mm f. UWS 300 / UWS 350
Collet 25 mm f. UWS 300 / UWS 350
Art.Nr. : 05-136765

€30.00

incl. 20% VAT
Collet 24 mm f. UWS 300 / UWS 350
Collet 24 mm f. UWS 300 / UWS 350
Art.Nr. : 05-136764

€30.00

incl. 20% VAT
Collet 22 mm f. UWS 300 / UWS 350
Collet 22 mm f. UWS 300 / UWS 350
Art.Nr. : 05-136763

€30.00

incl. 20% VAT
Collet 20 mm f. UWS 300 / UWS 350
Collet 20 mm f. UWS 300 / UWS 350
Art.Nr. : 05-136762

€30.00

incl. 20% VAT
Collet 18 mm f. UWS 300 / UWS 350
Collet 18 mm f. UWS 300 / UWS 350
Art.Nr. : 05-136761

€30.00

incl. 20% VAT

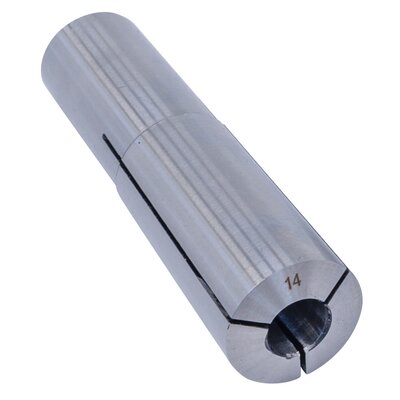

Collet 14 mm f. UWS 300 / UWS 350
Collet 14 mm f. UWS 300 / UWS 350
Art.Nr. : 05-13676

€30.00

incl. 20% VAT

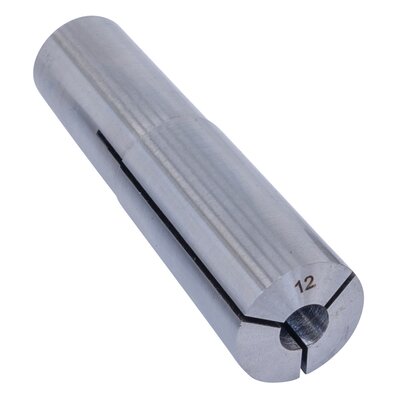

Collet 12 mm f. UWS 300 / UWS 350
Collet 12 mm f. UWS 300 / UWS 350
Art.Nr. : 05-13675

€30.00

incl. 20% VAT

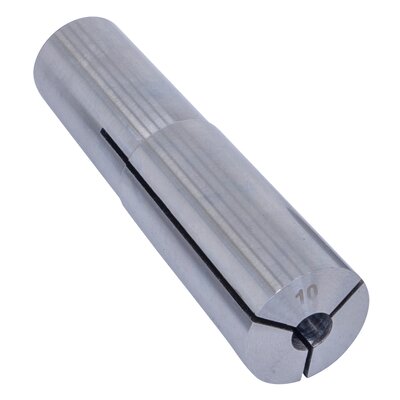

Collet 10 mm f. UWS 300 / UWS 350
Collet 10 mm f. UWS 300 / UWS 350
Art.Nr. : 05-13674

€30.00

incl. 20% VAT

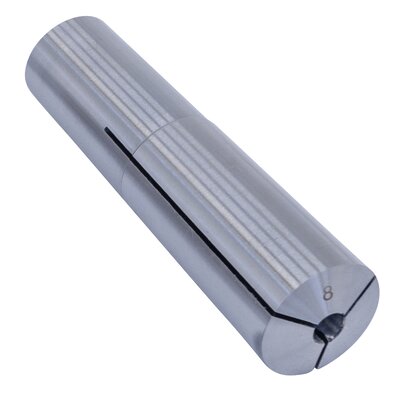

Collet 8 mm f. UWS 300 / UWS 350
Collet 8 mm f. UWS 300 / UWS 350
Art.Nr. : 05-13673

€30.00

incl. 20% VAT
Collet 5 mm f. UWS 300 / UWS 350
Collet 5 mm f. UWS 300 / UWS 350
Art.Nr. : 05-136720

€30.00

incl. 20% VAT
Collet 3 mm f. UWS 300 / UWS 350
Collet 3 mm f. UWS 300 / UWS 350
Art.Nr. : 05-13672

€30.00

incl. 20% VAT

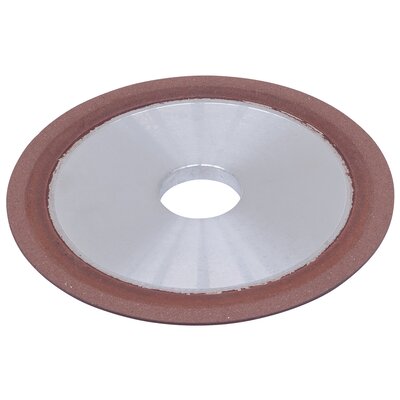

Diamond grinding wheel type B
Diamond grinding wheel type B
Art.Nr. : 05-13666

€60.00

incl. 20% VAT

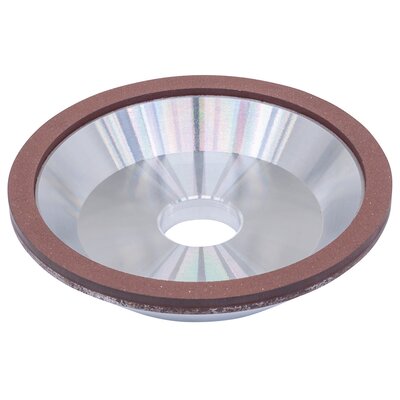

Diamond cup grinding wheel type A
Diamond cup grinding wheel type A
Art.Nr. : 05-13665

€60.00

incl. 20% VAT

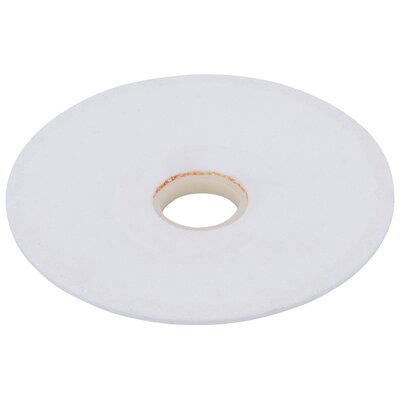

Corundum grinding wheel type B
Corundum grinding wheel type B
Art.Nr. : 05-13664

€18.00

incl. 20% VAT

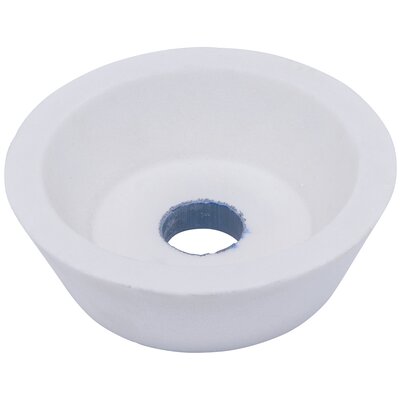

Corundum cup grinding wheel type A
Corundum cup grinding wheel type A
Art.Nr. : 05-13663

€30.00

incl. 20% VAT

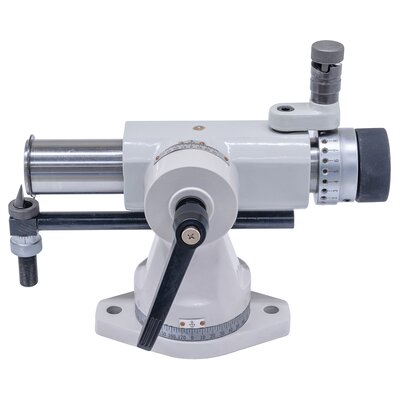

End mill cutter grinding attachment 50D
End mill cutter grinding attachment 50D
Art.Nr. : 05-13661

€528.00

incl. 20% VAT

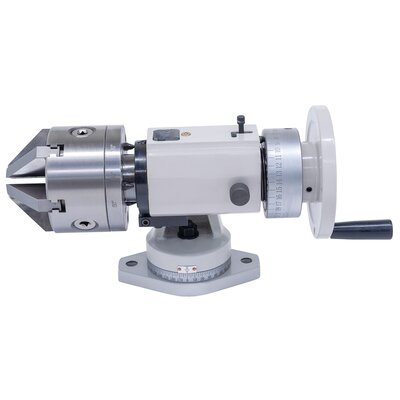

Drill bit - screw tap grinding attachment 50K
Drill bit - screw tap grinding attachment 50K
Art.Nr. : 05-13660

€822.00

incl. 20% VAT

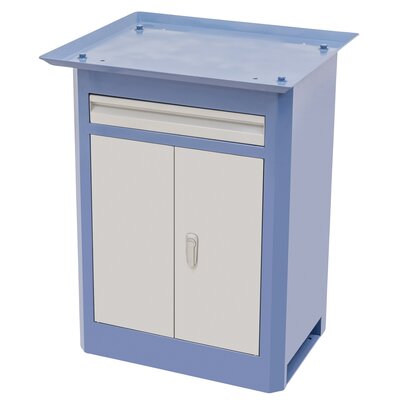

Stand f. UWS 300 / UWS 350
Stand f. UWS 300 / UWS 350
Art.Nr. : 56-1035

€384.00

incl. 20% VAT
