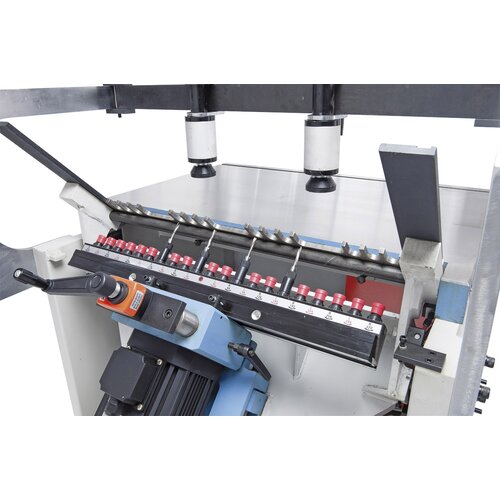

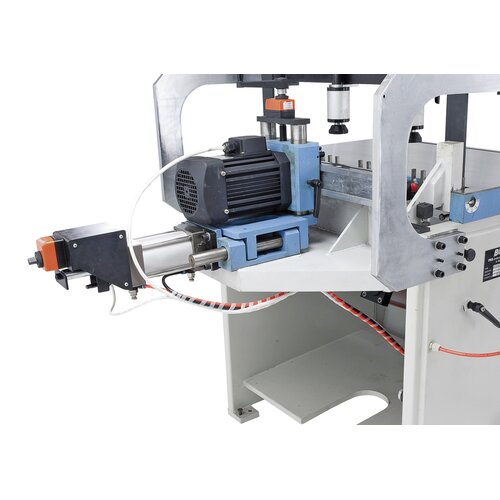

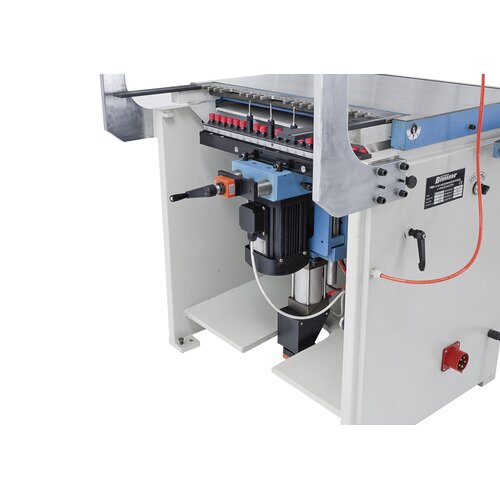

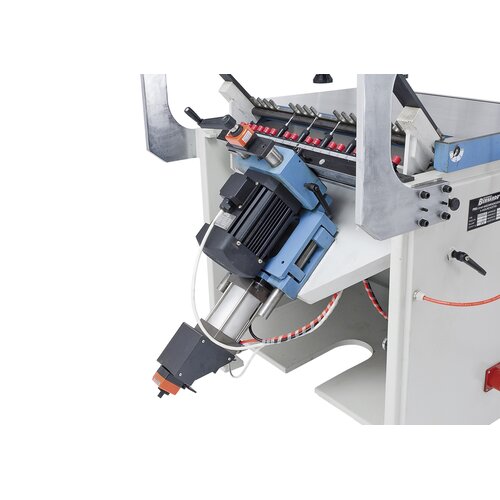

Pneumatic drill unit tilt from 0° - 45° - 90°

Includes two counters: for drill depth and height adjustment

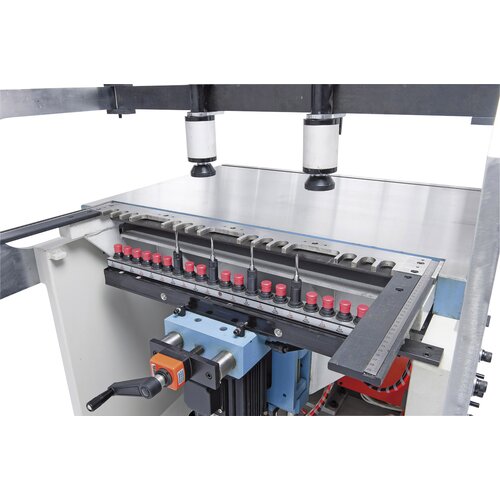

Fence with 3 gaps to use with multiple drill heads for hinges

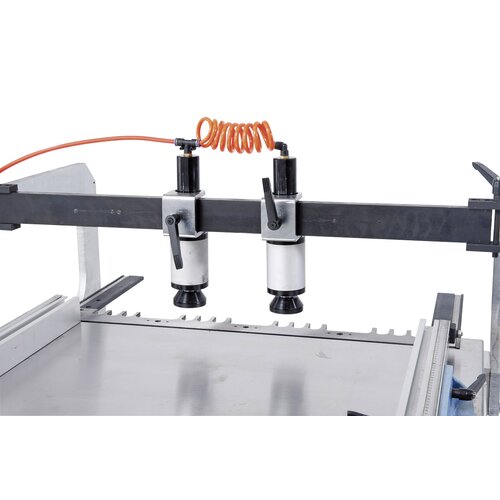

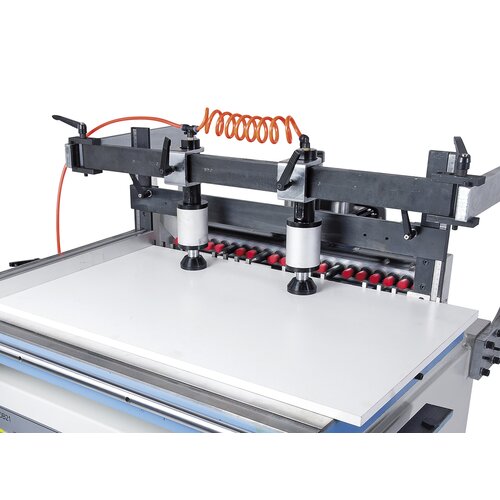

Pneumatic clamp adjustable for drilling of smaller workpieces

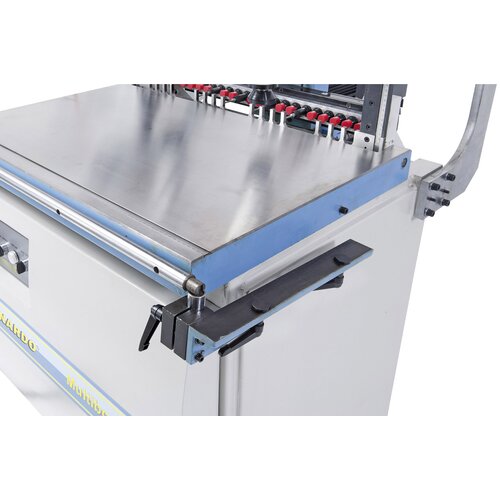

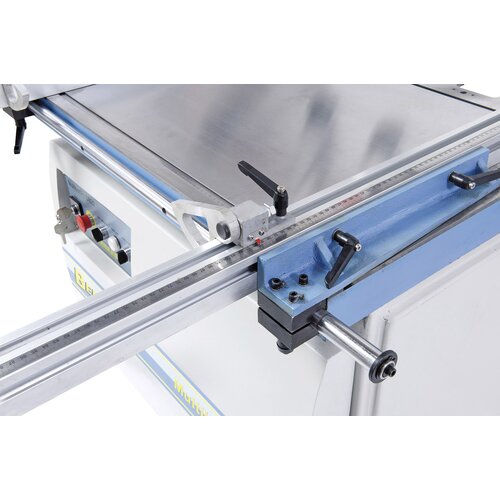

Removable side fences allow for short conversion times from corpus to frame and multiple hole boring

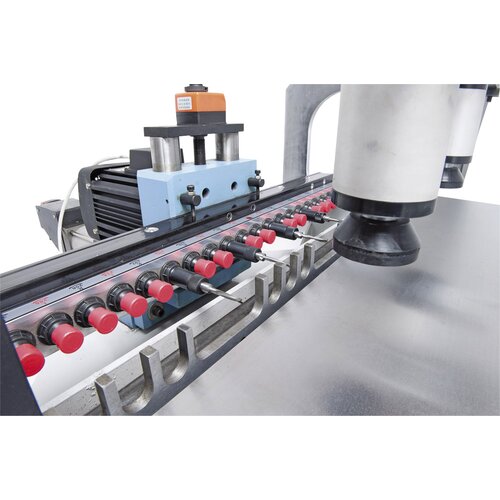

Keyless drill chuck is part of standard equipment

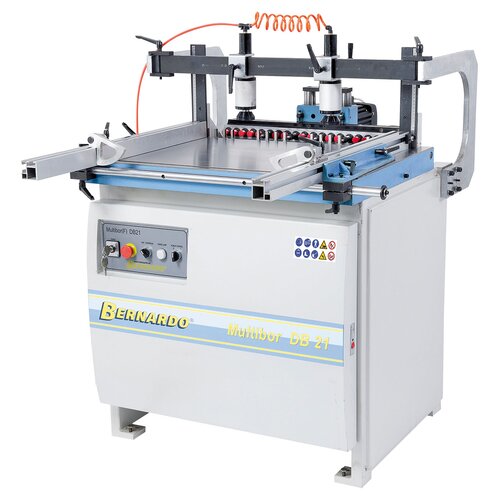

Universal multiboring machine Multibor DB 21 *

Art.Nr.: 10-1030

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The Multibor DB 21 universal multiboring machine features 21 spindles, making it perfect for drilling corpus connections, frames and hardware and multiple hole boring. The pneumatic tiltable drill unit guarantees short conversion times making this model universal in use and attractive in price and benefit.

€4,260.00

incl. 20% VAT

Availability

In Stock

Deliverable in 2-3 business days

Product Properties

Automatic drill unit return when reaching set drill depth
Includes fittings for multiple hole drilling up to 280 mm, ideal for multiple hole drilling eg. Side panels, sliding door cupboards and many more
Adjustable feed rate allows clean perforation of holes
Drill unit adjustable to 45° angle for mitre corpus-dowelling
Mechanical digital display allows drill height adjustment over support table

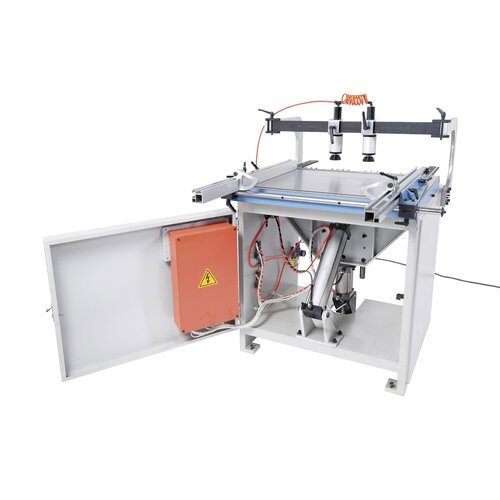

Automatic pneumatic control with foot pedal for clamping - drilling - releasing
Reliable end stop system allows for short conversion times

Product Specifications

Spindles	21 pcs.
Distance between spindles	32 mm
Distance first / last spindle	640 mm
Max. drill depth	50 mm
Table size	870 x 560 mm
Spindle speed	2800 rpm
Motor power	1,5 kW
Voltage	400 V
Air pressure	6 - 8 bar
Machine dimension (W x D x H)	1100 (3000*) x 1130 x 1300 mm
Weight approx.	370 kg
