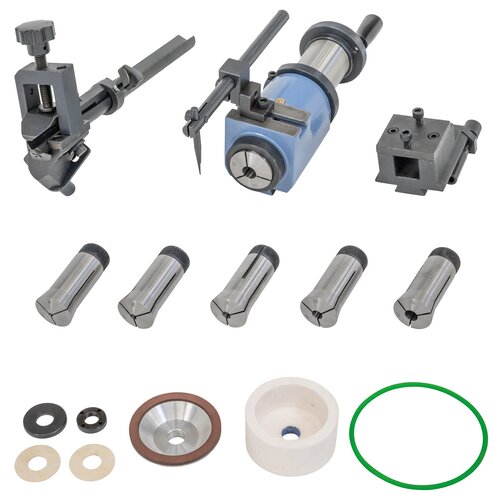

Standard accessories: Attachment for twist drill, end mill and turning tool, collets, corundum grinding wheel, diamond grinding wheel, drive belt

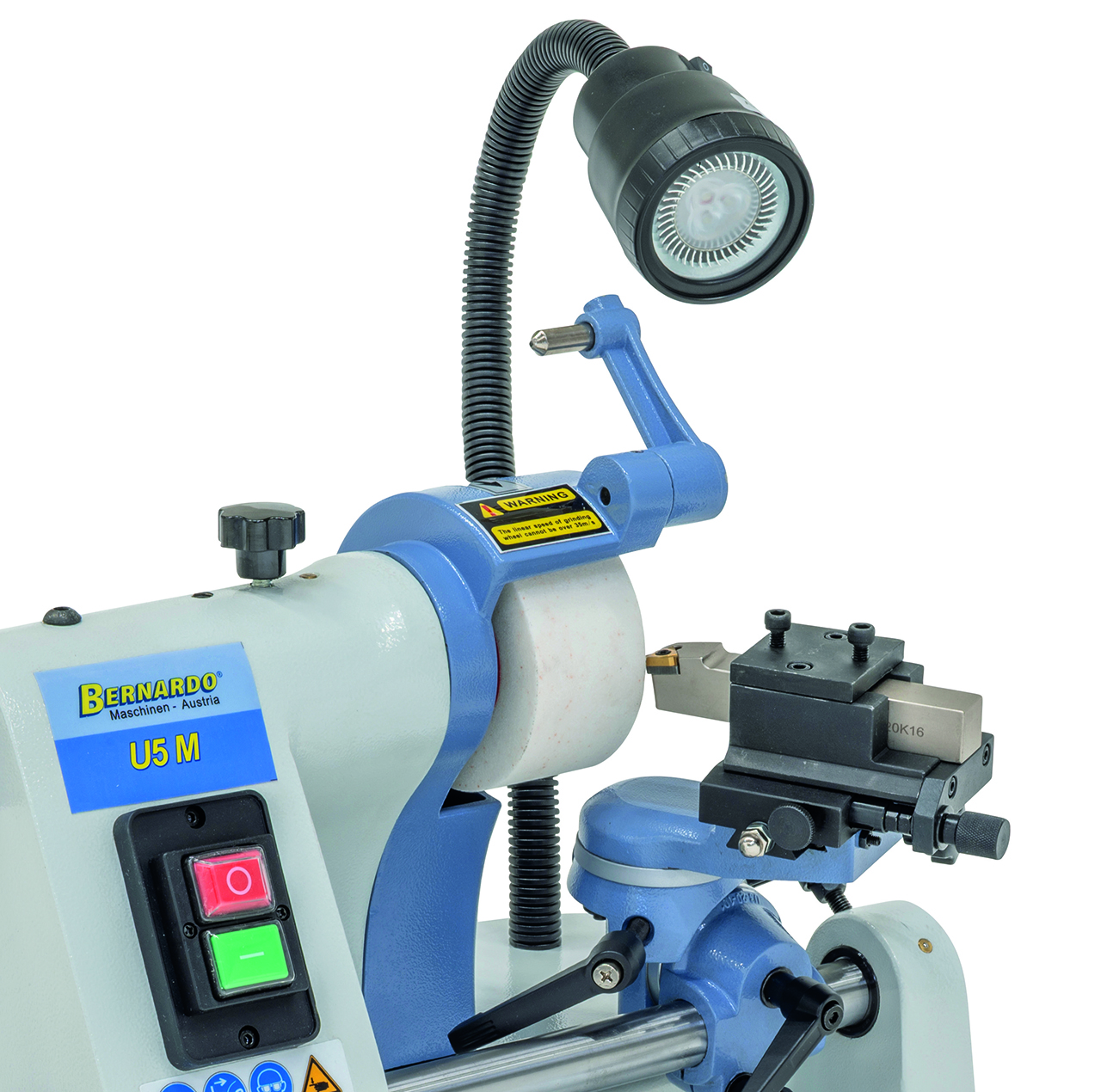

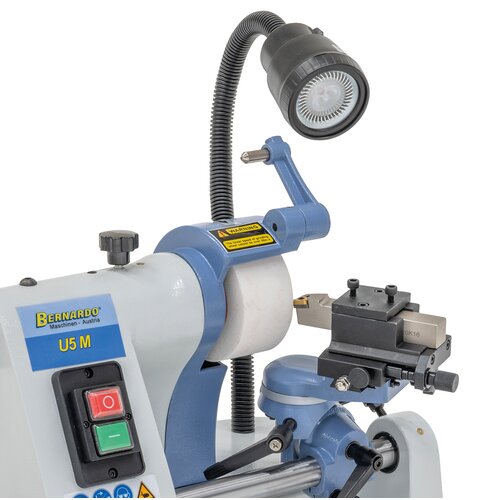

Turning tool attachment

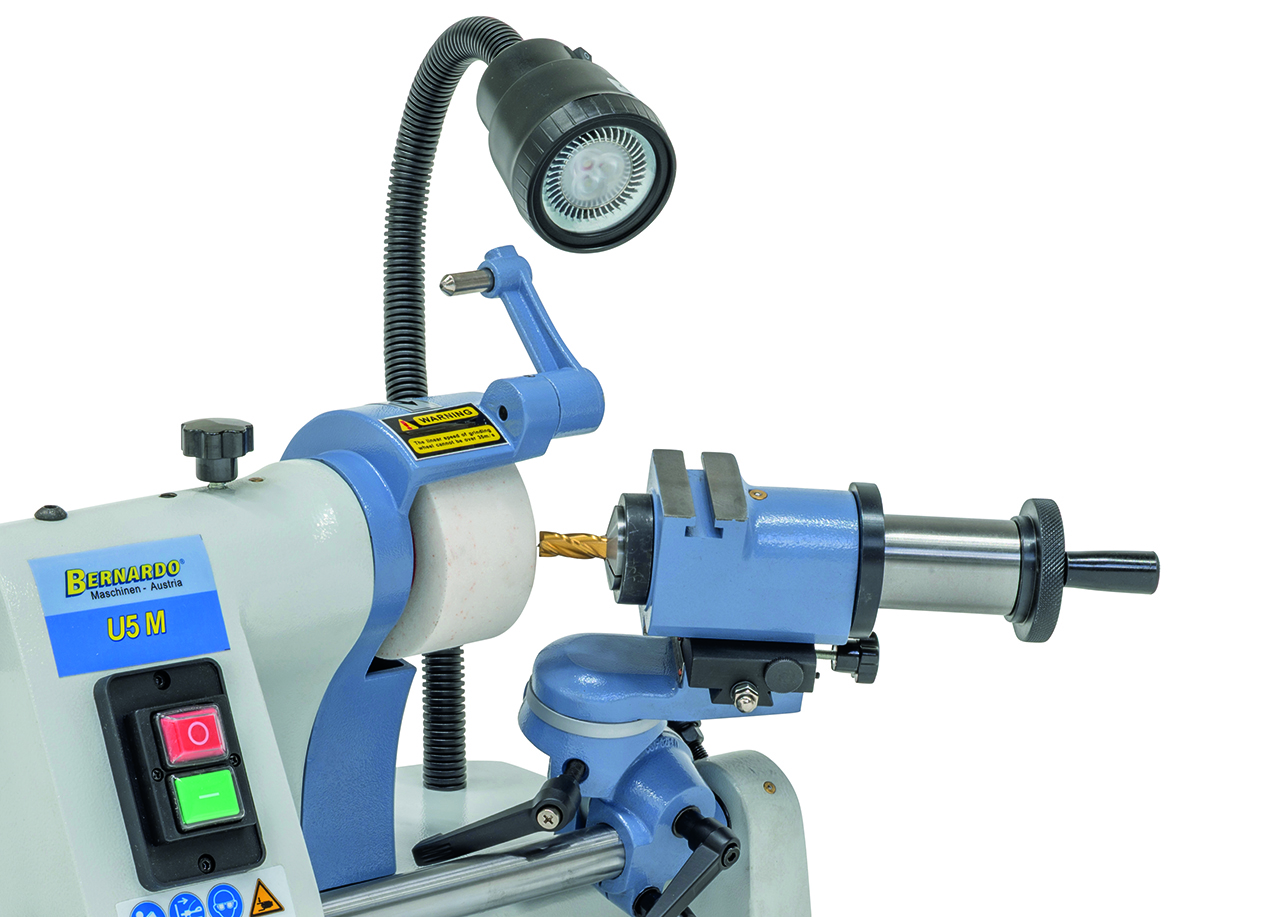

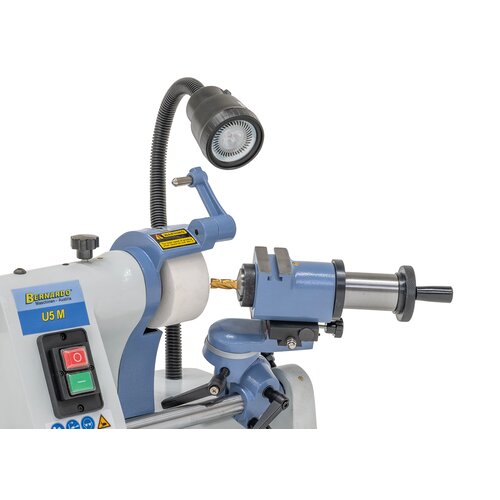

End mill attachment

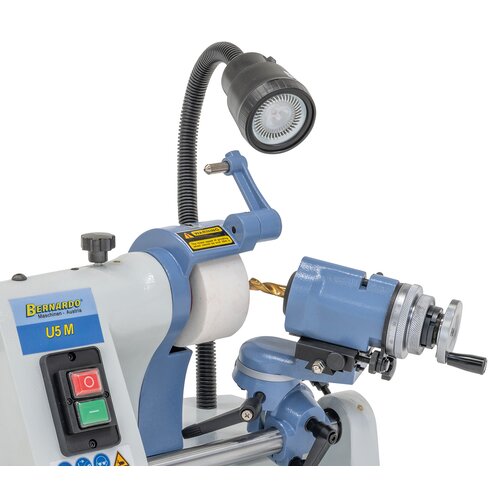

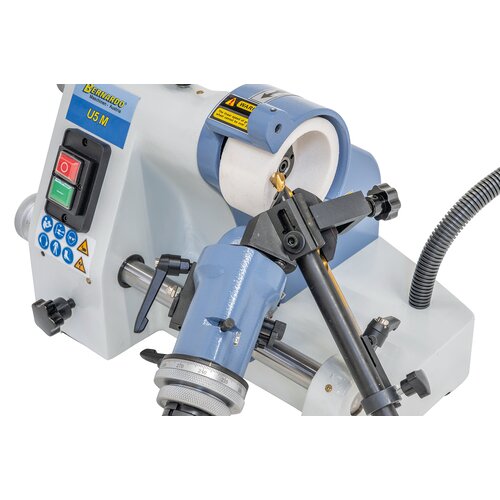

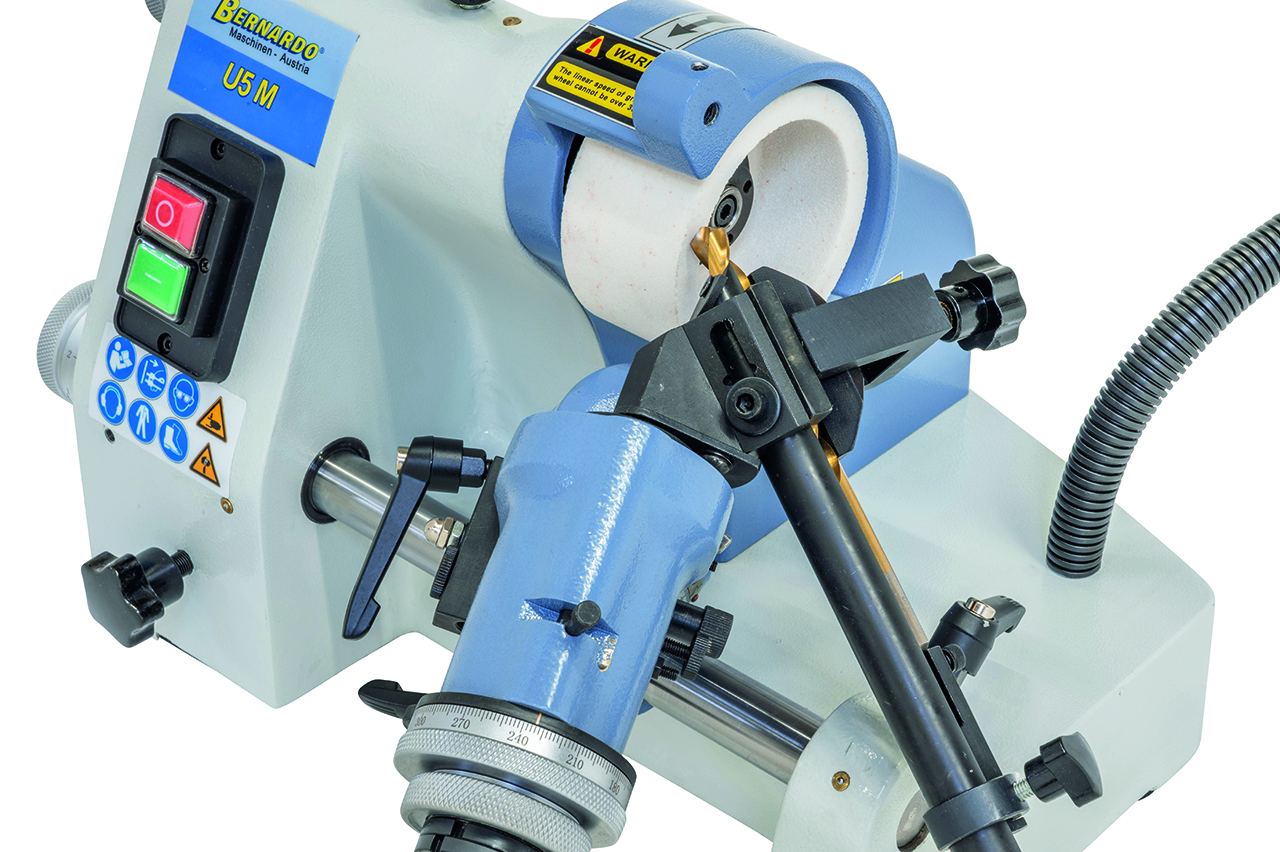

Twist drill attachment

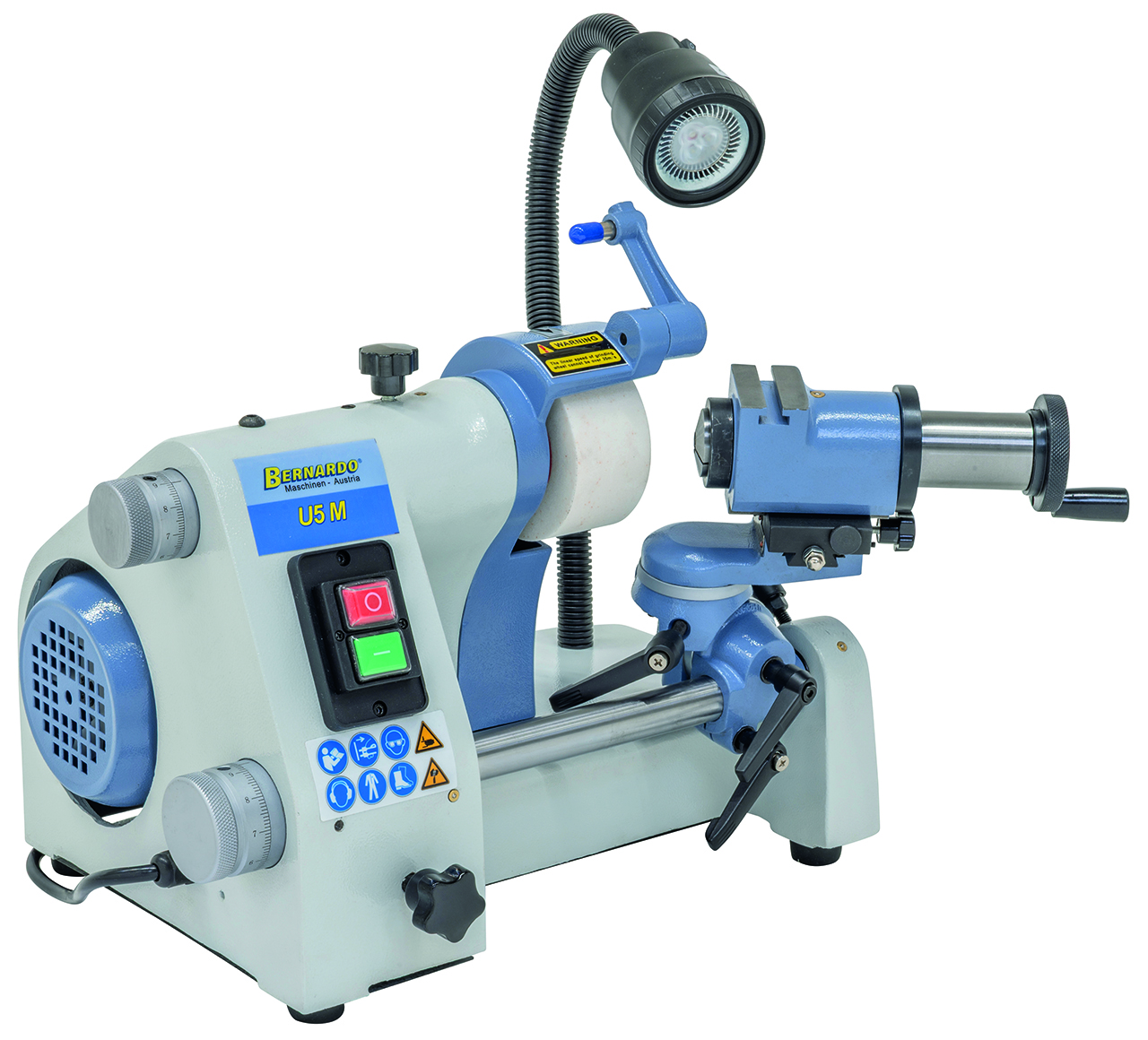

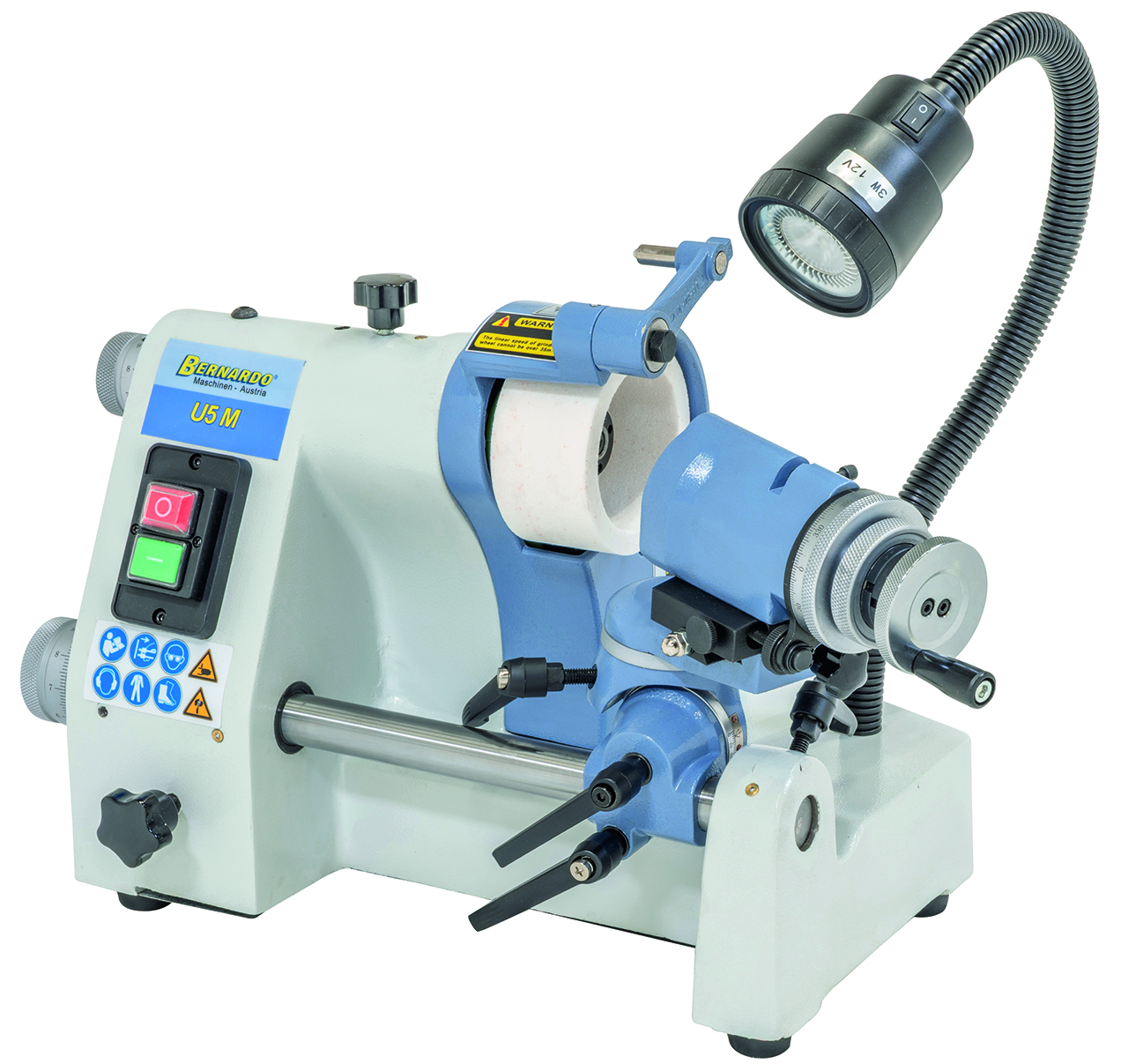

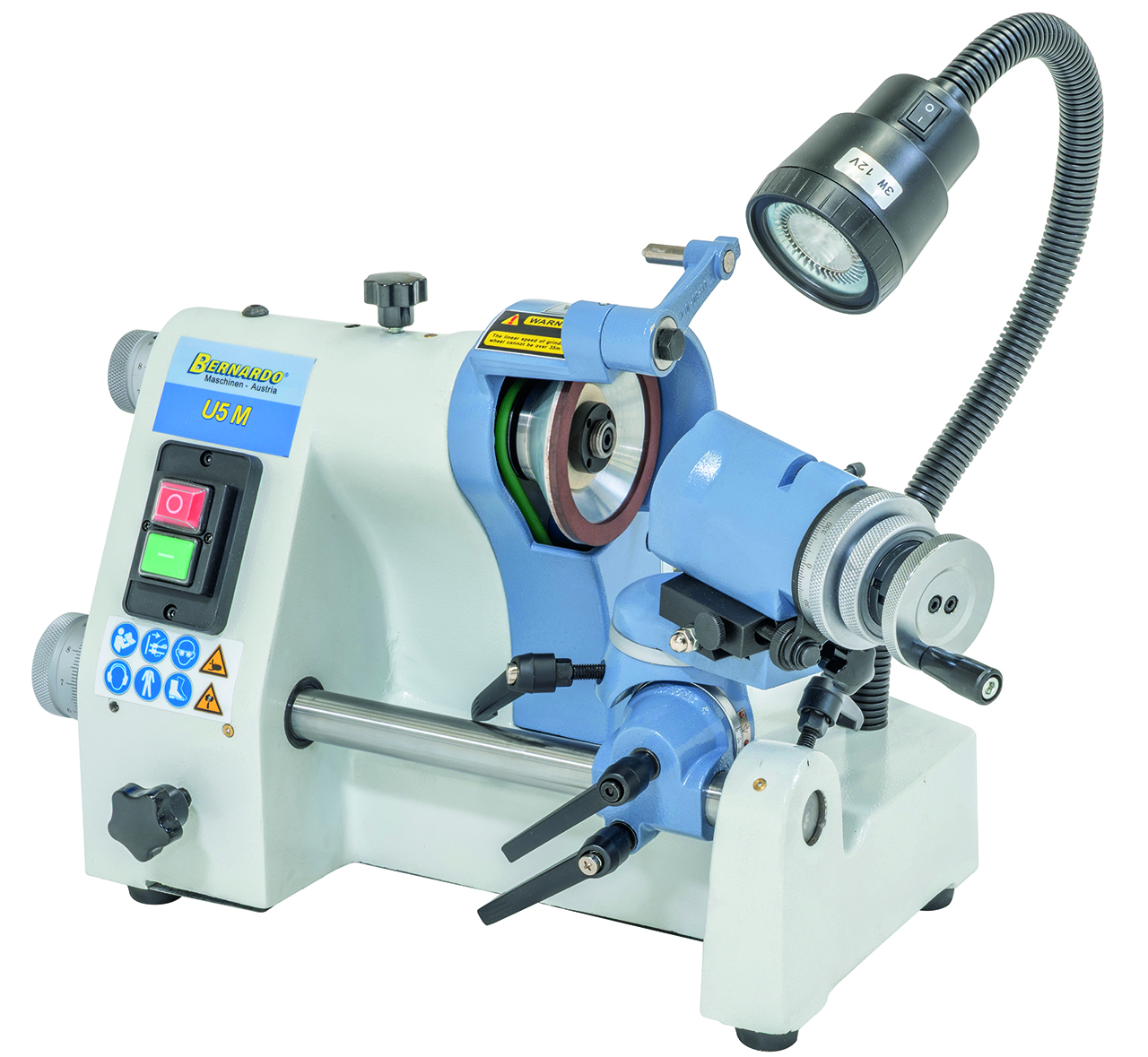

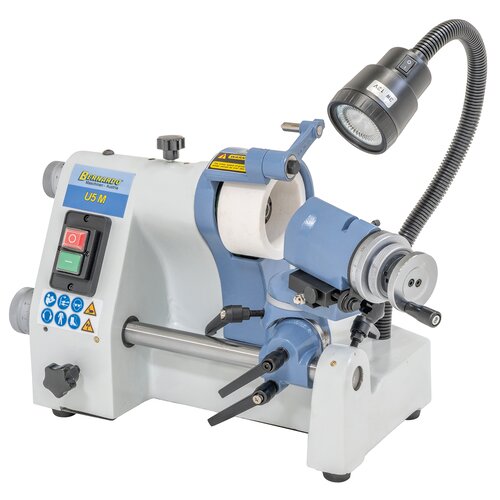

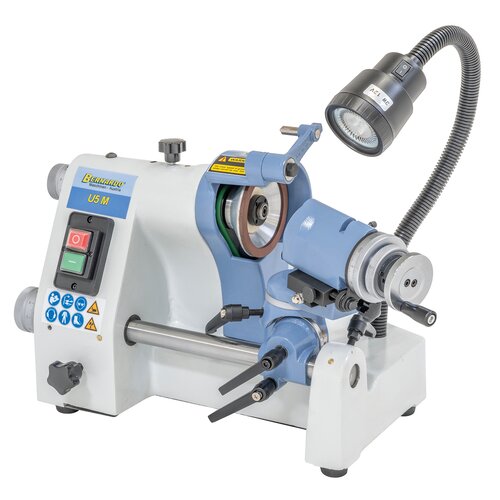

Universal cutter grinder U5M / 230 V

Art.Nr.: 05-16390

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The U3M universal cutter grinder features various angles and adjustments, making it highly versatile. Furthermore, the large number of standard accessories makes this model excellent for price and performance.

€1,188.00

incl. 20% VAT

Availability

In Stock

Deliverable in 2-3 business days

Product Properties

Grinding of dies, twist drills, electrodes, gravers, live centers etc.
High user-friendliness
Various angles and adjustments allow taper, cylindrical and central grinding of graving tools
Solid construction ensures rigorous, long lasting precision
Head features 24 locking positions for grinding of polygones on dies or electrodes
Wide range of standard accessories, such as attachment for twist drills, end mills or turning chisels, diamond wheel, collets
Ideal for grinding of graving tools (engraving cutter)
Precisely, vibration-free driven grinding spindle guarantees optimal results

Product Specifications

Collet diameter min./max.	3 - 18 mm
Sanding diameter max.	25 mm
Taper grinding	0 - 180°
Rear angle	0 - 45°
Negative angle	0 - 25°
Speed	5000 rpm
Grinding wheel	100 x 50 x 20 mm
Locking position dividing head	24 (all 15°)
Motor power	0,37 kW
Voltage	230 V or 400 V
Length	450 mm
Width	500 mm
Height	400 mm
Weight approx.	45 kg
