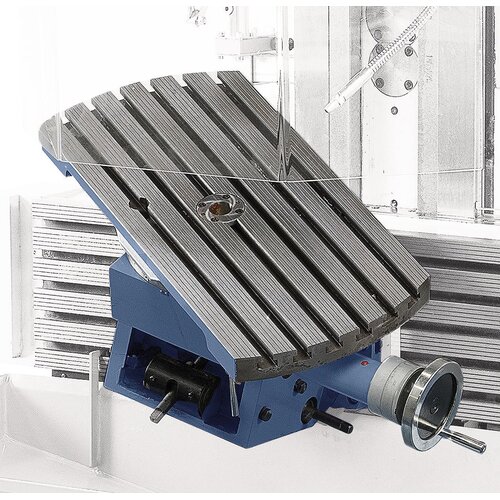

Universal - tilting table 630 x 300 mm f. WFM 800

Width of table surface

300 m

Length of table surface

630 mm

Max. loading of table

150 kg

Diameter of center hole of table

40 H 6 mm

T-slot (quantity / width  x distance)

6 / 14 x 45 mm

Max. swivel angle of table around vertical axis

± 360°

Max. swivel angle of table around longitudinal axis

± 30°

Max. swivel angle of table around cross axis

± 30°

Ratio of worm to worm wheel

1 : 60

Overal dimensions ( L x W  x H)

800 x 340 x 300 mm

Net weight.

100 kg
