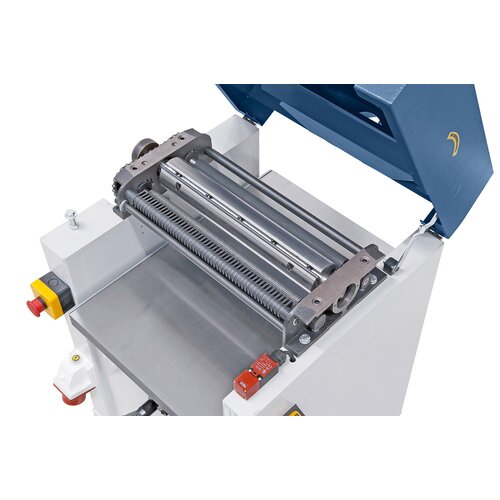

The planing unit features a 70 mm cutterblock to guarantees most accurate results.

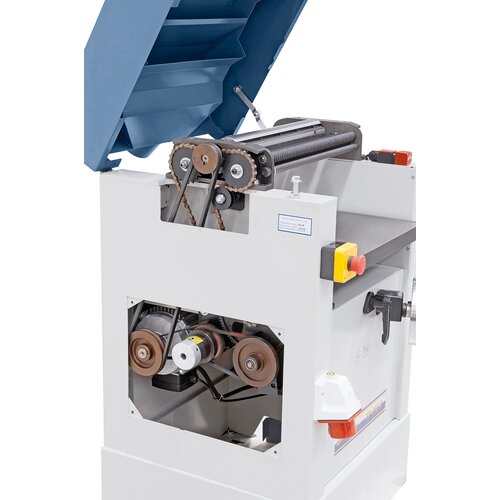

The infeed is driven by a solid chain drive. The infeed speed is 5 - 7 m/min.

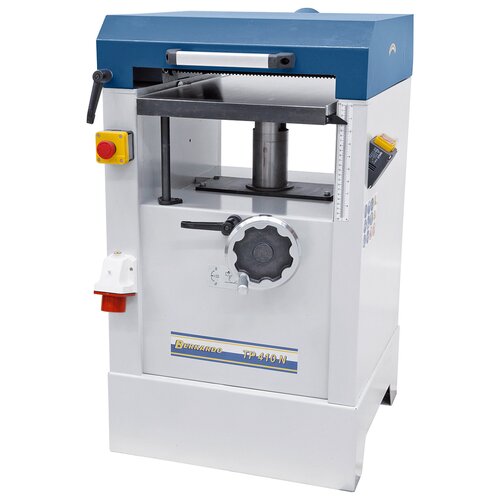

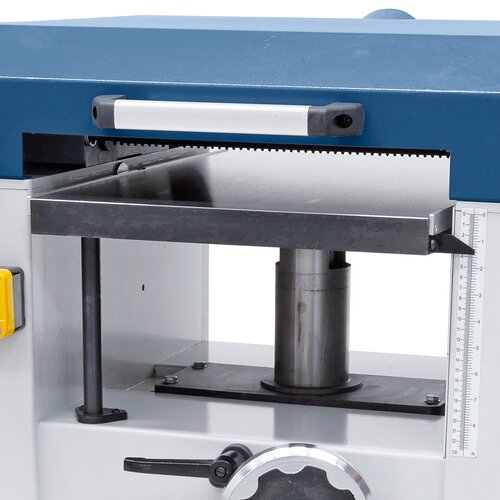

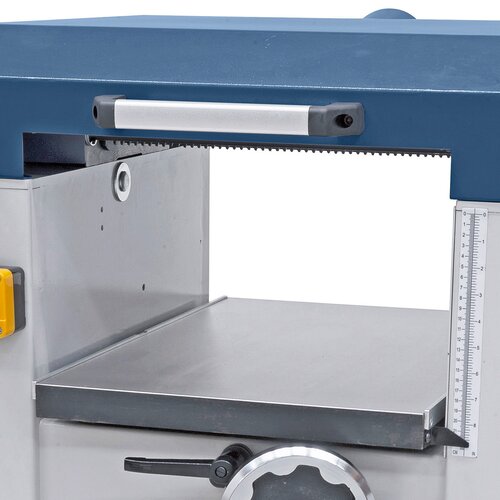

The torsion-free thicknessing table is guided on a central column with support.

Ground thicknessing table for workpieces up to 225 mm in height. The set height can be read on the digital indication.

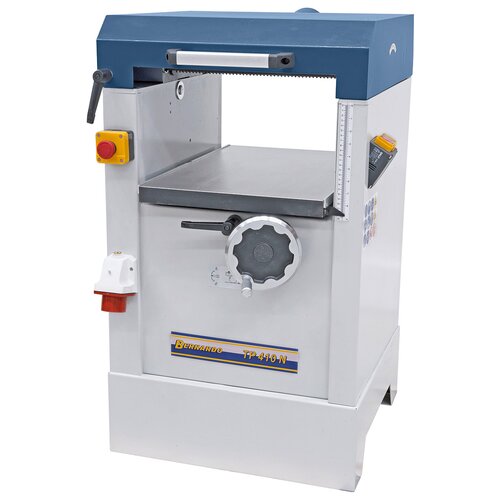

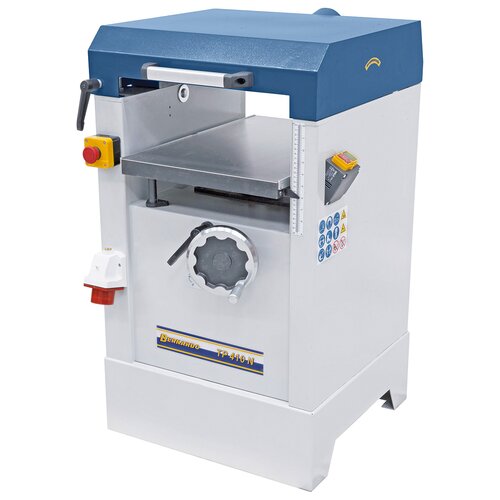

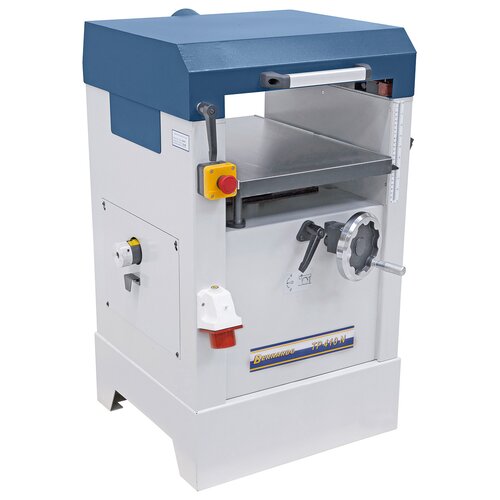

Thicknesser TP 410 N / 400 V

Art.Nr.: 08-1104

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The TP 410 N thicknesser is serially equipped with a stepless variator gearbox, allowing to adjust the infeed speed to the workpiece. Furthermore this model features a digital display for precise thicknessing table adjustment.

€1,860.00

incl. 20% VAT

Availability

In Stock

Deliverable in 2-3 business days

Product Properties

Variator gearbox allows stepless infeed speed adjustment from 5 - 7 m/min

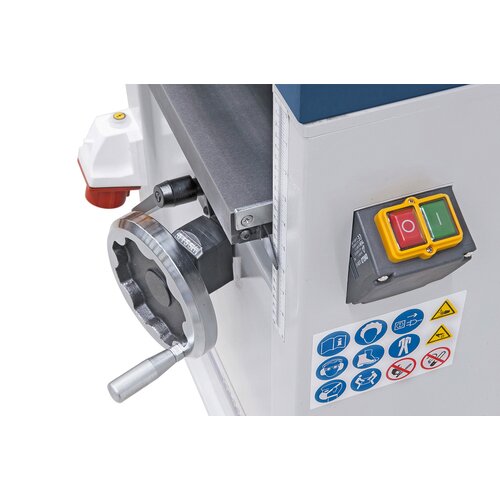

Digital display with an accuracy of 1/10 mm on the handwheel for precise adjustment of thicknessing table
Ground thicknessing table, height adjustment by handwheel
Table with central column and support to guarantees most accurate results
Chain drive allows safe and consistent workpiece infeed
Solid cutterblock for precise results
Power switch includes undervoltage release

Product Specifications

Working width	406 mm
Working height min./max.	5 - 225 mm
Table size	600 x 406 mm
Max. cutting depth	4 mm
Working length min.	125 mm
Planer shaft diameter	70 mm
Cutter knives	3 pcs.
Shaft rotation speed	5500 rpm
Feed speed, stepless	5 – 7 m/min
Dust extraction outlet	100 mm
Motor power output S₁ 100%	3,0 KW (4,0 HP)
Motor power input S₆ 40%	4,2 kW (5,7 HP)
Voltage	400 V
Machine dimension (W x D x H)	750 x 680 x 1005 mm
Weight approx.	160 kg
