The solid planing unit features a precisely bedded spiral cutter head to guarantee best results.

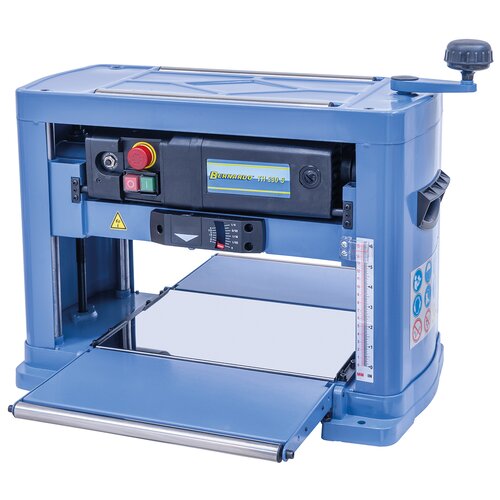

Thicknesser TH 330 S / 230 V

Art.Nr.: 08-10120

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The TH 330 S is a compact and easily transported planer and thicknesser, making this model ideal for use on construction sites. The planer unit - guided on four threads -and the rubber coated in- and outfeed roller for safe workpiece feed, guarantees the most accurate planing results.

€708.00

incl. 20% VAT

Availability

Deliverable Soon

Deliverable by Jul 6, 2025

Product Properties

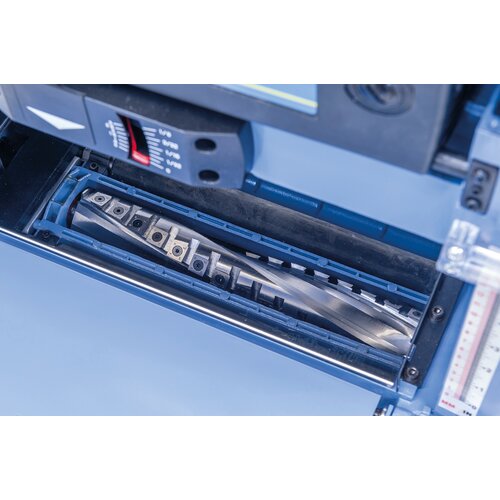

Reduction of noise level (approx. 50%) due to the standard spiral cutter head and up to 20 times the cutting edge life (results from four-way carbide inserts)
Advantage of the carbide inserts: If damaged, individual knives can be exchanged or turned
The carbide blades ensure tear-free planing results and optimal surfaces with any type of wood

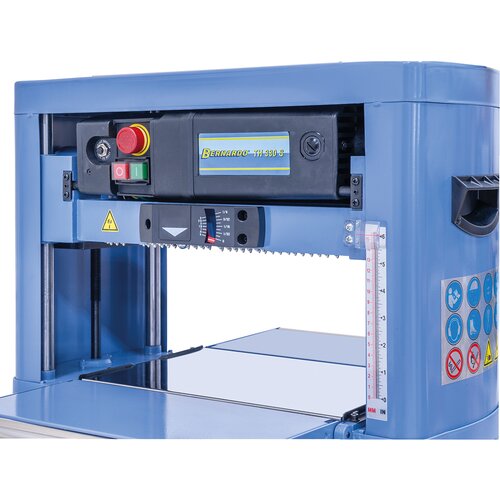

Handwheel and scale allow for precise adjustment of chip removal
Rubber-coated in- and outfeed roller for consistent workpiece feed and quality finish
Foldable table extensions keep required space to a minimum

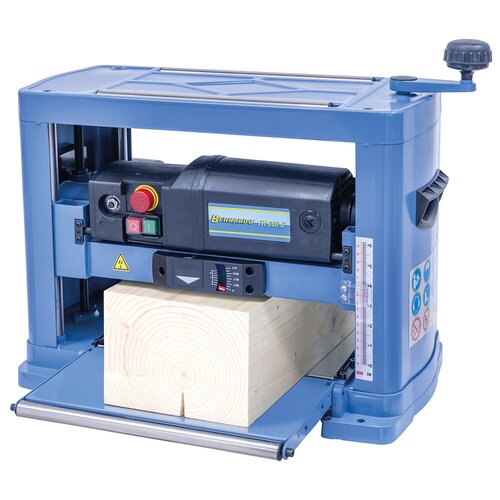

Optimal for planing of boards, beams and planks

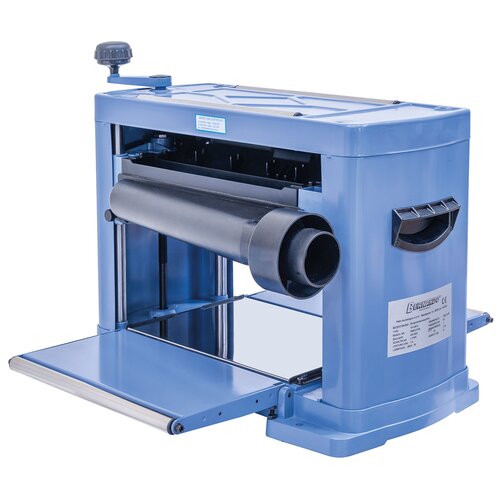

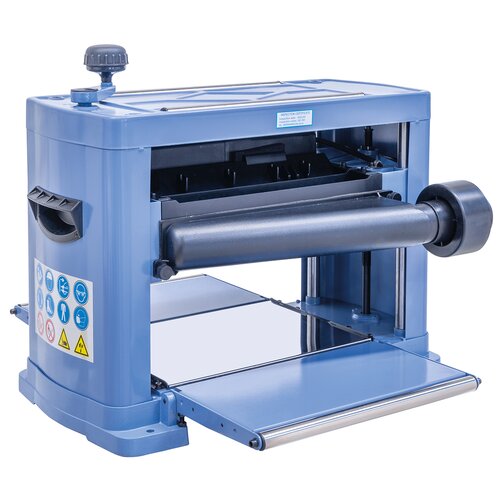

Includes dust hood at the back of machine
Handles on the side allow for easy transportation

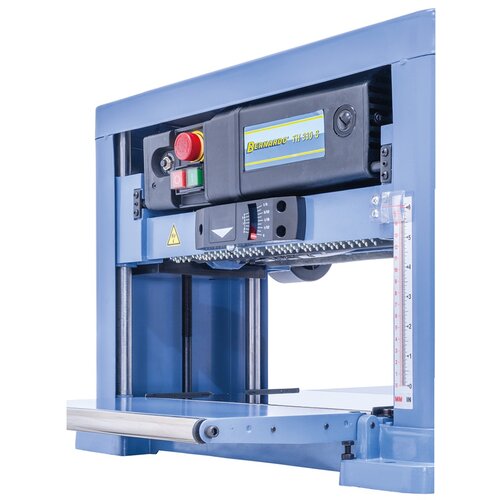

Planing unit is guided fourfold to guarantees precise results
Automatic workpiece infeed (8 m/mm)

Product Specifications

Working width	330 mm
Working height min./max.	5 - 155 mm
Table size with extension	640 x 330 mm
Max. cutting depth	2,8 mm
Working length min.	140 mm
Planer shaft diameter	50 mm
TCT-blades	30 pcs.
Shaft rotation speed	9500 rpm
Feed speed	8 m/min
Dust extraction outlet	50 / 100 mm
Motor power output S₁ 100%	1,5 kW (2,0 HP)
Motor power input S₆ 40%	2,1 kW (2,8 HP)
Voltage	230 V
Machine dimension (L x W x H)	550 x 640 x 475 mm
Weight approx.	30 kg
