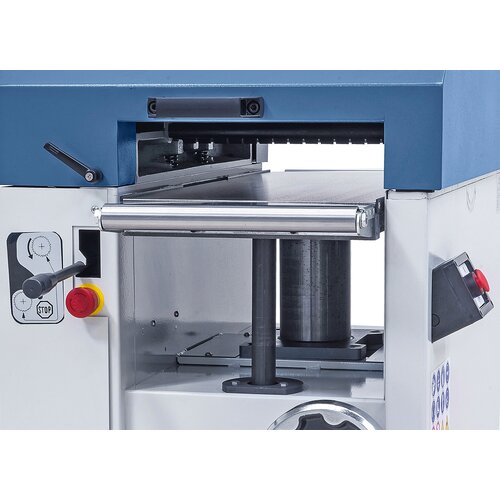

Tables can be adjusted precisely - 1/10 mm - using the digital display.
Tables can be adjusted precisely - 1/10 mm - using the digital display.

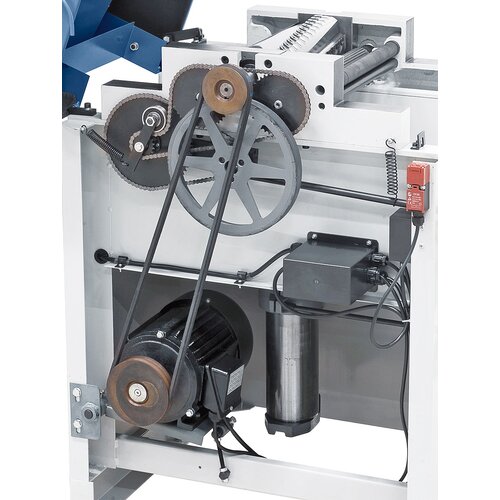

The chain drive ensures consistency of infeed and outfeed rollers.
The chain drive ensures consistency of infeed and outfeed rollers.

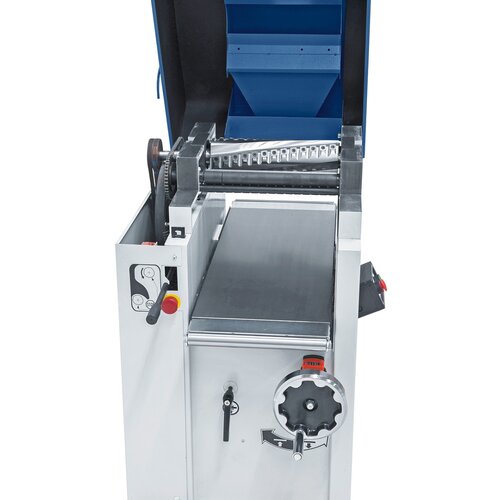

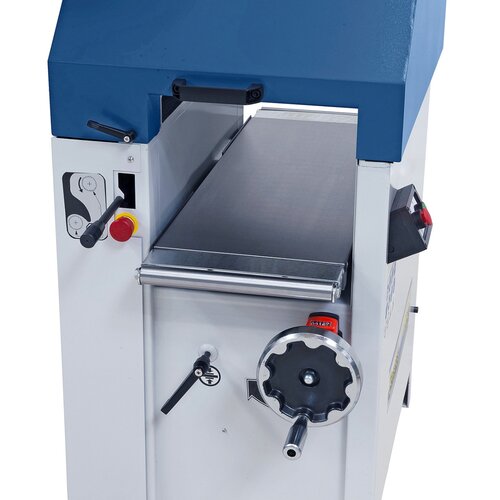

Solid thicknessing table with spindle guide and support for accurate planing of board, slats, planks etc.
Solid thicknessing table with spindle guide and support for accurate planing of board, slats, planks etc.

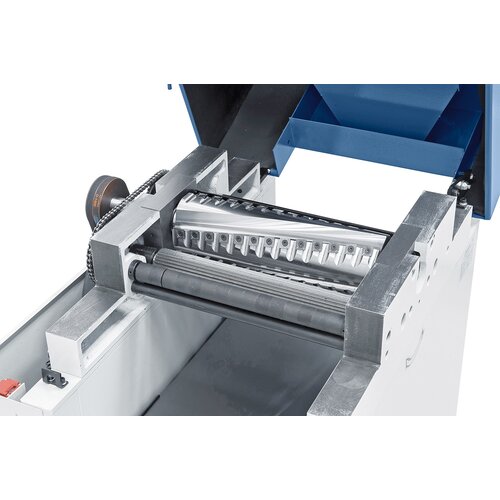

The precisely bedded spiral cutter head and the straight toothed of the infeed roller ensure top work results.
The precisely bedded spiral cutter head and the straight toothed of the infeed roller ensure top work results.

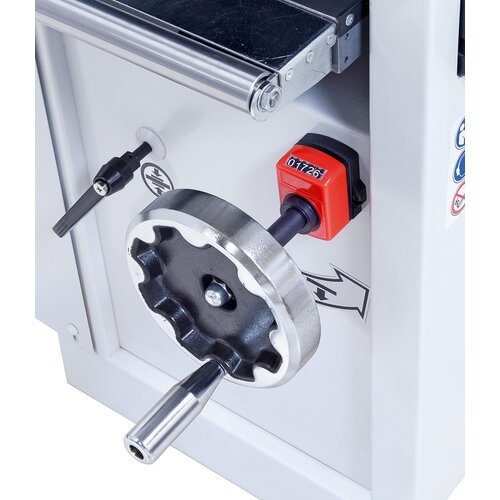

Tables can be adjusted precisely - 1/10 mm - using the digital display.
The chain drive ensures consistency of infeed and outfeed rollers.
Solid thicknessing table with spindle guide and support for accurate planing of board, slats, planks etc.
The precisely bedded spiral cutter head and the straight toothed of the infeed roller ensure top work results.

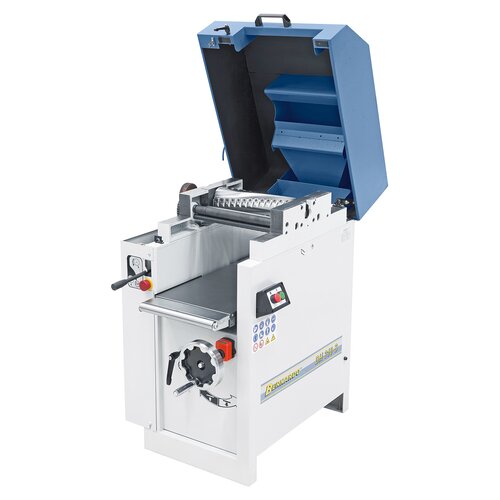

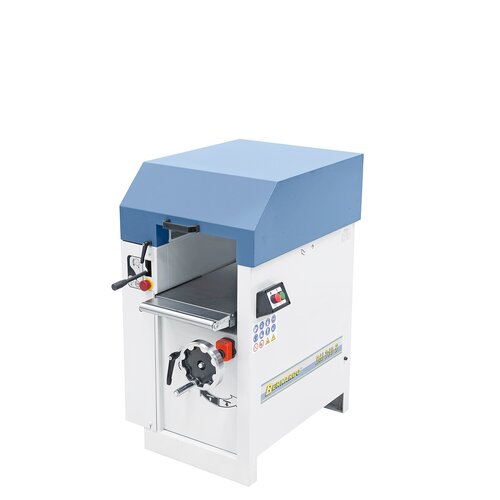

Thicknesser DH 310 S / 400 V

Art.Nr.: 08-1096
Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

€2,496.00

incl. 20% VAT

Availability

In Stock
Deliverable in 2-3 business days

Product Properties

  • Reduction of noise level (approx. 50%) due to the standard spiral cutter head and up to 20 times the cutting edge life (results from four-way carbide inserts)
  • Advantage of the carbide inserts: If damaged, individual knives can be exchanged or turned
  • Thicknessing table with central column and support allow precise planing
  • The carbide blades ensure tear-free planing results and optimal surfaces with any type of wood
  • Ground thicknessing table for workpieces up to 230 mm in height
  • Serially with table extension with integrated rolls
  • Chain drive allows safe and consistent workpiece infeed
  • Several safety devices: On/Off switch with undervoltage release, limit switch to avoid accidental machine start, emergency-stop switch

Product Specifications

Working width

310 mm

Working height min./max.

5 - 230 mm

Table size

930* x 310 mm

Max. cutting depth

5 mm

Working length min.

150 mm

Planer shaft diameter

95 mm

TCT-blades

52 pcs.

Shaft rotation speed

4050 rpm

Feed speed

6 m/min

Dust extraction outlet

100 mm

Motor power output S1 100%

3,0 kW (4,0 HP)

Motor power input S6 40%

4,2 kW (5,7 HP)

Voltage

400 V

Machine dimension (W x D x H)

1110 x 600 x 1020 mm

Weight approx.

180 kg




* with table extension

Delivery Contents

  • Spiral cutter head with 52 pcs. TCT-blades
  • Replacement TCT-blades (5 pcs.)
  • Digital indication for thicknessing table adjustment
  • Table extension with rolls
