The steplessly tiltable telescopic fence (2 x 45º) can be mounted at the front or rear of the square table.
The steplessly tiltable telescopic fence (2 x 45º) can be mounted at the front or rear of the square table.
The steplessly tiltable telescopic fence (2 x 45º) can be mounted at the front or rear of the square table.
The steplessly tiltable telescopic fence (2 x 45º) can be mounted at the front or rear of the square table.

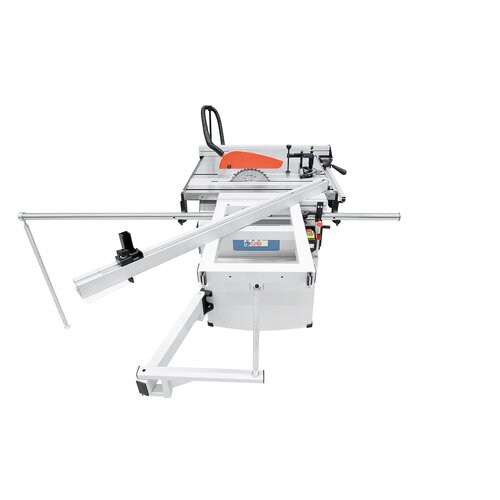

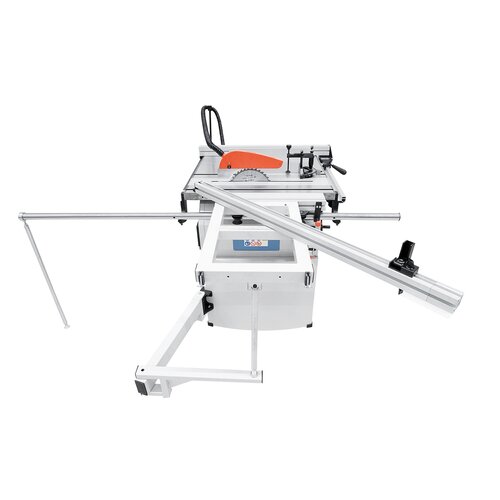

Radial-pull cutting for easy processing of long workpieces.
Radial-pull cutting for easy processing of long workpieces.

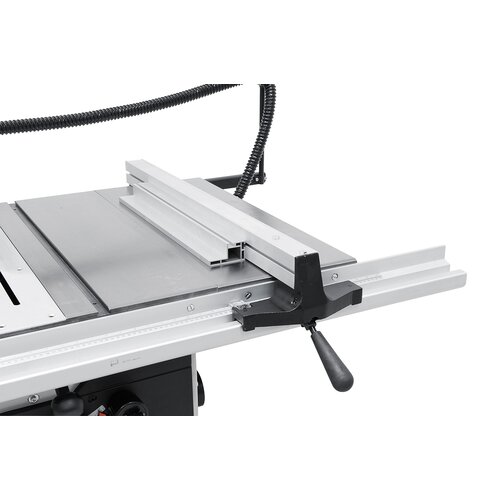

Includes easily adjustable rip fence with quick clamping system and table extension for cutting width up to 730 mm.
Includes easily adjustable rip fence with quick clamping system and table extension for cutting width up to 730 mm.

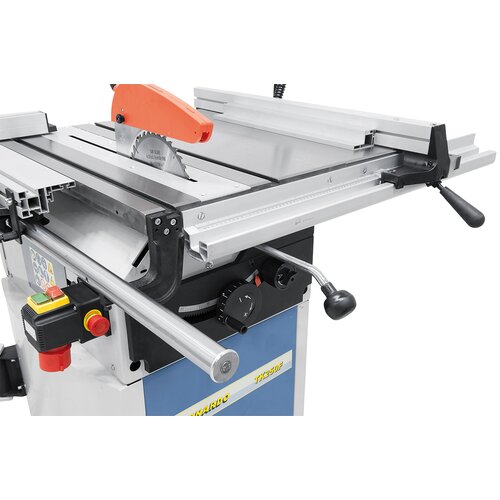

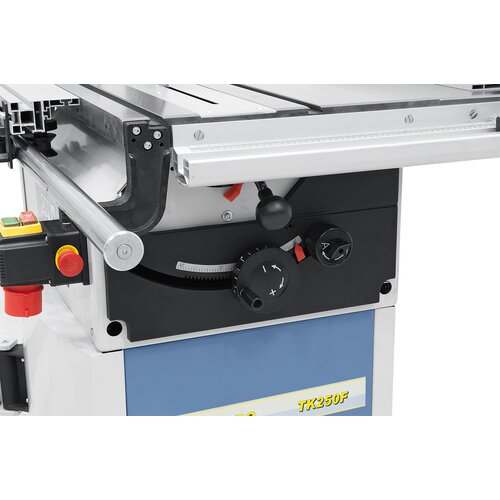

Handwheel features gear rim guide to allow for easy and smooth sawblade tilt.
Handwheel features gear rim guide to allow for easy and smooth sawblade tilt.
The smooth running sliding table features an additional tilting support arm to allow for processing of large panels.
The smooth running sliding table features an additional tilting support arm to allow for processing of large panels.
The steplessly tiltable telescopic fence (2 x 45º) can be mounted at the front or rear of the square table.
The steplessly tiltable telescopic fence (2 x 45º) can be mounted at the front or rear of the square table.
Radial-pull cutting for easy processing of long workpieces.
Includes easily adjustable rip fence with quick clamping system and table extension for cutting width up to 730 mm.
Handwheel features gear rim guide to allow for easy and smooth sawblade tilt.
The smooth running sliding table features an additional tilting support arm to allow for processing of large panels.

Table saw TK 250 F / 230 V *

Art.Nr.: 09-1070
Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

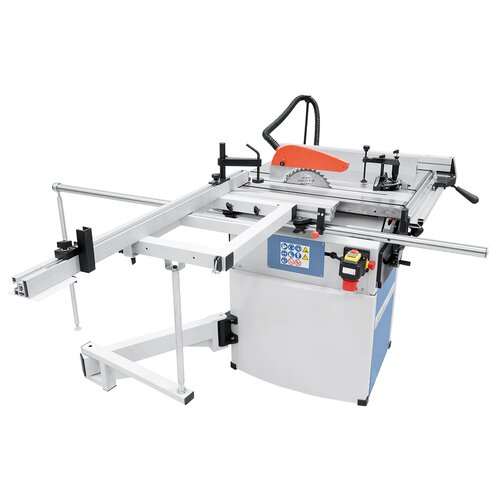

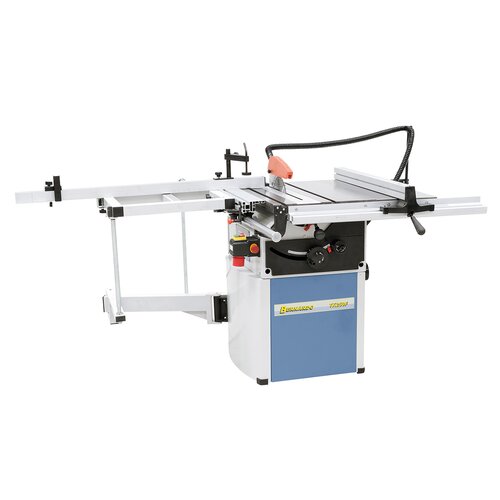

The TK 250 F powerful table saw comes complete with sliding table including a square table and a radial-pull sawing device. The extensive range of standard equipment and the large number of applications make this model an attractive option for the professional user in terms of price and benefit.



€2,028.00

incl. 20% VAT

Availability

In Stock
Deliverable in 2-3 business days

Product Properties

  • Complete with user-friendly sliding table with a surface of 410 x 710 mm
  • Extractable telescopic fence (up to 2000 mm) mountable at front or rear of square table, steplessly tiltable from 90º to 45º
  • Mitre fence either usable on right or left of sawblade, suitable for angle cuts up to 45º
  • Ergonomically arranged handwheels allow for setting of saw unit
  • Solid grey cast-iron table with T-slots on right and left of sawblade
  • Includes table extension on the right for better support of large boards
  • Solid and easily adjustable saw unit, tiltable from 90º to 45º
  • Square table ensures convenient machining of large boards

Product Specifications

Table size

800 x 520 mm

Sliding table

410 x 710 mm

Cutting length

1230 mm

Max. sawblade diameter

254 x 30 mm

Max. cutting height 90° / 45°

82 / 54 mm

Travel of sawblade

225 mm

Cutting width on rip fence

730 mm

Table height

900 mm

Table extension

800 x 320 mm

Square table

600 x 410 mm

Speed main sawblade

4000 rpm

Dust extraction outlet Ø

100 mm

Motor power output S1 100%

1,5 kW (2,0 HP)

Motor power input S6 40%

2,1 kW (2,85 HP)

Voltage

230 V

Machine dimension (W x D x H)

2020 x 2300 x 1200 mm

Weight approx.

175 kg

Delivery Contents

  • Carbide sawblade 254 x 3,0 x 30 mm / 36T
  • Protective cover with dust extraction outlet
  • Connector tube with Y-piece
  • Mitre fence with eccentric holder
  • Table extension right
  • Extractable telescopic fence
  • Square table
  • Radial-pull sawing device
  • Push stick
  • Tools
