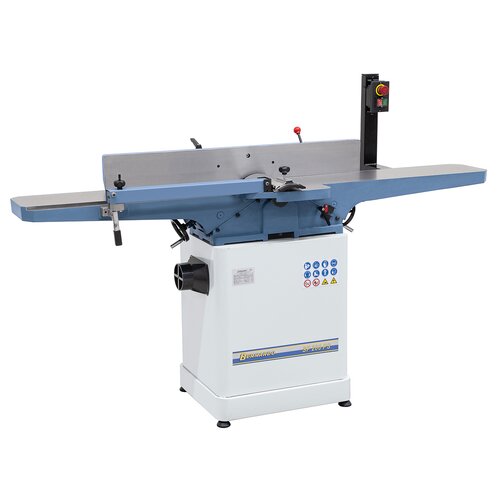

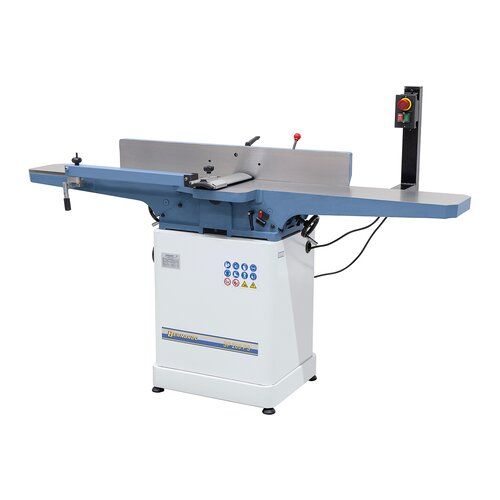

Surface planing machine SP 200 PS / 230 V *

Art.Nr.: 08-10142

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The planing machine SP 200 PS is designed for accurate planing, jointing and chamfering of boards, planks etc. at entry level. The heavy cast iron frame and precise construction meet the requirements of ambitious amateurs and craftsmen.

€1,788.00

incl. 20% VAT

Availability

Out of Stock

Product Properties

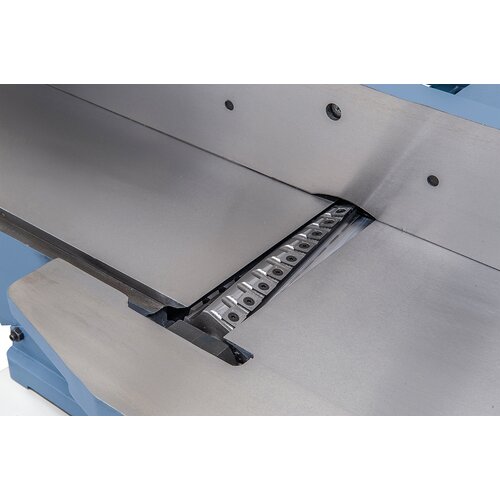

Reduction of noise level (approx. 50%) due to the standard spiral cutter head and up to 20 times the cutting edge life (results from four-way carbide inserts)
Advantage of the carbide inserts: If damaged, individual knives can be exchanged or turned
Ideal for planing of boards, planks etc.
The carbide blades ensure tear-free planing results and optimal surfaces with any type of wood
Most accurate grey cast iron planing tables guarantees excellent results
Extremely long planing tables with ground surface assure perfectly smooth results

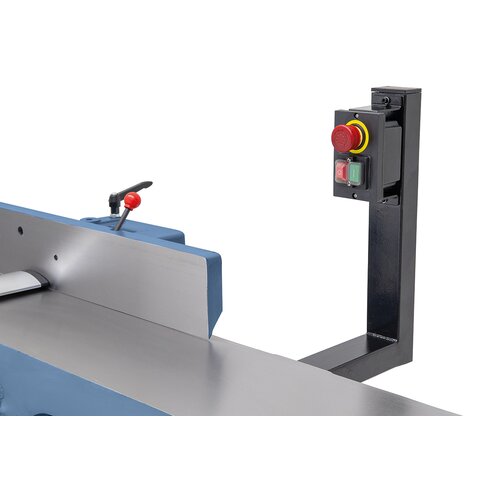

On/Off button with undervoltage release

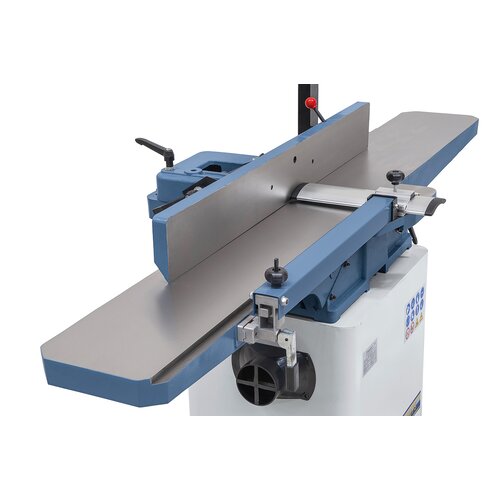

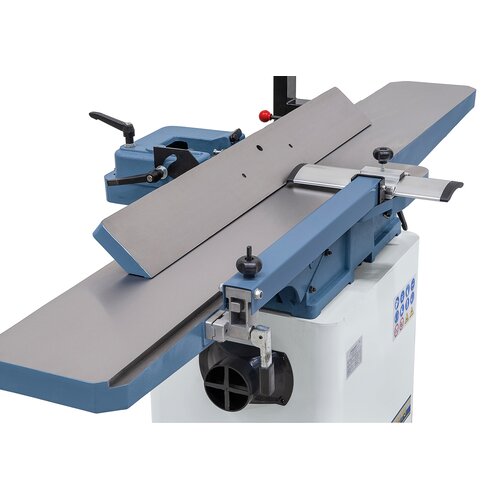

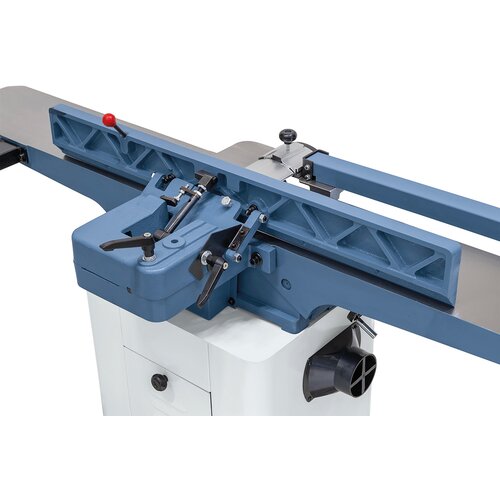

Solid cast iron planing fence, tiltable from 90° to 45°

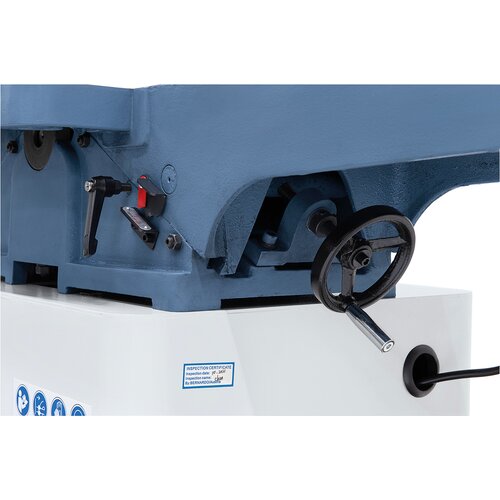

Handwheel allows easy adjustment of chip removal
Solid construction eliminates vibrations

Product Specifications

Planing width	200 mm
Table length	1805 mm
Table height	840 mm
Infeed table length	880 mm
Outfeed table length	880 mm
Planer fence	1020 x 125 mm
TCT-blades	36 pcs.
Planer shaft diameter	72 mm
Shaft rotation speed	4800 rpm
Max. cutting depth	8 mm
Dust extraction outlet	100 mm
Motor power output S₁ 100%	2,2 kW (3,0 HP)
Motor power input S₆ 40%	3,0 kW (4,0 HP)
Voltage	230 V
Machine dimension (L x W x H)	1805 x 660 x 1200 mm
Weight approx.	181 kg
