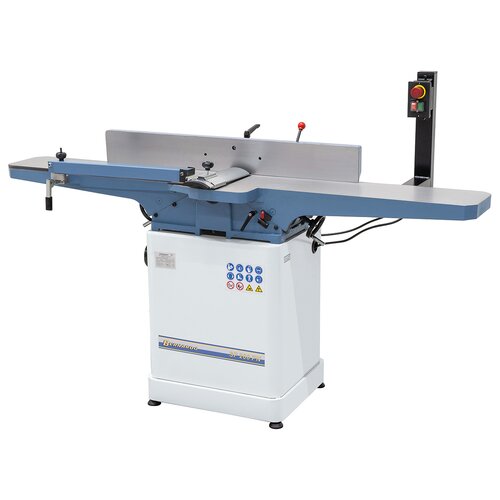

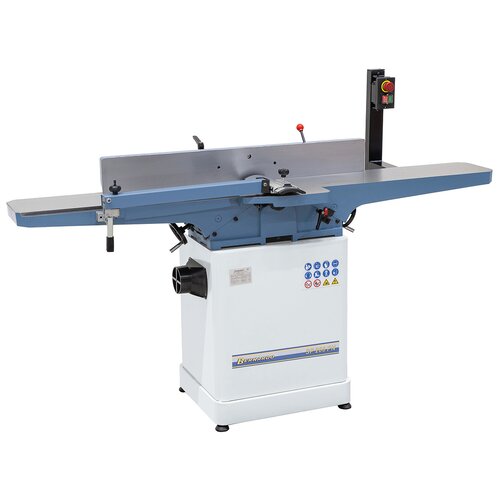

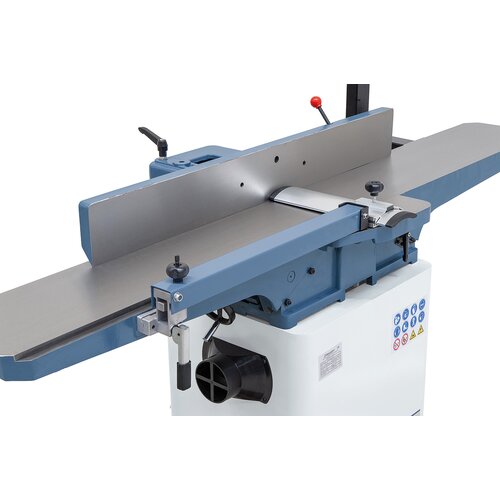

Surface planing machine SP 200 PN / 400 V *
Art.Nr.: 08-10141The planing machine SP 200 PN is designed for accurate planing, jointing and chamfering of boards, planks etc. at entry level. The heavy cast iron frame and precise construction meet the requirements of ambitious amateurs and craftsmen.
€1,548.00
incl. 20% VATAvailability
Product Properties

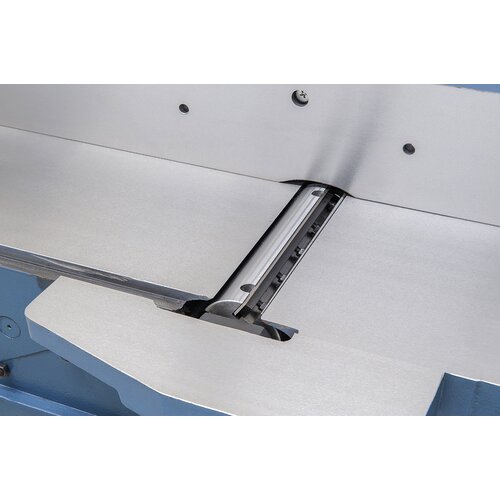

- Cutterblock features HSS-planing knives
- Ideal for planing of boards, planks etc.
- Most accurate grey cast iron planing tables guarantees excellent results
- Extremely long planing tables with ground surface assure perfectly smooth results

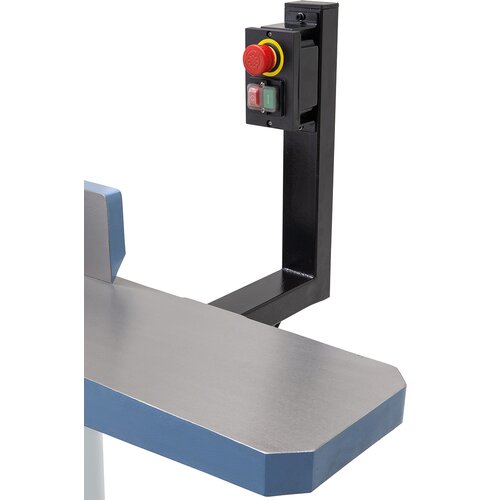

- On/Off button with undervoltage release

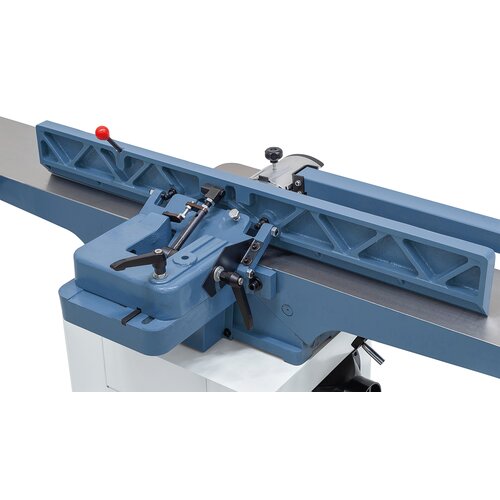

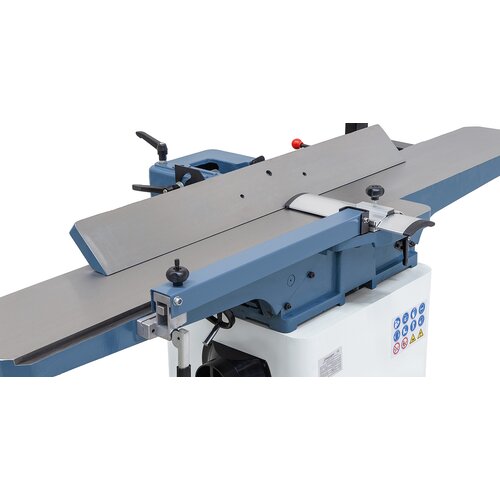

- Solid cast iron planing fence, tiltable from 90° to 45°

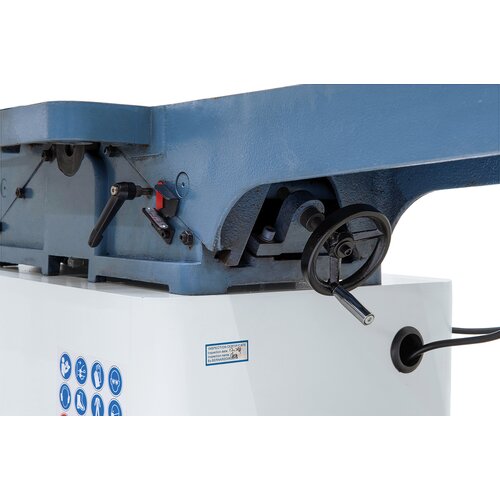

- Handwheel allows easy adjustment of chip removal
- Solid construction eliminates vibrations
Product Specifications
|
Planing width |
200 mm |
|
Table length |
1805 mm |
|
Table height |
840 mm |
|
Infeed table length |
880 mm |
|
Outfeed table length |
880 mm |
|
Planer fence |
1020 x 125 mm |
|
Cutter knives |
4 pcs. |
|
Planer shaft diameter |
72 mm |
|
Shaft rotation speed |
4800 rpm |
|
Max. cutting depth |
8 mm |
|
Dust extraction outlet |
100 mm |
|
Motor power output S1 100% |
2,2 kW (3,0 HP) |
|
Motor power input S6 40% |
3,0 kW (4,0 HP) |
|
Voltage |
400 V |
|
Machine dimension (L x W x H) |
1805 x 660 x 1200 mm |
|
Weight approx. |
181 kg |
Delivery Contents
- Cutter knives in HSS-Quality
- Knife gauge
- 2 x push handle
