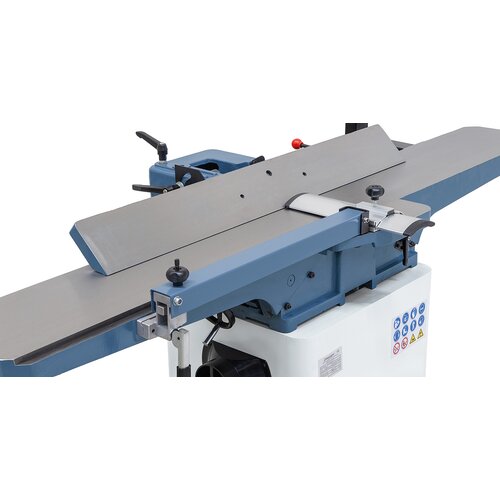

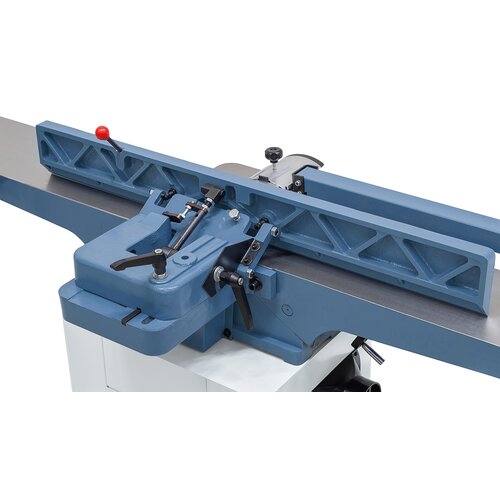

The planing fence features a solid tilting device including adjustable end stops

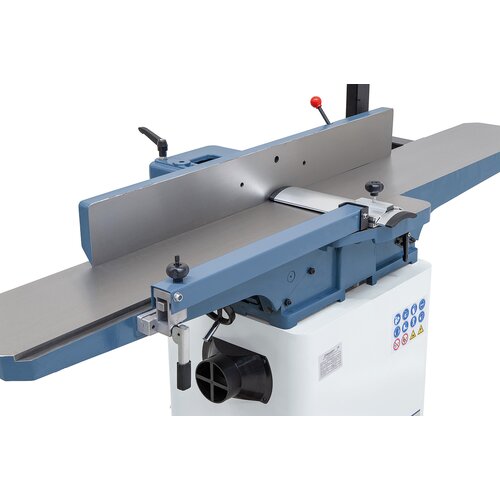

Several protective devices ensure high user safety.

Handwheel allows easy adjustment of chip removal

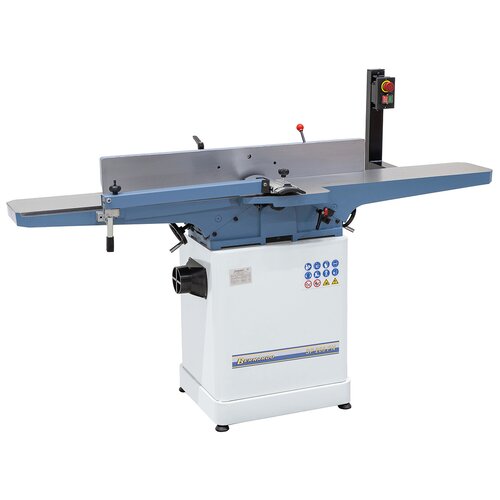

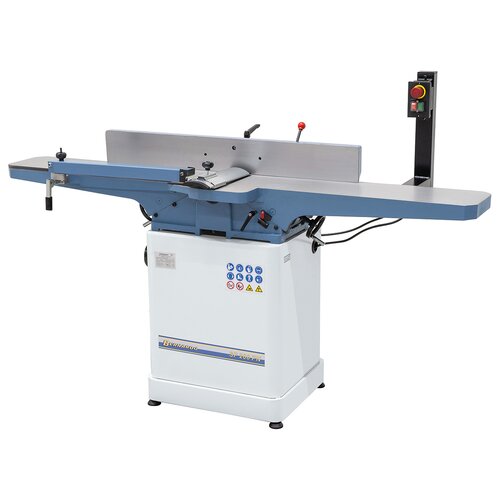

Surface planing machine SP 200 PN / 230 V *

Art.Nr.: 08-10140

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The planing machine SP 200 PN is designed for accurate planing, jointing and chamfering of boards, planks etc. at entry level. The heavy cast iron frame and precise construction meet the requirements of ambitious amateurs and craftsmen.

€1,548.00

incl. 20% VAT

Availability

In Stock

Deliverable in 2-3 business days

Product Properties

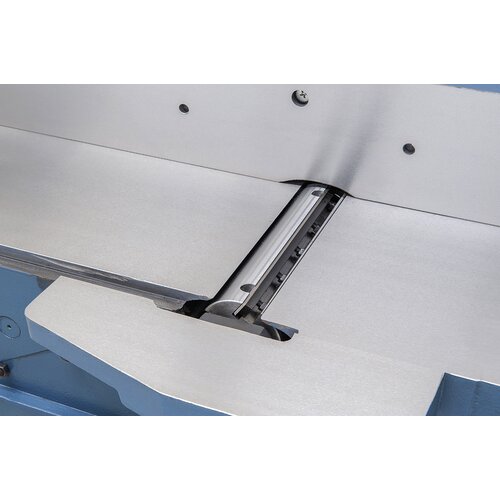

Cutterblock features HSS-planing knives
Ideal for planing of boards, planks etc.
Most accurate grey cast iron planing tables guarantees excellent results
Extremely long planing tables with ground surface assure perfectly smooth results

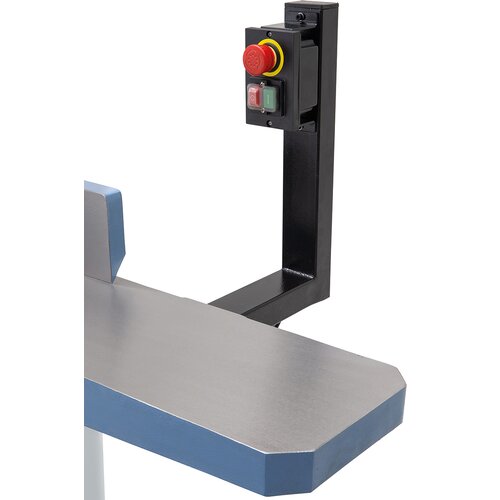

On/Off button with undervoltage release
Solid cast iron planing fence, tiltable from 90° to 45°
Handwheel allows easy adjustment of chip removal
Solid construction eliminates vibrations

Product Specifications

Planing width	200 mm
Table length	1805 mm
Table height	840 mm
Infeed table length	880 mm
Outfeed table length	880 mm
Planer fence	1020 x 125 mm
Cutter knives	4 pcs.
Planer shaft diameter	72 mm
Shaft rotation speed	4800 rpm
Max. cutting depth	8 mm
Dust extraction outlet	100 mm
Motor power output S1 100%	2,2 kW (3,0 HP)
Motor power input S6 40%	3,0 kW (4,0 HP)
Voltage	230 V
Machine dimension (L x W x H)	1805 x 660 x 1200 mm
Weight approx.	181 kg
