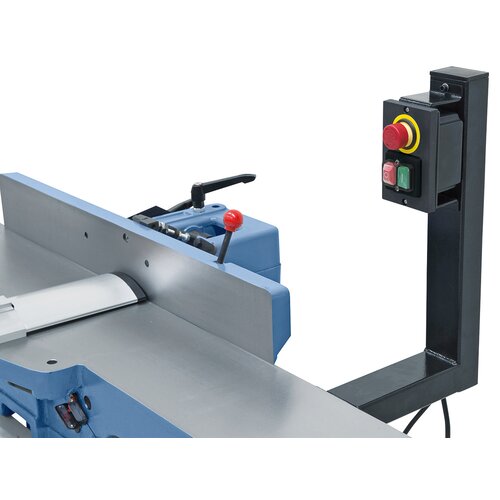

Serially equipped with On/Off switch according to IP 54 including undervoltage release.
Serially equipped with On/Off switch according to IP 54 including undervoltage release.

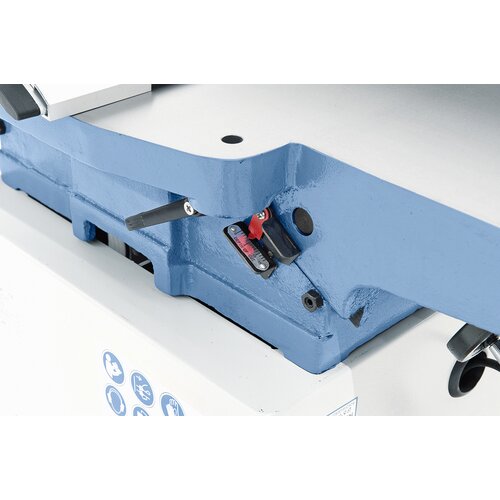

The planing fence features a solid tilting device including adjustable end stops
The planing fence features a solid tilting device including adjustable end stops

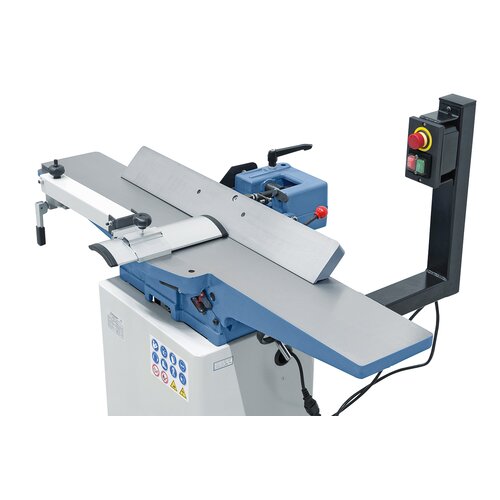

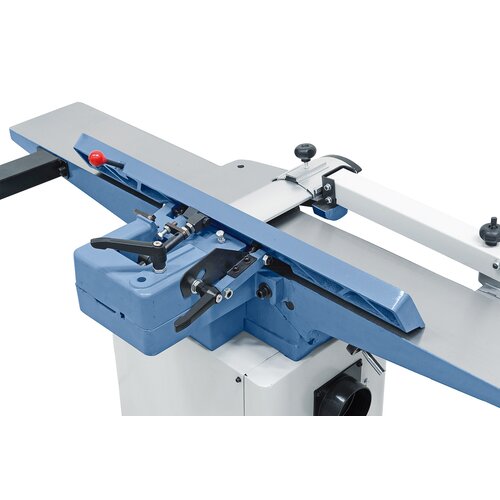

The solidly built, up to 45° tiltable planer fence can easily be adjusted.
The solidly built, up to 45° tiltable planer fence can easily be adjusted.

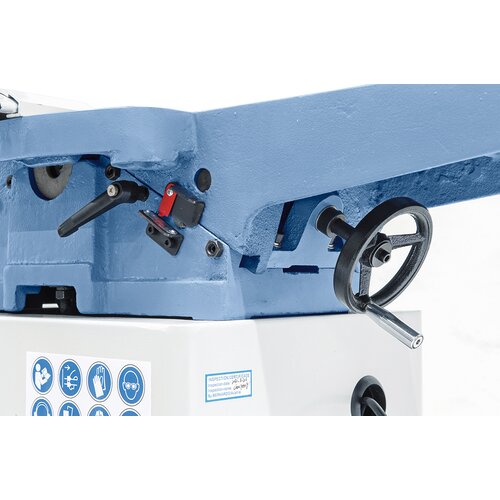

Quick and easy adjustment of chip removal (up to 8 mm).
Quick and easy adjustment of chip removal (up to 8 mm).

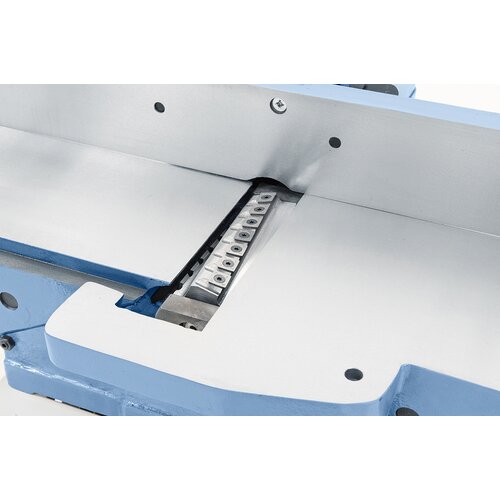

The solid planing unit features a precisely bedded spiral cutter head to guarantee best results.
The solid planing unit features a precisely bedded spiral cutter head to guarantee best results.
Serially equipped with On/Off switch according to IP 54 including undervoltage release.
The planing fence features a solid tilting device including adjustable end stops
The solidly built, up to 45° tiltable planer fence can easily be adjusted.
Quick and easy adjustment of chip removal (up to 8 mm).
The solid planing unit features a precisely bedded spiral cutter head to guarantee best results.

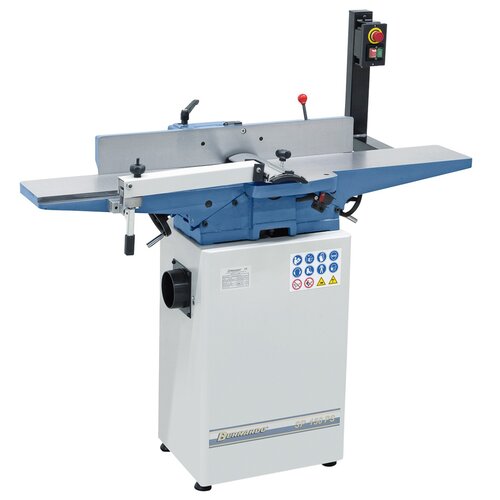

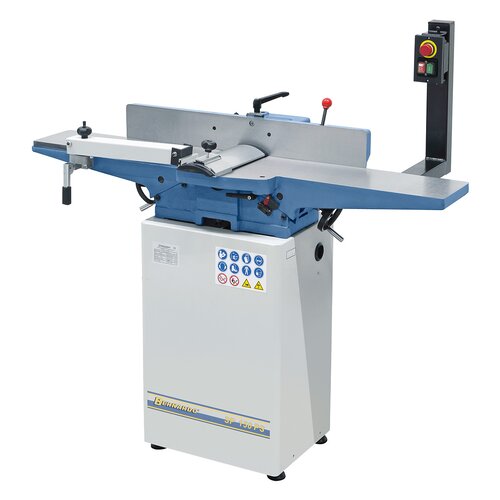

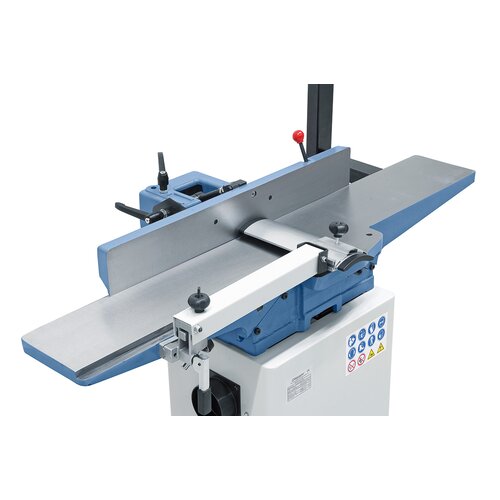

Surface planing machine SP 150 PS / 230 V *

Art.Nr.: 08-10132
Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The planing machine SP 150 PS is designed for accurate planing, jointing and chamfering of boards, planks etc. at entry level. The heavy cast iron frame and precise construction meet the requirements of ambitious amateurs and craftsmen.

€1,212.00

incl. 20% VAT

Availability

Out of Stock

Product Properties

  • Reduction of noise level (approx. 50%) due to the standard spiral cutter head and up to 20 times the cutting edge life (results from four-way carbide inserts)
  • Advantage of the carbide inserts: If damaged, individual knives can be exchanged or turned
  • Ideal for planing of boards, planks etc.
  • The carbide blades ensure tear-free planing results and optimal surfaces with any type of wood
  • Most accurate grey cast iron planing tables guarantees excellent results
  • Extremely long planing tables with ground surface assure perfectly smooth results
  • On/Off button with undervoltage release
  • Solid cast iron planing fence, tiltable from 90° to 45°
  • Handwheel allows easy adjustment of chip removal
  • Solid construction eliminates vibrations

Product Specifications

Planing width

150 mm

Table length

1230 mm

Table height

820 mm

Infeed table length

590 mm

Outfeed table length

585 mm

Planer fence

740 x 100 mm

TCT-blades

28 pcs.

Planer shaft diameter

60 mm

Shaft rotation speed

4500 rpm

Max. cutting depth

8 mm

Dust extraction outlet

100 mm

Motor power output S1 100%

1,1 kW (1,5 HP)

Motor power input S6 40%

1,5 kW (2,0 HP)

Voltage

230 V

Machine dimension (L x W x H)

1230 x 530 x 1180 mm

Weight approx.

115 kg

Delivery Contents

  • Spiral cutter head with 28 pcs. TCT-blades
  • Replacement TCT-blades (5 pcs.)
  • 2 x push handle

Suitable accessories

Dust collector DC 230 E / 230 V incl. tube 2,5 m
Dust collector DC 230 E / 230 V incl. tube 2,5 m
Art.Nr. : 12-2043
The DC 230 E is an optimal model for price conscious...

€328.80

incl. 20% VAT
PU-tube diam. 100 mm (6 m)
PU-tube diam. 100 mm (6 m)
Art.Nr. : 12-1077

€152.40

incl. 20% VAT
TCT-blades for spiral cutter (10 pcs.) f. AD 310 S/AD 410 S/PT 410 S/DH 310 S/DH 410 S/SP 150 PS/SP 200 PS/FS 410 PS/TH 330 S
TCT-blades for spiral cutter (10 pcs.) f. AD 310 S/AD 410 S/PT 410 S/DH 310 S/DH 410 S/SP 150 PS/SP 200 PS/FS 410 PS/TH 330 S
Art.Nr. : 15-1078

€56.40

incl. 20% VAT
Torque wrench 6 Nm
Torque wrench 6 Nm
Art.Nr. : 15-1080

€56.40

incl. 20% VAT
Spare screws of sprial cutter blade (10 pcs.) f. AD 310 S/AD 410 S/PT 410 S/DH 310 S/DH 410 S/SP 150 PS/SP 200 PS/FS 410 PS/TH 330 S
Spare screws of sprial cutter blade (10 pcs.) f. AD 310 S/AD 410 S/PT 410 S/DH 310 S/DH 410 S/SP 150 PS/SP 200 PS/FS 410 PS/TH 330 S
Art.Nr. : 15-1079

€18.00

incl. 20% VAT
