Quick and easy adjustment of chip removal (up to 8 mm).

Serially equipped with On/Off switch according to IP 54 including undervoltage release.

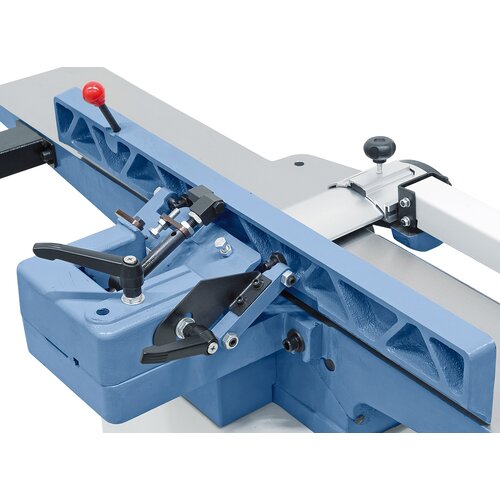

The planing fence features a solid tilting device including adjustable end stops

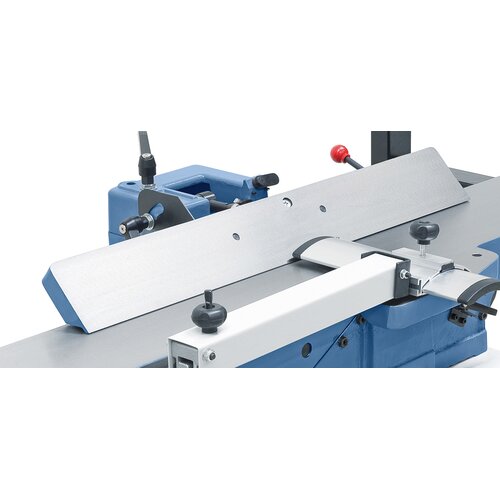

The solidly built, up to 45° tiltable planer fence can easily be adjusted.

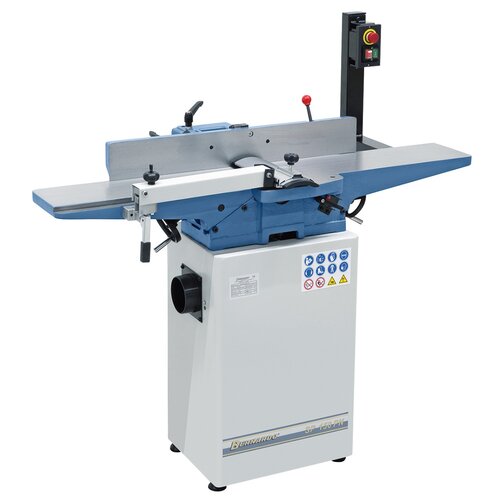

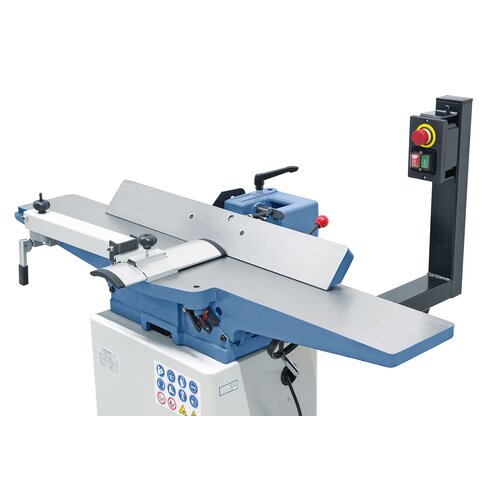

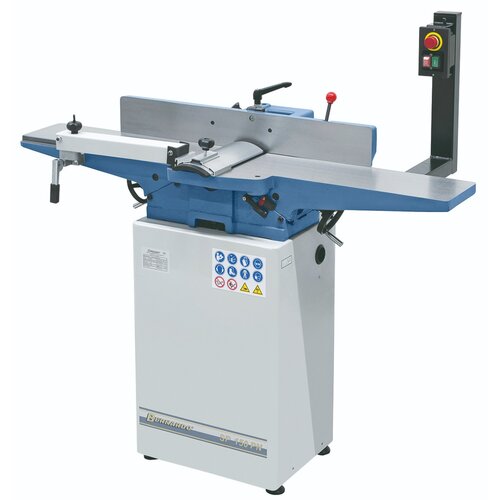

Surface planing machine SP 150 PN / 230 V *

Art.Nr.: 08-10130

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The planing machine SP 150 PN is designed for accurate planing, jointing and chamfering of boards, planks etc. at entry level. The heavy cast iron frame and precise construction meet the requirements of ambitious amateurs and craftsmen.

€975.60

incl. 20% VAT

Availability

In Stock

Deliverable in 2-3 business days

Product Properties

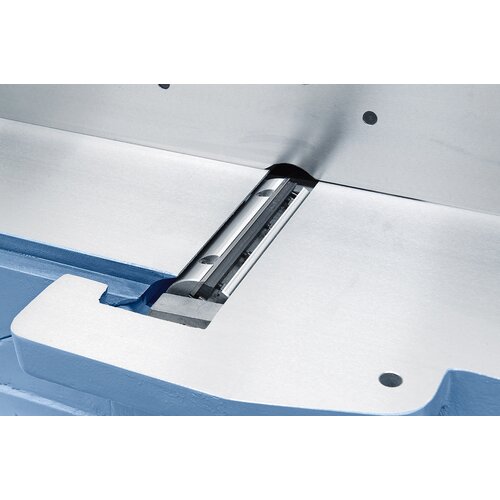

Cutterblock features HSS-planing knives
Ideal for planing of boards, planks etc.
Most accurate grey cast iron planing tables guarantees excellent results
Extremely long planing tables with ground surface assure perfectly smooth results

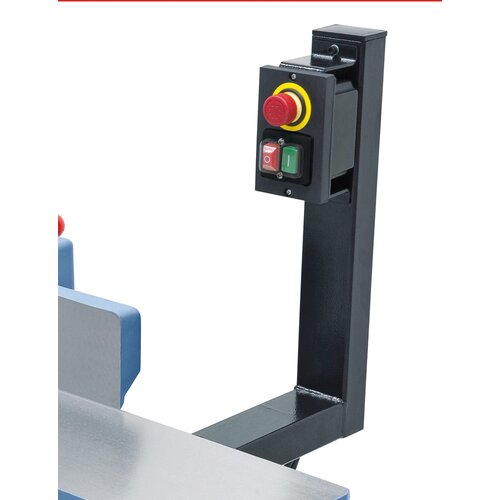

On/Off button with undervoltage release
Solid cast iron planing fence, tiltable from 90° to 45°

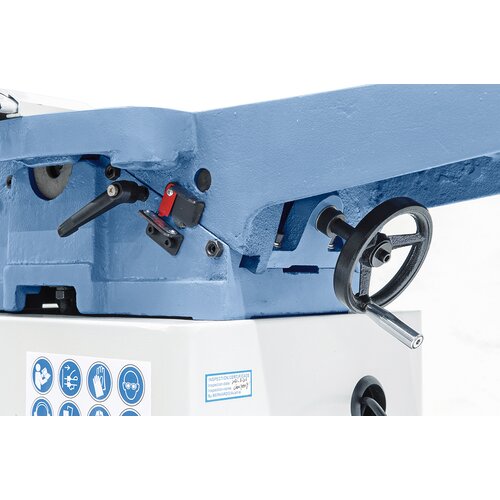

Handwheel allows easy adjustment of chip removal
Solid construction eliminates vibrations

Product Specifications

Planing width	150 mm
Table length	1230 mm
Table height	820 mm
Infeed table length	590 mm
Outfeed table length	585 mm
Planer fence	740 x 100 mm
Cutter knives	3 pcs.
Planer shaft diameter	60 mm
Shaft rotation speed	4500 rpm
Max. cutting depth	8 mm
Dust extraction outlet	100 mm
Motor power output S₁ 100%	1,1 kW (1,5 HP)
Motor power input S₆ 40%	1,5 kW (2,0 HP)
Voltage	230 V
Machine dimension (L x W x H)	1230 x 530 x 1180 mm
Weight approx.	115 kg
