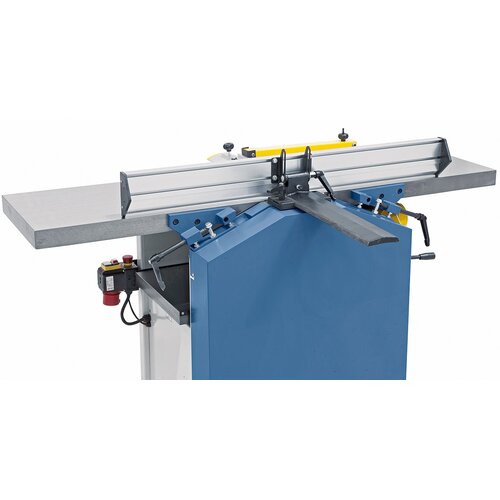

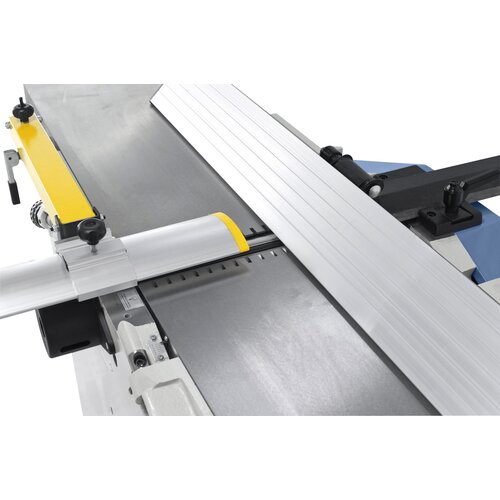

The planer fence can be set to required position via the precise prism guide.

Both planer tables are equipped with table lips to reduce noise.

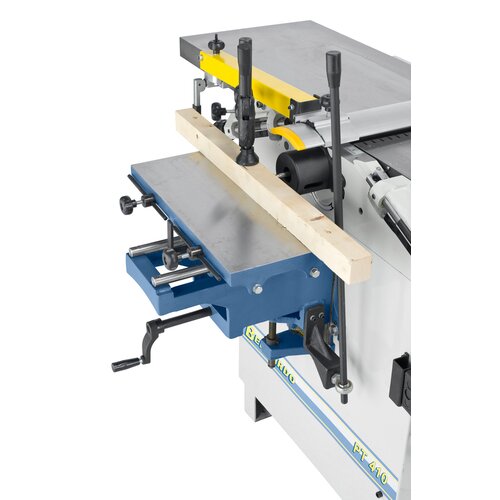

The mortising unit is ideal for drilling deep holes, dowels and oblique holes etc.

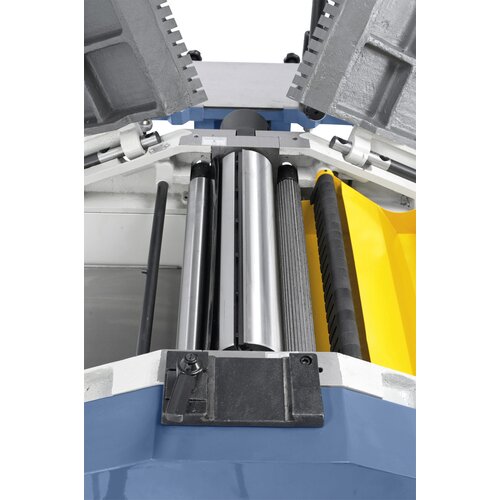

The precisely bedded 4-knife cutterblock and the straight toothed of the infeed roller ensure top work results.

The grey cast iron planer tables with polished surface guarantees an optimal sliding capacity of the workpiece.

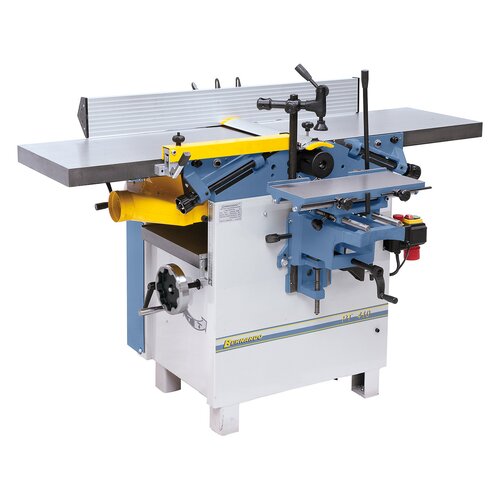

PT 410 with optional mortising unit

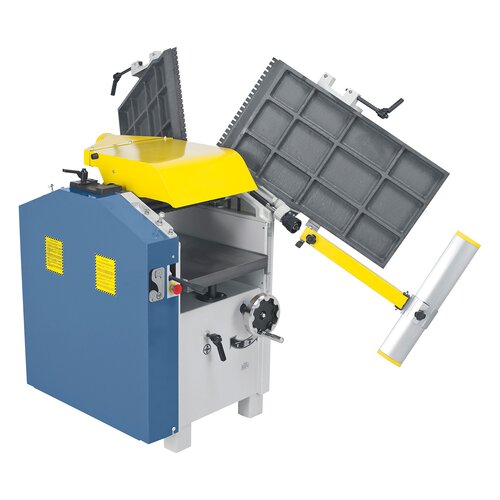

The tiltable planer tables allow optimal, safe working conditions even when thicknessing short workpieces.

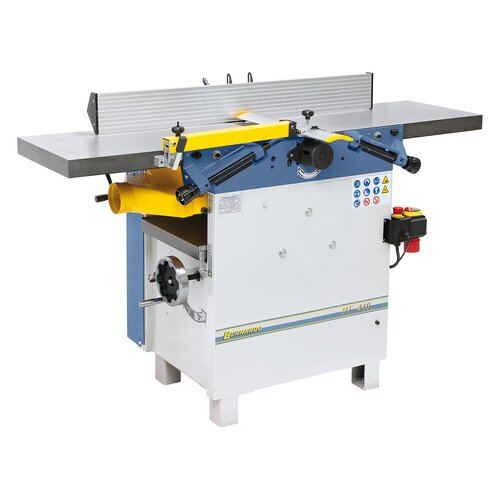

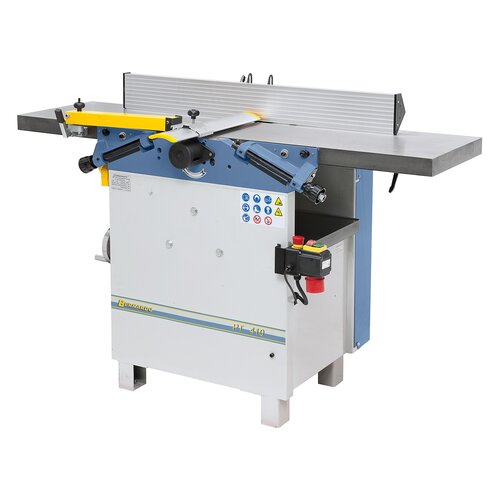

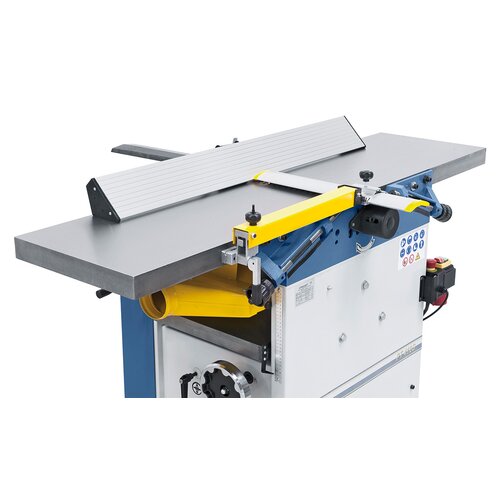

Surface planer and thicknesser PT 410 / 400 V

Art.Nr.: 08-1061

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The PT 410 is a compact planer and thicknesser with a thicknessing height of 220 mm – ideal for precise planing of boards, planks and beams. To widen the application range the optionally available mortising unit can be added to allow slotting and drilling.

€3,588.00

incl. 20% VAT

Availability

In Stock

Deliverable in 2-3 business days

Product Properties

Solid planer fence with prism guide, tiltable from 90º to 45º
Maintenance-free 4-knife cutterblock features HSS-quality cutter knives
Tiltable planer tables for quick conversion to thicknessing
Both planer tables feature fine adjustment and table slots to reduce noise levels
Integrated tiltable dust hood – extraction outlet 100 mm
Feed can be switched off when planing
Switch-plug-combination with motor brake
Torsion-free, grey cast-iron planer tables ensure best results
Cutterblock guard in accordance with CE-standards guarantees high level of safety
Thicknessing table runs on central column and is well supported for high accuracy

Product Specifications

Planer
Planing width	410 mm
Table length	1600 mm
Table height	920 mm
Shaft rotation speed	4000 rpm
Cutter knives	4 pcs.
Planer shaft diameter	95 mm
Planer fence	1120 x 130 mm
Fence tiltable	90° to 45°
Max. cutting depth	5 mm
Thicknesser
Table length	750 mm
Working width	410 mm
Working thickness, min./max.	4 - 220 mm
Max. cutting depth	2,5 mm
Feed speed	8 m/min

Dust extraction outlet	100 mm
Motor power output S₁ 100%	3,0 kW (4,0 HP)
Motor power input S₆ 40%	4,2 kW (5,7 HP)
Voltage	400 V
Machine dimension (L x W x H)	1610 x 1050 x 1100 mm
Weight approx.	340 kg
