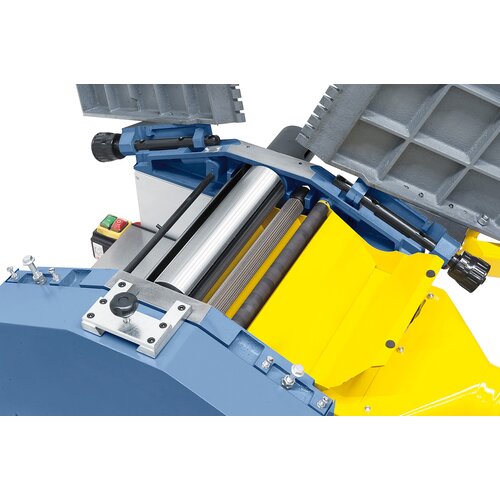

The planing unit consists of a dynamically balanced 3-knife cutterblock, in- and outfeed roller and massive anti-kickback devices.

Several protective devices ensure high user safety.

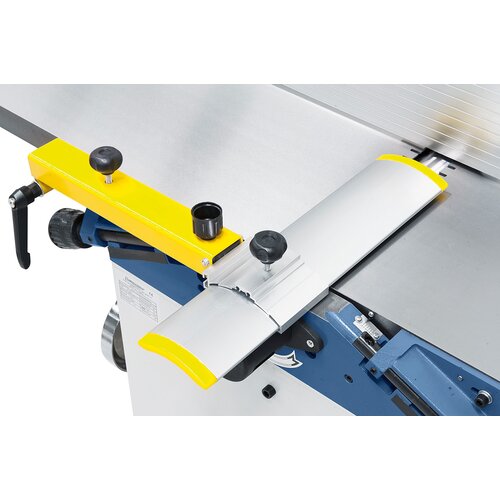

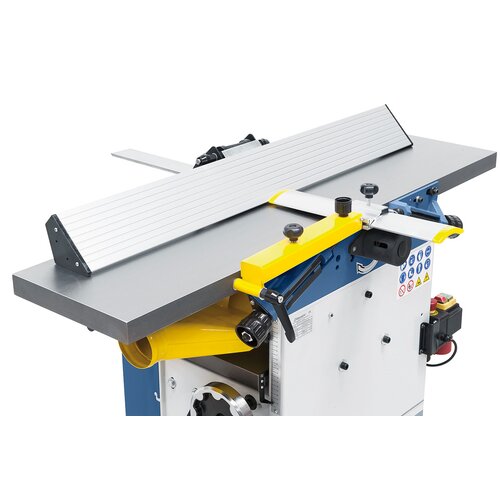

The large support area of the long planing fence guarantees precision when working on large workpieces.

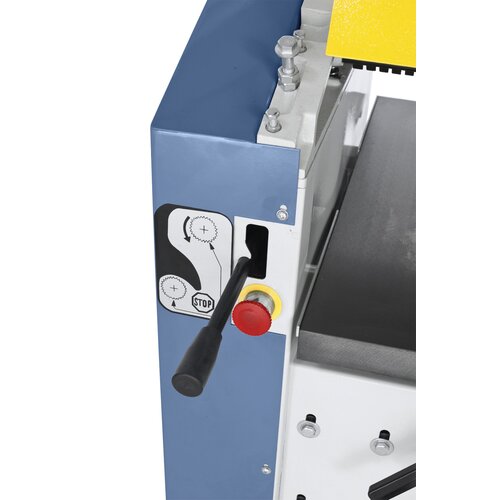

Feed can be switched off when surface planing.

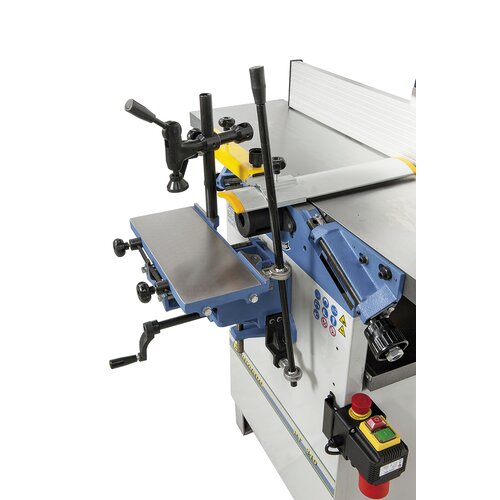

The optional mortising unit is ideal for drilling dowel, long and oblique holes.

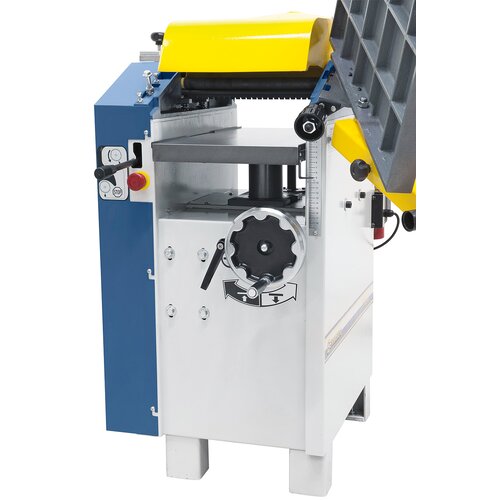

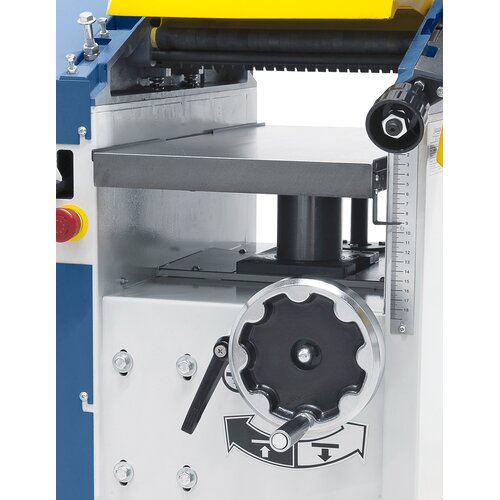

Grey cast-iron thicknessing table features centre column and support, for workpieces up to 180 mm in height.

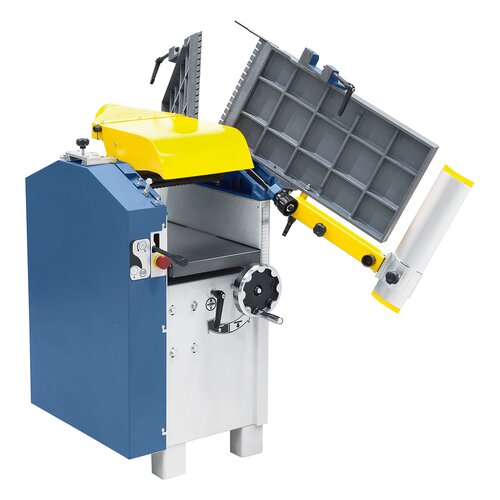

Folding planing tables allow for quick and easy conversion from planing to thicknessing.

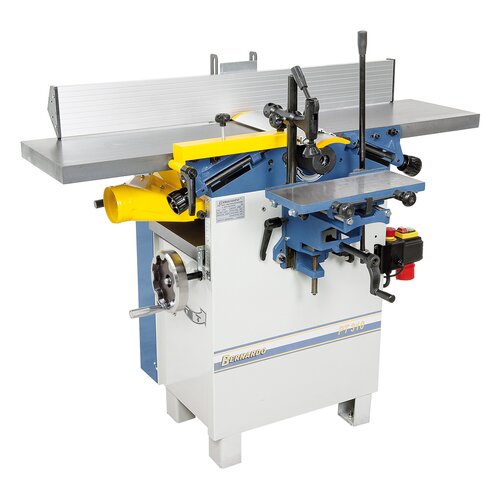

Picture shows optionally available mortising unit.

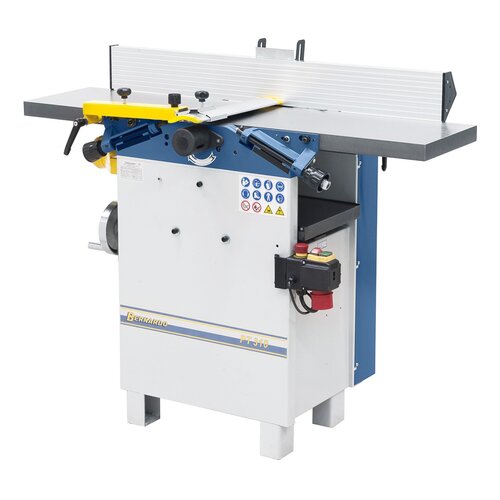

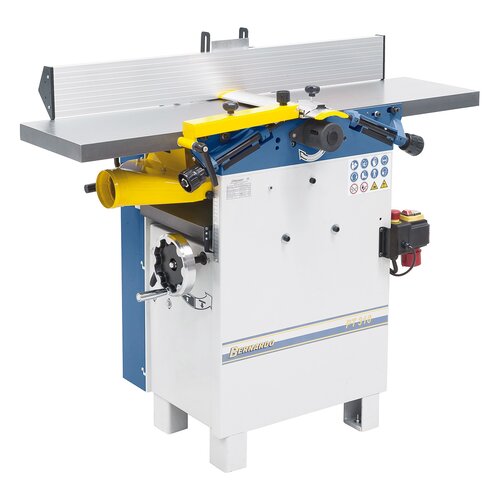

Surface planer and thicknesser PT 310 / 400 V

Art.Nr.: 08-1041

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The PT 310 compact surface planer and thicknesser features a working thickness of up to 180 mm, making it the ideal model for planing of boards, planks and beams.The optionally available mortising unit makes the machine suitable for drilling and slotting.

€1,944.00

incl. 20% VAT

Availability

In Stock

Deliverable in 2-3 business days

Product Properties

Integrated tiltable dust hood, extraction outlet 100 mm
Folding planing tables allows fast conversion from planer to thicknesser
Switch-plug-combination with motor brake
Solid planing fence with prism guide, tiltable from 90° - 45°
Both planing tables feature fine adjustment and are designed with table lips to keep noise level down
Maintenance-free 3-knife cutterblock with HSS-quality cutter knives
Feed can be switched off when surface planing
Cutterblock in accordance with CE allow for safe working conditions
Thicknessing table guided by centre column and support for accurate planing
Torsion-free, grey cast-iron planing tables for best planing results

Product Specifications

Planer
Planing width	310 mm
Table length	1300 mm
Table height	990 mm
Shaft rotation speed	4000 rpm
Cutter knives	3 pcs.
Planer shaft diameter	75 mm
Planer fence	1110 x 130 mm
Fence tiltable	90° to 45°
Max. cutting depth	5 mm
Thicknesser
Table length	600 mm
Working width	305 mm
Working thickness, min./max.	5 - 180 mm
Max. cutting depth	2,5 mm
Feed speed	8 m/min

Dust extraction outlet	100 mm
Motor power output S₁ 100%	2,2 kW (3,0 HP)
Motor power input S₆ 40%	3,0 kW (4,0 HP)
Voltage	400 V
Machine dimension (L x W x H)	1300 x 900 x 1180 mm
Weight approx.	180 kg
