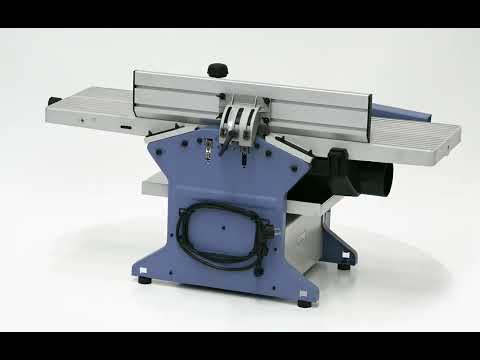

Surface planer and thicknesser PT 305 S / 230 V
Art.Nr.: 08-10090The PT 305 S compact surface planer and thicknesser features a working thickness of up to 150 mm, making it the ideal model for planing of boards, planks and beams. Another advantage is the spiral cutter head for reduced noise level and optimal planing results.
€984.00
incl. 20% VATAvailability
Product Properties
- Reduction of noise level (approx. 50%) due to the standard spiral cutter head and up to 20 times the cutting edge life (results from four-way carbide inserts)
- Advantage of the carbide inserts: If damaged, individual knives can be exchanged or turned
- The carbide blades ensure tear-free planing results and optimal surfaces with any type of wood
- The table is designed with slots on both sides to minimize the noise level
- Stable planer fence, tiltable from 90° to 45°
- Cutterblock cover according to CE-standards ensure safety
- Powerful motor guarantees best result
- Combined dust hood can be used for planing or thicknessing
- Thicknessing table is guided on four threads to ensure accurate planing of boards, planks, etc.
Product Specifications
|
Planer |
|
|
Planing width |
300 mm |
|
Table length |
1075 mm |
|
Shaft rotation speed |
9500 rpm |
|
TCT-blades |
28 pcs. |
|
Planer shaft diameter |
50 mm |
|
Planer fence |
640 x 125 mm |
|
Fence tiltable |
90° to 45° |
|
Max. cutting depth |
2 mm |
|
Thicknesser |
|
|
Table length |
500 mm |
|
Working width |
305 mm |
|
Working thickness, min./max. |
5 - 150 mm |
|
Max. cutting depth |
2 mm |
|
Feed speed |
7,5 m/min |
|
|
|
|
Dust extraction outlet Ø |
100 mm |
|
Motor power output S1 100% |
1,8 kW (2,4 HP) |
|
Motor power input S6 40% |
2,5 kW (3,4 HP) |
|
Voltage |
230 V |
|
Machine dimension (W x D x H) |
1125 x 560 x 575 mm |
|
Weight approx. |
47 kg |
Delivery Contents
- Spiral cutter head with 28 pcs. TCT-blades
- Replacment TCT-blades (5 pcs.)
- Dust hood
- Push handle
