The dust hood can be used for both planing and thicknessing.

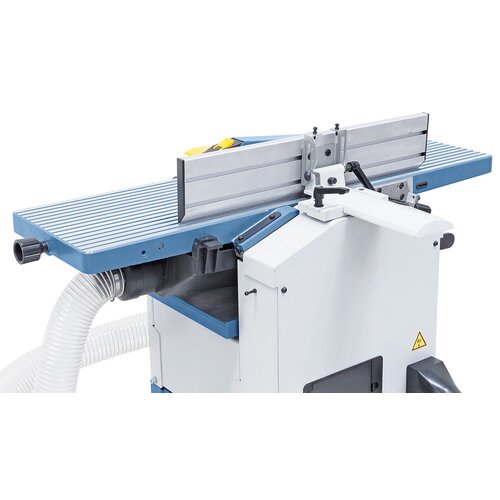

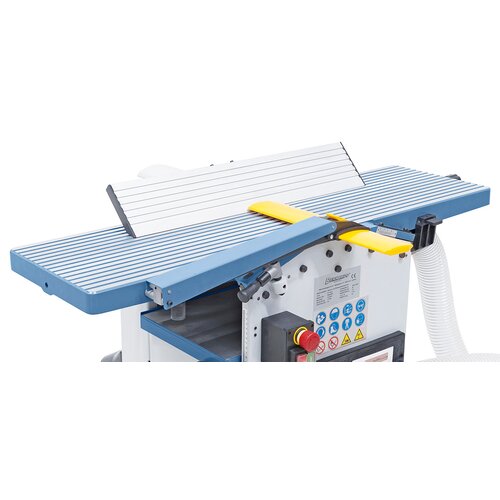

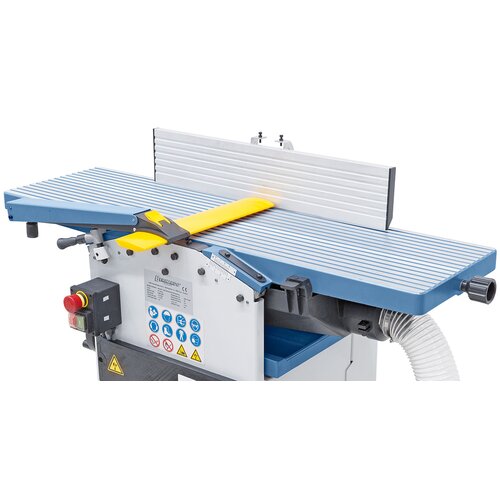

The planer fence with prism guide block can be tilted.

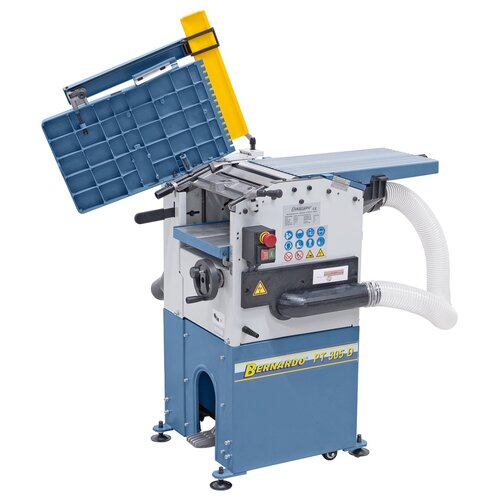

The machine is equipped with many safety devices to eliminate the risk of accidents.

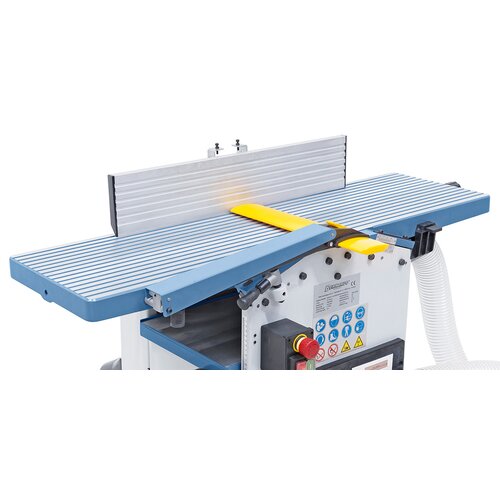

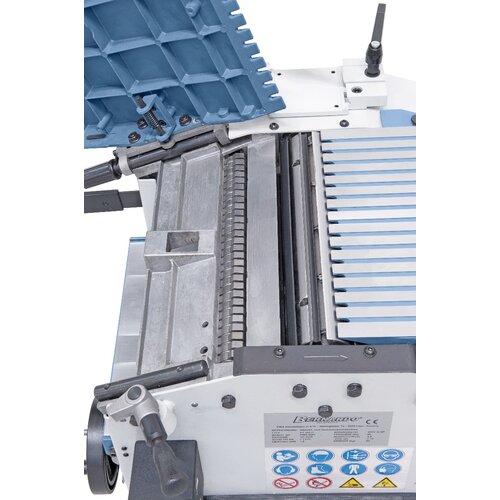

The precisely bedded cutterblock and corrugated infeed roller guarantees best planing results.

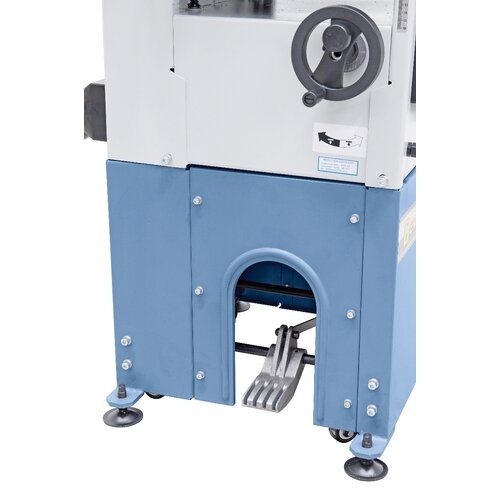

Serially equipped with steering wheel and locking brake.

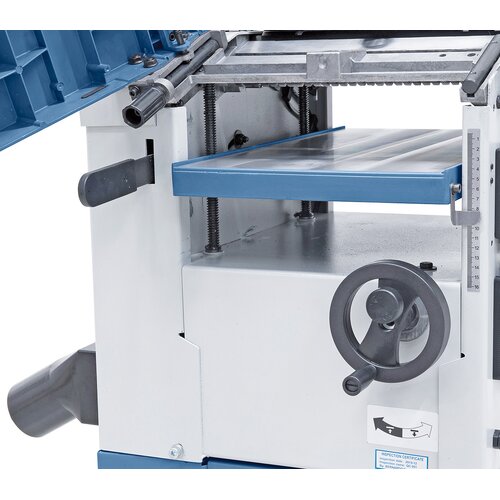

Thicknessing table is guided on four threads. The height can be read on the scale.

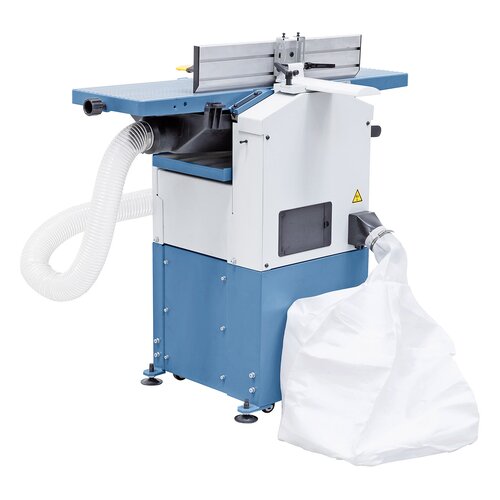

Serially equipped with integrated dust extractor and filter bag.

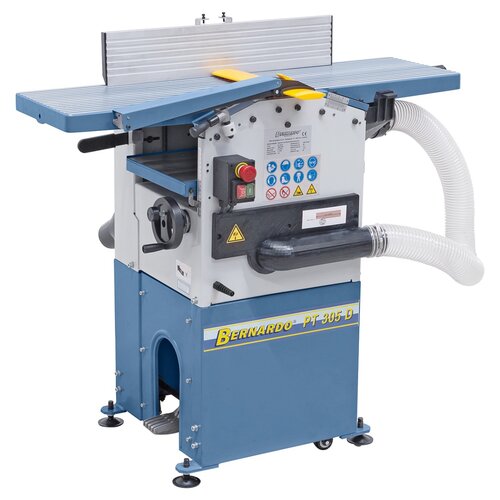

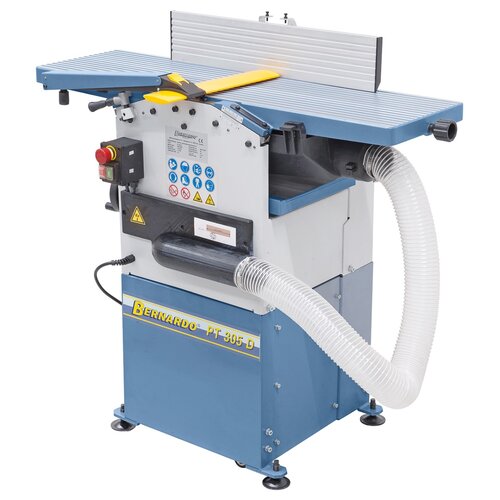

Surface planer and thicknesser PT 305 D with aspiration / 230 V

Art.Nr.: 08-1024

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The PT 305 D planer and thicknesser offers a wide range of standard accessories, including an integrated dust extractor, waste bag and knife gauge, making this model unbeatable in price-performance ratio for the price conscious user.

€1,428.00

incl. 20% VAT

Availability

In Stock

Deliverable in 2-3 business days

Product Properties

Both planing tables feature fine adjustment and are designed with slots to keep noise levels down
Thicknessing table is guided on four threads to ensure accurate planing of boards, planks, etc.
Integrated dust extractor guarantees optimal price-performance ratio
Quick and easy adjustment of chip removal
Precise planing tables made of aluminium for best results
Dust hood (Ø 100 mm) can be used for both planing and thicknessing
Cutterblock comes with HSS-knives
Corrugated infeed roller ensures safe and consistent workpiece infeed
Solid planer fence with prism guide can be tilted from 90° to 45°
Serially equipped with knife gauge to allow accurate adjustment of knives
Infeed can be switched off when planing

Product Specifications

Planer
Planing width	305 mm
Table length	1080 mm
Table height	920 mm
Shaft rotation speed	6700 rpm
Cutter knives	2 pcs.
Planer shaft diameter	62 mm
Planer fence	640 x 125 mm
Fence tiltable	90° to 45°
Max. cutting depth	3 mm
Thicknesser
Table length	500 mm
Working width	300 mm
Working thickness, min./max.	6 - 160 mm
Max. cutting depth	2 mm
Feed speed	8,5 mm

Dust extraction outlet	100 mm / 75 mm
Motor power output S1 100%	1,8 KW (2,4 HP)
Motor power input S6 40%	2,5 KW (3,4 HP)
Voltage	230 V
Machine dimension (L x W x H)	1140 x 820 x 1100 mm
Weight approx.	94 kg
