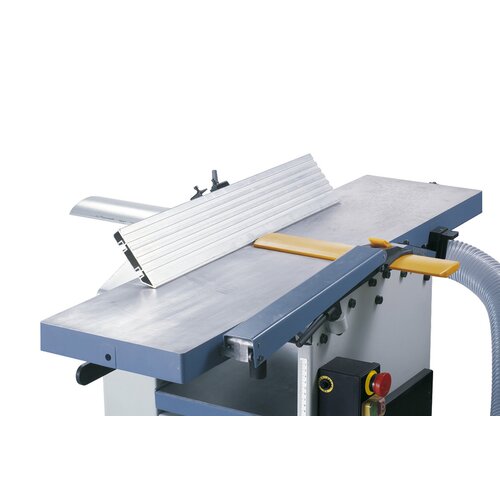

The ripped aluminium tables are slotted to reduce noise levels.

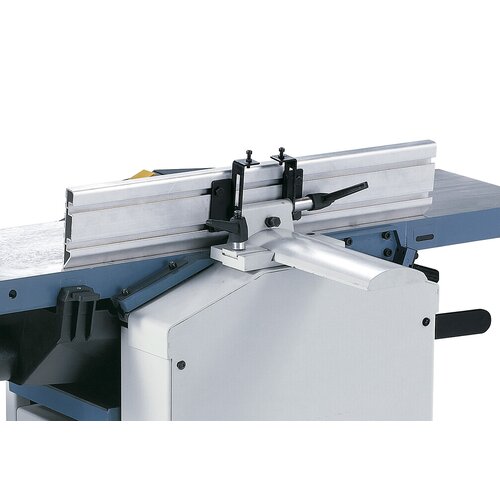

The planer fence with prism block can be tilted

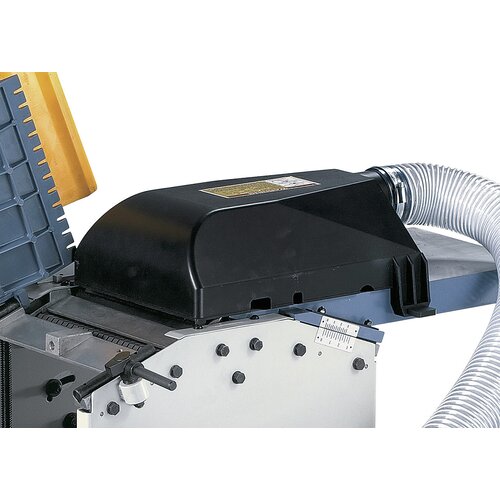

The dust hood can be used for both planing and thicknessing.

The machine is equipped with many safety devices to eliminate the risk of accidents.

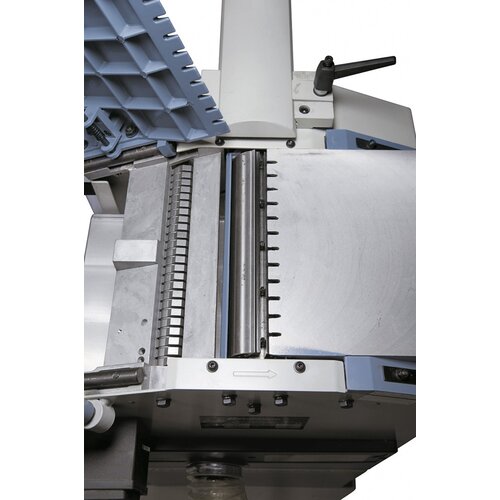

The precisely bedded cutterblock and corrugated infeed roller guarantees best planing results.

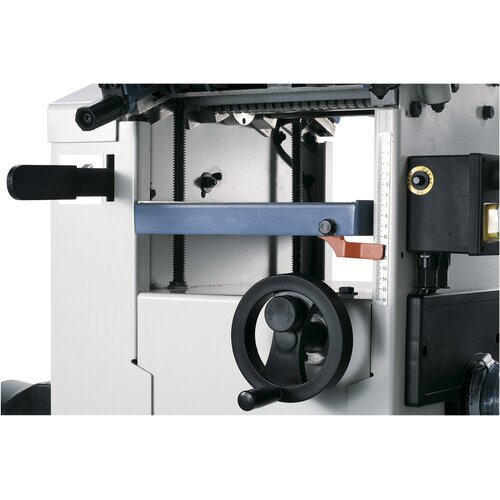

Thicknessing table is guided on four threads. The height can be read on the scale.

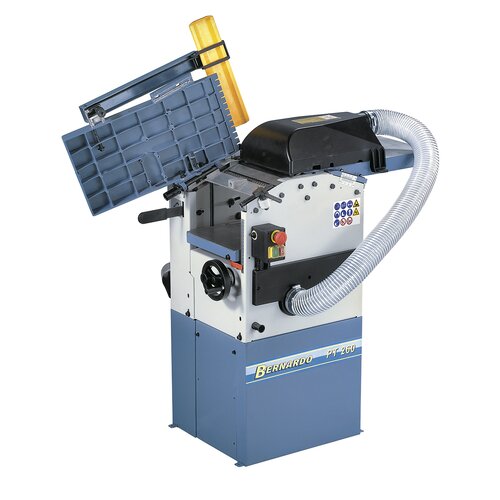

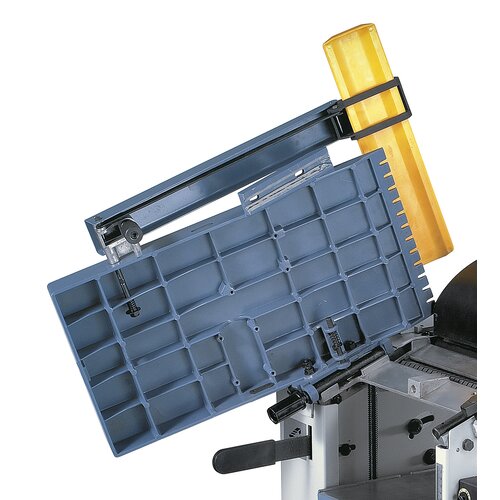

Outfeed table is in upright position when thicknessing.

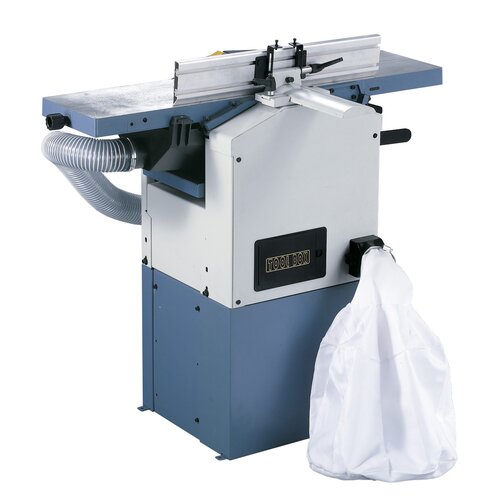

Serially equipped with integrated dust extractor and filter bag.

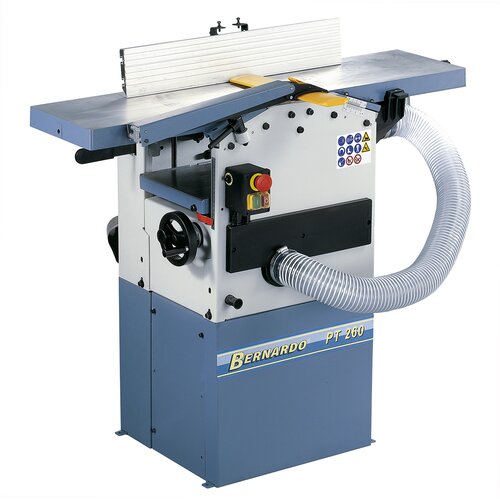

Surface planer and thicknesser PT 260 with aspiration / 400 V

Art.Nr.: 08-1023

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The PT 260 planer and thicknesser offers a wide range of standard accessories, including an integrated dust extractor, waste bag and knife gauge, making this model unbeatable in price-performance ratio for the price conscious user.

€1,104.00

incl. 20% VAT

Availability

Deliverable Soon

Deliverable by Jul 27, 2025

Product Properties

Both planing tables feature fine adjustment and are designed with slots to keep noise levels down
Thicknessing table is guided on four threads to ensure accurate planing of boards, planks, etc.
Integrated dust extractor guarantees optimal price-performance ratio
Quick and easy adjustment of chip removal
Precise planing tables made of aluminium for best results
Dust hood (Ø 80 mm) can be used for both planing and thicknessing
Cutterblock comes with HSS-knives
Corrugated infeed roller ensures safe and consistent workpiece infeed
Solid planer fence with prism guide can be tilted from 90° to 45°
Serially equipped with knife gauge to allow accurate adjustment of knives
Infeed can be switched off when planning

Product Specifications

Planer
Planing width	260 mm
Table length	1050 mm
Table height	885 mm
Shaft rotation speed	6700 rpm
Cutter knives	2 pcs.
Planer shaft diameter	55 mm
Planer fence	610 x 110 mm
Fence tiltable	90° to 45°
Max. cutting depth	3 mm
Thicknesser
Table length	480 mm
Working width	250 mm
Working thickness, min./max.	5 - 150 mm
Max. cutting depth	2 mm
Feed speed	8 m/min

Dust extraction outlet	80 mm
Motor power output S₁ 100%	1,6 kW (2,1 HP)
Motor power input S₆ 40%	2,2 kW (3,0 HP)
Voltage	400 V
Machine dimension (L x W x H)	1050 x 650 x 1050 mm
Weight approx.	75 kg
