The ripped aluminium tables are slotted to reduce noise levels.
The ripped aluminium tables are slotted to reduce noise levels.

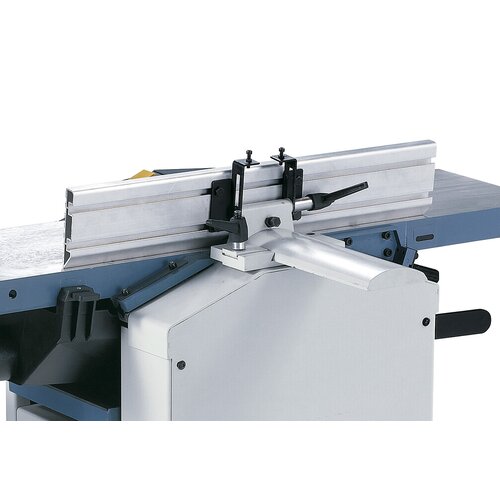

The planer fence with prism guide block can be tilted.
The planer fence with prism guide block can be tilted.

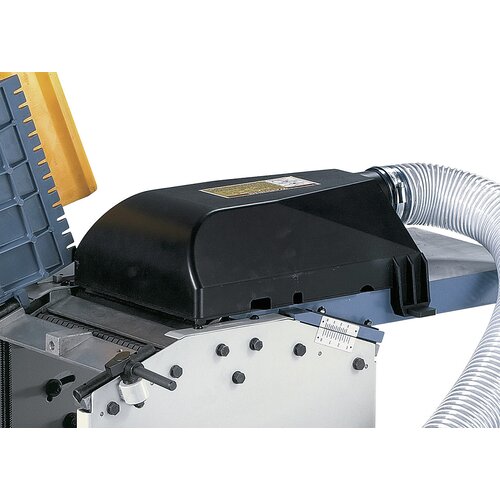

The dust hood can be used for both planing and thicknessing.
The dust hood can be used for both planing and thicknessing.

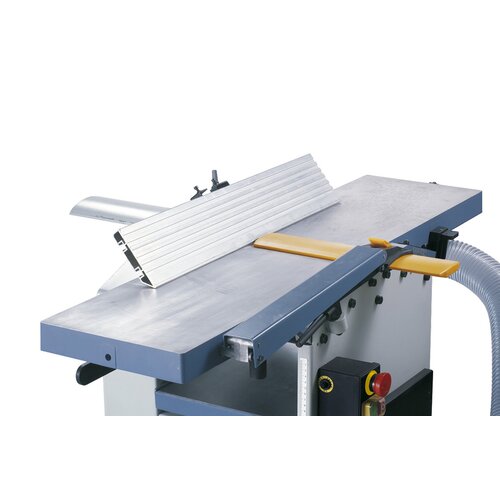

The machine is equipped with many safety devices to eliminate the risk of accidents.
The machine is equipped with many safety devices to eliminate the risk of accidents.

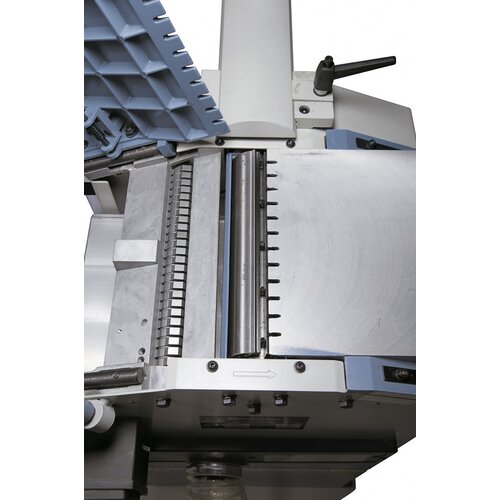

The precisely bedded cutterblock and corrugated infeed roller guarantees best planing results.
The precisely bedded cutterblock and corrugated infeed roller guarantees best planing results.

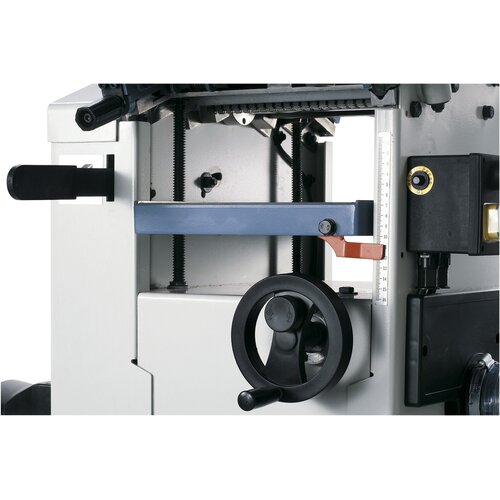

Thicknessing table is guided on four threads. The height can be read on the scale.
Thicknessing table is guided on four threads. The height can be read on the scale.

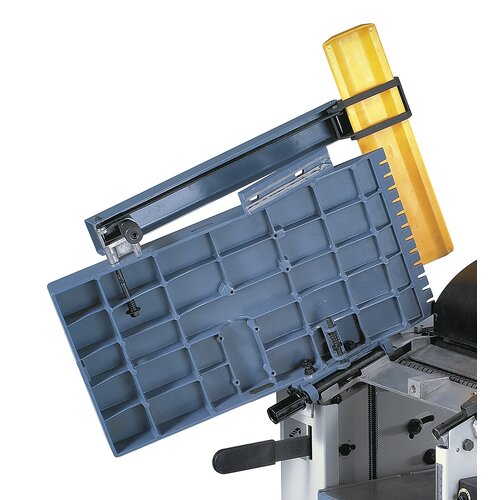

Outfeed table is in upright position when thicknessing

Outfeed table is in upright position when thicknessing

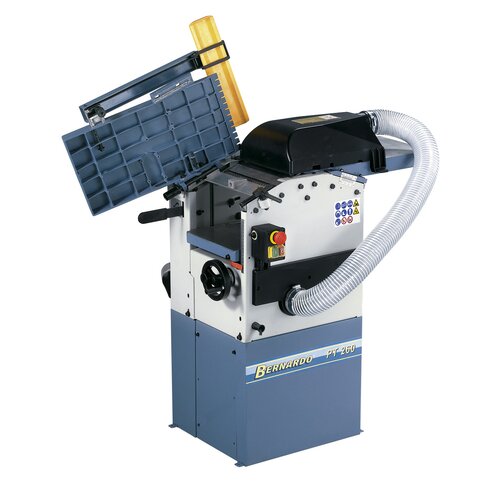

Serially equipped with integrated dust extractor and fi lter bag.
Serially equipped with integrated dust extractor and fi lter bag.
The ripped aluminium tables are slotted to reduce noise levels.
The planer fence with prism guide block can be tilted.
The dust hood can be used for both planing and thicknessing.
The machine is equipped with many safety devices to eliminate the risk of accidents.
The precisely bedded cutterblock and corrugated infeed roller guarantees best planing results.
Thicknessing table is guided on four threads. The height can be read on the scale.
Outfeed table is in upright position when thicknessing

Serially equipped with integrated dust extractor and fi lter bag.

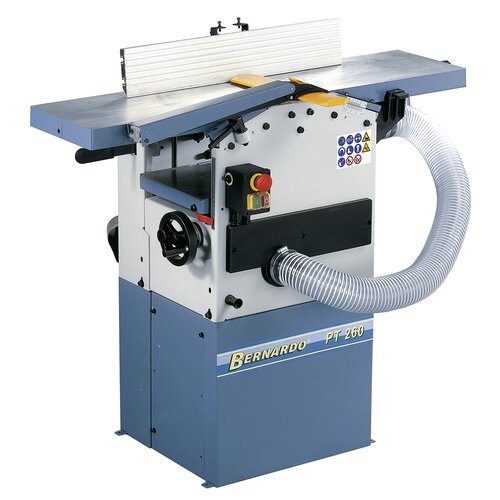

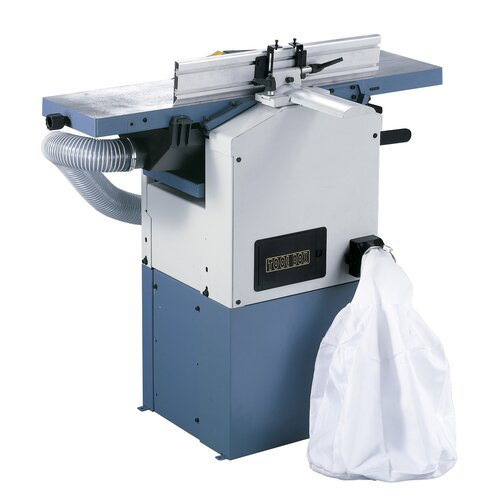

Surface planer and thicknesser PT 260 with aspiration / 230 V

Art.Nr.: 08-1022

The PT 260 planer and thicknesser offers a wide range of standard accessories, including an integrated dust extractor, waste bag and knife gauge, making this model unbeatable in price-performance ratio for the price conscious user.



€1,104.00

incl. 20% VAT

Availability

In Stock
Deliverable in 2-3 business days

Product Properties

  • Both planing tables feature fi ne adjustment and are designed with slots to keep noise levels down
  • Thicknessing table is guided on four threads to ensure accurate planing of boards, planks, etc.
  • Integrated dust extractor guarantees optimal price-performance ratio
  • Quick and easy adjustment of chip removal
  • Precise planing tables made of aluminium for best results
  • Dust hood (Ø 80 mm) can be used for both planing and thicknessing
  • Cutterblock comes with HSS-knives
  • Corrugated infeed roller ensures safe and consistent workpiece infeed
  • Solid planer fence with prism guide can be tilted from 90° to 45°
  • Serially equipped with knife gauge to allow accurate adjustment of knives
  • Infeed can be switched off when planing

Product Specifications

Planer



Planing width

260 mm

Table length

1050 mm

Table height

885 mm

Shaft rotation speed

6700 rpm

Cutter knives

2 pcs.

Planer shaft diameter

55 mm

Planer fence

610 x 110 mm

Fence tiltable

90° to 45°

Max. cutting depth

3 mm

Thicknesser



Table length

480 mm

Working width

250 mm

Working thickness, min./max.

5 - 150 mm

Max. cutting depth

2 mm

Feed speed

8 m/min



Dust extraction outlet

80 mm

Motor power output S1 100%

1,6 kW (2,1 HP)

Motor power input S6 40%

2,2 kW (3,0 HP)

Voltage

230 V

Machine dimension (L x W x H)

1050 x 650 x 1050 mm

Weight approx.

75 kg



Delivery Contents

  • Cutter knives in HSS-quality
  • Knife gauge
  • Integrated dust extractor
  • Waste bag
  • Push handle
