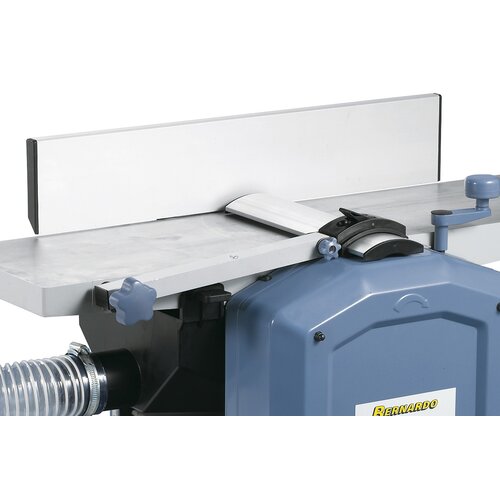

The table is guided on four threads to ensure precise planing of boards, planks etc.

Cutterblock cover according to CE standards.

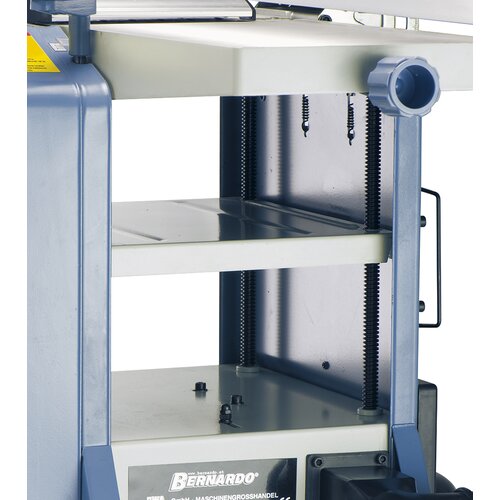

Crank allows easy adjustment of thickenessing table.

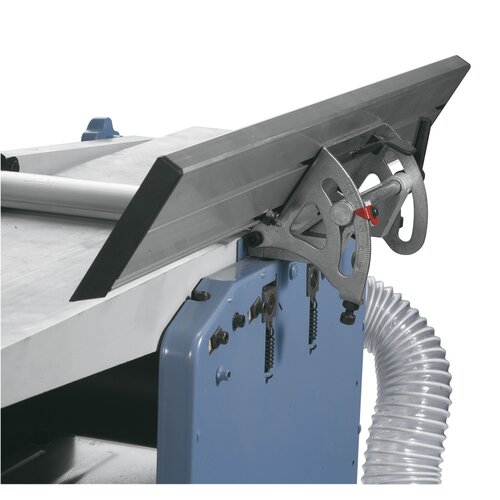

The planer fence can easily be adjusted from the back of the machine. The desired angle can be read on the scale.

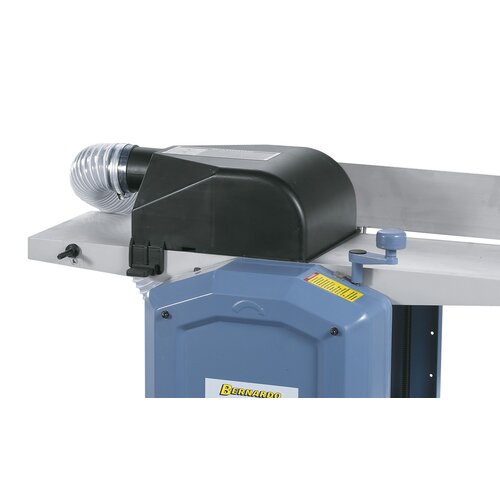

Serially equipped with integrated dust extractor and waste bag.

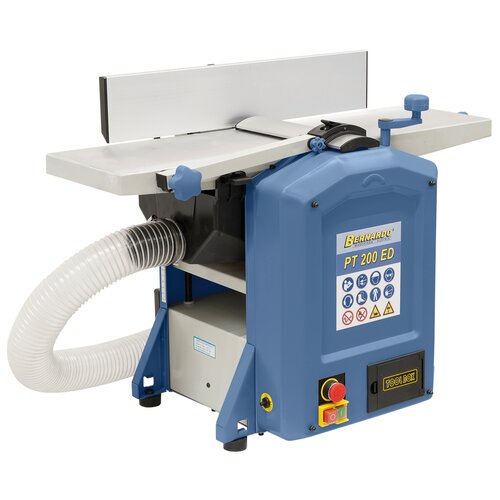

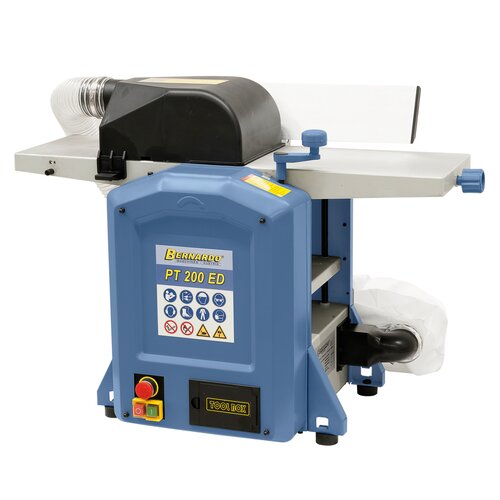

Surface planer and thicknesser PT 200 ED / 230 V

Art.Nr.: 08-1006

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The PT 200 ED planer and thicknesser stands out because of its integrated dust extractor and its large thicknessing height (210 mm). This compact model is solidly constructed, making this machine ideal for amateurs.

€540.00

incl. 20% VAT

Availability

In Stock

Deliverable in 2-3 business days

Product Properties

Solid machine structure enables easy transportation, ideal for use on construction sites
Quick and easy adjustment of chip removal
Dust extractor and waste bag as standard equipment
Stable planer fence, tiltable from 90° to 45°
Precisely manufactured, aluminium planing tables for accurate results
Power switch according to IP 54 with undervoltage release
Precisely mounted 2-knife cutterblock incl. cutter knives in HSS-quality
Cutterblock cover according to CE-standards ensure safety
Powerful motor guarantees best result
Ideal for craftsmen and amateurs
Serially equipped with dust hood when thicknessing

Product Specifications

Planer
Planing width	205 mm
Table length	740 mm
Shaft rotation speed	8500 rpm
Cutter knives	2 pcs.
Planer shaft diameter	50 mm
Planer fence	540 x 105 mm
Fence tiltable	90° to 45°
Max. cutting depth	2 mm
Thicknesser
Table length	285 mm
Working width	200 mm
Working thickness, min./max.	5 - 210 mm
Max. cutting depth	2 mm
Feed speed	7 m/min

Dust extraction outlet	60 mm
Motor power output S₁ 100%	1,5 kW (2,0 HP)
Motor power input S₆ 40%	2,1 kW (2,8 HP)
Voltage	230 V
Machine dimension (L x W x H)	790 x 480 x 550 mm
Weight approx.	28 kg
