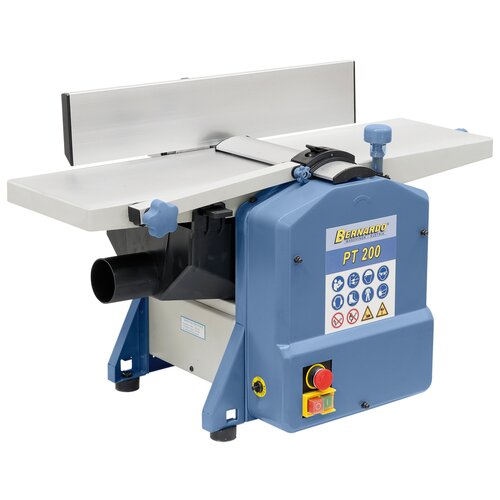

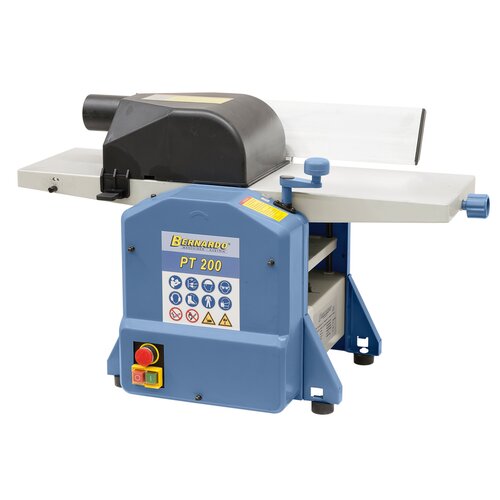

Surface planer and thicknesser PT 200 / 230 V
Art.Nr.: 08-1005The PT 200 surface planer and thicknesser features a small and compact construction to allow for easy transport and use on different sites.
€414.00
incl. 20% VATAvailability
Product Properties
- Cutterblock cover in accordance with CE-standards guarantees high safety
- On/Off switch in accordance with IP 54 features undervoltage release
- Ideal for craftsmen and home users
- Quick and easy setting of chip removal
- Precise aluminium planing tables to achieve high accuracy

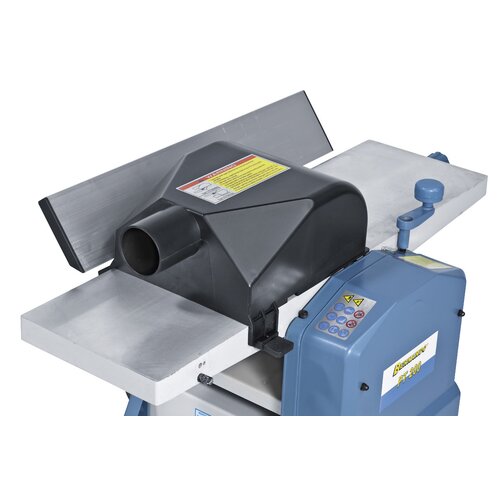

- Combined dust hood can be used for planing or thicknessing

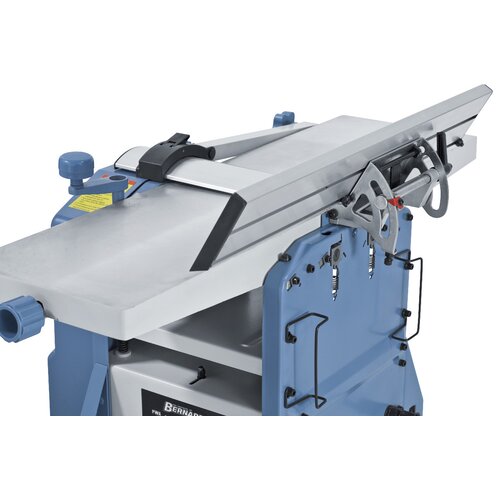

- Solid planing fence tilts 90° to 45°
- Precisely bedded 2-knife cutterblock with HSS cutter knives
- Powerful drive motor for optimal planing results
- Attractive price-benefit ratio
Product Specifications
|
Planer |
|
|
Planing width |
205 mm |
|
Table length |
740 mm |
|
Shaft rotation speed |
8500 rpm |
|
Cutter knives |
2 pcs. |
|
Planer shaft diameter |
50 mm |
|
Planer fence |
540 x 100 mm |
|
Fence tiltable |
90° to 45° |
|
Max. cutting depth |
2 mm |
|

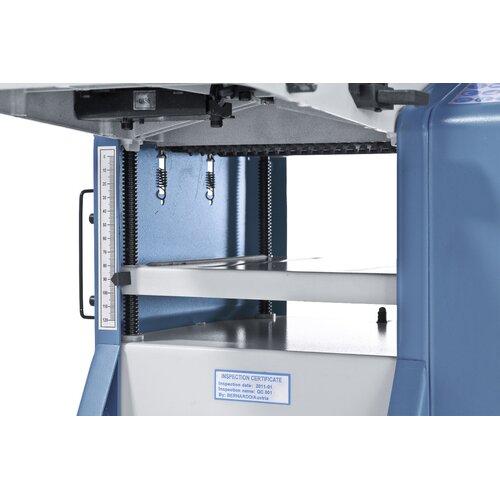

Thicknesser |
|
|
Table length |
255 mm |
|
Working width |
200 mm |
|
Working thickness, min./max. |
8 - 120 mm |
|
Max. cutting depth |
2 mm |
|
Feed speed |
7 m/min |
|
Dust extraction outlet |
60 mm |
|
Motor power output S1 100% |
1,25 kW (1,7 HP) |
|
Motor power input S6 40% |
1,75 kW (2,3 HP) |
|
Voltage |
230 V |
|
Machine dimension (L x W x H) |
790 x 460 x 480 mm |
|
Weight approx. |
27 kg |
Delivery Contents
- Cutter knives in HSS-quality
- Dust hood
- Knife gauge
- Push handle
