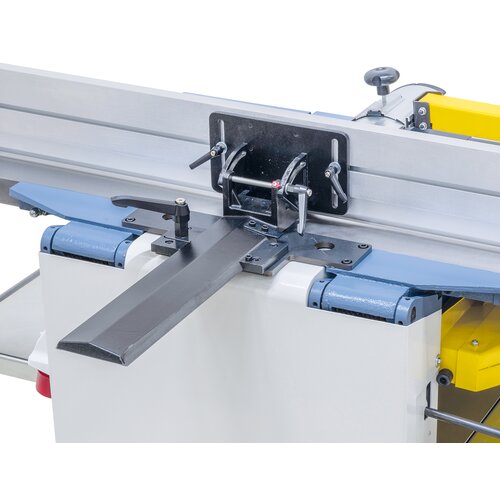

The planer fence can be set to required position via the precise prism guide.

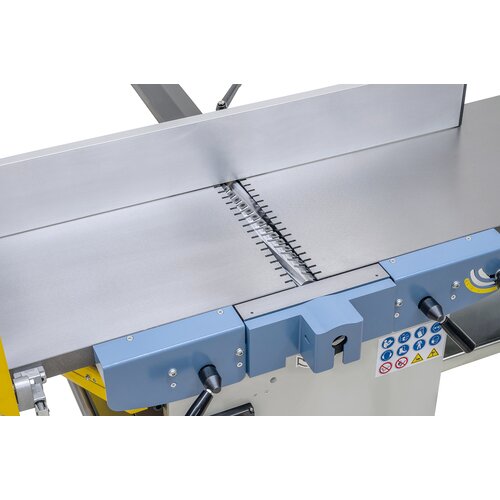

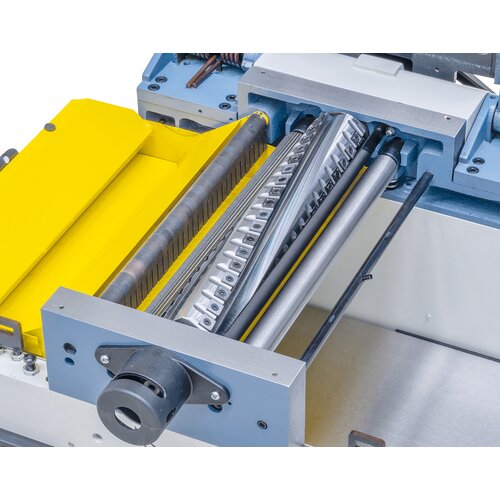

The solid planing unit features a precisely bedded spiral cutter head to guarantee best results.

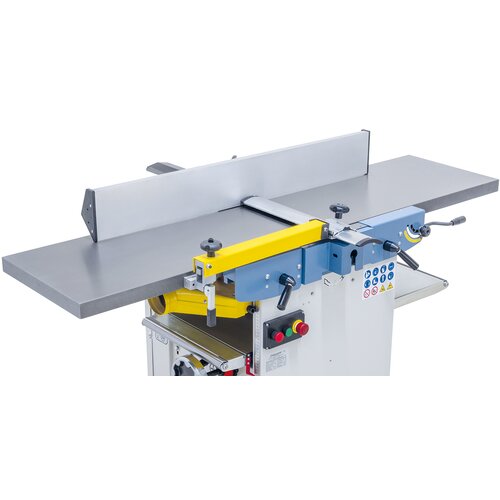

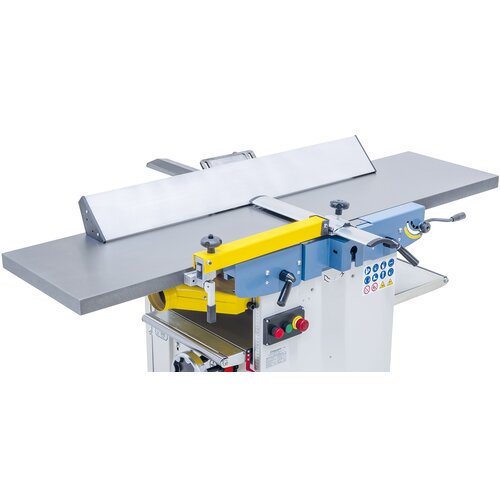

The large surface of the aluminium planing fence allows absolute accuracy when processing large, heavy workpieces.

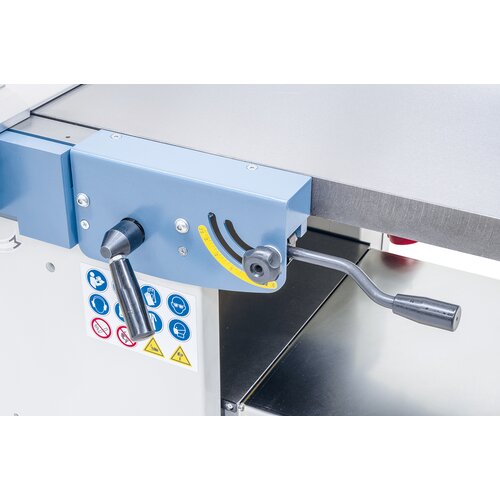

Quick and easy adjustment of chip removal (up to 3,5 mm).

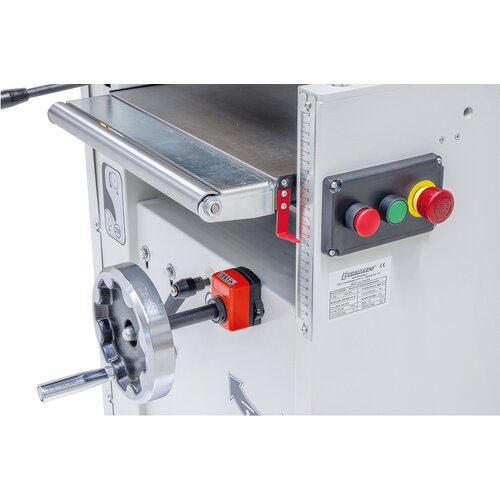

Tables can be adjusted precisely - 1/10 mm - using the digital display.

The long, reinforced, grey cast iron planing / thicknessing tables allow precise processing of large workpieces.

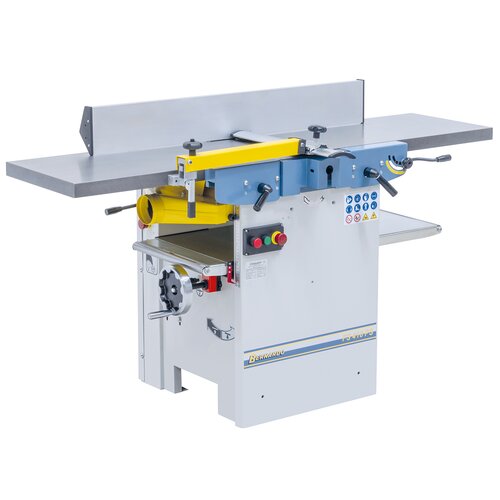

Surface planer and thicknesser FS 410 PS / 400 V

Art.Nr.: 08-1058

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

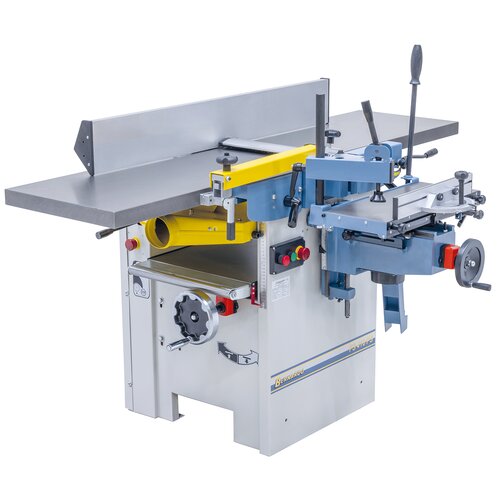

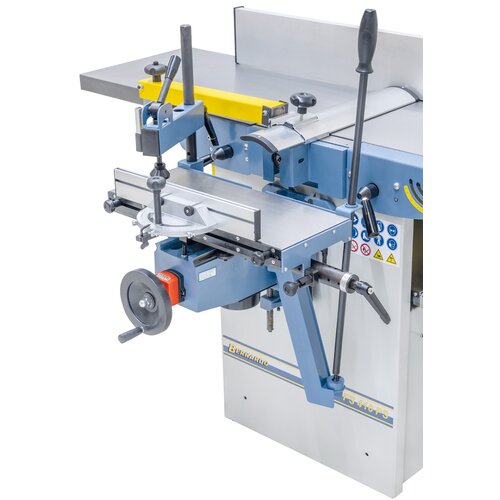

The FS 410 PS is a compact planer and thicknesser with a thicknessing height of 240 mm – ideal for precise planing of boards, planks and beams. To widen the application range the optionally available mortising unit can be added to allow slotting and drilling. Another advantage is the spiral cutter head for reduced noise level and optimal planing results.

€3,696.00

incl. 20% VAT

Availability

In Stock

Deliverable in 2-3 business days

Product Properties

Reduction of noise level (approx. 50%) due to the standard spiral cutter head and up to 20 times the cutting edge life (results from four-way carbide inserts)
Advantage of the carbide inserts: If damaged, individual knives can be exchanged or turned

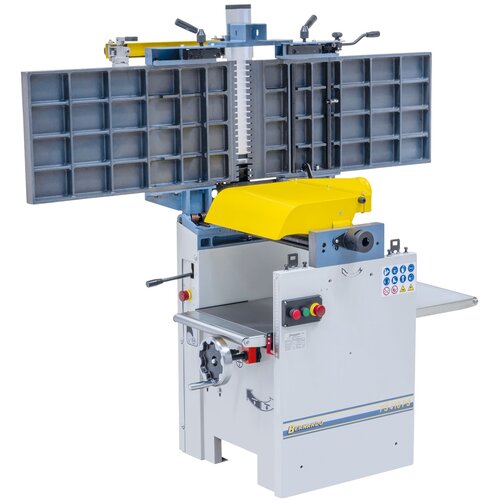

Planing tables fold to the backside of the machine to minimize space requirements
The carbide blades ensure tear-free planing results and optimal surfaces with any type of wood
Integrated tiltable dust hood, extraction outlet 100 mm

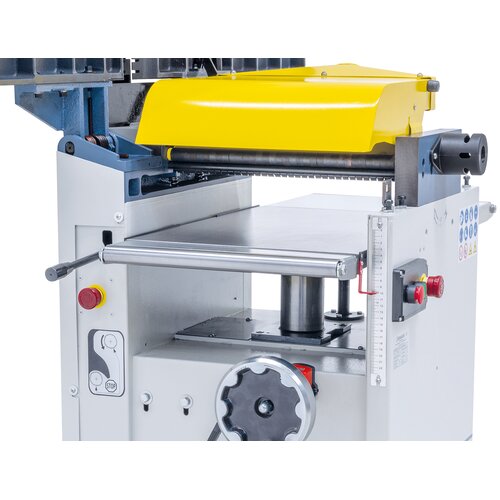

Digital display on handwheel features 1/10 mm scaling for precise adjustment of thicknessing table
Anodized aluminium planing fence, tilts from 90º to 45º
Powerful motor for optimal planing results
Quick and easy adjustment of chip removal

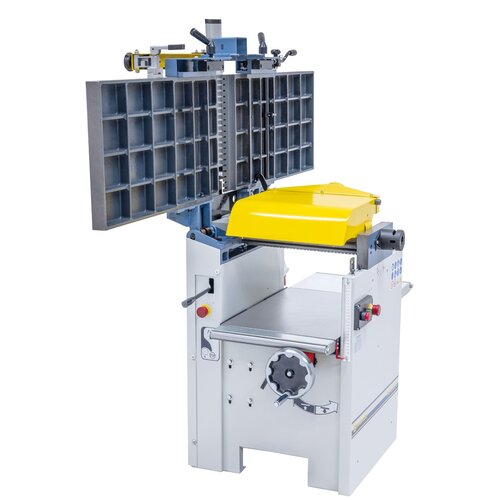

Simultaneous folding of planing tables allows fast conversion from planing to thicknessing

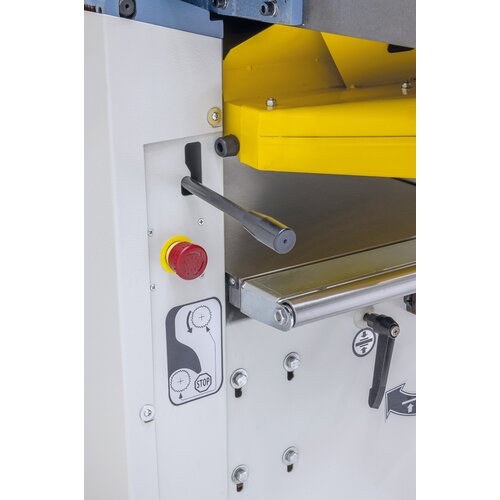

Several safety devices: On/Off switch with undervoltage release, cutterblock cover in accordance with CE, limit switch to avoid accidental machine start

Product Specifications

Planer
Planing width	410 mm
Table length	1685 mm
Table height	850 mm
Shaft rotation speed	4300 rpm
TCT-blades	72 pcs.
Planer shaft diameter	70 mm
Planer fence	1115 x 150 mm
Fence tiltable	90° to 45°
Max. cutting depth	3,5 mm
Thicknesser
Table length	995* mm
Working width	410 mm
Working thickness, min./max.	5 – 240 mm
Max. cutting depth	4,5 mm
Feed speed	5,4 m/min

Dust extraction outlet	100 mm
Motor power output S₁ 100%	3,0 kW (4,0 HP)
Motor power input S₆ 40%	4,2 kW (5,7 HP)
Voltage	400 V
Machine dimension (L x W x H)	1685x 990 x 1010 mm
Weight approx.	261 kg

* with table extension

Delivery Contents

Spiral cutter head with 72 pcs. TCT-blades
Replacement TCT-blades (5 pcs.)
Digital display for thicknessing table
Table extension with rolls
Push handle

Suitable accessories

TCT-blades for spiral cutter (10 pcs.) f. AD 310 S/AD 410 S/PT 410 S/DH 310 S/DH 410 S/SP 150 PS/SP 200 PS/FS 410 PS/TH 330 S

Art.Nr. : 15-1078

€56.40
