The solid planing unit features a precisely bedded 3-knife cutterblock to guarantee best results.

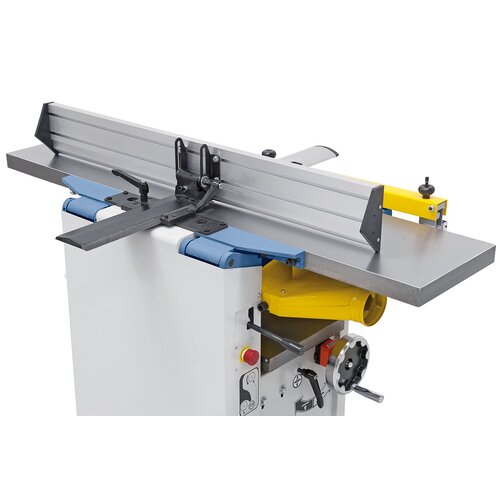

The planer fence can be set to required position via the precise prism guide.

The large surface of the aluminium planing fence allows absolute accuracy when processing large, heavy workpieces.

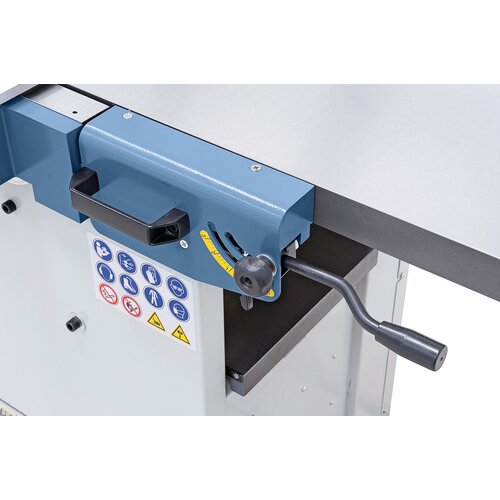

Quick and easy adjustment of chip removal (up to 3 mm).

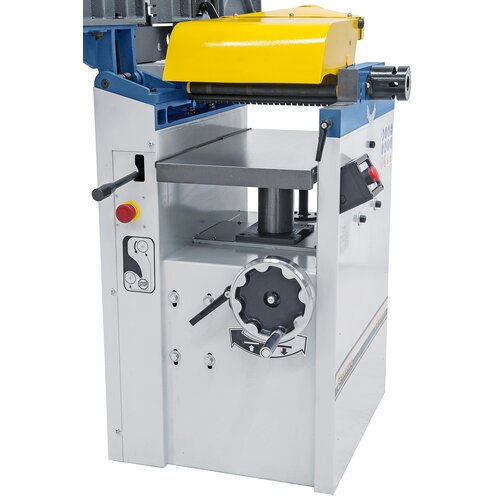

Solid thicknessing table with spindle guide and support for accurate planing of board, slats, planks etc.

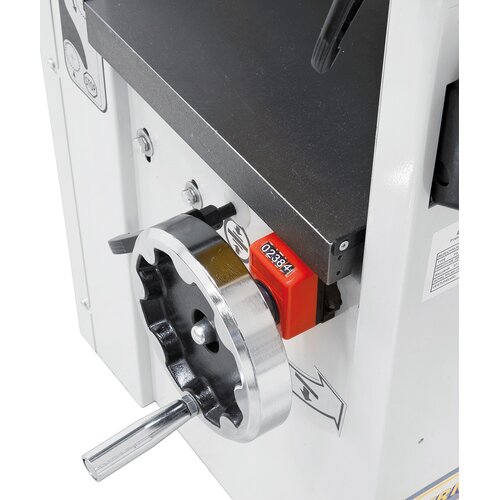

Tables can be adjusted precisely - 1/10 mm - using the digital display.

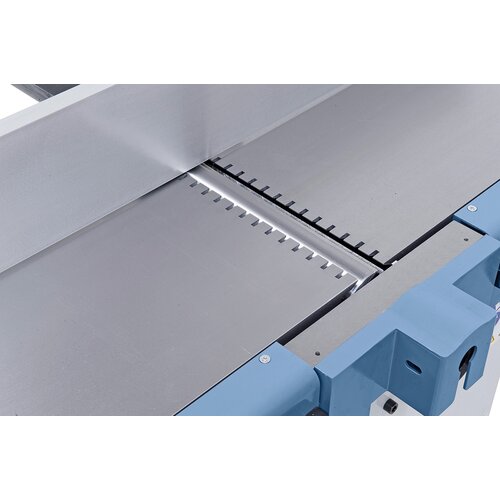

The long, reinforced, grey cast iron planing / thicknessing tables allow precise processing of large workpieces.

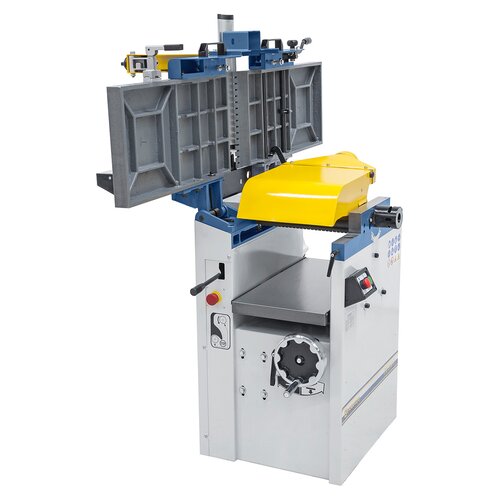

Simultaneous folding of planing tables ensure maximum comfort.

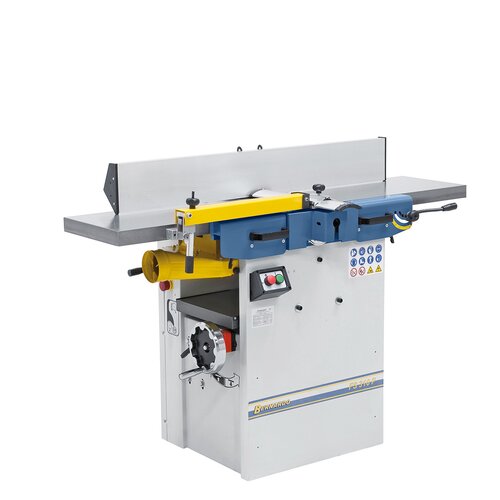

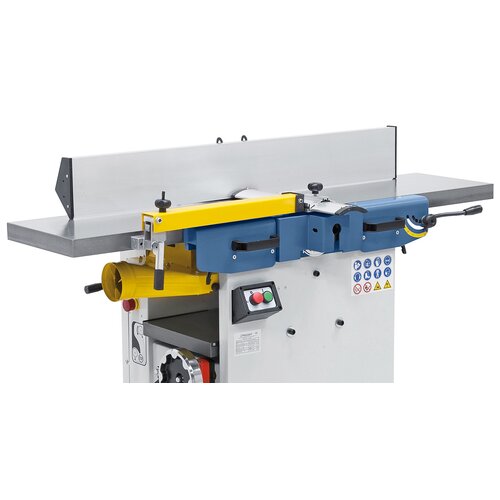

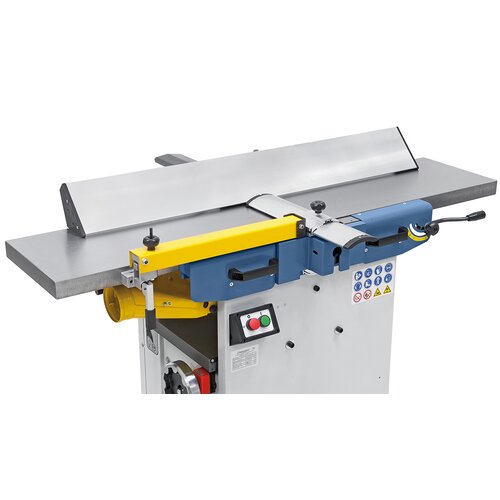

Surface planer and thicknesser FS 310 P / 230 V

Art.Nr.: 08-1045

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The FS 310 P planing and thicknessing machine was developed with an emphasis on safety, rigidity, compact construction and high user comfort, making this model meet the demands of experienced users.

€2,112.00

incl. 20% VAT

Availability

In Stock

Deliverable in 2-3 business days

Product Properties

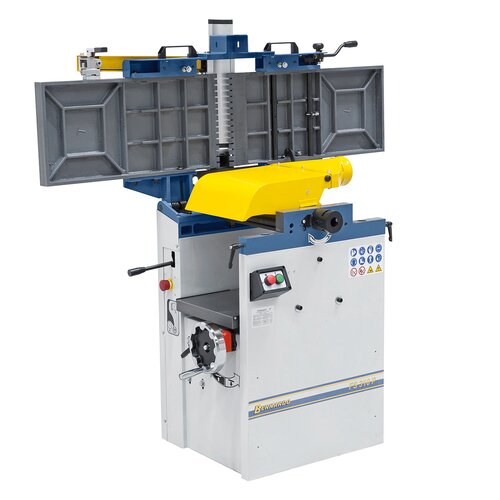

Planing tables fold to the backside of the machine to minimize space requirements
Integrated tiltable dust hood, extraction outlet 100 mm

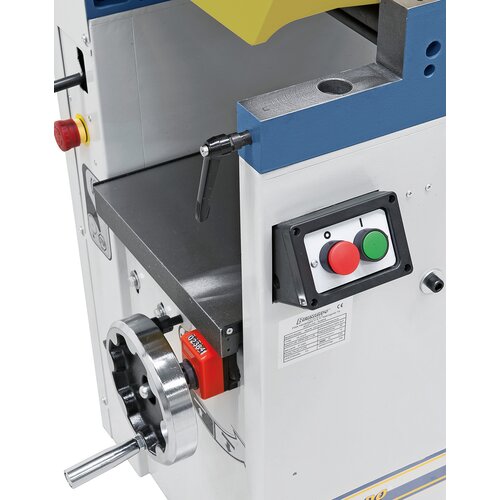

Digital display on handwheel features 1/10 mm scaling for precise adjustment of thicknessing table
Anodized aluminium planing fence, tilts from 90º to 45º
Powerful motor for optimal planing results
Quick and easy adjustment of chip removal
Simultaneous folding of planing tables allows fast conversion from planing to thicknessing
Ergonomically arranged control elements and switches
Several safety devices: On/Off switch with undervoltage release, cutterblock cover in accordance with CE, limit switch to avoid accidental machine start

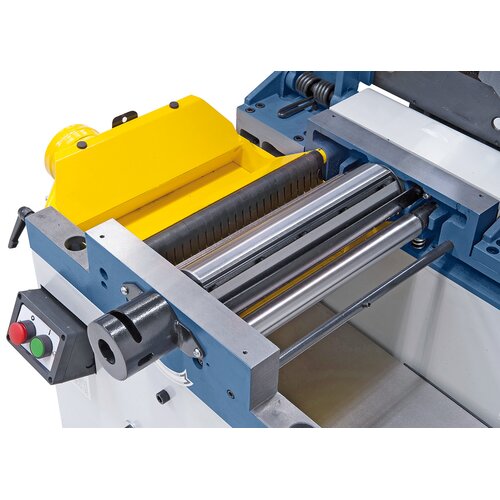

Precisely bedded 3-knife cutterblock with HSS-knives

Product Specifications

Planer
Planing width	310 mm
Table length	1400 mm
Table height	825 mm
Shaft rotation speed	4500 rpm
Cutter knives	3 pcs.
Planer shaft diameter	75 mm
Planer fence	1120 x 150 mm
Fence tiltable	90° to 45°
Max. cutting depth	3 mm
Thicknesser
Table length	600 mm
Working width	305 mm
Working thickness, min./max.	5 – 240 mm
Max. cutting depth	3 mm
Feed speed	5,4 m/min

Dust extraction outlet	100 mm
Motor power output S₁ 100%	3,0 kW (4,0 HP)
Motor power input S₆ 40%	4,2 kW (5,7 HP)
Voltage	230 V
Machine dimension (L x W x H)	1400 x 900 x 980 mm
Weight approx.	205 kg
