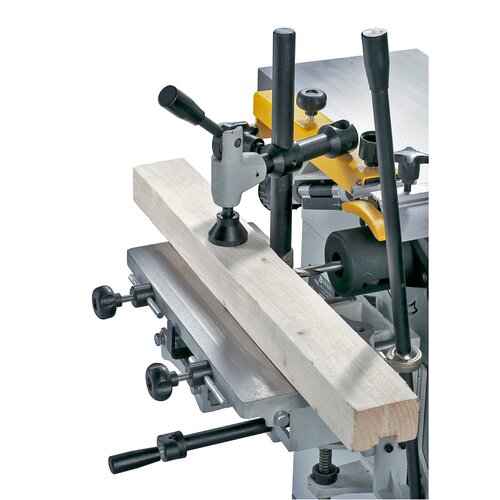

The optional mortising unit is optimal for slots, dowel pin and inclined bore, ...

The infeed function can be switched off when planing.

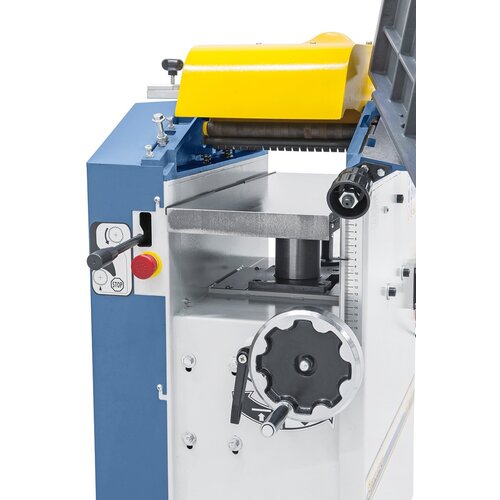

Cast iron thicknessing table with center column and clamping, for planing of workpieces up to 190 mm in height.

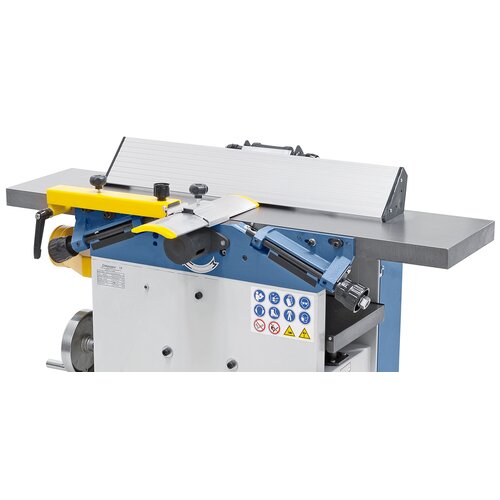

The solid planer fence with prism guide is tiltable up to 45°.

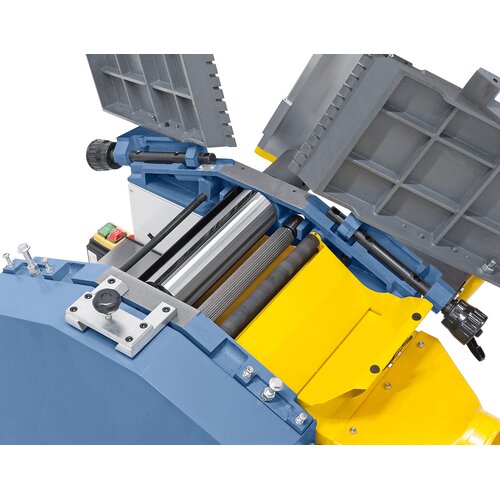

The dynamically balanced 3-knife cutterblock ensures smooth, vibration-free planing, guarantees best results.

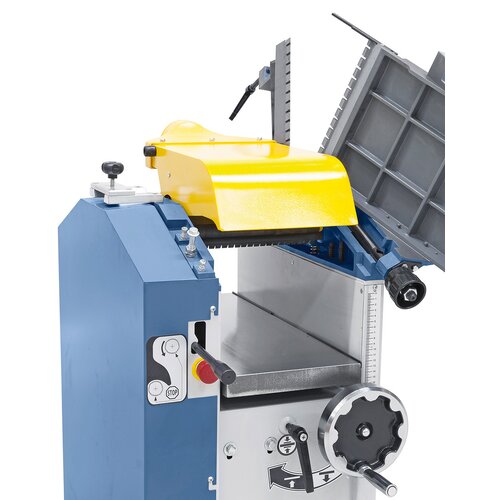

When thicknessing, the folding tables allow precise and safe working even of short workpieces.

A mortising unit is optionally available

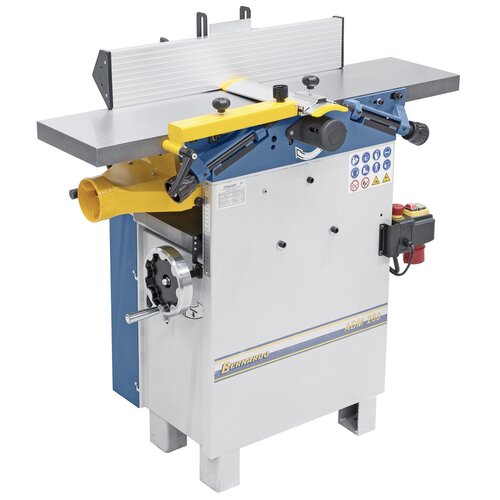

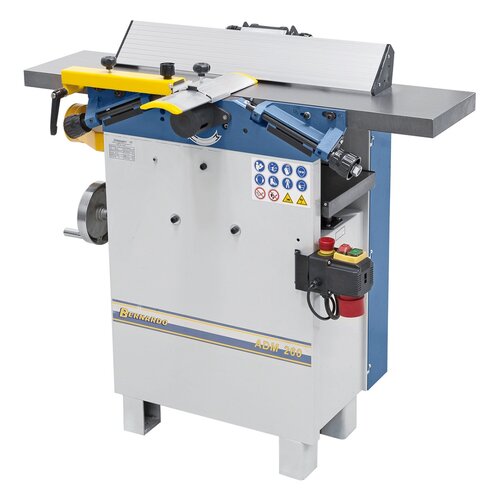

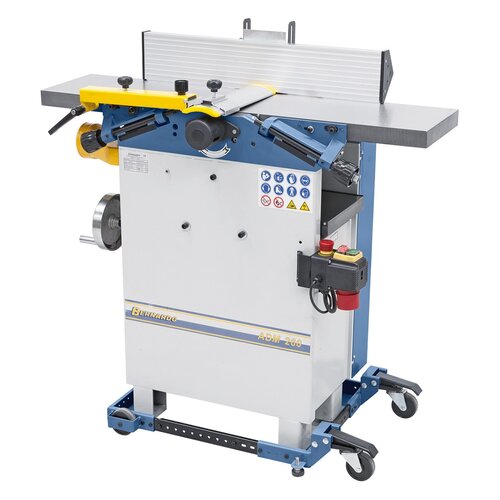

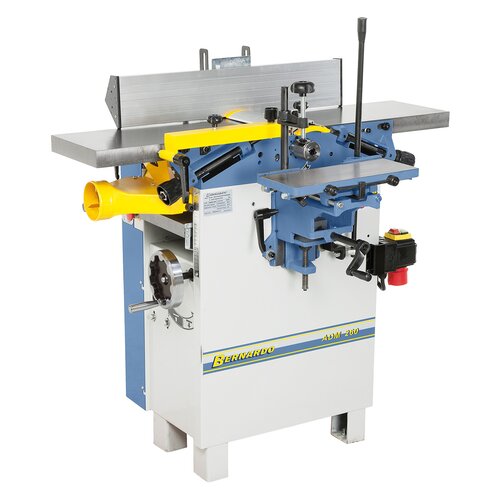

Surface planer and thicknesser ADM 260 / 230 V *

Art.Nr.: 08-1030

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The powerful and strong planer and thicknesser ADM 260 is thousandfold established at the amateur area. The centrally guided thicknessing table and torsion-free planing tables guarantees precise results.

€1,260.00

incl. 20% VAT

Availability

In Stock

Deliverable in 2-3 business days

Product Properties

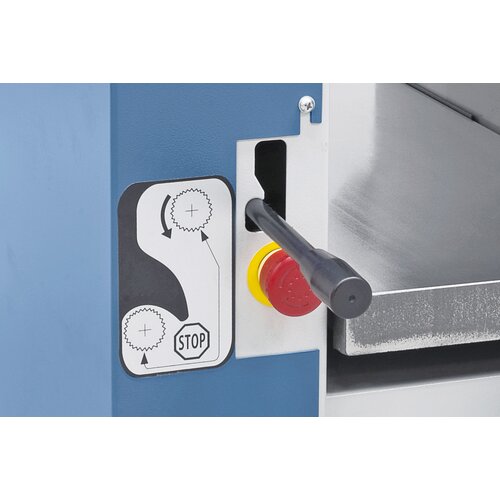

Switch-plug-combination with motor brake as standard

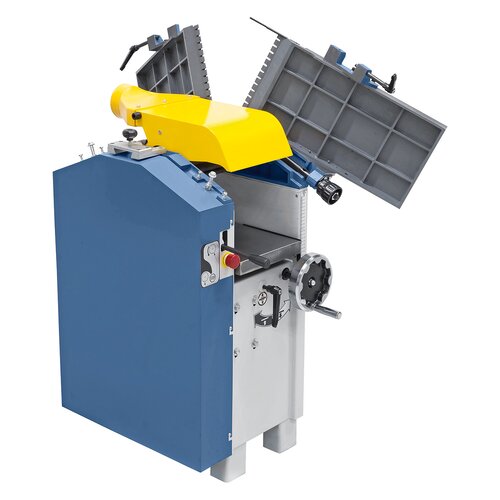

Folding planer tables allow quick and easy conversion from planing to thicknessing
Integrated, tiltable dust hood, extraction outlet 100 mm
Both planing tables feature fine adjustment and are designed with table lips to keep noise level down
Maintenance-free 3-knife cutterblock with HSS 18% quality cutter knives
Thicknessing table with central column and support allow precise planing
The solid planer fence with prism guide can be tilted from 90° to 45°
Torsion-free, cast iron planing tables guarantees best results
Cutterblock cover according to CE-standards ensure safety
Infeed can be switched off when planing

Product Specifications

Planer
Planing width	250 mm
Table length	1080 mm
Table height	920 mm
Shaft rotation speed	3750 rpm
Cutter knives	3 pcs.
Planer shaft diameter	75 mm
Planer fence	700 x 145 mm
Fence tiltable	90° to 45°
Max. cutting depth	5 mm
Thicknesser
Table length	600 mm
Working width	250 mm
Working thickness, min./max.	5 - 190 mm
Max. cutting depth	1,8 mm
Feed speed	8 m/min

Dust extraction outlet	100 mm
Motor power output S₁ 100%	2,0 kW (2,7 HP)
Motor power input S₆ 40%	2,8 kW (3,8 HP)
Voltage	230 V
Machine dimension (L x W x H)	1100 x 750 x 1110 mm
Weight approx.	160 kg
