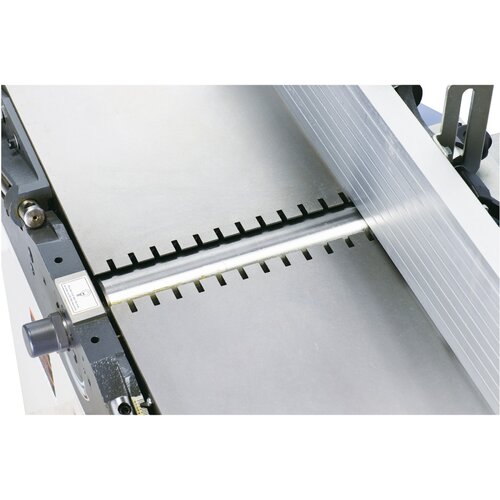

The planing tables are designed with slots to keep noise levels to a minimum.

Quick and easy adjustment of chip removal.

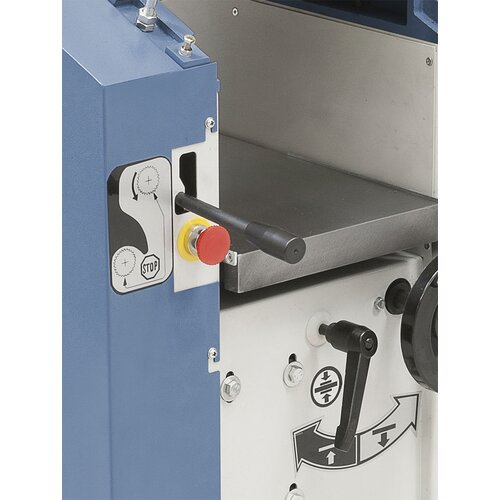

The infeed function can be switched off when planing.

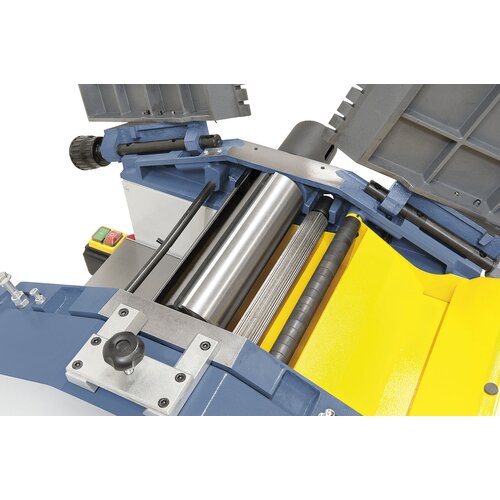

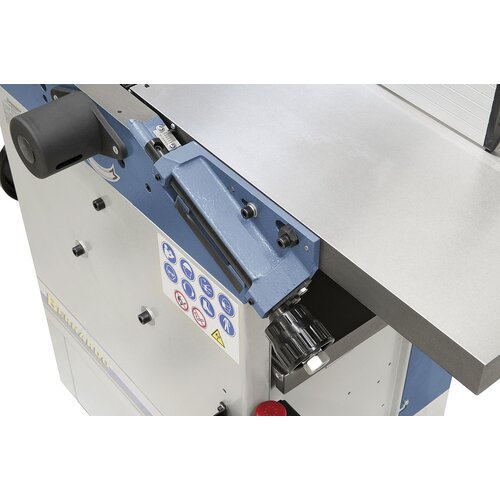

The planing unit consists of a 3-knife cutterblock, a corrugated infeed roller and rubber-coated outfeed roller.

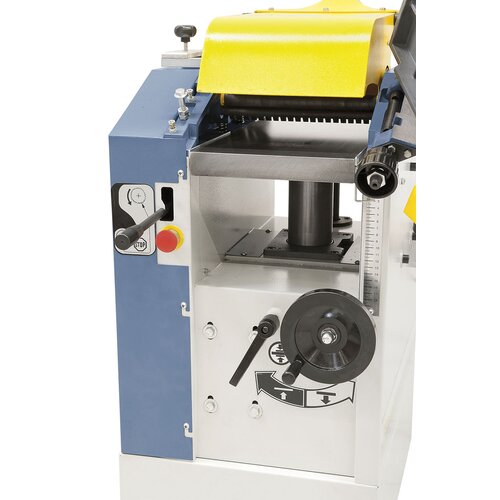

Thicknessing table with center column and support ensure accurate planing.

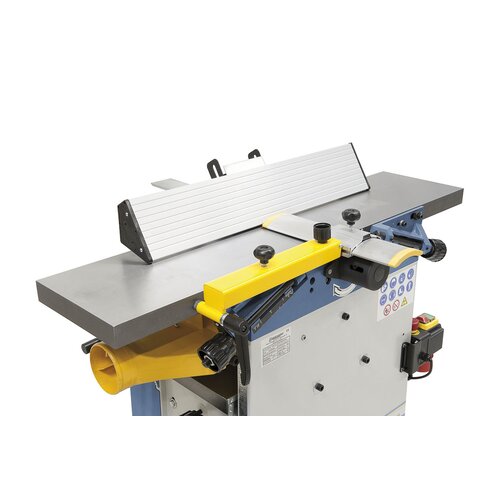

The solid planer fence with prism guide can be adjusted easily and tilted up to 45°.

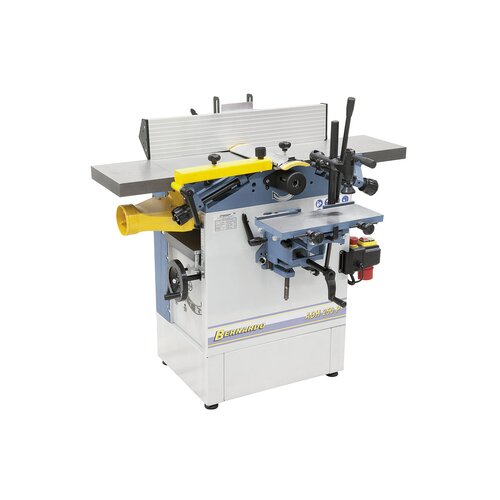

The mortiser unit allows slotting and drilling (optional).

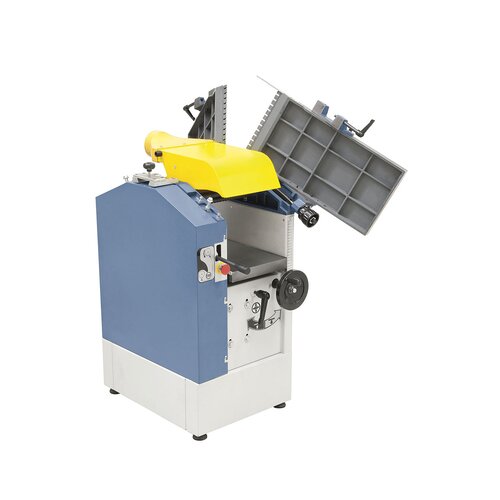

Foldable planer tables allow quick and easy conversion from planing to thicknessing.

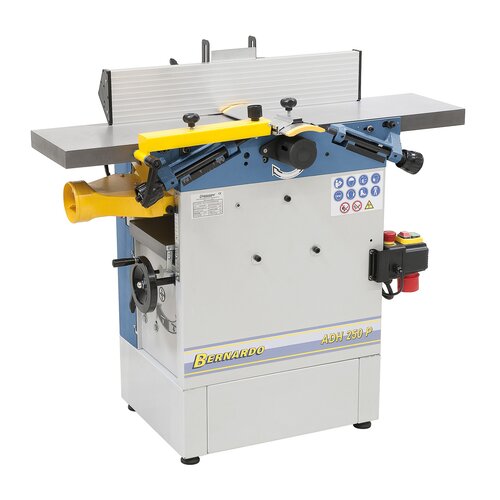

Surface planer and thicknesser ADH 250 P / 230 V *

Art.Nr.: 08-1018A

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The ADH 250 P planer and thicknesser is ideal for the precise planing of boards and planks. This model features a thicknessing height of 185 mm and the machine can optionally be equipped with a mortising unit for slotting and drilling works.

€1,308.00

incl. 20% VAT

Availability

In Stock

Deliverable in 2-3 business days

Product Properties

Both planing tables feature fi ne adjustment and are designed with slots to keep noise level down
Easy setting of chip removal (max. 2,5 mm)
Torsion-free planing tables made out of solid cast iron
Integrated, tiltable dust hood, extraction outlet 100 mm
Precisely bedded 3-knife cutterblock incl. HSS-cutter knives
Solid aluminium fence, tiltable from 90° to 45°
Corrugated infeed rollers and rubber-coated outfeed rollers for optimal workpiece feed
Workpiece infeed can be switched off when planing
Tables can be tilted upright to allow easy workpiece infeed when thicknessing
Thicknessing table with center column and support guarantees precise thicknessing
Perfect machine for planing of boards, planks, beams etc.

Product Specifications

Planer
Planing width	250 mm
Table length	1090 mm
Table height	830 mm
Shaft rotation speed	4000 rpm
Cutter knives	3 pcs.
Planer shaft diameter	75 mm
Planer fence	715 x 130 mm
Fence tiltable	90° to 45°
Max. cutting depth	5 mm
Thicknesser
Table length	600 mm
Working width	245 mm
Working thickness, min./max.	5 - 185 mm
Max. cutting depth	2,5 mm
Feed speed	4,8 m/min

Dust extraction outlet	100 mm
Motor power output S₁ 100%	1,5 kW (2,0 HP)
Motor power input S₆ 40%	2,1 kW (2,8 HP)
Voltage	400 V
Machine dimension (L x W x H)	1100 x 750 x 1010 mm
Weight approx.	148 kg
