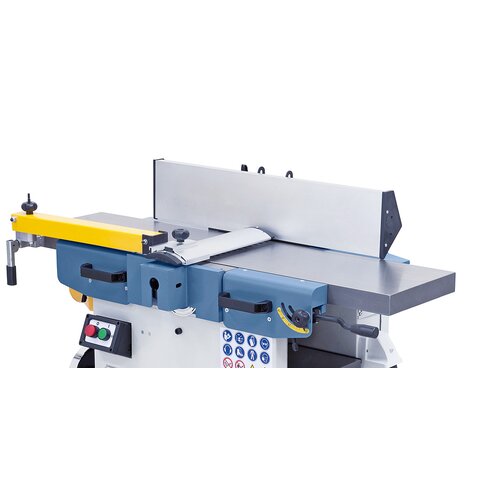

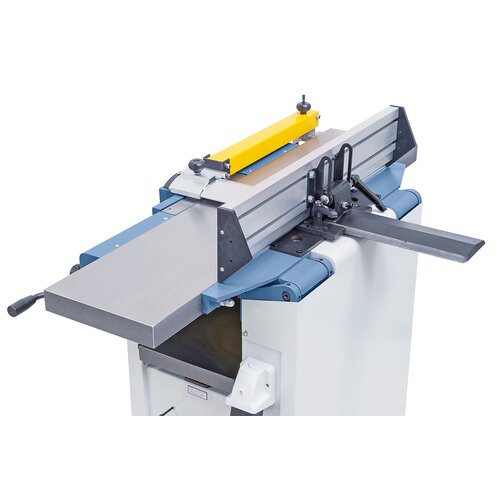

The large surface of the aluminium planing fence allows absolute accuracy when processing large, heavy workpieces.

Quick and easy adjustment of chip removal (up to 3 mm).

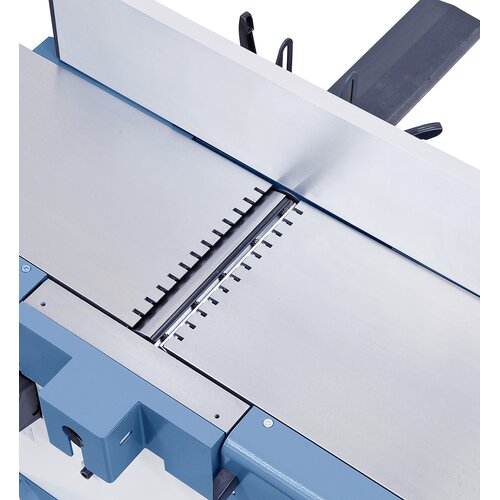

The table is designed with slots on both sides to minimize the noise level.

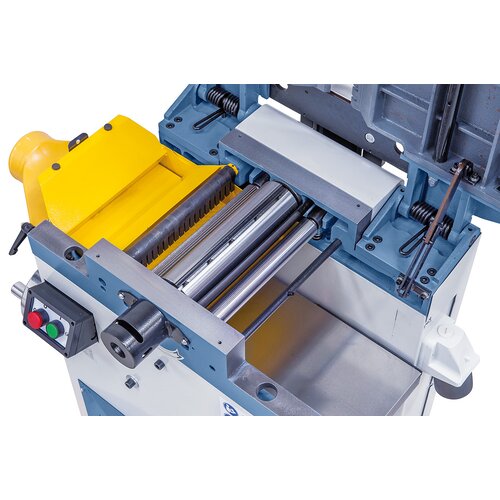

The planing unit consists of a dynamically balanced 3-knife cutterblock, in- and outfeed roller and massive anti-kickback devices.

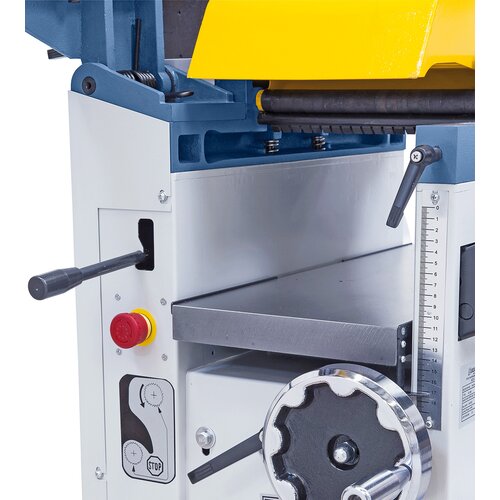

Solid thicknessing table with spindle guide and support for accurate planing of board, slats, planks etc.

Simultaneous folding of planing tables ensure maximum comfort.

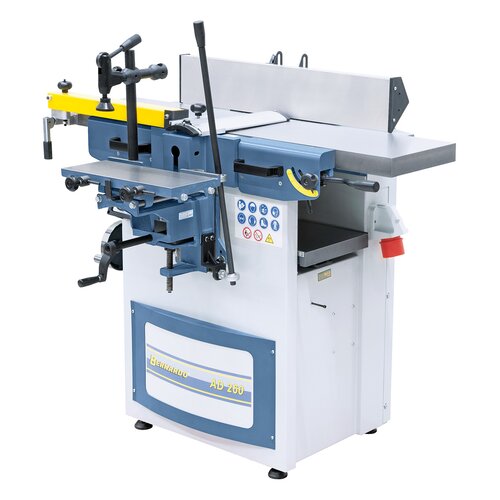

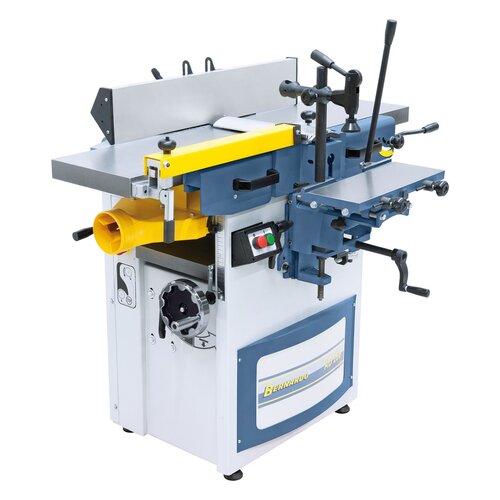

The optional mortising unit is ideal for drilling dowel, long and oblique holes.

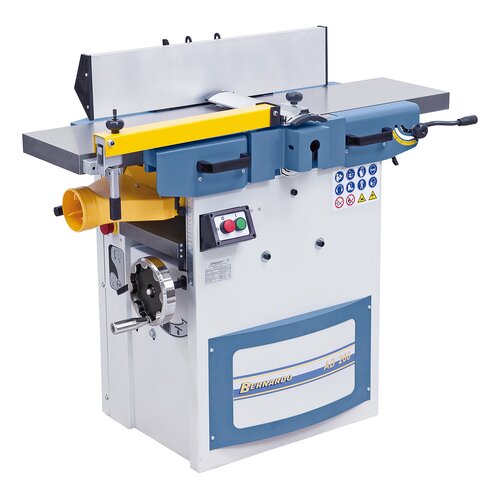

Surface planer and thicknesser AD 260 / 400 V *

Art.Nr.: 08-1052

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

Introducing the AD 260 model, positioned for the professional home user with an optimal price-to-performance ratio. It meets demands such as stability, high performance and safety. Another advantage is the short conversion time from planing to thicknessing due to the simultaneous tilting of the planing tables.

€1,584.00

incl. 20% VAT

Availability

In Stock

Deliverable in 2-3 business days

Product Properties

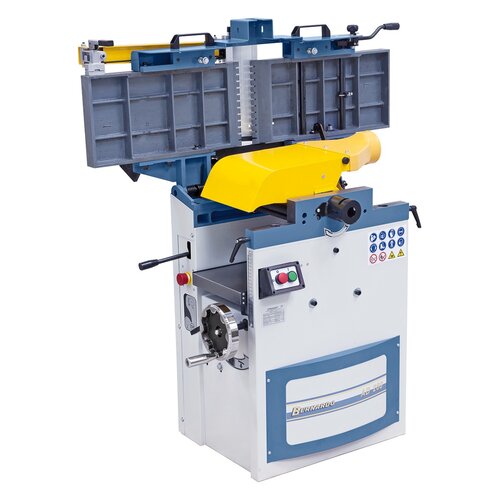

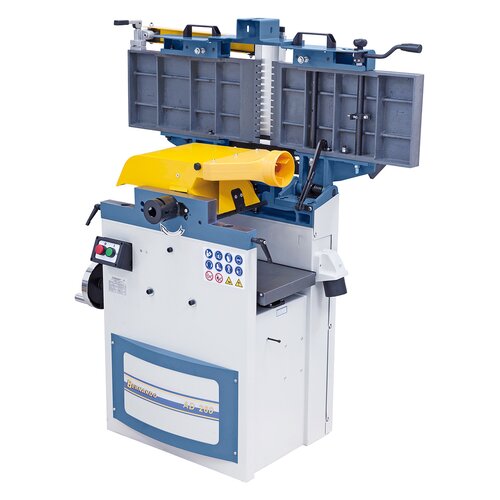

Planing tables tilt to the back of the machine to keep space requirements to a minimum
Precisely bedded, smooth running 3-knife cutterblock guarantees optimal results
Integrated, tiltable dust hood, extraction outlet 100 mm
Simultaneous tilting of planing tables to achieve maximum comfort
Thicknessing table feed can be switched off when planing

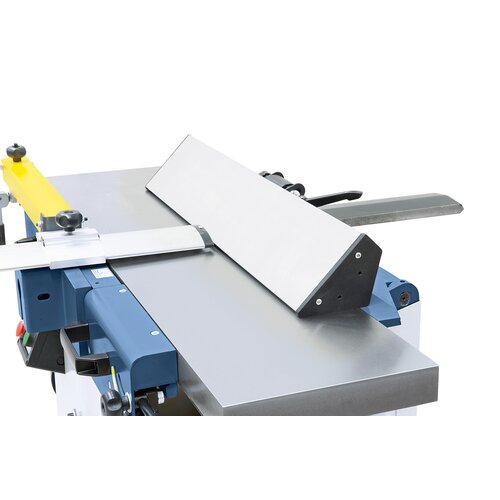

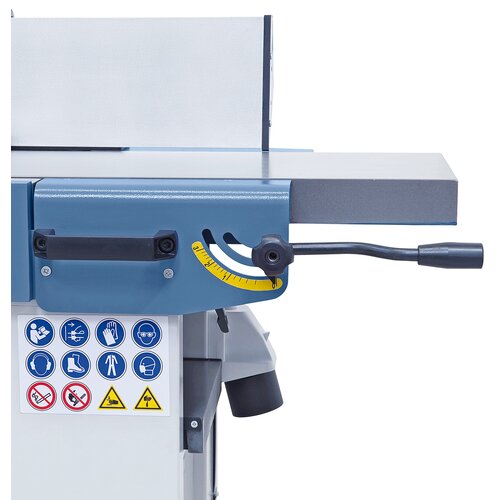

Hard-anodized aluminium planing fence, tiltable from 90° to 45°

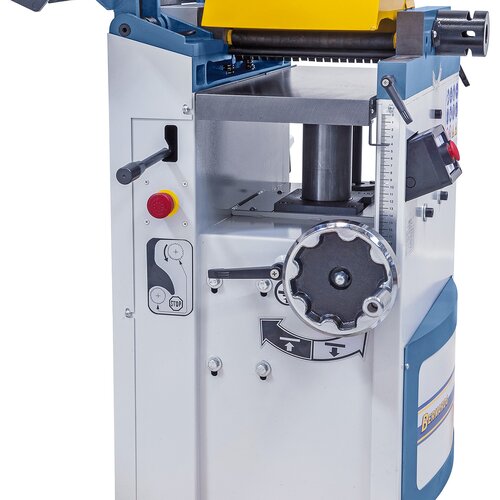

Thicknessing table with central column and support allow precise planing
Torsion-free, cast iron planing tables guarantees best results
Numerous safety devices: On/Off switch with undervoltage release, cutterblock cover in accordance with CE, limit switch to avoid accidental machine start,...

Product Specifications

Planer
Planing width	250 mm
Table length	1090 mm
Table height	835 mm
Shaft rotation speed	4000 rpm
Cutter knives	3 pcs.
Planer shaft diameter	75 mm
Planer fence	715 x 130 mm
Fence tiltable	90° to 45°
Max. cutting depth	3 mm
Thicknesser
Table length	600 mm
Working width	250 mm
Working thickness, min./max.	5 - 185 mm
Max. cutting depth	2,5 mm
Feed speed	4,8 m/min


Dust extraction outlet	100 mm
Motor power output S₁ 100%	2,0 kW (2,7 HP)
Motor power input S₆ 40%	2,8 kW (3,8 HP)
Voltage	400 V
Machine dimension (L x W x H)	1150 x 800 x 1000 mm
Weight approx.	173 kg
