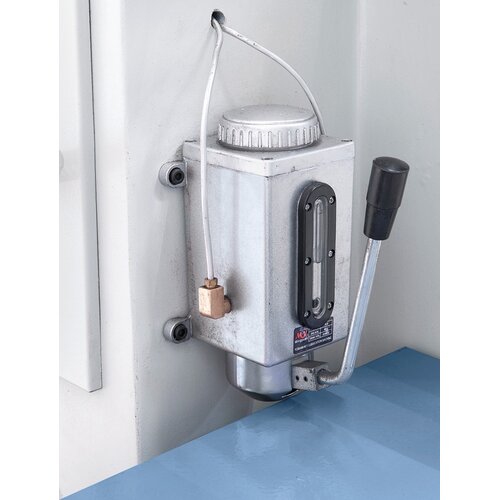

Central lubrication for all guide rails and spindles.

Polished flat guide allows precise feed of grinding head.

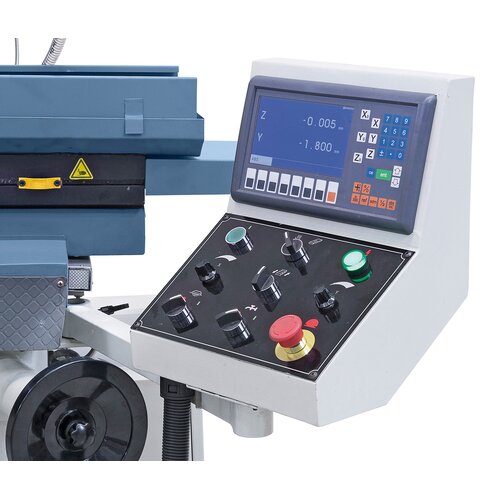

2-axis digital readout with LCD- display comes standard

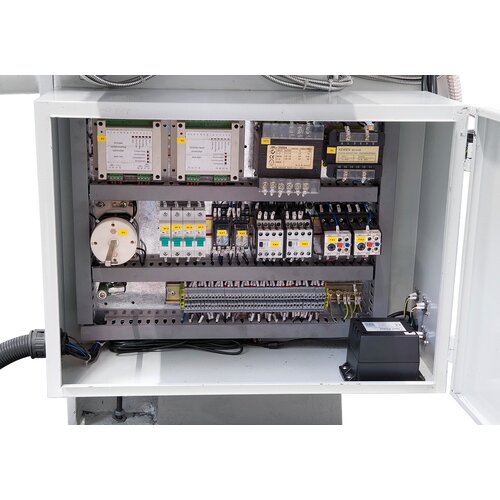

High-quality electronical parts guarantees a consistent run.

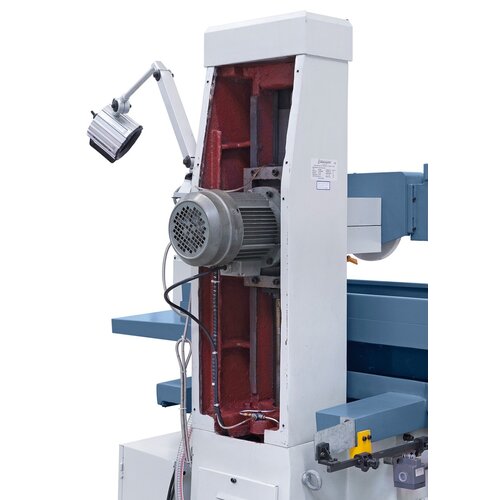

The pre-tensioned special bearings of the spindle assure a vibration-free run and highest accuracy.

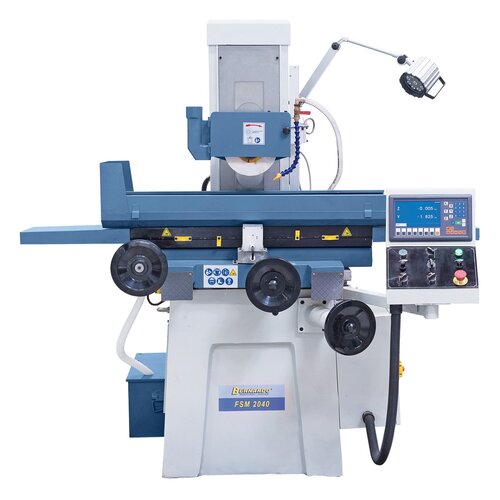

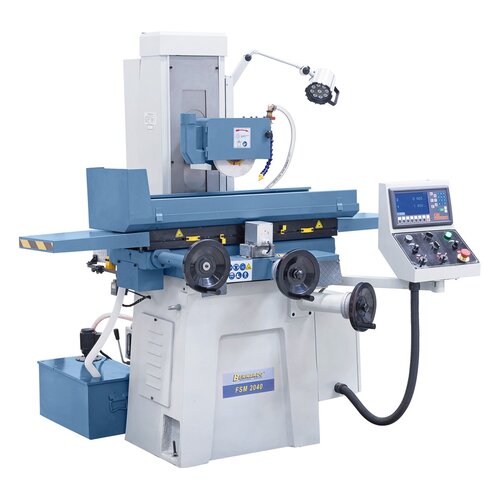

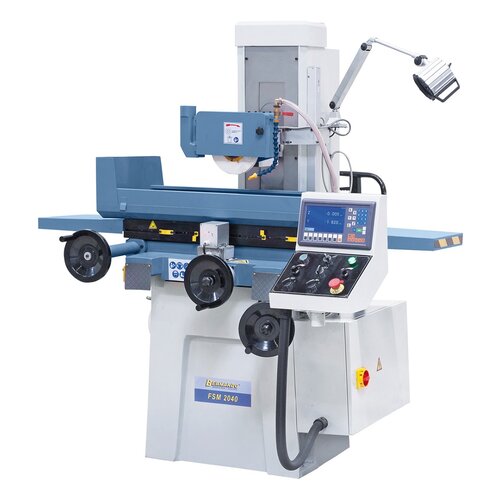

Surface grinding machine FSM 2040 **

Art.Nr.: 05-1404

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The FSM 2040 is a solidly constructed surface grinding machine with compact dimensions. The high user-friendliness makes this model ideal for training workshops, education as well as tool and die making.

€11,736.00

incl. 20% VAT

Availability

Out of Stock

Product Properties

High quality bearings of spindle ensure vibration-free run
Hardened, polished linear guiding for table longitudinal movement
Double V-guide of cross table movement
Main parts, such as stand, base and apron made of high quality grey cast iron
Completely equipped with 2-axis digital readout and permanently magnetic clamping plate
Central lubrication of all guide rails
Essential for grinding of small parts and fast grinding

Product Specifications

Table dimensions	500 x 210 mm
T-slot quantity / width	1 / 14 mm
Permanent magnet clamping plate	200 x 400 mm
Max. travel, longitudinal	530 mm
Max. travel, cross	220 mm
Max. distance spindle / table	420 mm

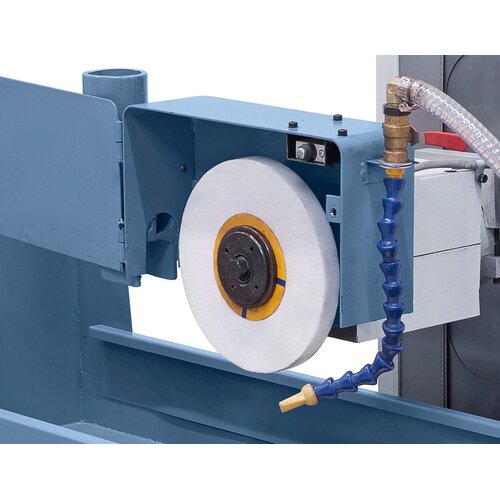

Grinding wheel	200 x 20 x 31,75 mm
Table speed, electric	3 – 20 m/min
Cross adjustment
Table speed, electric	0,1 – 2 m/min
Adjustment per handwheel rotation	2,5 mm
Scale division on handwheel	0,02 mm
Vertical adjustment
Adjustment per handwheel rotation	1,25 mm
Scale division on handwheel	0,01 mm
Motor power of sanding spindle	1,5 kW
Spindle speed	2800 rpm
Length	1250 mm
Depth	1400 mm
Height	1730 mm
Weight approx.	750 kg
