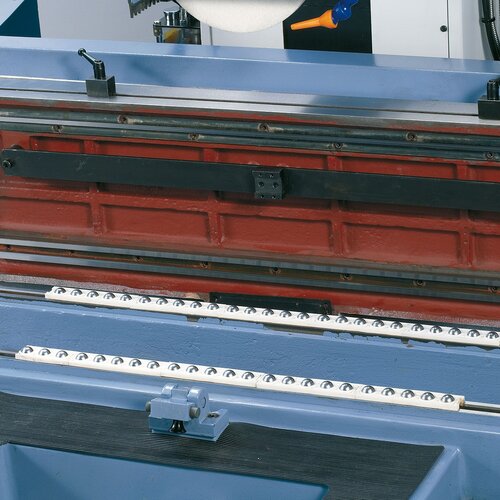

The machine features a table with a maintenance-free linear ball bearing and a toothed-belt drive.

Polished flat guide allows precise feed of grinding head.

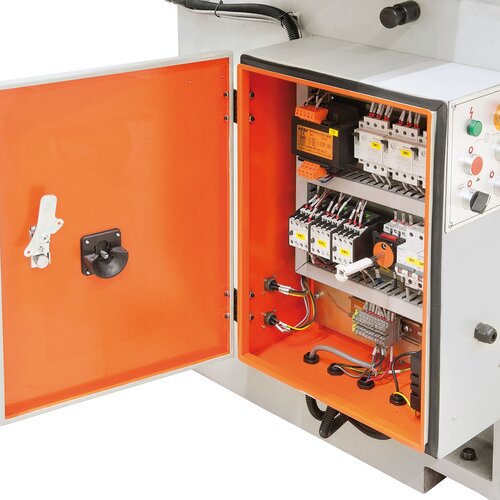

High-quality electronical parts guarantees a consistent run.

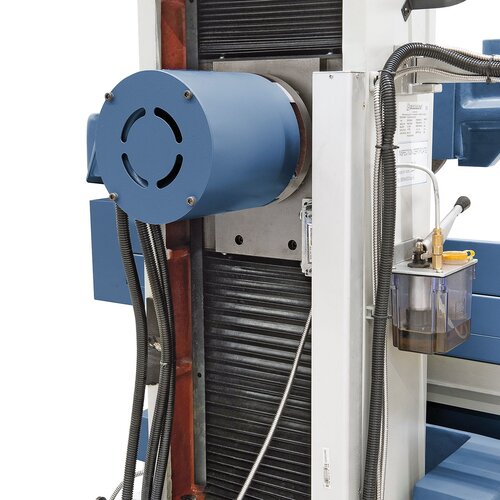

The pre-tensioned special bearings of the spindle assure a vibration-free run and highest accuracy.

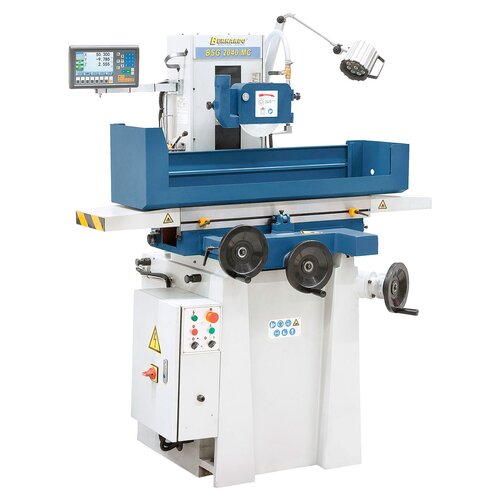

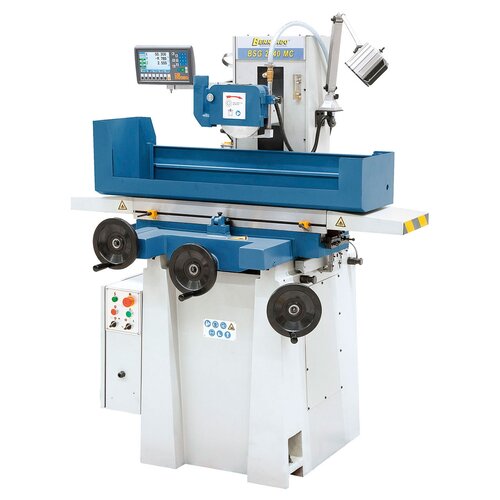

Surface grinding machine BSG 2040 MC incl. 2-axis digital readout ES-12 H **

Art.Nr.: 05-1444

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The BSG 2040 MC is a solidly constructed surface grinding machine with compact dimensions. The high user-friendliness make this model ideal for training workshops, education as well as tool and die making.

€12,432.00

incl. 20% VAT

Availability

In Stock

Deliverable in 2-3 business days

Product Properties

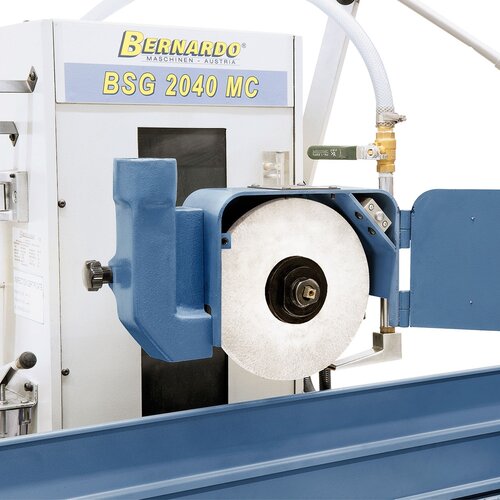

High quality bearings of spindle ensure vibration-free run
Hardened, polished linear guiding for table longitudinal movement
Double V-guide of cross table movement
Main parts, such as stand, base and apron made of high quality grey cast iron
Maintenance-free, permanently lubricated spindle

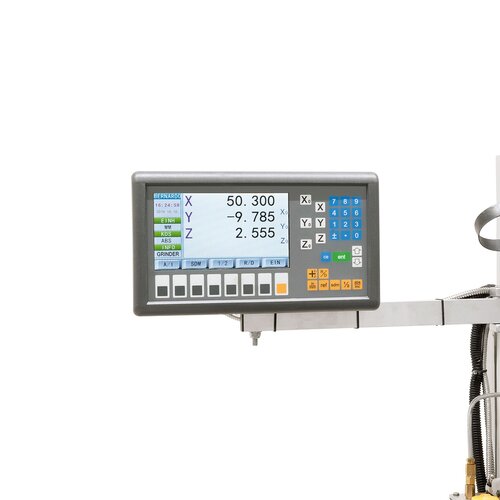

Completely equipped with 2-axis digital readout and permanently magnetic clamping plate
Central lubrication of all guide rails
Essential for grinding of small parts and fast grinding

Product Specifications

Table dimensions	445 x 205 mm
T-slot quantity / width	1 / 13 mm
Permanent magnet clamping plate	200 x 400 mm
Max. travel, longitudinal	560 mm
Max. travel, cross	225 mm
Max. distance spindle / table	440 mm
Grinding wheel	200 x 13 x 31,75 mm
Cross adjustment
Manual adjustment	5 mm/rev.
Scale division on handwheel	0,02 mm
Vertical adjustment
Manual adjustment	1 mm/rev.
Scale division on handwheel	0,005 mm
Spindle speed	2850 rpm
Coolant device	55 l
Motor power	1,5 kW
Machine dimension (W x D x H)	1460 x 1200 x 1740 mm
Weight approx.	850 kg
