Stepless setting of bevel width with adjustable stop bar

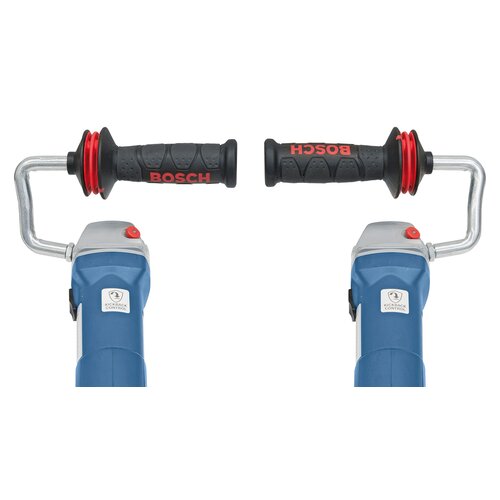

Ergonomic handle for high work comfort, alternatively mountable on the left or right side.

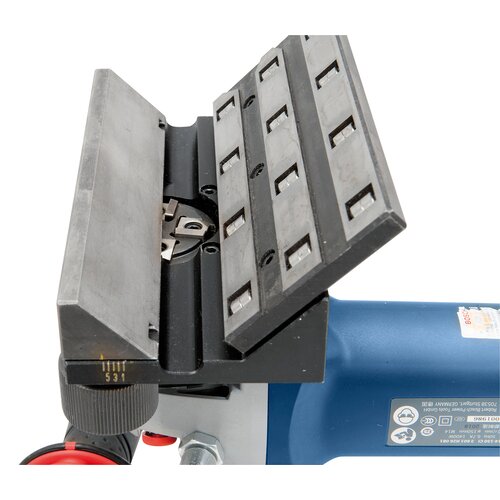

Includes milling head with commercial HM-reversible plates.

Complete with rolls to minimize friction resistance

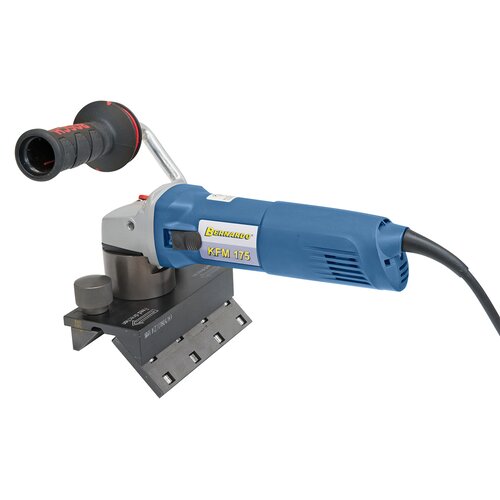

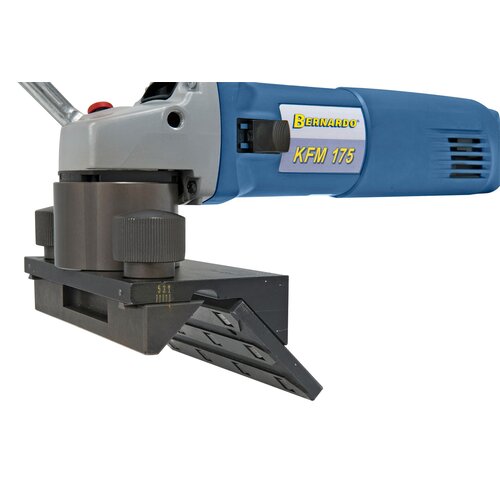

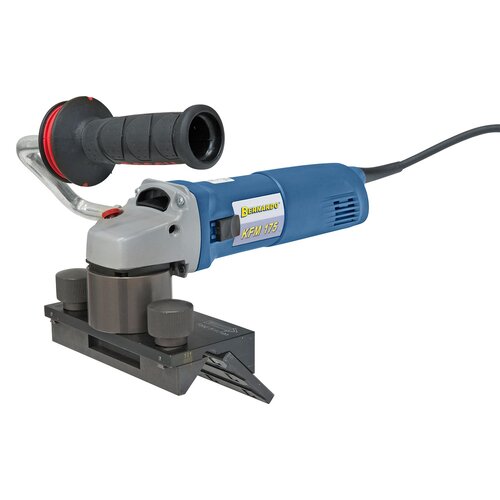

Straight edge chamfering machine KFM 175

Art.Nr.: 05-1648

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The chamfering machine KFM 175 is suitable for chamfering, preparation of bevelled edges and economic preparation of welding seams of straight edges. The rollers integrated in the guide rail ensure a constant feed during work.

€558.00

incl. 20% VAT

Availability

In Stock

Deliverable in 2-3 business days

Product Properties

Application area is directly on workpiece, ideal for processing of large boards

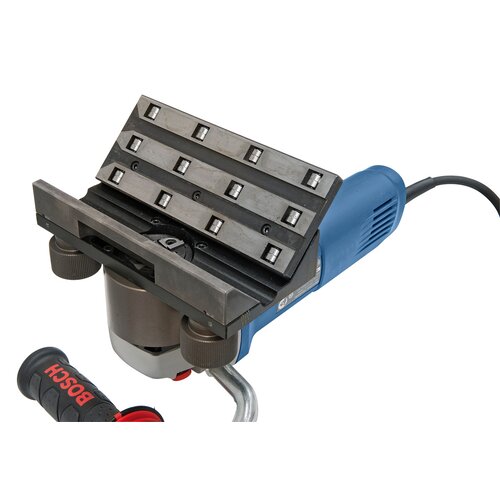

Guide rails are hardened and feature integrated rolls for easy feed
Essential machine in steel and machine construction and mounting works
Powerful drive motor (1400 W) featuring high torque
Ergonomic two-hand control ensures high working comfort
Designed for chamfering straight edges and preparation of welding seams
Suitable for steel, stainless steel, aluminium and non-ferrous metals

Product Specifications

Max. bevel width at 45°	5 mm
Angle adjustment	45°
Guide rail	175 mm
Speed	10000 rpm
Motor power	1400 W
Voltage	230 V
Machine dimension (L x W x H)	320 x 190 x 230 mm
Weight approx.	5,2 kg
