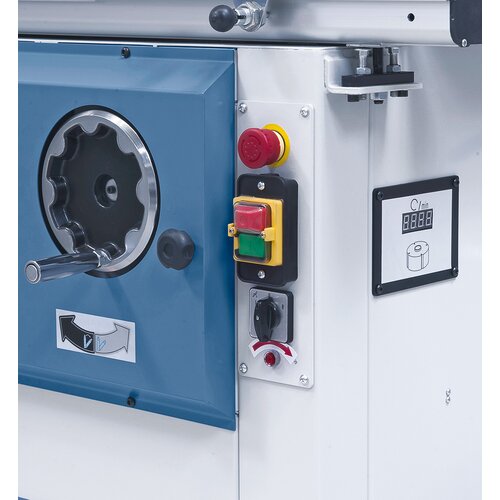

The electronic control elements are ergonomically arranged at the front of the machine.

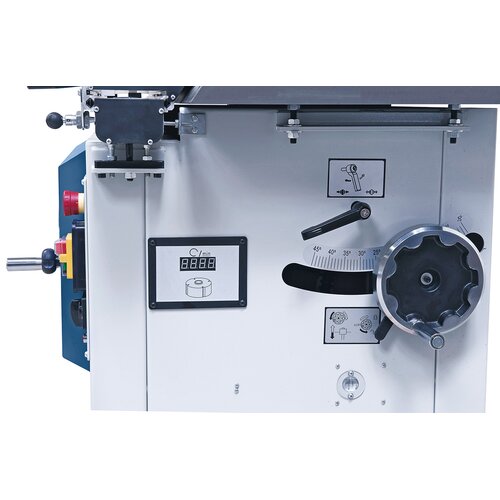

Electronic display of spindle speed settings.

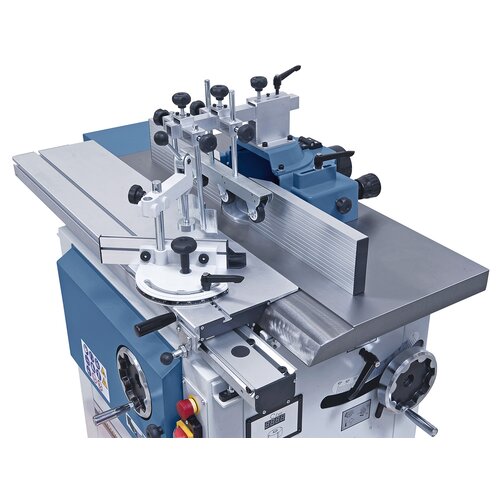

The aluminium stop bars can easily be adjusted to each cutting tool in a very short time – furthermore they feature fine adjustment.

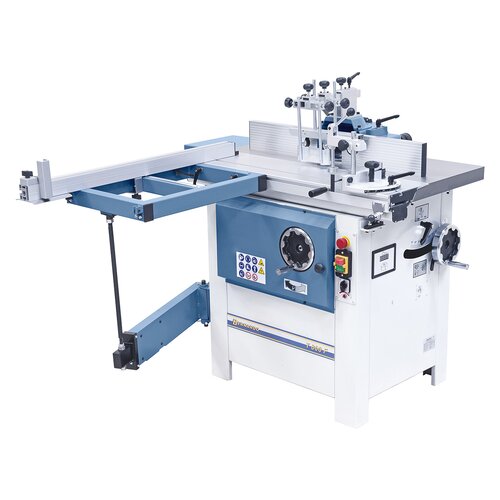

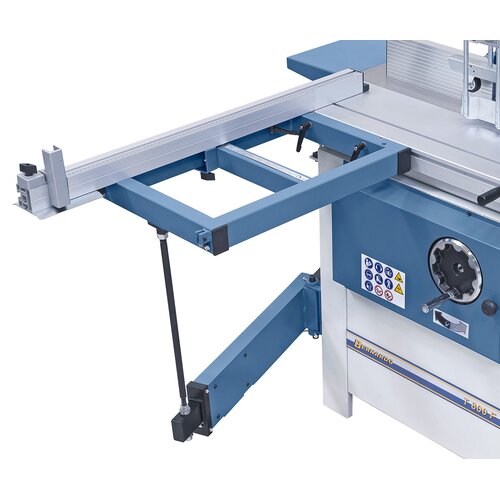

Complete with sliding table to allow for convenient processing of large workpieces.

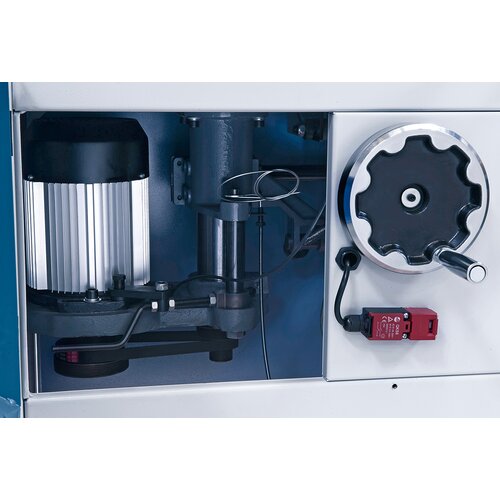

The large opening on the front of machine ensures quick and easy speed change.

The aluminium stop bar can be mounted at the front of rear of the square table.

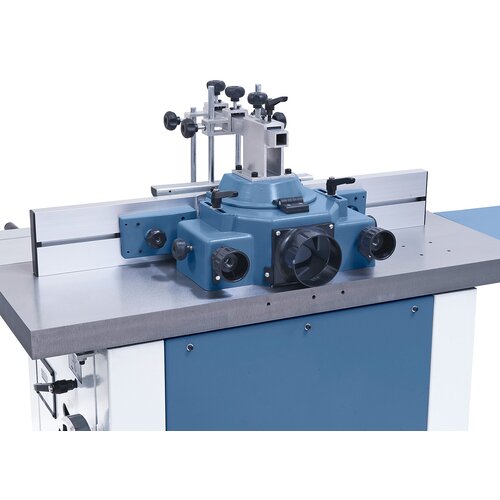

Picture shows optionally available square table with stop bar.

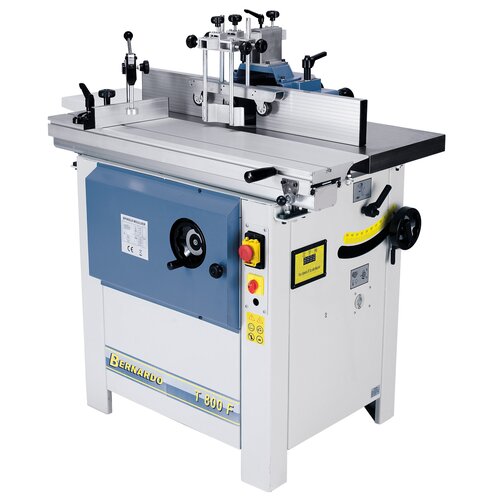

Spindle moulder with tilting spindle T 800 F / 230 V

Art.Nr.: 09-1279

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The T 800 F is a reliable spindle moulder with tilting spindle providing outstanding quality at a relatively low cost. The extensive range of applications and optimal work comfort were factored into the design of this model, as well as high safety standards and a user-friendly operating method.

€3,072.00

incl. 20% VAT

Availability

In Stock

Deliverable in 2-3 business days

Product Properties

Smooth sliding table allows for easier processing of large workpieces
Solid moulding fence features finely adjustable aluminium fence rails
Quick and easy readout of spindle speed on digital display
Mitre fence with eccentric holder is part of standard equipment
Dynamically balanced moulder spindle ensures for precise run
V-belt allows for fast and convenient speed change
Solid square table for processing of large workpieces without needing extra support (optional extra)
All alluminium parts (sliding table, fences etc.) are anodized
Large, grey cast-iron moulder unit, tilts from +5º to -45º
Moulder spindle tilts to the back which results in the following advantages: optimal use of power feeder, high safety standards and immaculate finish

Product Specifications

Table size	1000 x 360 mm
Table size sliding table	1000 x 240 mm
Size square table (optional)	600 x 410 mm
Working height	895 mm
Spindle diameter	30 mm
Tilting spindle	-5° to +45°
Height adjustment of spindle	100 mm
Working length of spindle	100 mm
Max. tool diameter	200 mm
Max. tool diameter concealed	180 mm
Table opening	200 mm
Spindle speed	1800 / 3000 / 6000 / 9000 rpm
Dust extraction outlet	100 mm
Motor power output S₁ 100%	2,8 kW (3,8 HP)
Motor power input S₆ 40%	3,9 kW (5,3 HP)
Voltage	230 V
Machine dimensions (W x D x H)	1240 x 710 x 1200 mm
Weight approx.	218 kg
