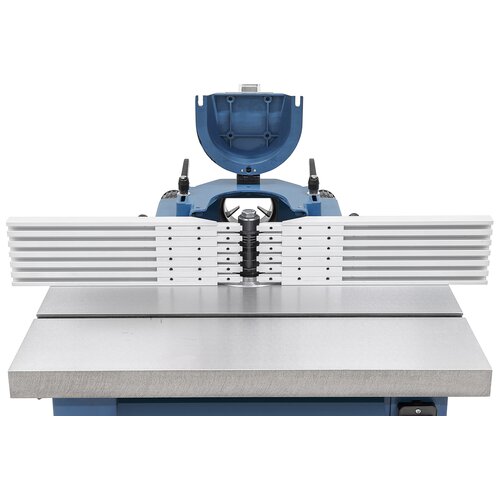

The integral safety guides made from anodized aluminium can be adjusted to any moulder tool and guarantee maximum safety. (Option).

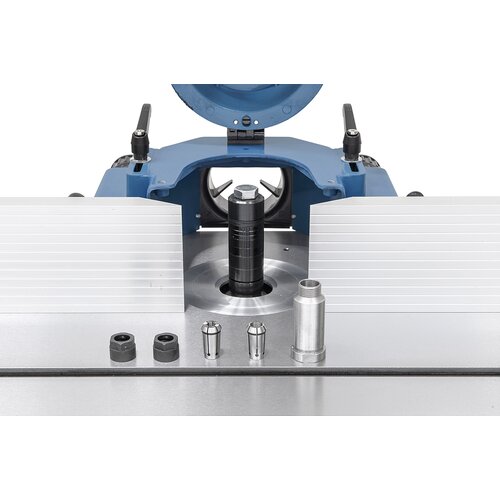

The interchangeable spindle shortens processing times when working on series.

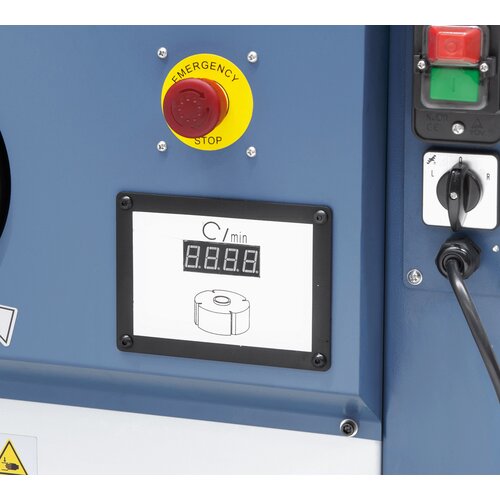

Electronic display of spindle speed settings.

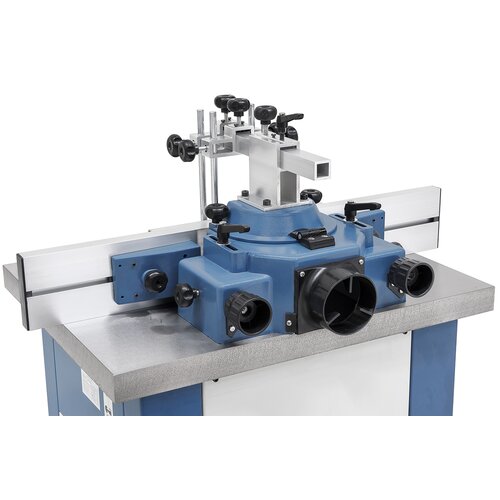

The solid moulding fence can be adjusted for tools up to 200 mm. Stop bars on both sides feature fine adjustment.

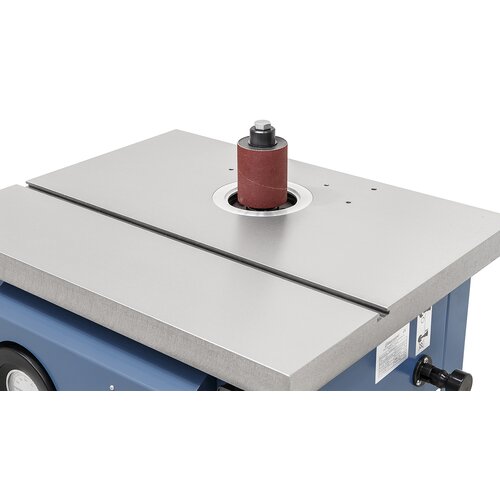

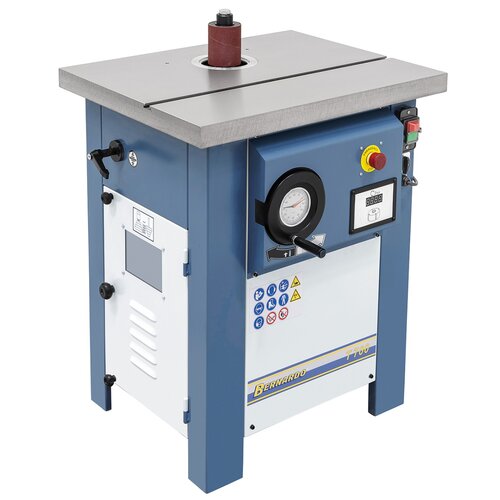

Sanding sleeve (diameter 75 mm) is part of standard equipment.

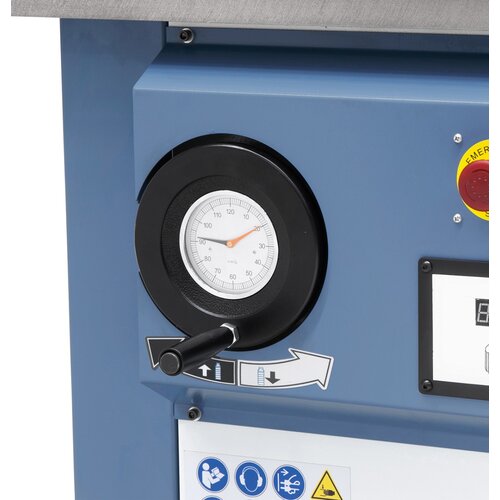

Practically positioned handwheel guarantees quick and easy spindle height adjustment.

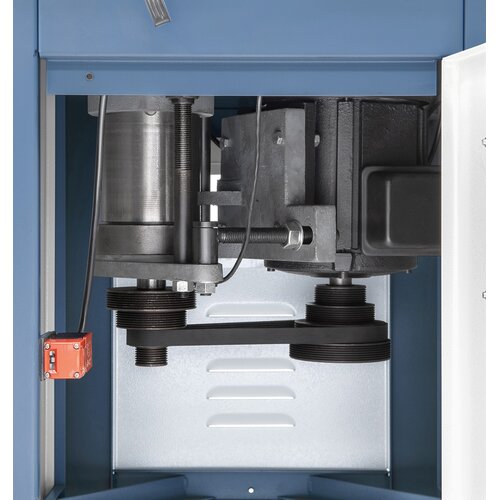

The grey cast-iron moulder unit is easily accessible, which allows for a hassle-free speed change.

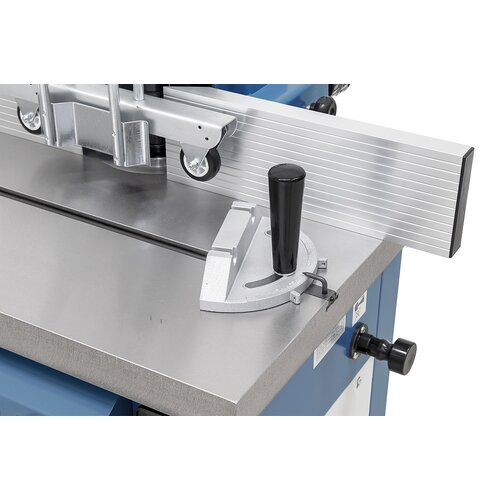

Complete with mitre fence which can be tilted from -60º to +60º.

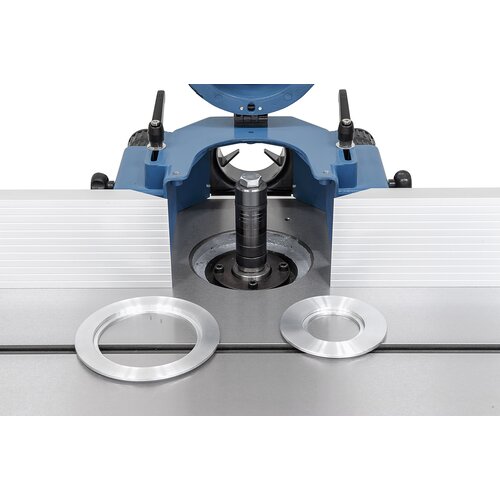

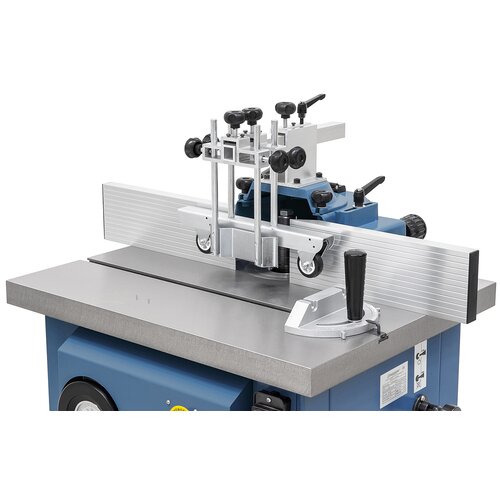

The stop bars of the moulding fence can easily and quickly be adjusted to each cutting tool. The standard protective device eliminates the risk of workpiece kickback.

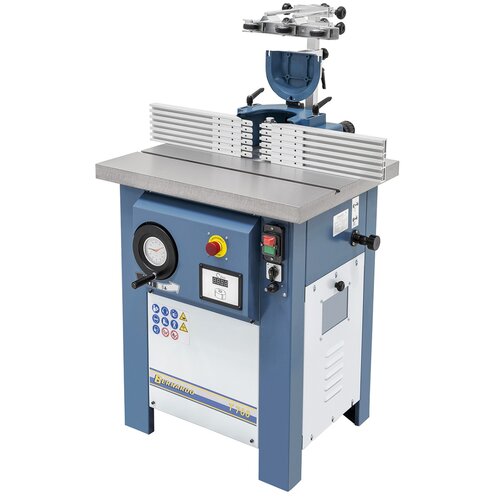

Picture with optional available integral safety guides

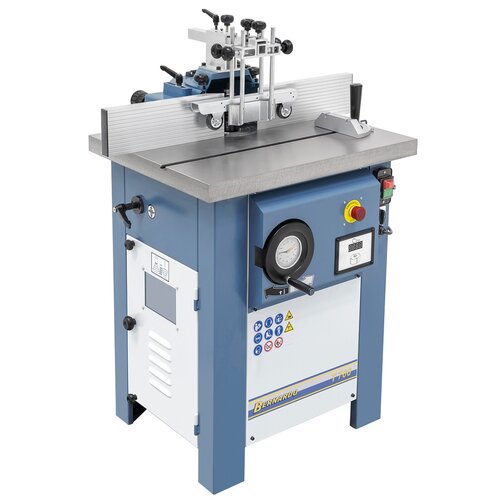

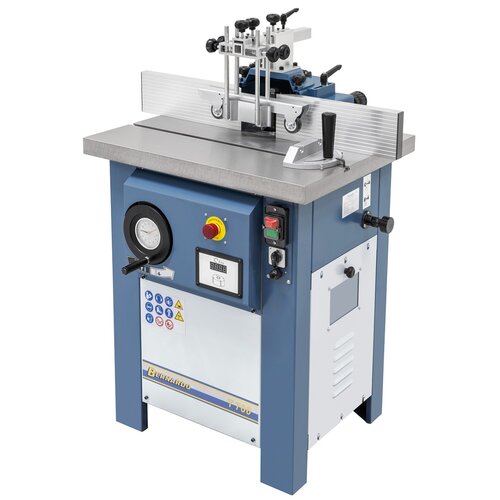

Spindle moulder T 700 / 230 V

Art.Nr.: 09-1263

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The T 700 table spindle moulder design was particular high saftey standards and user-friendly operation in order to create good working conditions and guarantee optimal user comfort. The solid grey cast-iron and steel construction ensures durable quality and precision for a lifetime.

€1,824.00

incl. 20% VAT

Availability

Out of Stock

Product Properties

Solid moulding fence features finely adjustable aluminium stop bars
Quick and easy readout of spindle speed on digital display
Dynamically balanced moulder spindle ensures precise running
V-belt allows for quick and easy speed change
Complete with moulding fence featuring a dust port (diameter 100 mm) and sanding sleeve (diameter 75 mm)
Torsion-free, grey cast-iron machine table for maximum accuracy
Ergonomically arranged switches and control elements guarantee high work comfort
Machine body consists of torsion-free steel construction
Large speed range – 4 settings from 1800 - 9000 rpm
Hand wheel with scale for adjusting the height of the milling spindle

Product Specifications

Table size	700 x 700 mm
Working height	840 mm
Spindle diameter	30 mm
Height adjustment of spindle	105 mm
Working length of spindle	100 mm
Max. tool diameter	200 mm
Max. tool diameter concealed	95 mm
Spindle speed	1800 / 3000 / 6000 / 9000 rpm
Dust extraction outlet	100 mm
Motor power output S₁ 100%	2,2 kW (3,0 HP)
Motor power input S₆ 40%	3,0 kW (4,0 HP)
Voltage	230 V
Machine dimension (W x D x H)	930 x 760 x 1160 mm
Weight approx.	157 kg
