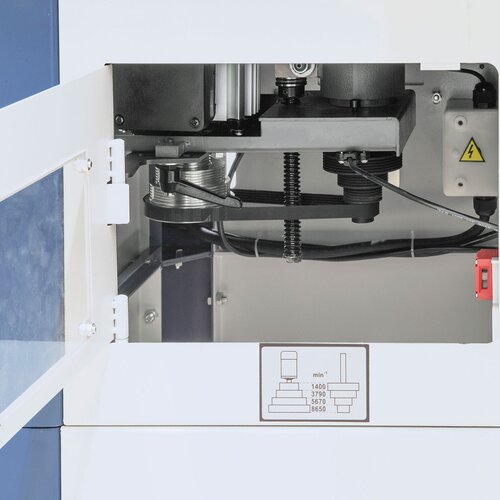

V-belt allows for fast and convenient speed change.
V-belt allows for fast and convenient speed change.

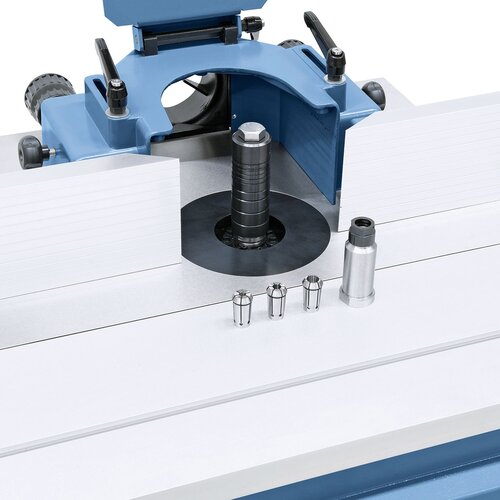

The interchangeable spindle shortens processing times when working on series.
The interchangeable spindle shortens processing times when working on series.

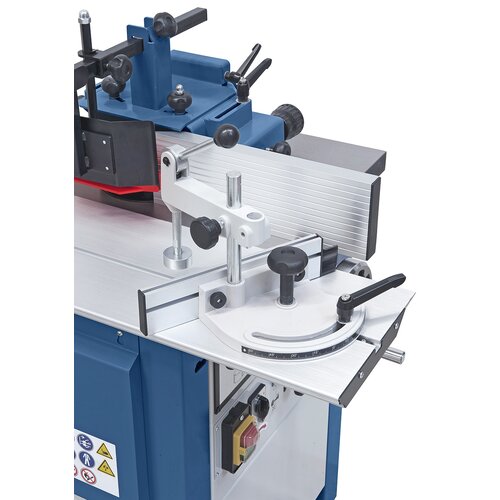

Complete with mitre fence which can be tilted from -60º to +60º.
Complete with mitre fence which can be tilted from -60º to +60º.

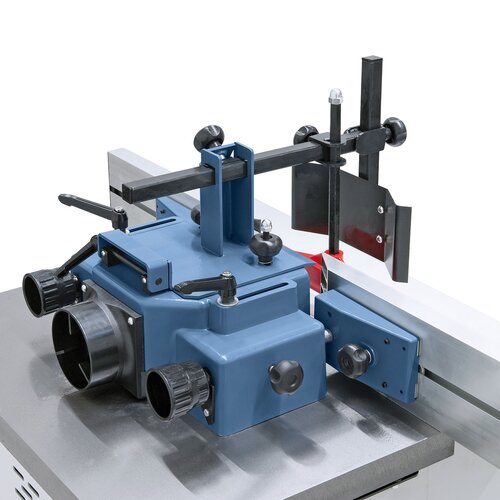

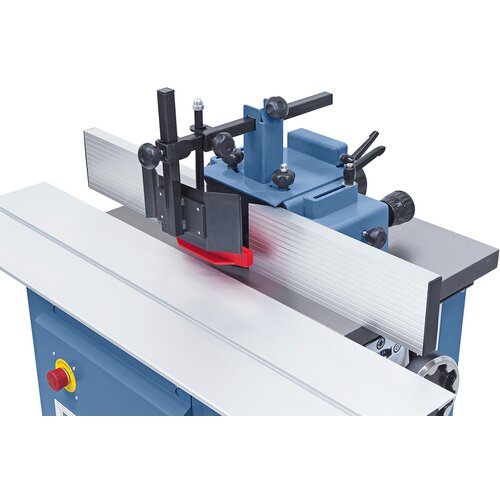

The stop bars of the moulding fence can easily and quickly be adjusted to each cutting tool. The standard protective device eliminates the risk of workpiece kickback.
The stop bars of the moulding fence can easily and quickly be adjusted to each cutting tool. The standard protective device eliminates the risk of workpiece kickback.

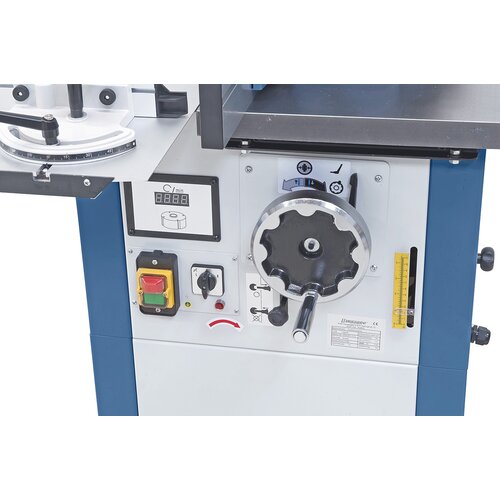

Electronic display of spindle speed settings.
Electronic display of spindle speed settings.
V-belt allows for fast and convenient speed change.
The interchangeable spindle shortens processing times when working on series.
Complete with mitre fence which can be tilted from -60º to +60º.
The stop bars of the moulding fence can easily and quickly be adjusted to each cutting tool. The standard protective device eliminates the risk of workpiece kickback.
Electronic display of spindle speed settings.

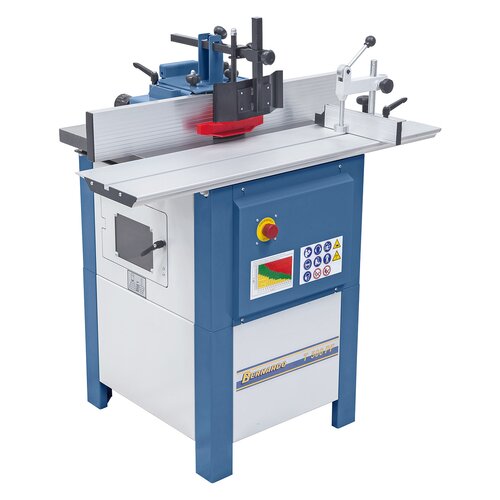

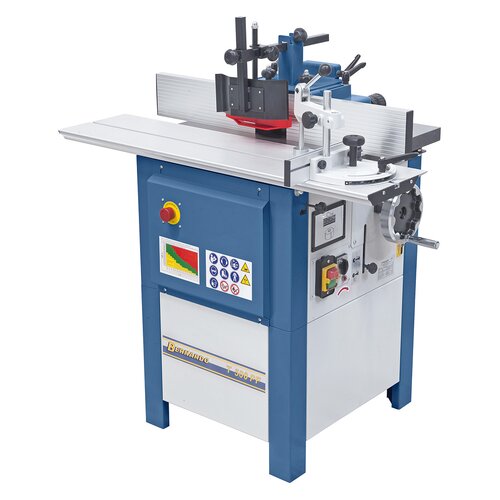

Spindle moulder T 500 PF / 400 V

Art.Nr.: 09-1252B
Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The T 500 PF - an enhanced version of the T 500 PR model - features a sliding table to widen the range of applications enormously and make it an attractive option for experienced amateurs.

€1,452.00

incl. 20% VAT

Availability

In Stock
Deliverable in 2-3 business days

Product Properties

  • Solid, amply sized grey cast-iron table ensures vibration-free run
  • Smooth sliding table for easier procesing of large workpieces
  • 4 speed settings come standard to allow for optimal adjustment to each workpiece
  • Solid moulder unit with powerful motor
  • Robust moulding fence with finely adjustable aluminium stop bars
  • Dynamically balanced moulder spindle ensures precise running
  • Complete with mitre fence and downholder

Product Specifications

Table size

600 x 400 mm

Table size sliding table

1000 x 215 mm

Working height

820 mm

Spindle diameter

30 mm

Height adjustment of spindle

110 mm

Working length of spindle

95 mm

Max. tool diameter

160 mm

Max. tool diameter concealed

160 mm

Spindle speed

1400 / 3790 / 5670 / 8650 rpm

Dust extraction outlet

100 mm

Motor power output S1 100%

1,5 kW (2,0 HP)

Motor power input S6 40%

2,1 kW (2,8 HP)

Voltage

400 V

Machine dimension (W x D x H)

1040 x 730x 1130 mm

Weight approx.

97 kg

Delivery Contents

  • Interchangeable spindle 30 mm
  • Interchangeable spindle for end mills 6, 8, 12 mm
  • Collets 6, 8, 12 mm
  • Sliding table
  • Mitre fence
  • Digital speed indication
  • Downholder
  • Stop bar
  • Protective and pressing device
