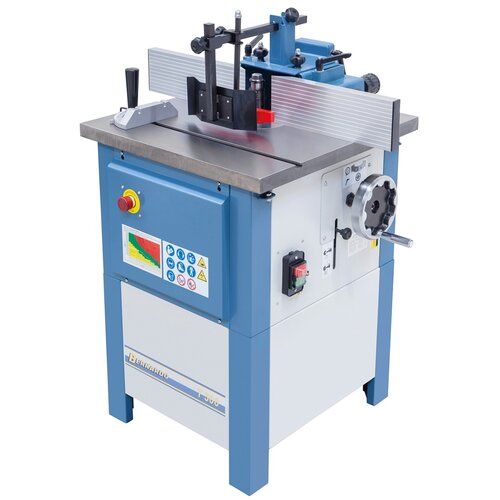

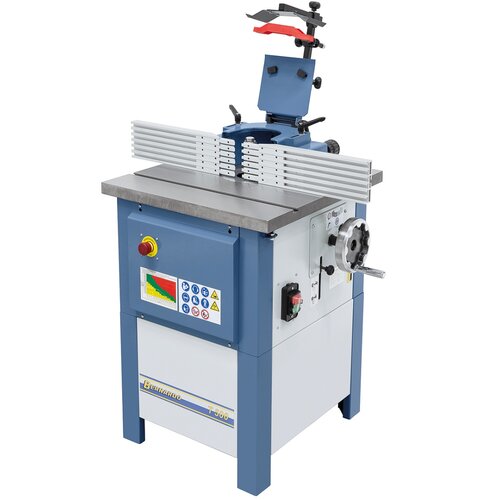

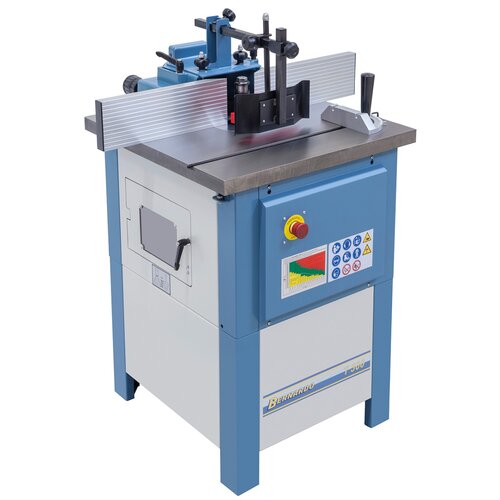

Spindle moulder T 500 / 400 V
Art.Nr.: 09-12500The T 500 table spindle moulder design was particular high saftey standards and user-friendly operation in order to create good working conditions and guarantee optimal user comfort. The solid grey cast-iron and steel construction ensures durable quality and precision for a lifetime.
€1,104.00
incl. 20% VATAvailability
Product Properties

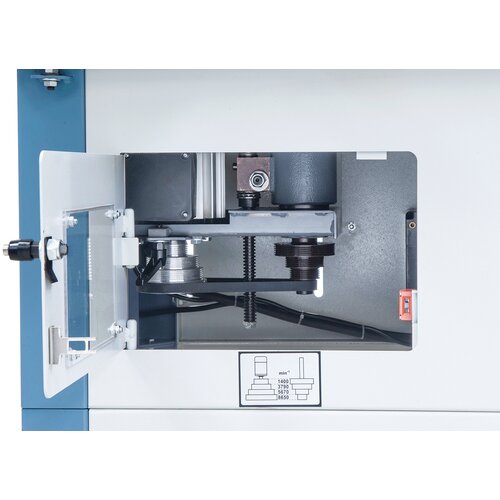

- V-belt allows for fast and convenient speed change

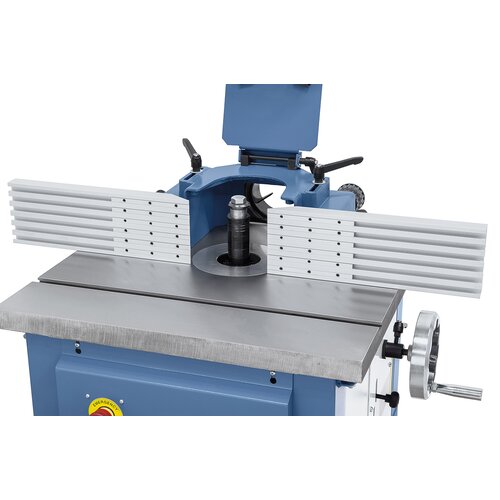

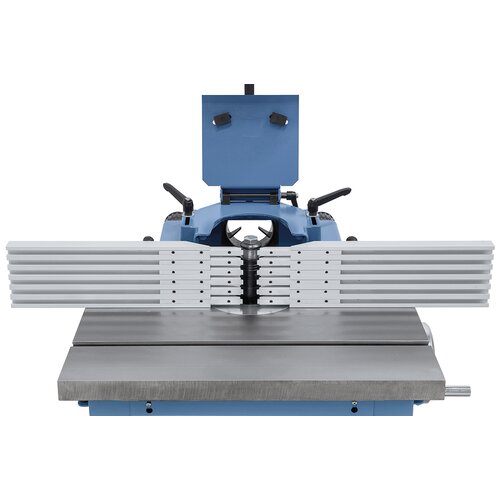

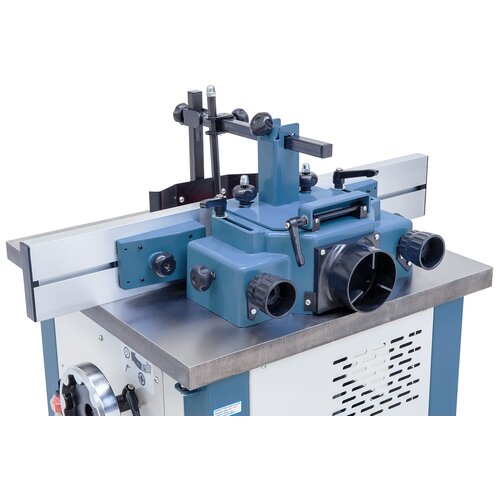

- Moulding fence features finely adjustable aluminium stop bars on both sides
- Machine body consists of torsion-free steel construction
- Amply sized moulding fence with dust extraction outlet 100 mm
- Large speed range – 4 settings from 1400 - 8650 rpm
- Amply sized grey cast-iron moulder unit

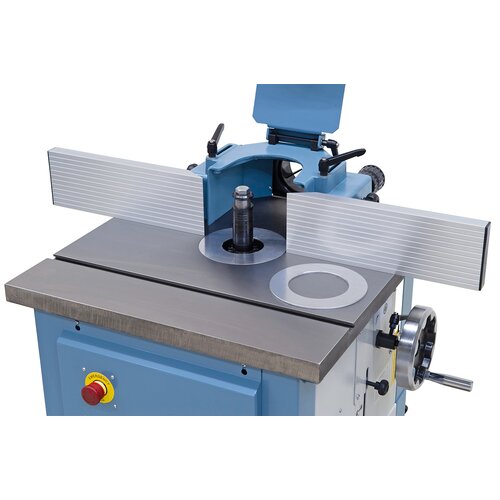

- Dynamically balanced moulder spindle ensures accurate run
Product Specifications
|
Table size |
600 x 620 mm |
|
Working height |
820 mm |
|
Spindle diameter |
30 mm |
|

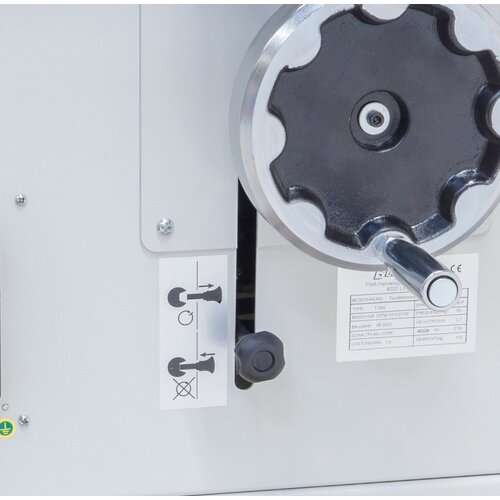

Height adjustment of spindle |
110 mm |
|
Working length of spindle |
105 mm |
|
Max. tool diameter |
160 mm |
|
Max. tool diameter concealed |
160 mm |
|
Spindle speed |
1400/3790/5670/8650 rpm |
|
Dust extraction outlet |
100 mm |
|
Motor power output S1 100% |
1, 5 kW (2,0 HP) |
|
Motor power input S6 40% |
2,1 KW (2,8 HP) |
|
Voltage |
400 V |
|
Machine dimension (W x D x H) |
810 x 670 x 1130 mm |
|
Weight approx. |
104 kg |
Delivery Contents
- Mitre fence

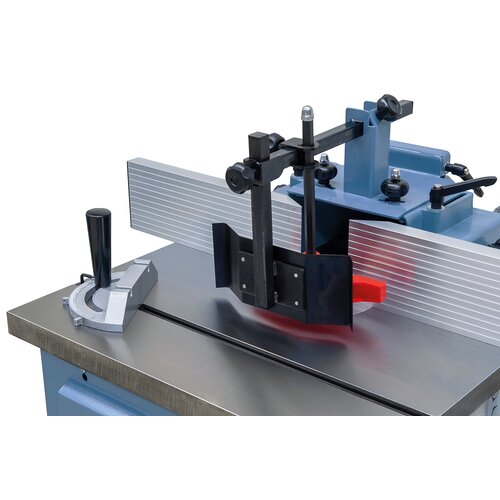

- Protective and pressing device
