Amply sized, grey cast-iron moulder unit features a dynamically balanced moulder spindle to ensure vibration-free operation which guarantees optimal results.

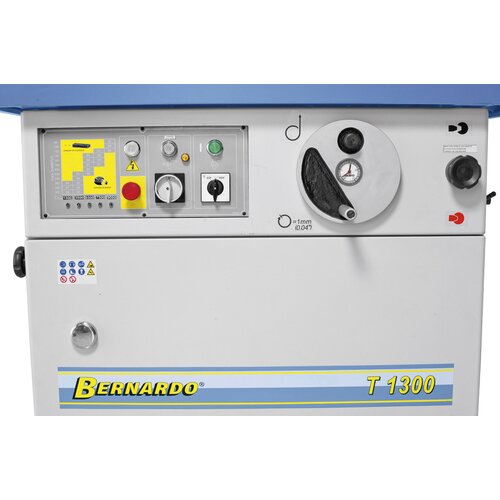

All control elements are positioned at the front of the machine.

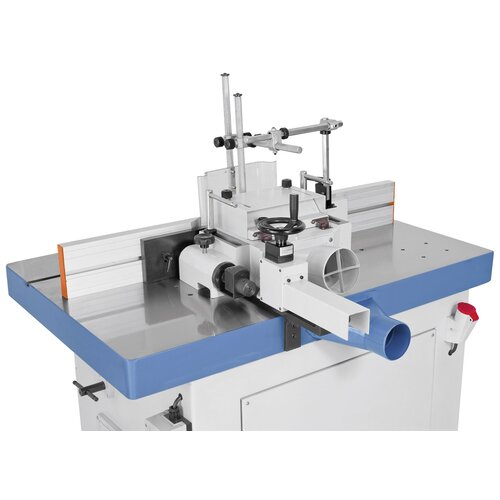

Moulding fence and additional extractor under the table allows for proper dust removal, creating a clean working environment.

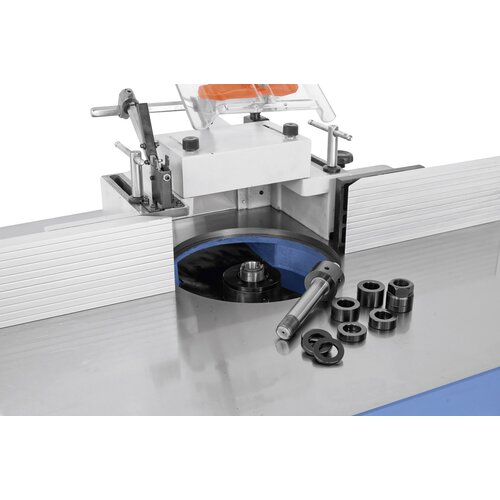

The interchangeable spindle does not change the setting of tools, which significantly reduces time when working on series.

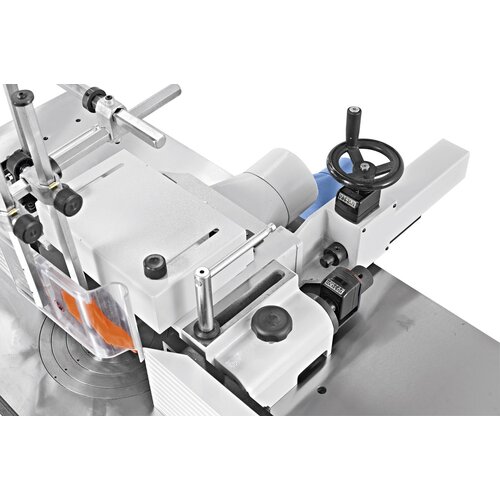

Handwheel allows for fine adjustment of fence. Digital display ensures easy readout to 1/10 mm accuracy.

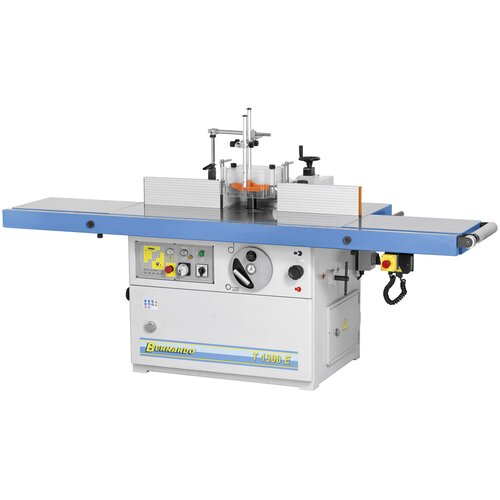

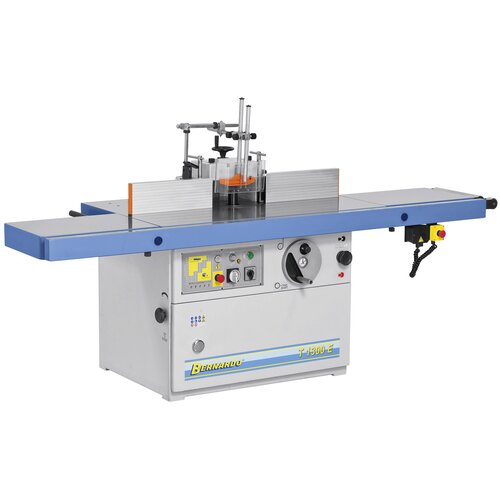

Spindle moulder T 1300 E **

Art.Nr.: 09-1311

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The T 1300 E table spindle moulder design was particular high saftey standards and user-friendly operation in order to create good working conditions and guarantee optimal user comfort. The solid grey cast-iron and steel construction ensures durable quality and precision for a lifetime.

Price on request

Request product now

Availability

Out of Stock

Product Properties

Handwheel with analogue dislay for spindle stroke
Wide speed range – 5 settings – from 1500 to 9000 rpm
Electronic speed display featuring LED for easy readout
Comes with table extension, infeed roller and extractable workpiece support for large workpieces
Complete with interchangeable spindle to guarantee productivity
Dynamically balanced moulder spindle for precise run free from vibrations
Clearly arranged control elements on front of machine
Handwheel allows for adjustment of moulder fence – digital display shows settings to 1/10 mm accuracy

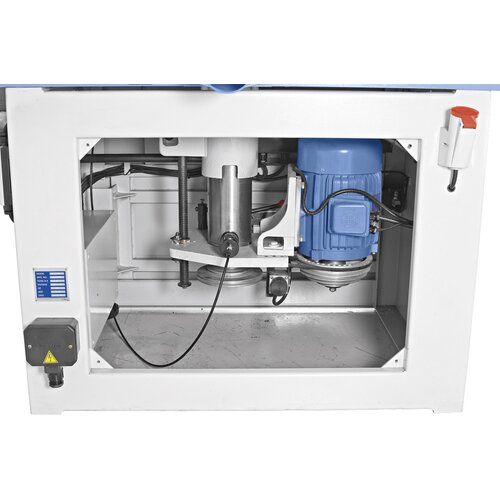

Powerful motor (5.5 kW) with star-delta starter for continuous operation
Generously sized, grey cast-iron moulder unit guarantees top precision and long lifetime

Product Specifications

Table size	2500 x 430 / 850 mm
Table extension left / right	each 600 x 430 mm
Working height	870 mm
Spindle diameter	30 mm
Height adjustment of spindle	180 mm
Working length of spindle	130 mm
Max. tool diameter
- at profiling	260 mm
- at tenoning	335 mm
Max. tool diameter concealed	210 mm
Table opening	220 mm
Spindle speed	1500 / 3500 / 5500 / 7500 / 9000 rpm
Dust extraction outlet	125 / 100 mm
Motor power	5,5 kW (7,5 HP) – 400 V
Machine dimension (W x D x H)	2600 x 1080 / 1200 x 1400 mm
Weight approx.	665 kg
