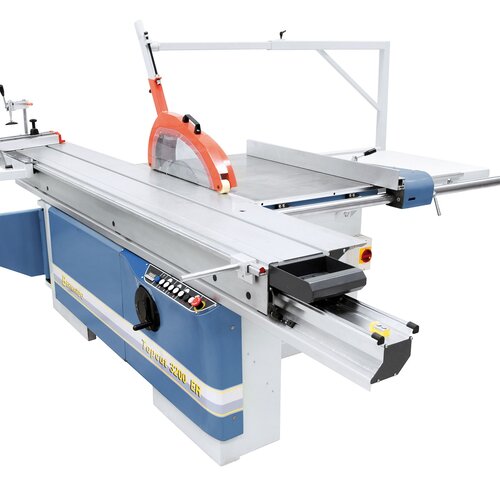

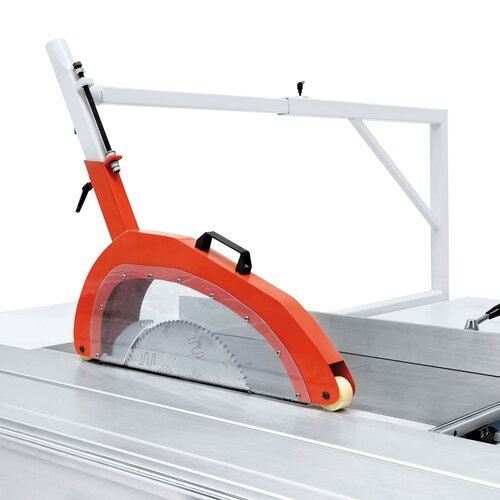

The amply sized sawblade cover is serially equipped with an integrated infeed roller.

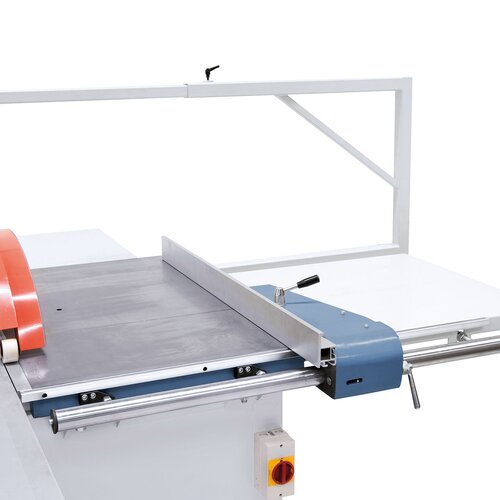

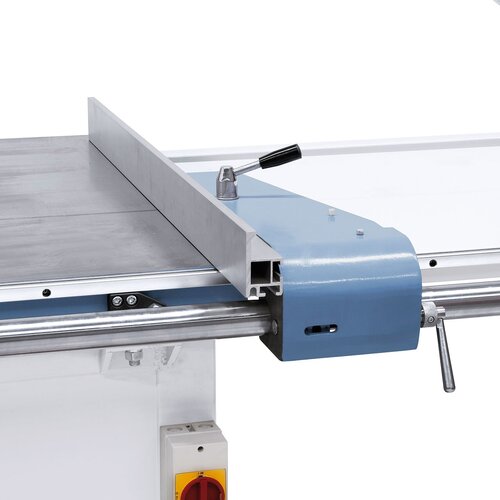

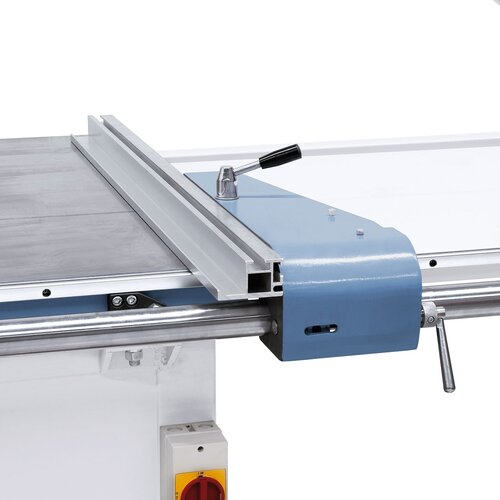

Tiltable parallel fence with micro-metric fine adjustment (advantage with large panels).

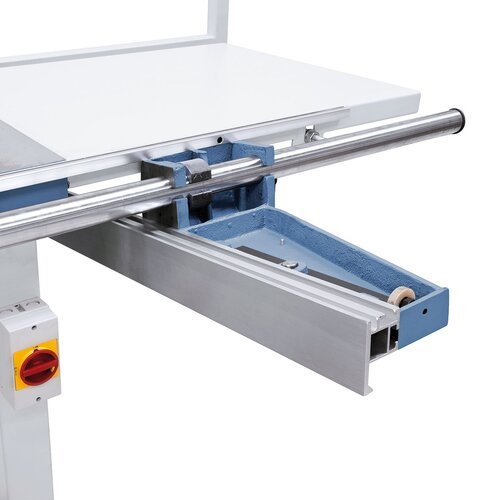

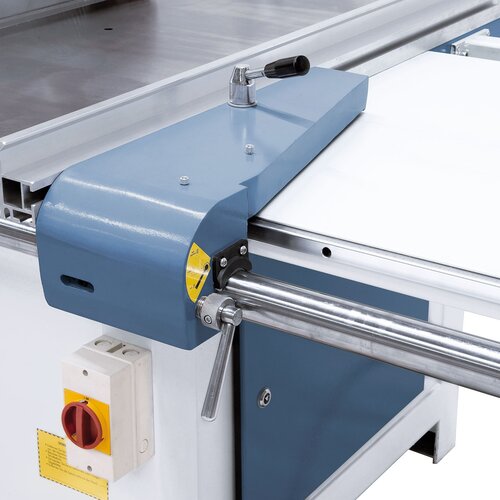

Parallel fence with solid round rod guide can be used for cutting width of up to 1300 mm.

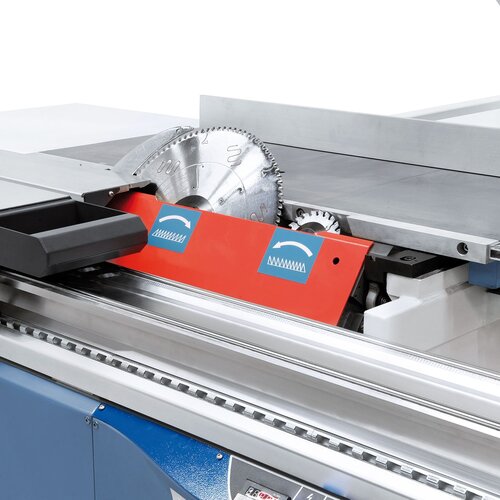

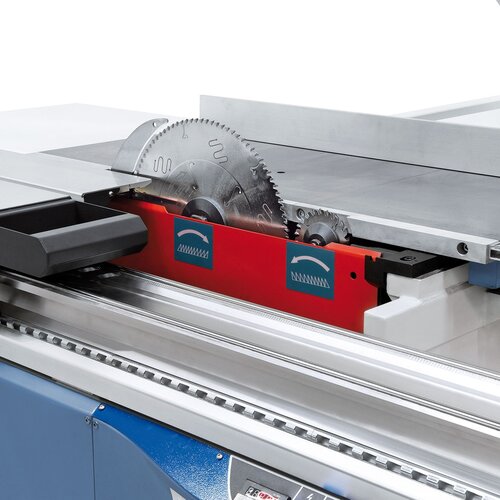

Solid saw unit features grey cast-iron tilting elements supported on both sides.

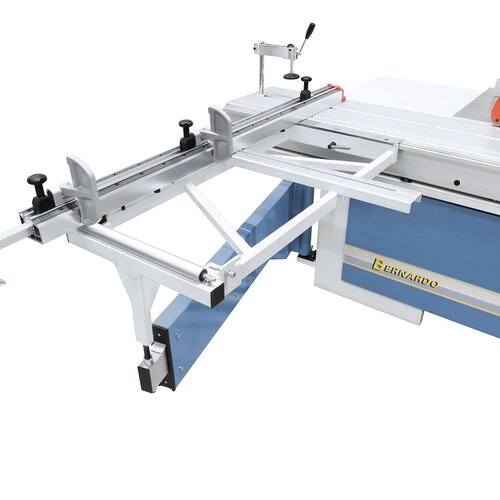

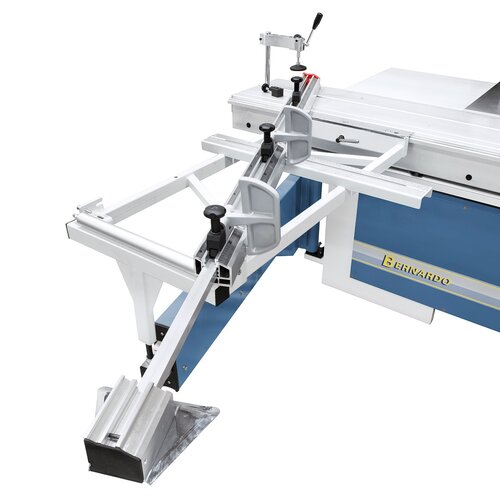

The amply sized square table can be moved along the entire cutting length and can be detached at any position. The extractable telescopic fence with 2 large tiltable stops can be adjusted precisely.

Longitudinal stop usable on both sides and guarantees precise adjustment of cutting width on telescopic fence.

Double roller system ensures a smooth and precise run.

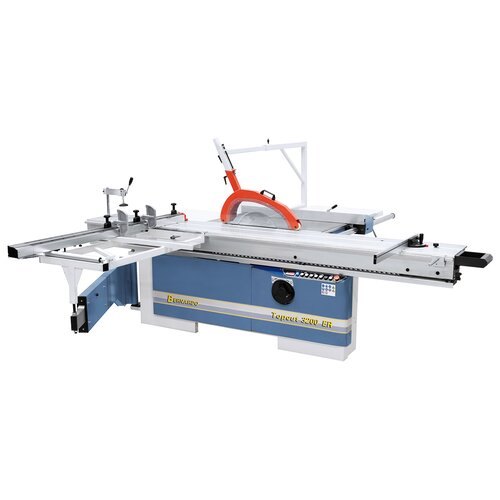

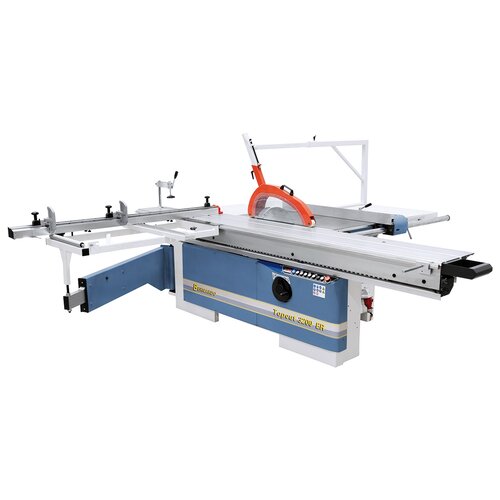

Sliding table saw Topcut 3200 ER *

Art.Nr.: 09-1180BXL

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

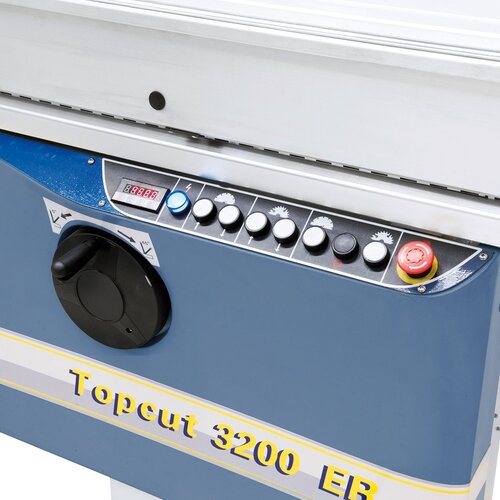

The Topcut 3200 ER is a precise sliding table saw for professional users. The torsion-free machine body made of a steel and grey-cast iron combination and the solid saw unit with a powerful drive motor guarantee a smooth run and a constant cutting speed. Additional this machine is equipped with an electric sawblade height adjustment and a digital cutting height indication.

€8,352.00

incl. 20% VAT

Availability

Out of Stock

Product Properties

Powerful drive motor (5.5 kW) features a high torque, designed for optimal cutting capacity
Smooth running sliding table on double rollers locks at middle or end position for precise cuts
Maximum sawblade diameter 400 mm for cutting height up to 125 mm
Square table with roll for more convenience with large workpieces
Tiltable parallel fence with micro-metric fine adjustment (advantage with large panels)
Equipped with separately driven scoring unit (motor power 0.75 kW)
Solid saw unit with grey cast iron tilting elements supported on both sides
Table extension for cutting width up to 1300 mm
All aluminium parts (square table, fences etc.) are anodized
Extractable telescopic fence (up to 3200 mm) can be mounted at front or back of square table, stepless tiltable between 90º and 45º.

Product Specifications

Table size	1100 x 735 mm
Sliding table	3200 x 400 mm
Cutting length	3200 mm
Max. sawblade diameter	400 x 30 mm
Max. cutting height 90° / 45°	125 / 88 mm
Cutting width on rip fence	1300 mm
Table height	890 mm
Table extension	600 x 615 mm
Table enlargement	825 x 750 mm
Square table with roll	1240 x 860 mm
Speed main sawblade	3000 / 4000 / 5000 rpm
Speed scoring sawblade	8000 rpm
Scoring sawblade	120 x 20 mm
Dust extraction outlet	100 mm
Motor power output S₁ 100%	5,5 kW (7,5 HP)
Motor power input S₆ 40%	7,5 kW (10 HP)
Motor scoring unit	0,75 kW
Voltage	400 V
Machine dimension (W x D x H)	3420 x 3600 x 1610 mm
Weight approx.	850 kg
