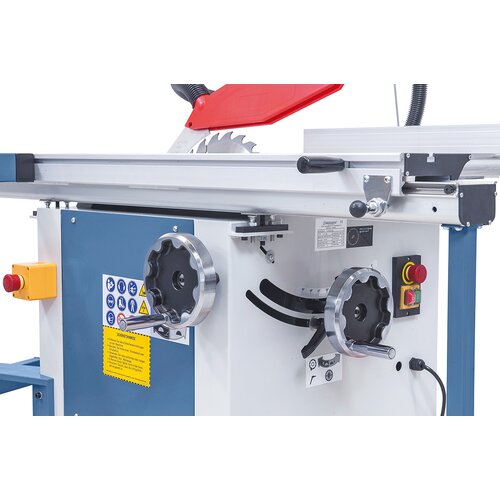

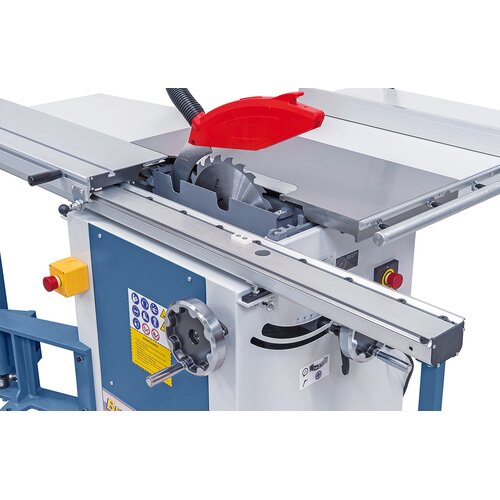

Ergonomic mounted handwheels allow for height adjustment and tilting of the saw unit.

Solid saw unit features grey-cast iron tilting elements supported on both sides.

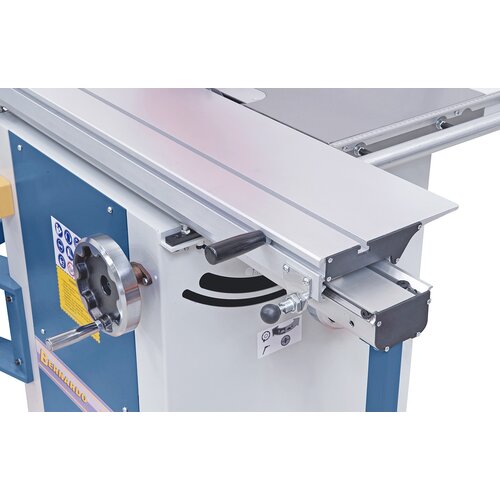

Torsion-free aluminium sliding table features smooth guiding to guarantee precise working.

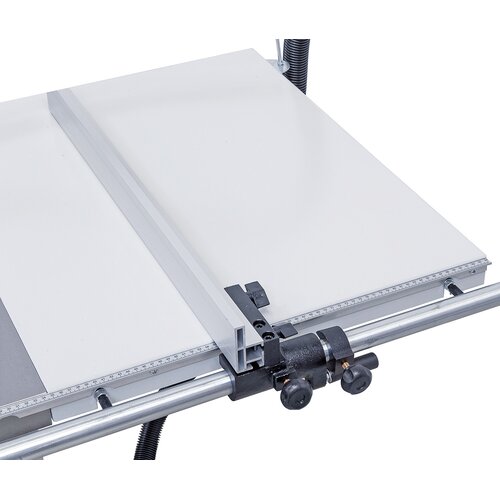

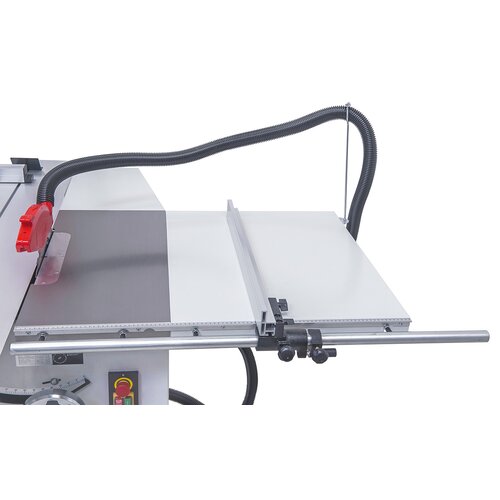

Parallel fence with quick and fine adjustment for cutting width up to 900 mm.

Complete with robust parallel fence, 25 mm round rod guide designed for heavy work loads.

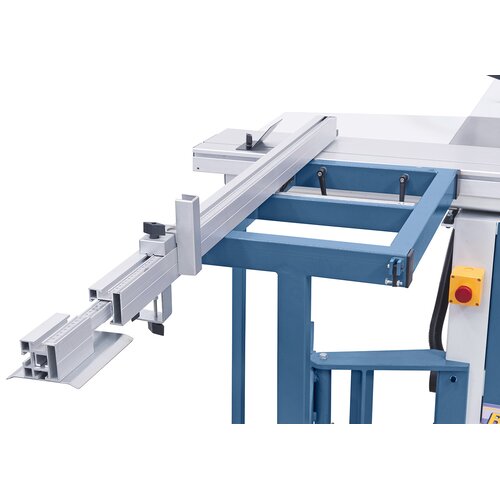

Extractable telescopic fence, mountable at front and rear of square table.

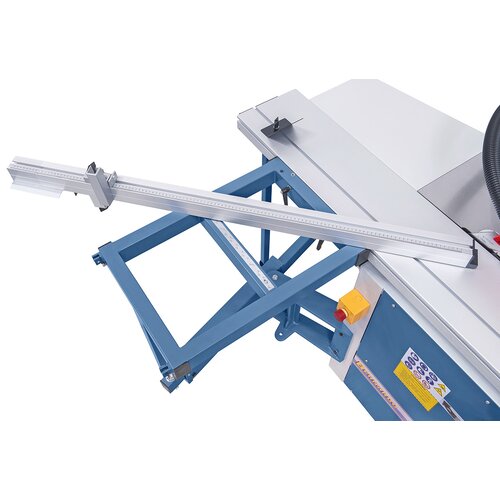

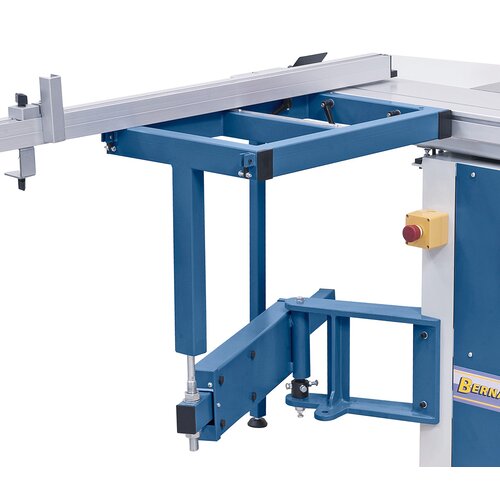

The smooth running sliding table features an additional tilting support arm to allow for processing of large panels.

Generously sized square table for support of large panels.

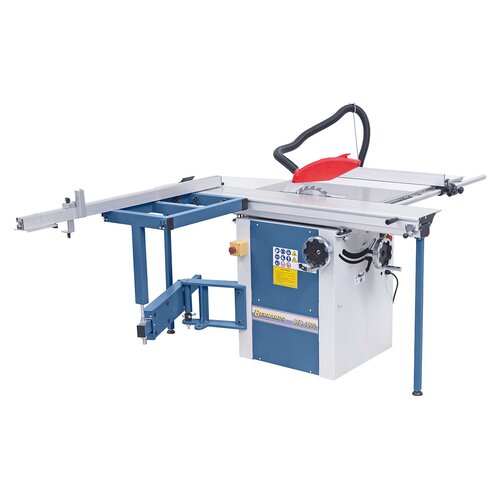

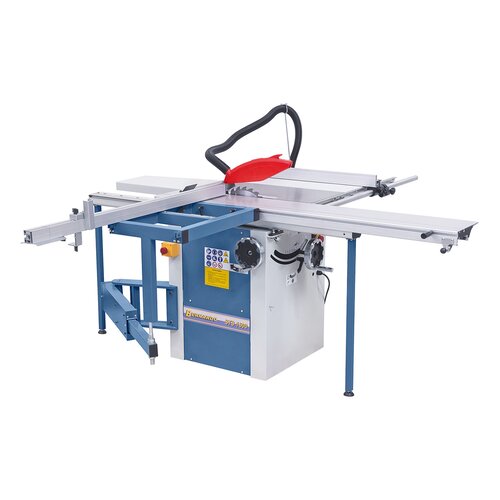

Sliding table saw STS 1600 / 230 V

Art.Nr.: 09-1097

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The STS 1600 is the ideal sliding table saw for the price-conscious experienced amateur. State-of-the-art technical solutions such as compact dimensions, high performance and user-friendly operation make this model unique. Complete with aluminium sliding table and solid square table to allow for processing of large panels.

€2,604.00

incl. 20% VAT

Availability

In Stock

Deliverable in 2-3 business days

Product Properties

Complete with aluminium sliding table with a surface of 1600 x 240 mm
Powerful motor guarantees optimal cutting results een at continuous operation
Part of equipment are table extension and enlargement for better support of larger panels
Sawblade tiltable from 90° to 45° to allow for precise angle cuts
Ensure optimal work conditions by connecting a dust collector to the 100 mm dust port
Includes solid telescopic fence and longitudinally adjustable square table

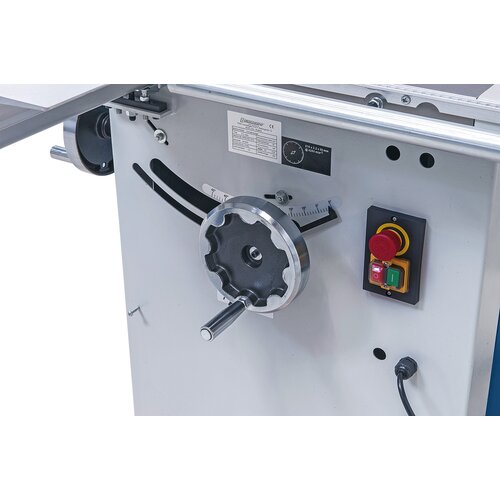

Handwheel and scale allow for up to 45° sawblade tilt
Solid grey cast-iron table features T-slot for the mitre fence
Extractable telescopic fence, steplessly tiltable from 90° - 45°
Hardened prism-shaped guide for smooth running of sliding table
Square table ensures convenient machining of large boards

Product Specifications

Table size	760 x 350 mm
Sliding table	1600 x 240 mm
Cutting length	1600 mm
Max. sawblade diameter	315 x 30 mm
Max. cutting height 90° / 45°	100 / 75 mm
Cutting width on rip fence	900 mm
Table height	870 mm
Table extension	500 x 350 mm
Table enlargement	760 x 600 mm
Square table	600 x 410 mm
Speed main sawblade	4250 rpm
Dust extraction outlet	100 mm
Motor power output S₁ 100%	2,2 kW (3,0 HP)
Motor power input S₆ 40%	3,0 KW (4,0 HP)
Voltage	230 V
Machine dimension (W x D x H)	2000 x 2500 x 1270 mm
Weight approx.	204 kg
