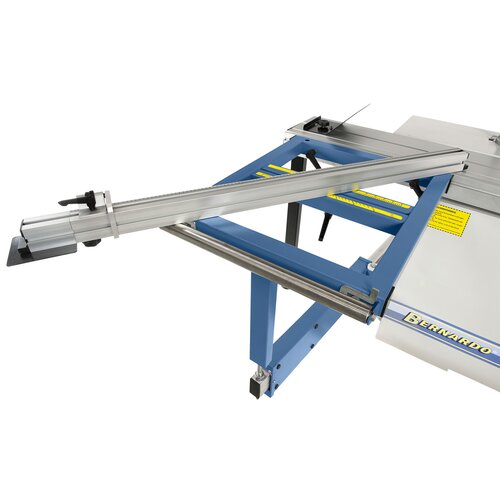

The steplessly tiltable telescopic fence (2x 45°) can be mounted at the front or rear of the square table.
The steplessly tiltable telescopic fence (2x 45°) can be mounted at the front or rear of the square table.

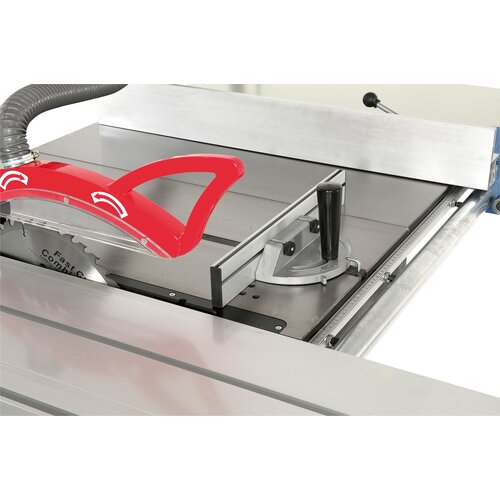

Mitre fence for small workpieces, movable along entire table length.
Mitre fence for small workpieces, movable along entire table length.

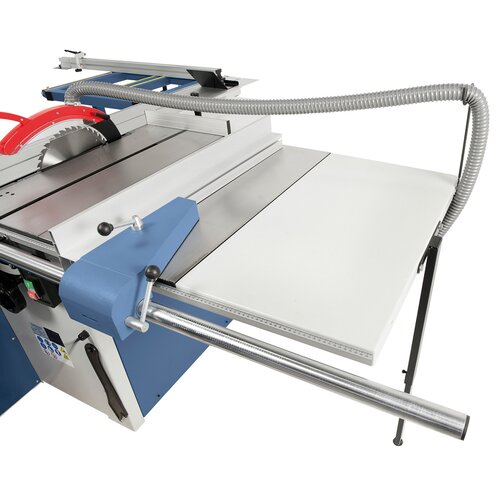

Parallel fence with solid round rod guide (40 mm) can be used for cutting width of up to 1200 mm.
Parallel fence with solid round rod guide (40 mm) can be used for cutting width of up to 1200 mm.

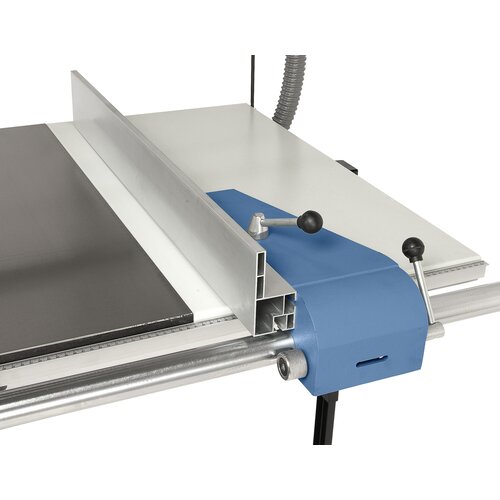

Tiltable parallel fence with micro-metric fine adjustment (advantage with large panels).
Tiltable parallel fence with micro-metric fine adjustment (advantage with large panels).

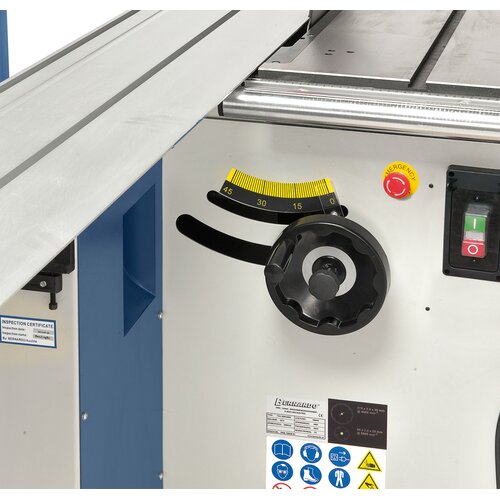

Practically positioned handwheel guarantees quick and easy sawblade height adjustment.
Practically positioned handwheel guarantees quick and easy sawblade height adjustment.

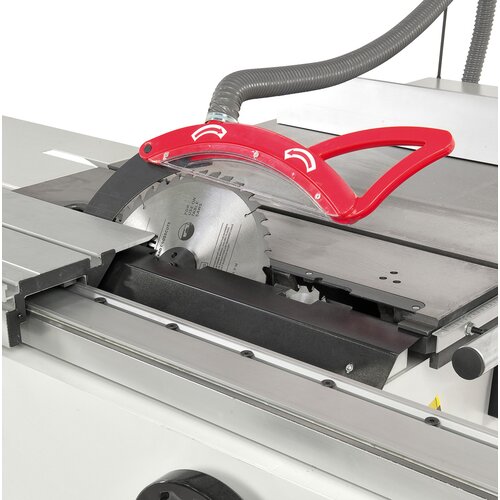

Sawblade cover, featuring integrated dust port, connected to riving knife. Standard equipment includes scoring unit.
Sawblade cover, featuring integrated dust port, connected to riving knife. Standard equipment includes scoring unit.
The steplessly tiltable telescopic fence (2x 45°) can be mounted at the front or rear of the square table.
Mitre fence for small workpieces, movable along entire table length.
Parallel fence with solid round rod guide (40 mm) can be used for cutting width of up to 1200 mm.
Tiltable parallel fence with micro-metric fine adjustment (advantage with large panels).
Practically positioned handwheel guarantees quick and easy sawblade height adjustment.
Sawblade cover, featuring integrated dust port, connected to riving knife. Standard equipment includes scoring unit.

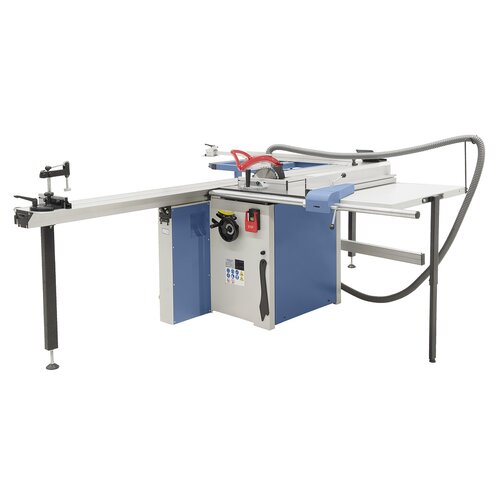

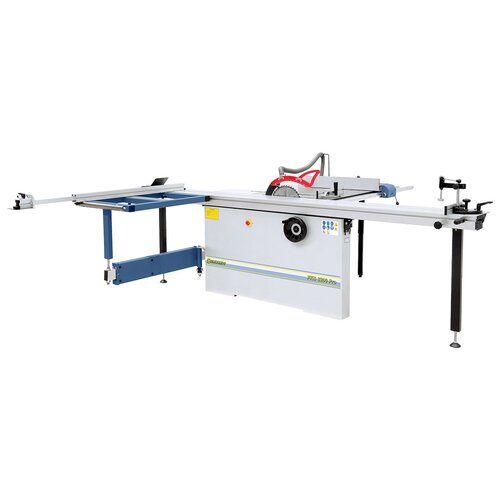

Sliding table saw FKS 3200 Pro / 400 V

Art.Nr.: 09-1128
Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The FKS-series sliding table saws are available with a table length of 2600, 2800 or 3200 mm. Part of the standard equipment is a 3.8 kW motor, a sawblade (diameter 315 mm) for cutting height up to 100 mm and scoring unit for smooth processing of coated materials.

€4,068.00

incl. 20% VAT

Availability

Out of Stock

Product Properties

  • Important feature: Sawblade diameter 315 mm can be used when scoring unit is mounted
  • Solid square table with roller and telescopic arm guarantee high stability
  • Anodized aluminium sliding table available in three lengths
  • Powerful drive motor for constant cutting speed, even at cutting height of 100 mm
  • Mitre fence and downholder can be moved along entire table length
  • Amply sized work table and table extensions for cutting width up to 1200 mm come standard
  • Extractable telescopic fence (up to 2260 mm) mountable at front or rear of square table, steplessly tiltable from 90º to 45º
  • Aluminium parallel fence with micrometric fine adjustment and integrated magnifying glass
  • Solid saw unit guarantees precise work, free from vibrations

Product Specifications

Table size

800 x 380 mm

Sliding table

3200 x 270 mm

Cutting length

3200 mm

Max. sawblade diameter

315 x 30 mm

Max. cutting height 90° / 45°

100 / 80 mm

Cutting width on rip fence

1200 mm

Table height

870 mm

Table extension

500 x 310 mm

Table enlargement

800 x 880 mm

Square table with roller

880 x 580 mm

Speed main sawblade

4000 rpm

Speed scoring sawblade

5800 rpm

Scoring sawblade

90 x 20 mm

Dust extraction outlet

100 mm

Motor power output S1 100%

3,8 kW (5,1 HP)

Motor power input S6 40%

5,3 kW (7,2 HP)

Voltage

400 V

Machine dimension (W x D x H)

3200 x 2900 x 1180 mm

Weight approx.

330 kg

Delivery Contents

  • Carbide sawblade 315 x 3,0 x 30 mm / 40T
  • Scoring sawblade 90 x 3,0 x 20 mm / 12T
  • Protective cover with dust extraction outlet
  • Connector hose with Y-piece
  • Mitre fence with eccentric holder
  • Mitre fence
  • End stop
  • Table extension
  • Table enlargement
  • Rip fence
  • Extractble telescopic fence
  • Stop with fine adjustment
  • Square table
  • Push handle
  • Push stick
  • Tools
