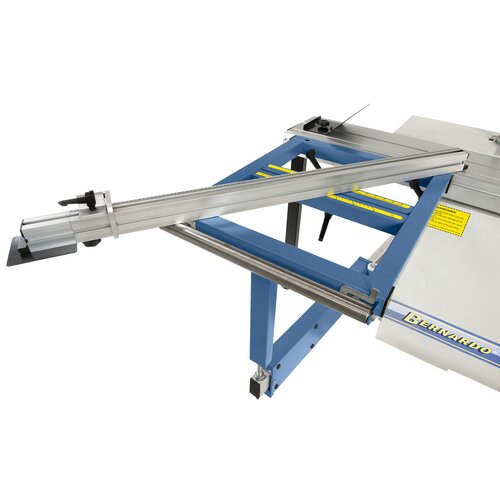

The steplessly tiltable telescopic fence (2x 45°) can be mounted at the front or rear of the square table.

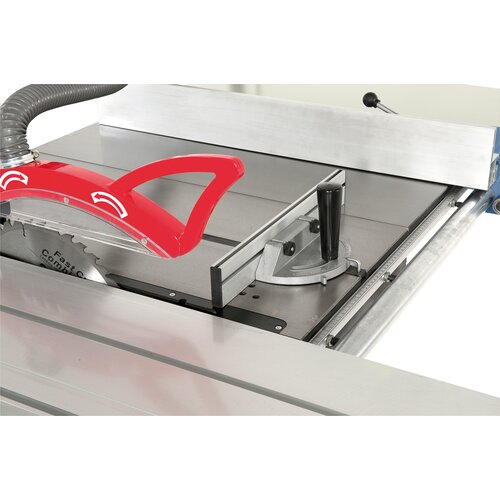

Mitre fence for small workpieces, movable along entire table length.

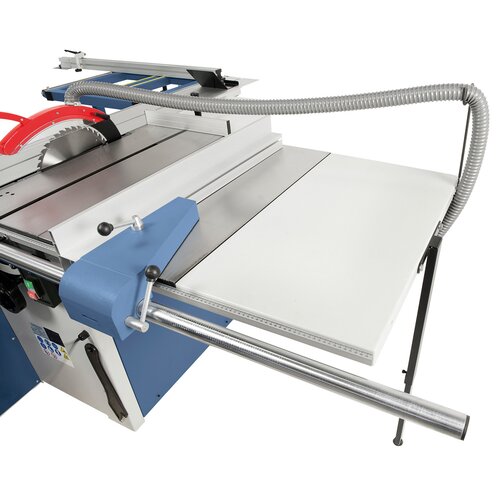

Parallel fence with solid round rod guide (40 mm) can be used for cutting width of up to 1200 mm.

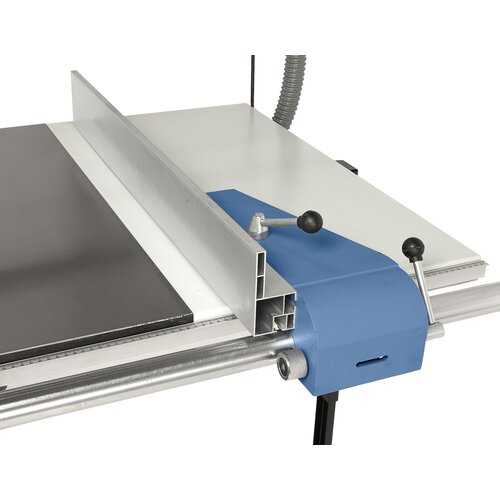

Tiltable parallel fence with micro-metric fine adjustment (advantage with large panels).

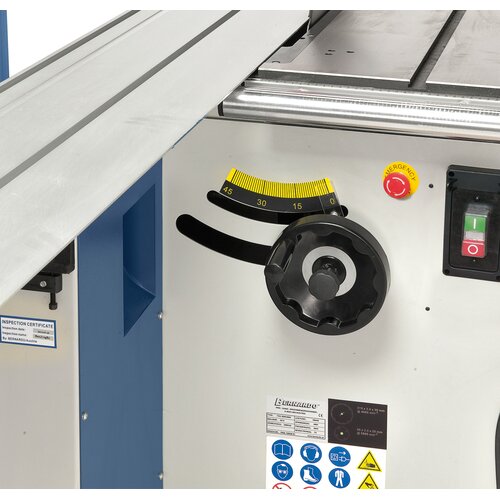

Practically positioned handwheel guarantees quick and easy sawblade height adjustment.

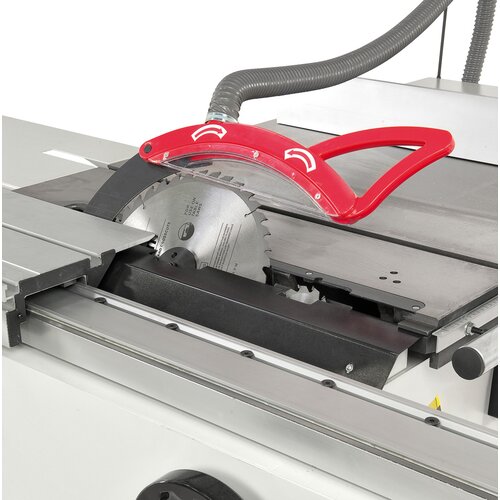

Sawblade cover, featuring integrated dust port, connected to riving knife. Standard equipment includes scoring unit.

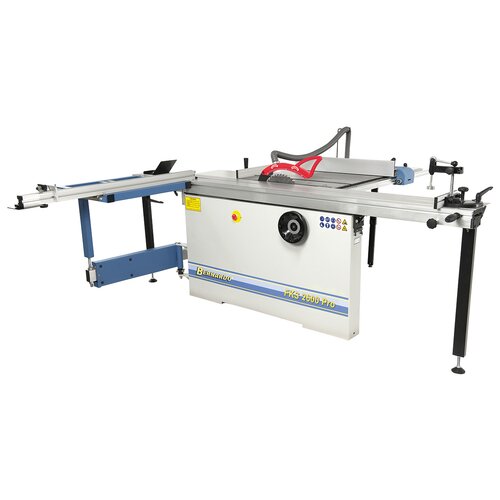

Sliding table saw FKS 2600 Pro / 400 V

Art.Nr.: 09-1126

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The FKS-series sliding table saws are available with a table length of 2600, 2800 or 3200 mm. Part of the standard equipment is a 3.8 kW motor, a sawblade (diameter 315 mm) for cutting height up to 100 mm and scoring unit for smooth processing of coated materials.

€3,780.00

incl. 20% VAT

Availability

Out of Stock

Product Properties

Important feature: Sawblade diameter 315 mm can be used when scoring unit is mounted
Solid square table with roller and telescopic arm guarantee high stability
Anodized aluminium sliding table available in three lengths
Powerful drive motor for constant cutting speed, even at cutting height of 100 mm
Mitre fence and downholder can be moved along entire table length
Amply sized work table and table extensions for cutting width up to 1200 mm come standard
Extractable telescopic fence (up to 2260 mm) mountable at front or rear of square table, steplessly tiltable from 90º to 45º
Aluminium parallel fence with micrometric fine adjustment and integrated magnifying glass
Solid saw unit guarantees precise work, free from vibrations

Product Specifications

Table size	800 x 380 mm
Sliding table	2600 x 270 mm
Cutting length	2600 mm
Max. sawblade diameter	315 x 30 mm
Max. cutting height 90° / 45°	100 / 80 mm
Cutting width on rip fence	1200 mm
Table height	870 mm
Table extension	500 x 310 mm
Table enlargement	800 x 880 mm
Square table with roller	700 x 580 mm
Speed main sawblade	4000 rpm
Speed scoring sawblade	5800 rpm
Scoring sawblade	90 x 20 mm
Dust extraction outlet	100 mm
Motor power output S₁ 100%	3,8 kW (5,1 HP)
Motor power input S₆ 40%	5,3 kW (7,2 HP)
Voltage	400 V
Machine dimension (W x D x H)	2600 x 2900 x 1180 mm
Weight approx.	318 kg
