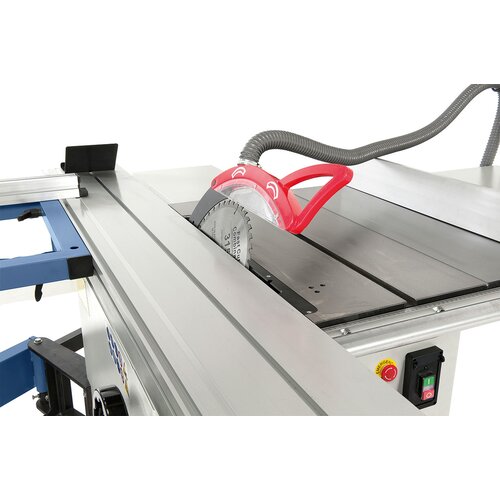

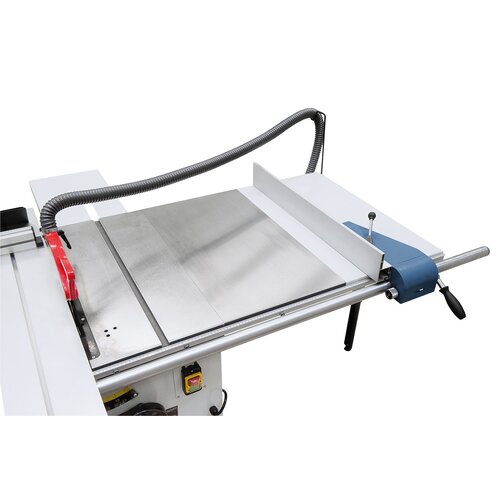

The amply sized work table includes table extension for cutting width up to 1200 mm.

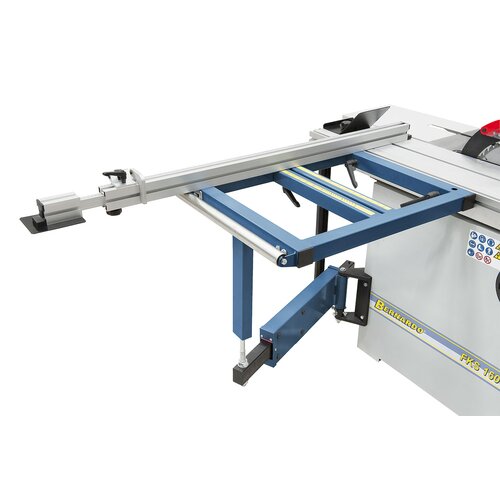

Square table with roll ensures convenient machining of large workpieces.

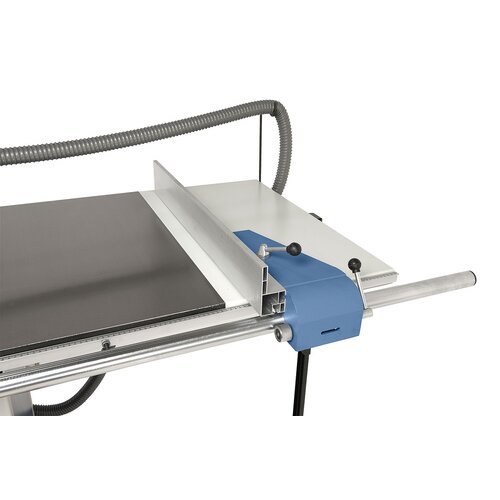

25 mm round rod allows for precise guiding of aluminium parallel fence.

Tiltable parallel fence with micro-metric fine adjustment (advantage with large panels).

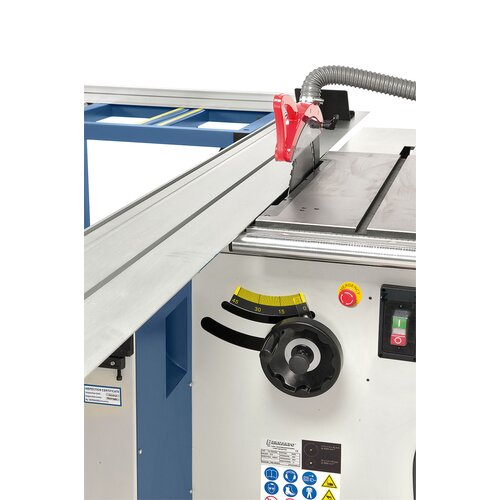

Practically positioned handwheel guarantees quick and easy sawblade height adjustment.

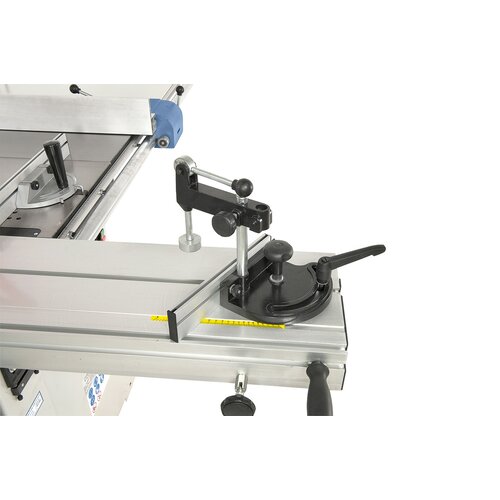

Easy adjustment of the mitre fence by a scale incorporated in the table

The amply sized sliding table runs smoothly and maintenance-free on hardened prism-shaped guide.

Complete with scoring unit for burr-free processing of panels.

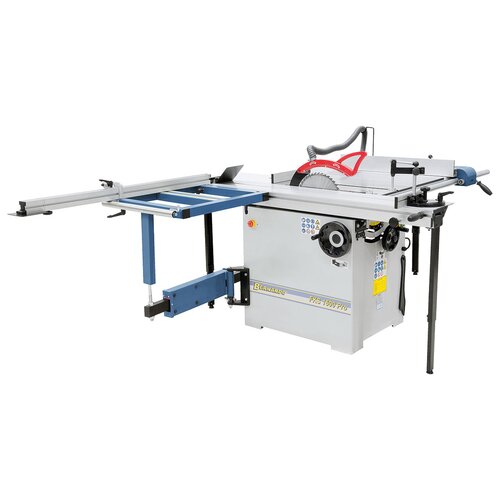

Sliding table saw FKS 1600 Pro / 400 V

Art.Nr.: 09-1124

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

Many cutting tasks require the use of small and precise circular saws. This machine is often used in addition to large sliding table saws and ask for the same requirements such as precision, high user comfort, short conversion time and versatility. The BERNARDO circular saw FKS 1600 meet all these demands without sacrificing the aluminium sliding table which offers a lot of convenience when processing smaller workpieces.

€3,228.00

incl. 20% VAT

Availability

In Stock

Deliverable in 2-3 business days

Product Properties

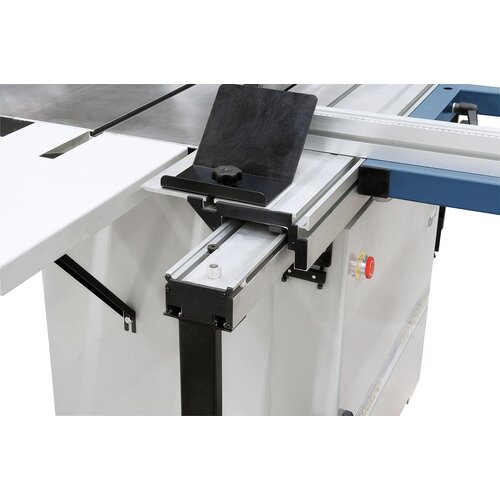

Extractable telescopic fence (up to 2260 mm) mountable at front or rear of square table, steplessly tiltable from 90º to 45º

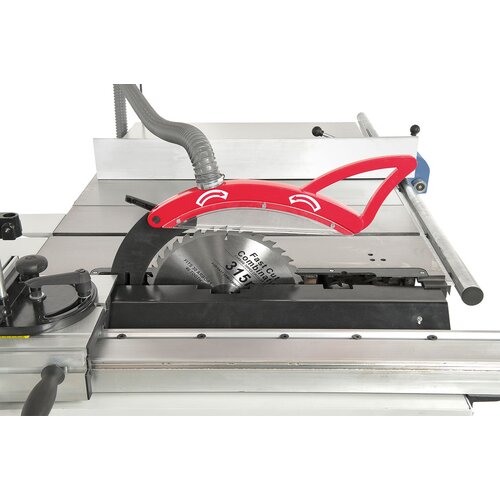

Important feature: Sawblade diameter 315 mm can be used when scoring unit is mounted
Amply sized work table and table extensions for cutting width up to 1200 mm come standard
Powerful drive motor for constant cutting speed, even at cutting height of 100 mm
Mitre fence and downholder can be moved along entire table length
Aluminium parallel fence with micrometric fine adjustment and integrated magnifying glass
Solid saw unit guarantees precise work, free from vibrations
Solid square table with roller and telescopic arm guarantee high stability
Anodized aluminium sliding table available in two lengths

Product Specifications

Table size	800 x 380 mm
Sliding table	1600 x 270 mm
Cutting length	1600 mm
Max. sawblade diameter	315 x 30 mm
Max. cutting height 90° / 45°	100 / 80 mm
Cutting width on rip fence	1200 mm
Table height	870 mm
Table extension	500 x 310 mm
Table enlargement	800 x 880 mm
Square table with roller	700 x 580 mm
Speed main sawblade	4000 rpm
Speed scoring sawblade	5800 rpm
Scoring sawblade	90 x 20 mm
Dust extraction outlet	100 mm
Motor power output S₁ 100%	3,8 kW (5,1 HP)
Motor power input S₆ 40%	5,3 kW (7,2 HP)
Voltage	400 V
Machine dimension (W x D x H)	1700 x 2800 x 1180 mm
Weight approx.	255 kg
