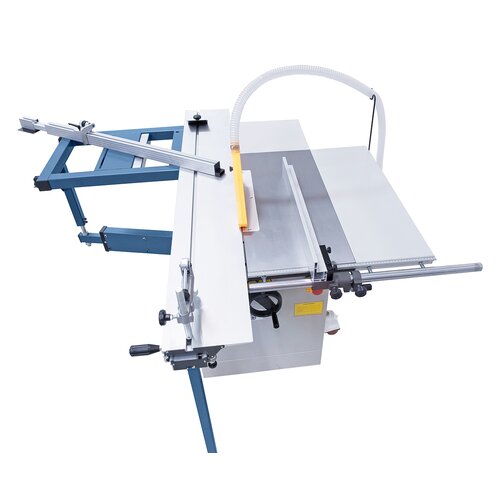

The smooth running sliding table features an additional tilting support arm to allow for processing of large panels.

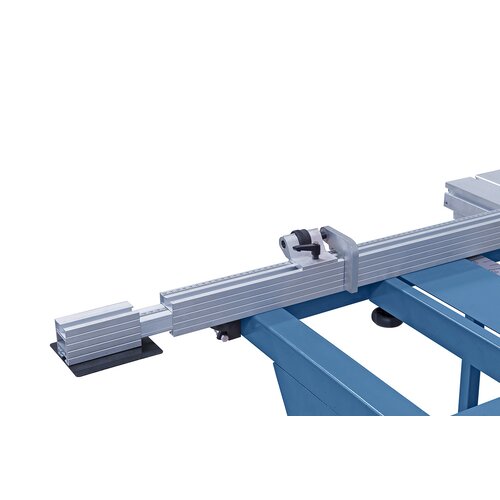

Extractable telescopic fence up to 1900 mm and stop featuring fine adjustment.

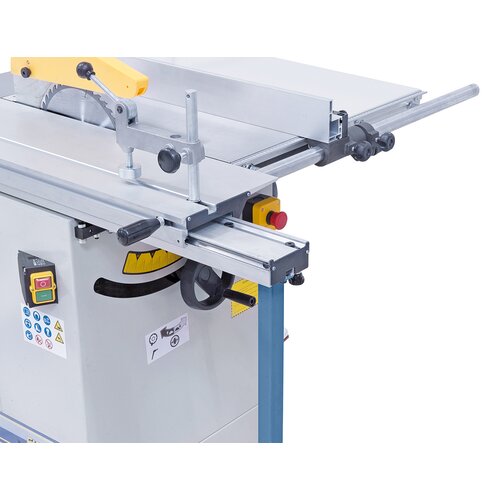

Exzenterspanner im Lieferumfang enthalten.

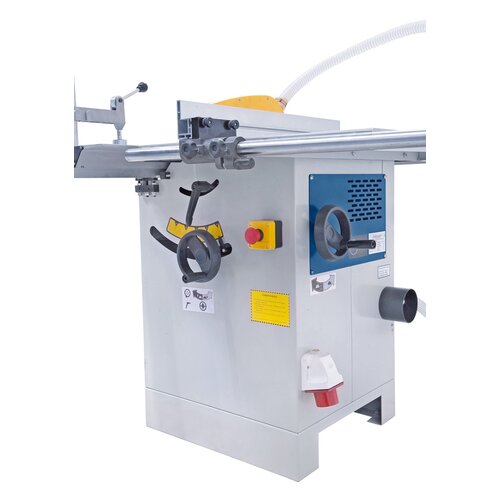

Ergonomic mounted handwheels allow for height adjustment and tilting of the saw unit.

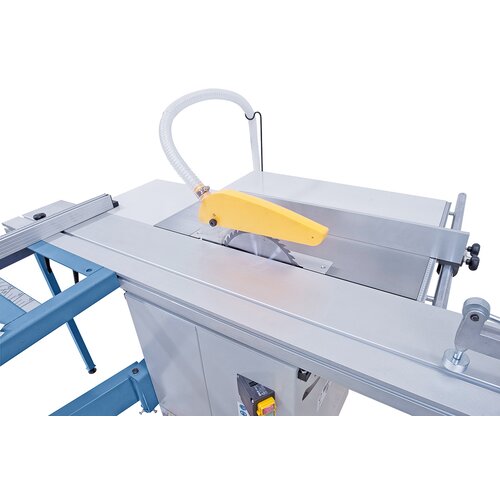

Sawblade cover - with integrated dust port - connected at riving knife.

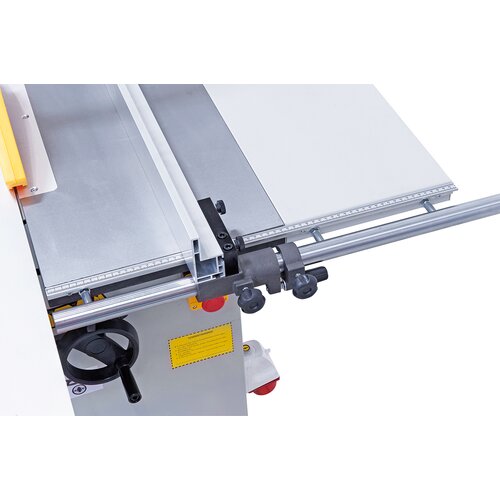

Parallel fence with quick and fine adjustment for cutting width up to 620 mm.

Complete with robust parallel fence, 30 mm round rod guide designed for heavy work loads.

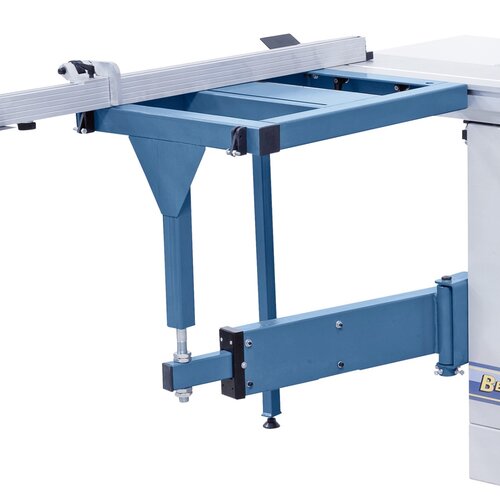

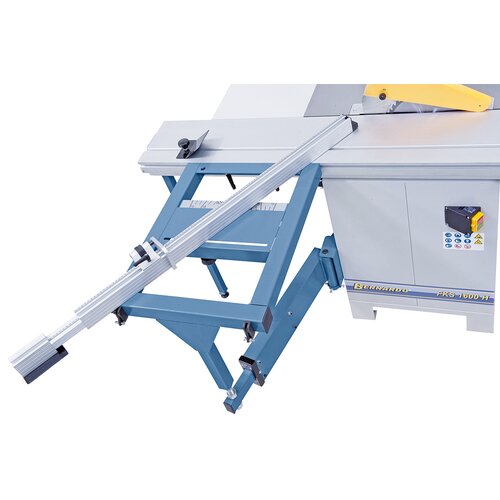

Steplessly tiltable telescopic arm (2 x 45º) can be mounted at front or rear of square table.

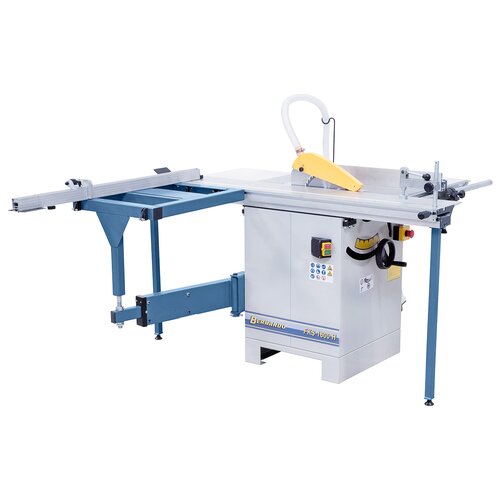

Sliding table saw FKS 1600 H / 400 V *

Art.Nr.: 09-1101

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The FKS 1600 H is the ideal sliding table saw for the price-conscious experienced amateur. State-of-the-art technical solutions such as compact dimensions, high performance and user-friendly operation make this model unique. Complete with aluminium sliding table and solid square table to allow for processing of large panels.

€2,424.00

incl. 20% VAT

Availability

In Stock

Deliverable in 2-3 business days

Product Properties

Complete with aluminium sliding table with a surface of 1600 x 240 mm
Ensure optimal work conditions by connecting a dust collector to the 100 mm dust port
Includes solid telescopic arm and square table which can be moved longitudinally
Anodized aluminium sliding table with hardened guide rails
Extractable telescopic fence, mountable at front or rear of square table
Handwheel and scale allow for up to 45° sawblade tilt
Part of equipment are table extension and enlargement for better support of larger panels
Amply sized grey cast-iron machine table, built with top accuracy and polished surfaces
Powerful drive motor for constant cutting speed, even at cutting height of 75 mm
Aluminium rip fence with fine adjustment and precise round rod guide (30 mm)

Product Specifications

Table size	790 x 350 mm
Sliding table	1600 x 240 mm
Cutting length	1600 mm
Max. sawblade diameter	254 x 30 mm
Max. cutting height 90° / 45°	75 / 60 mm
Cutting width on rip fence	620 mm
Table height	815 mm
Table extension	350 x 350 mm
Table enlargement	790 x 270 mm
Square table	600 x 480 mm
Speed main sawblade	4000 rpm
Dust extraction outlet	100 mm
Motor power output S₁ 100%	2,2 kW (3,0 HP)
Motor power input S₆ 40%	3,0 kW (4,0 HP)
Voltage	400 V
Machine dimension (W x D x H)	1600 x 1700 x 1000 mm
Weight approx.	150 kg
